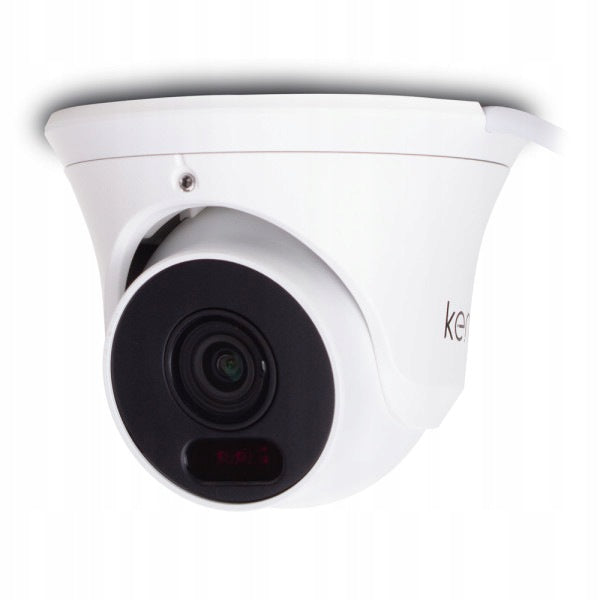

Stebėjimo kamera KENIK KG-D30HD-IW-W, 4 viename

Trumpai apie prekę

Prekė: Stebėjimo kamera KENIK KG-D30HD-IW-W, 4 viename. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-D30HD-IW-W

4IN1 CAMERA KENIK KG-D30HD-IW-W

4IN1 CAMERA KENIK KG-D30HD-IW-W

The most important features

• Ability to work in four modes: AHD/CVI/TVI/analog
• High image resolution: 2MPX - 1920x1080 (for analog - 960H)
• Sony Starvis Transducer
• WDR (120dB)
• Long transmission range (up to 500m) using 75Ω coaxial cable (applies to AHD/CVI/TVI mode)
• Remote Controlled OSD Menu
• Smart IR infrared reflector with a range of up to 30m
• 2.8mm (F1.6) lens
• Additional Features: ICR, 3DNR, BLC, Defog, Privacy Zones
• High protection class IP67 enclosure

Purpose

The camera works with DVRs in any HD technology, i.e. AHD, CVI, TVI. It also has the ability to work in a traditional analog system. It is designed for internal and external installation.

​

Description

The Kenik KG-D30HD-IW-W camera is equipped with the latest SONY Starvis IMX307 sensor ideal for demanding surveillance systems. In AHD/CVI/TVI mode we get FULL HD resolution (1920x1080), so we can recognize even more details. Due to the high resolution of the image, it is especially recommended for installations requiring detailed supervision. Thanks to the use of excellent optics, the camera transmits an accurate image of the observed objects. The improved IMX307 Starvis converter with 2MPX resolution is perfect for all lighting conditions. The 2.8mm lens allows for a wide viewing angle of the camera. Visibility at night is provided by a modern infrared reflector with SMD diodes with a range of up to 30m. Thanks to this, monitoring is also effective in complete darkness in a given place.

Technologies

AHD/TVI/CVI technologies allow you to achieve high resolution FULL HD images using a standard coaxial cable and signal transmission without delay. Thanks to this, there is no need to replace the wiring in the existing monitoring system. We can easily upgrade it and enjoy much higher image quality compared to older analog systems. These technologies also have many advantages over advanced IP systems m.in.: ease of installation and configuration, no delays, longer signal transmission distance.

​

Choosing the mode of operation

The camera can be switched to the selected operating mode using a joystick located on the cable. Holding the button in a given direction for 5s automatically changes the technology to HD/CVI/TVI or analog.

​

Starlight Technology

The camera uses a high-sensitivity SONY Starvis sensor for good visibility even with minimal lighting. The STARLIGHT technology allows you to get a color image even in night conditions.

Additional camera features

3DNR noise reduction is responsible for improving image parameters in case of insufficient lighting

• Defog - allows you to reduce image haze
• True WDR (120dB) - allows you to get an image with even brightness in every part of the frame. It is necessary in places with very large differences in lighting levels in different areas
• D/N (Day/Night mode) - is responsible for automatically switching the camera between color mode and black and white mode in order to achieve the best quality of the displayed image. The ICR filter used further improves color reproduction during the day and the correct display of the image in night mode
• Privacy masks - responsible for creating and placing private/covered zones in the image

WDR

The WDR function allows you to get an image with even brightness in each part of the frame. It is necessary in places with very large differences in lighting levels in different areas. Cameras with WDR will be particularly used in entrances to buildings, glazed walls, etc.

​

Smart IR Headlamp

The Kenik camera uses a modern infrared reflector based on SMD diodes for visibility in complete darkness. It is characterized by lower energy consumption, as well as stronger and more even illumination compared to standard diodes. In addition, the Smart IR radiator does not cause overexposure of the image in places where the object is in close proximity to the camera.

​

Lens

The optics element is an indispensable element of any camera. The focal length of the lens determines the angle of view of the camera - the lower the focal length, the greater the viewing angle. The highest quality lenses are made of glass.

​

CAMERA IN METAL HOUSING

The housing of the Kenik camera is made of aluminum alloy, which provides protection against acts of vandalism. The design allows the camera to work in outdoor conditions, it is resistant to changing weather conditions.

​

SIGNAL TRANSMISSION

Signal transmission in HD resolution via coaxial cable up to 500m, using Cat-5e computer twisted pair cable up to 300m.

​

Accessories:

Technical specification:

KG-D30HD-IW-WConverter1/2.8" CMOS Sony STARVIS IMX307SystemNTSC/PALResolution1920x1080Electronic shutterAUTO /1/50（1/60）-1/50,000sSensitivity0.01LuxFrame numberPAL/NTSC:25/30 fpsVideo outputAHD / TVI / CVI / CVBSFeaturesS/N>55dBNoise reduction2D/3D DNRDspend/Nightcolor /B&W/ AUTO / EXTWDR120dBBalans whiteAutoAGCAutoRange IRdo 30mLens focal length2.8mm F1.6Viewing angleH:106ºType of assemblyM12General tightness classIP67HousingMetalPower supply voltageDC12V(+/-10%)Power consumption＜5WWorking conditions—40~+60º RH95% max.Dimensions￠102 x 82.4mm Weight350g

Advantages of the Kenik Camera Multipack:

• Economy: The purchase of Kenik camera multipacks from the official distributor allows you to obtain an attractive unit price, which translates into significant savings for larger projects.
• Availability in stock: With more cameras always at hand, you avoid downtime caused by a lack of equipment, which is especially important when replacing or installing additional ones.
• Support for large projects: Bulk packaging ensures that the right number of cameras are available in a short time, which is ideal for large surveillance projects.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5908231255112
Parametry	Manufacturer code	KG-D30HD-IW-W
Parametry	Brand	KENIK
Parametry	Model	KG-D30HD-IW-W
Parametry	Batteries included	no
