Stebėjimo IP kamera 5MPx, PoE, 2.8 mm objektyvas, su garsu, IP67 kupolo tipo

Trumpai apie prekę

Prekė: Stebėjimo IP kamera 5MPx, PoE, 2.8 mm objektyvas, su garsu, IP67 kupolo tipo. Kategorija: IP kameros.

• Gamintojas: Zintronic
• Modelis: D5 Biała

The subject of the auction is a professional IP camera D5 5MPx based on the branded Sony IMX335 Starvis converter. The model is valued for its stability, very good image quality and solid metal housing.

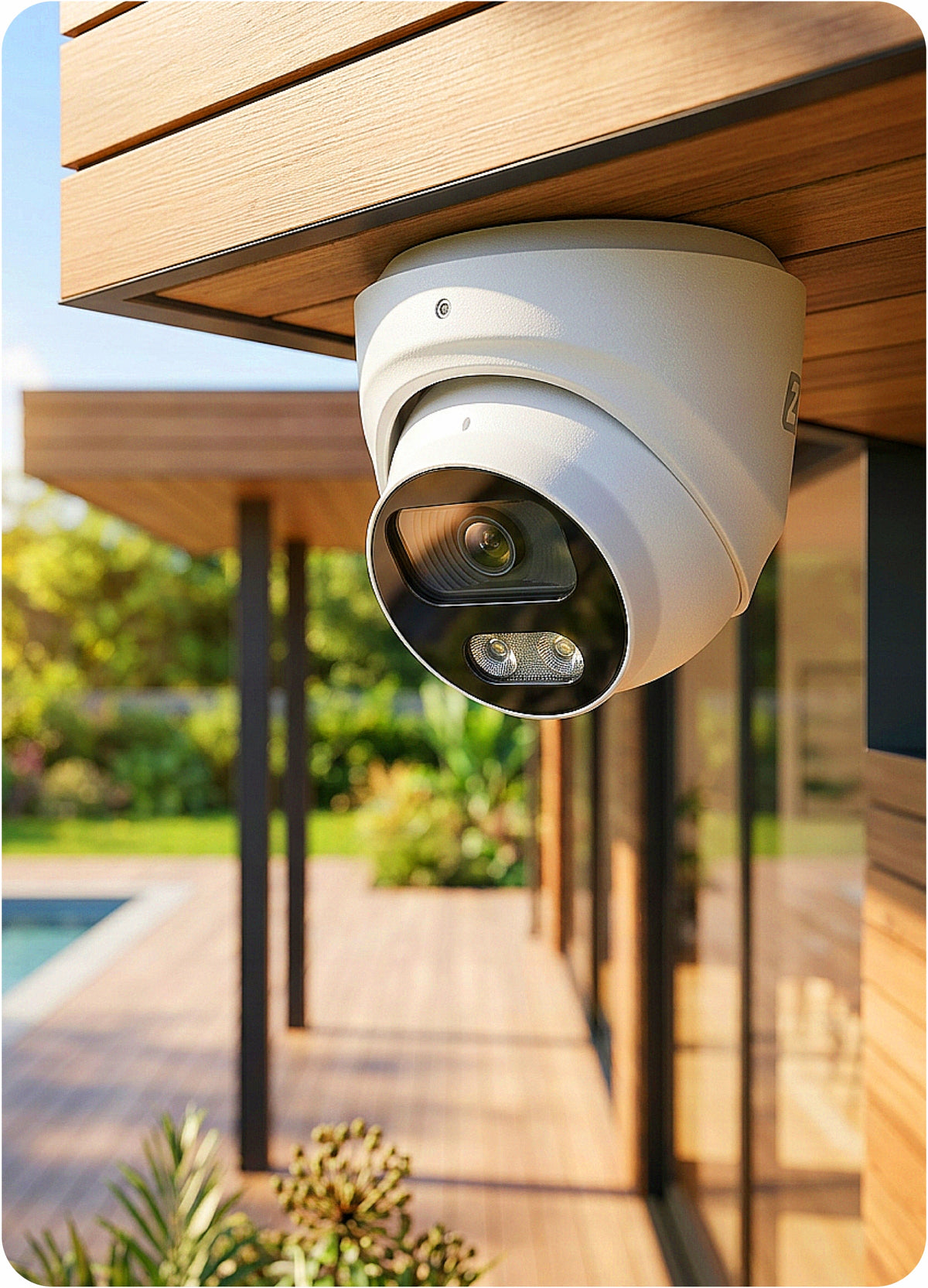

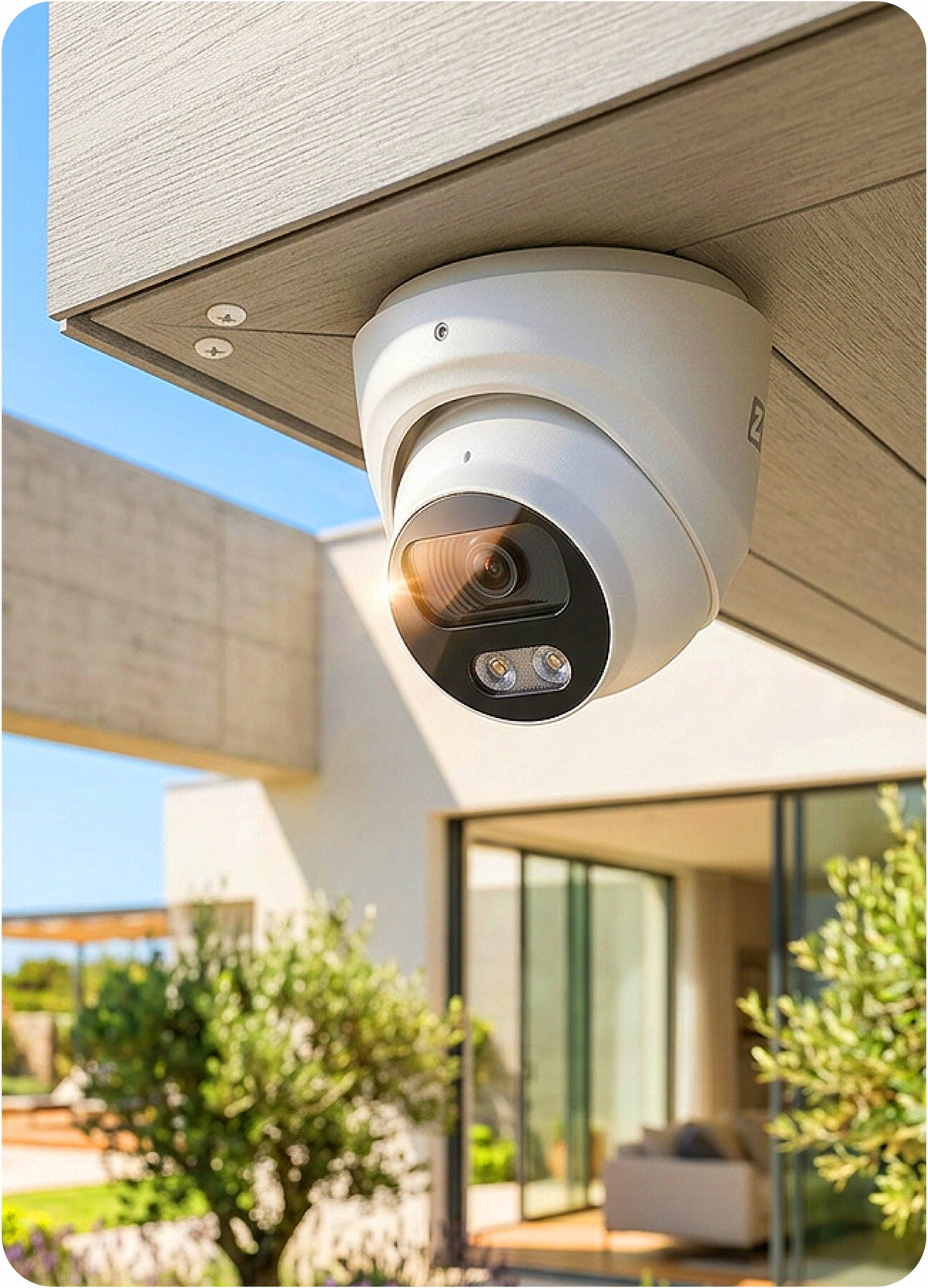

The camera is universal adapted for mounting both inside and outside buildings and for conducting observations around the clock.

____________________________

💡 Excellent value for money

The use of branded components makes the camera effectively compete with solutions of well-known brands,

🎯 The most important advantages of the camera

✅ 5MPx resolution (2592×1944 @ 25 fps)

✅ Sony IMX335 – natural colours and details

✅ Dual Light – IR + LED up to 30m (color at night)

✅ Audio recording from cameras (microphone)

✅ 2.8 mm lens – 109° wide viewing angle

✅ Intelligent detection of people and vehicles (AI)

✅ Smart functions - Line, intrusion, sabotage

✅ Support: browser / PC / apk. mobile.

✅ ONVIF - compatible with DVRs

✅ Metal housing (IP67)

✅ PoE power supply – 1 cable for image and power supply

🎧 Technical support: Contact with a real specialist

🟢 LIVE VIEW FROM ANYWHERE - multiple users

Have a constant view of your cameras, no matter where you are – at home, at work or away.

You can add any number of users – e.g. wife, children, father-in-law or other household. Each of them can have a permanent live view on your phone or computer, from anywhere

📺TV | Computer 💻| Smartphone 📱| Tablet:

• TV / Monitor – directly through the DVR
• Computer – through a browser on a local network, program iVMS-320
• Phone / Tablet – intuitive application V247 or Bitvision

🔗 ONVIF - Cooperation with the registrar

The camera complies with the ONVIF standard, thanks to which it easily works with Zintronic recorders and other brands, including Hikvision/ Dahua / Apti.

It enables easy integration with a new or existing monitoring system without the need to replace the entire infrastructure.

⚡ PoE power supply – one cable, maximum convenience

Thanks to Power over Ethernet technology, one UTP twisted pair transmits image and power simultaneously. This is:

• simpler and faster installation,
• less cables and lower installation costs,
• No need for additional power supplies for cameras.

✅ SONY STARVIS IMX335 – branded converter that makes a difference

The model is based on the original SONY STARVIS IMX335 sensor, which provides clean, detailed image and clearly exceeds the cheap, brandless sensors used in budget cameras.

🎯 Why choose IMX335?

• Real resolution 5MP (2592 × 1944 @25 fps. /s) high detail without artificial sharpening and loss of quality.
• Better readability of details clearer license plates, faces and small elements.
• Natural color reproduction good tonal dynamics and no "washed" colors.
• Stable, repeatable image quality
• Full liquidity 25 class /s natural, smooth movement without the effect of “jumping” the image – crucial when recording dynamic events.

This is an investment in actual image quality – not just the number of megapixels on paper.

👁 Wide viewing angle

The camera offers a wide-angle image with a viewing angle of 109°, which allows you to cover a large area with one camera.

Fewer dead zones means more effective monitoring of the driveway, garden or entrance to the building without the need for additional cameras.

🧠 Intelligent detection of people and vehicles

The advanced AI image analysis used in cameras allows for precise discrimination of human and vehicle silhouettes, eliminating false alarms caused by animals, rain or moving branches.

The system responds only to real threats – it detects people and cars, marks them in the image and immediately sends notifications. Thanks to this, you have full control over what is happening on the property, both during the day and at night.

🚧 Crossing the line – intelligent access control

The camera monitors the image in real time and activates the alarm when the user crosses the virtual line designated by the user.

It is an ideal solution for protecting entrances, gates, entrances or technical passages. The feature allows you to quickly respond to unauthorized traffic and maintain full control over the protected area.

🚨 Intrusion detection

The recorder allows you to designate a virtual zone around your home, business or property (e.g. under the window, by the fence or in the parking lot).

The camera recognizes a person’s intrusion into the designated area, ignoring accidental background movement.

This allows us to focus on what is most important: protecting our property.

🛠 Protection against camera tampering

The system automatically detects attempts to cover, rearrange or attempt to damage the camera. If such an event is detected, the user immediately receives a notification, which allows him to react quickly.

This function effectively protects our monitoring system from intentional damage.

🎙 Built-in microphone – audio recording

The camera is equipped with a built-in, discreet microphone, which allows recording of ambient sound along with a video image.

This means that the system records not only the image, but also audio, increasing the amount of available information and monitoring efficiency.

☀ WDR – wide dynamic range

WDR automatically brightens too dark places and darkens too bright, making the image clear, detailed and more natural.

This is especially important for:

• entrances to buildings
• reception with large glazing
• Entry gates
• warehouses with an open ramp

WDR increases the effectiveness of identification of persons and license plates in difficult lighting conditions.

🌙 Intelligent night light modes

The camera offers three intelligent night light modes that automatically adjust the way you work to the lighting conditions and detected events.

Thanks to this, it provides optimal visibility, clear image and effective identification of objects both in total darkness and in low light.

✅ IR mode (infrared)

After dark, the camera works in infrared mode, providing readable, black and white night vision. Intelligent image analysis allows you to detect motion without unnecessary ambient lighting.

✅ White light mode (night color)

When LED mode is activated, the camera illuminates the scene with white light, allowing full-color images also at night – the perfect solution for identifying details.

✅ Smart mode (IR + LED) 🧠💡

Default and most advanced operating mode:

• camera at night works in IR mode,
• when a human is detected, it automatically turns on the white light,
• image switches from black and white to color,
• light also has a deterrent function.

🌡 IP67 tightness and resistance to extreme temperatures

The camera is equipped with a metal, reinforced housing with IP67 protection class, which means full resistance to rain, snow, dust and harsh weather conditions.

You can safely mount it outside buildings – regardless of the weather.

In addition, the device operates in a wide temperature range from -30°C to +60°C, thanks to which it works reliably both during strong frost and summer heat.

Durable and leak-proof construction ensures:

• protection against moisture and dust
• fall from a height
• impact
• security of external installation

It is an ideal solution for external monitoring, even in demanding environments.

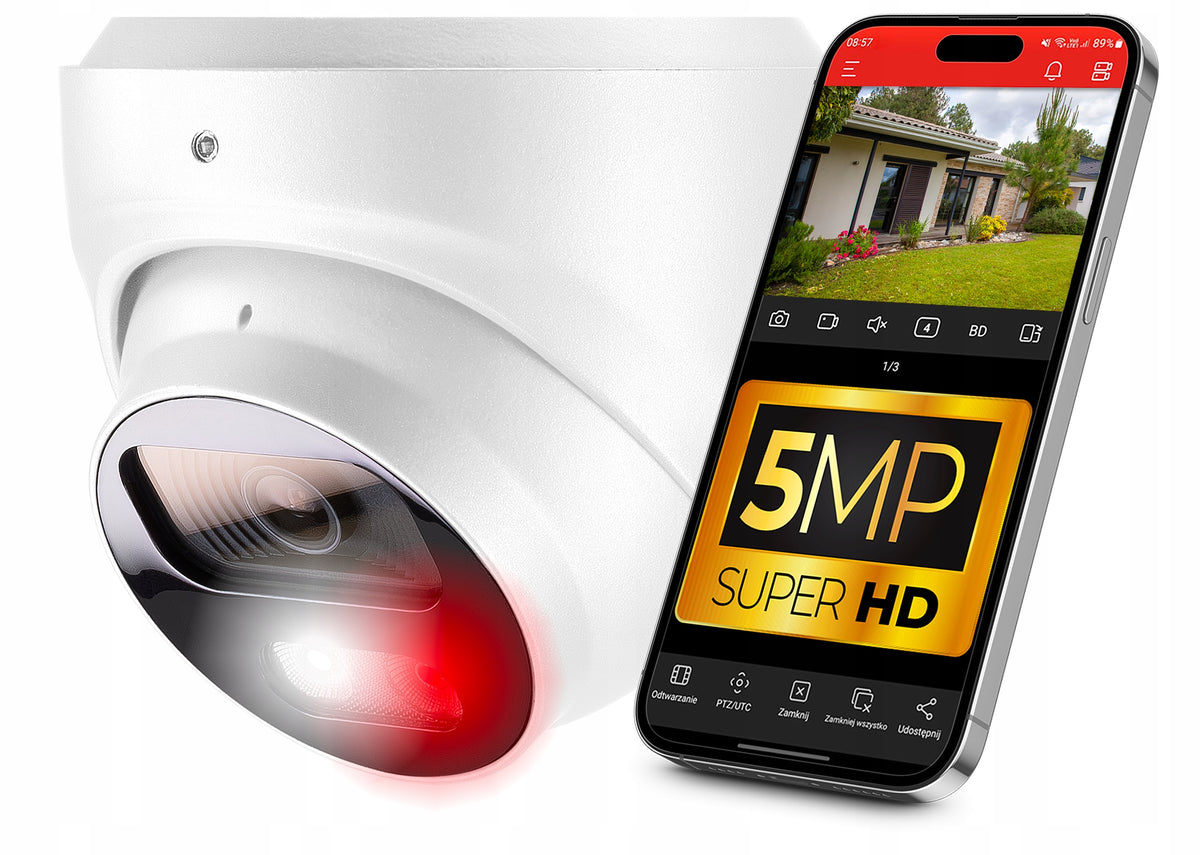

Mobile application – monitoring always at hand

Modern and flexible service! The device works with the latest V247 application, and for even greater convenience it also allows integration with the popular and valued BitVision application. Both applications are fully free, available in Polish and ensure stable operation.

They offer instant and easy ongoing preview of the image from the cameras and view the recorded recordings – no matter where you are. The intuitive and user-friendly interface makes monitoring extremely simple and transparent – also for people without prior experience. Each of the applications allows not only live preview, but also save photos and videos directly on your smartphone, so that you always have the most important recordings at hand.

Main functions of the application:

1. 📡 Live view from cameras from anywhere
2. 🔔 Real-time notifications about events
3. 💾 Browse recordings stored on the recorder disk
4. 🌍 Remote access to recordings from anywhere
5. 📷 Save photos and videos directly on your phone
6. 🔍 Digital image magnification (up to x8)
7. ⚙ Access to settings – full operation and configuration of cameras in the application

With the V247 or BitVision app, you get full control of your monitoring system – conveniently, safely and whenever you need it.

📱 The application works in both Android and iOS environments.

🎧🛠 Full technical support included in the price

We are a manufacturer of Zintronic equipment in Poland.

Together with the recorder, you get full technical support at every stage of use. We help in the configuration, connection of cameras and operation of the system – before and after purchase. Thanks to this, you can be sure that the monitoring will work properly and without unnecessary problems.

When you buy from us, you can be sure of:

• fast contact with Polish support
• real technical assistance
• availability parts and updates
• security purchase from the official channel.

We focus on long-term cooperation and real support.

🏅Certified quality and safety

Our camera meets European quality and safety standards, including CE and RoHS.

This is a guarantee that the device is safe in everyday use, compliant with applicable regulations and environmentally friendly.

• SKU: IKKP520V2
• Matrix: 1/2.8" SONY Starvis Back‐illuminated CMOS
• Transducer: IMX335
• Main Processor: NovaTek
• TV system: PAL/NTSC
• Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
• Recording resolution: 5MP/4MP/1080P/720P
• Main stream 1: 2592*1944@25kl/s
• Stream 2: 1280x720@25kl/s
• Fixed focal length: 2.8mm
• Viewing angle: About 109°
• Number of infrared LEDs: 14μ x 18PCS
• Night vision range: 30M
• Wew. SD card slot: none
• Built-in microphone: Yes (audio recording)
• Network connection: RJ-45 (10/100Base-T)
• Network protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP, DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP ONVIF: ONVIF 2.4
• P2P: Yes (supports OR cody)
• Supported browsers: IE8-11, Google Chrome (below ver.44), Firefox (below ver.53),
• SMART devices: iPhone, iPad, Android, Android Pad
• Phone app: V247 or Bitvision
• Day/night camera recording: Color/white-black(infrared)
• Image Configuration/Settings: Saturation/brightness/contrast/sharpness/mirror image/3D NR/White balance/FLK
• Anti-fog mode: Yes
• D-WDR - Wide range of lighting dynamics
• F-DNR (Defog) - Noise reduction related to precipitation
• 3D-DNR - Digital noise reduction in the image
• Ability to change resolution, quality and bandwidth
• ICR - Mechanical infrared filter
• Privacy Zone
• Mirror - Mirror image
• Day/night mode - configurable
• Flicker Control - Technology to eliminate eye-tiring flickering effect
• Sharpness - Sharpening the contours of the image
• Motion detection: Yes
• Privacy protection: Yes
• Recording options: NVR/NAS/CMS/Web
• Polish: Yes
• Power supply: DC12V/1A or POE
• Power consumption: ≤ 1.9 W
• Operating temperature: -20℃ ~ +60℃ RH95% Max
• Dimensions: ￠96 x 91(H) mm
• Weight: 0,60k

⚠ Note: The Poe camera does not have a power supply in the box, you can either power it from the Poe recorder or switch by connecting it with a LAN cable, or by buying the power supply separately.

Technical Drawing:

🧩 Expandable with additional accessories

You can easily retrofit the camera with dedicated accessories that increase functionality or convenience of installation:

m.in is available:

• IP or PoE recorders (9,16,32,64 channel) auction no.: 15623157906
• Dedicated mounting boxes for AKU1V1 cameras auction No.: 9652428780
• ORIB80V1 infrared illuminator, which increases the illumination range of the scene in the dark, auction no.: 12572014012
• Power supply 12V/1A/5.5 Auction no.: 17619106323
• PoE power supply Auction No.: 14323084598

(Photo is for illustrative purposes – cans are not included in the basic set)

📦 Contents of the pack:

1. Camera
2. Cable Security
3. Screws and bolts to screw the camera
4. Polish Manual

Specifications
