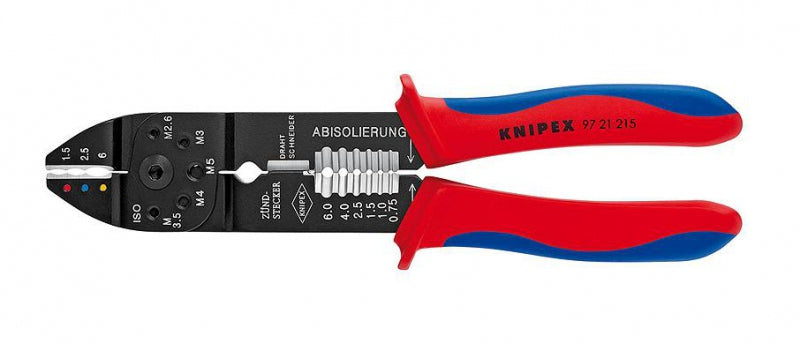

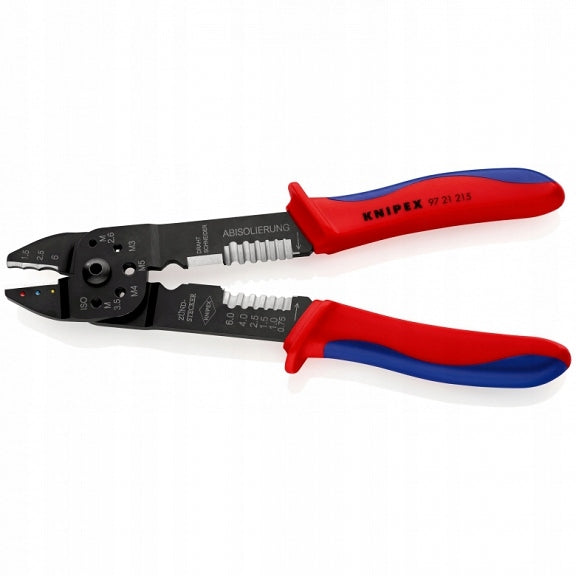

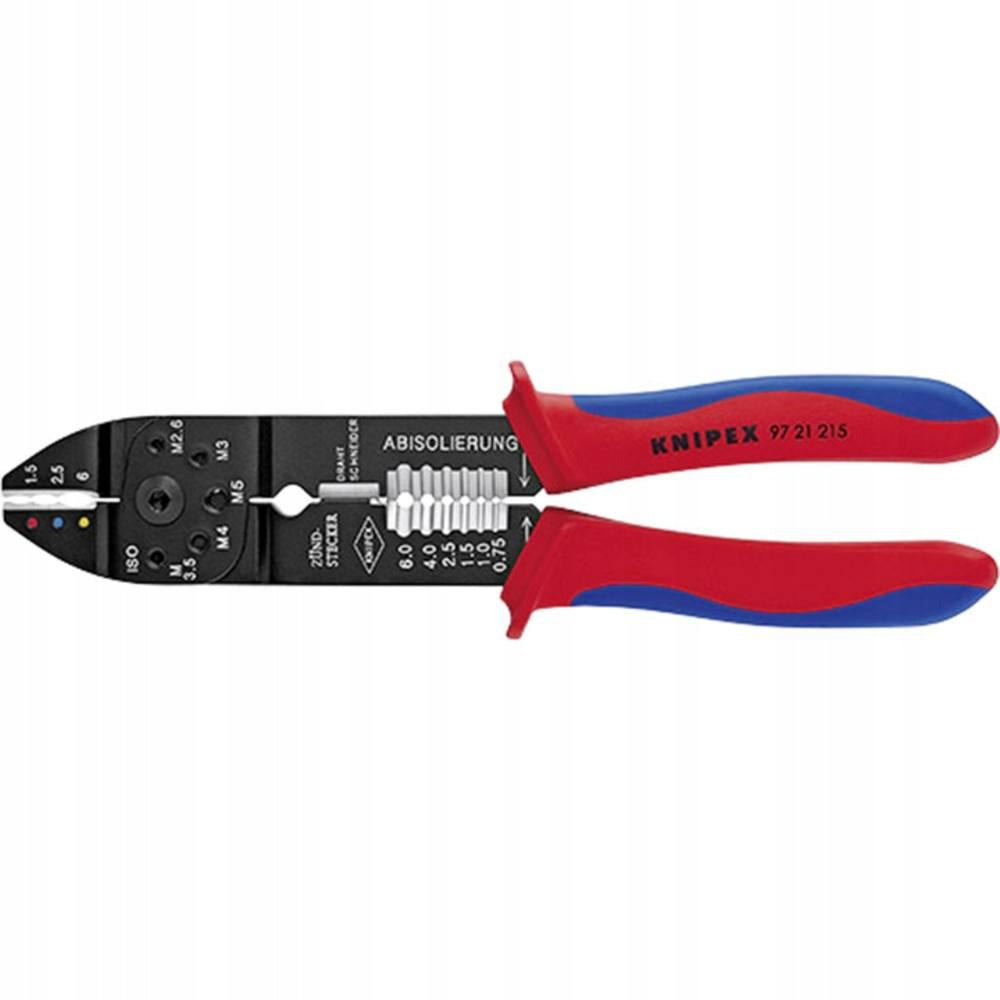

Spaudimo mašina kabelių antgaliams Knipex

Trumpai apie prekę

Prekė: Spaudimo mašina kabelių antgaliams Knipex. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 9721215
• Ilgis: 1 mm

Manufacturer: Knipex / Product number: 825479 / Product weight: 0.29kg / EAN: 4003773019688

Crank for insulated cable terminals/plug connector

For cutting cables, stripping insulation from wires and crimping insulated and non-insulated cable terminals and plug connectors and open plug connectors. With threaded holes for cutting screws without Cu or Ms head with M 2,6. M 3 M 3,5. M 4 and M 5. The screw joint ensures high stability and smooth operation. Special steel, high strength

Special features

• For cutting cables, stripping insulation from wires and crimping insulated and non-insulated cable terminals and plug connectors and open plug connectors
• With threaded holes for cutting copper and brass screws without head with diameter M 2,6 - M 3 - M 3,5 - M 4 and M 5
• The screw joint ensures high stability and smooth operation.
• Special steel, high strength

Characteristic

• For cutting cables, stripping wire insulation and crimping insulated and non-insulated cable terminals and plug connectors and open plug connectors
• With threaded holes for cutting copper and brass screws without head with diameter M 2,6 3,0 3,5 4,0 and 5,0 mm
• Special steel, high strength

Technical data

• Further technical data: Cable cross-sections: 0,75 - 6 mm²
• Insulation stripping: 0,75 - 6,0 mm²
• Screw shortening: M2,6 - M5
• Product Length: 230 mm
• Maximum cross-section of the crimped element: 6 mm²
• Maximum cross-section of crimped element (AWG standard): 10
• Material: special steel
• Minimum cross-section of crimped element: 0.75 mm²
• Minimum cross-section of crimped element (AWG standard): 18
• Material Specification: Oxidized
• Weight: 224 g
• Application: insulated cable terminals, male insulated connector
