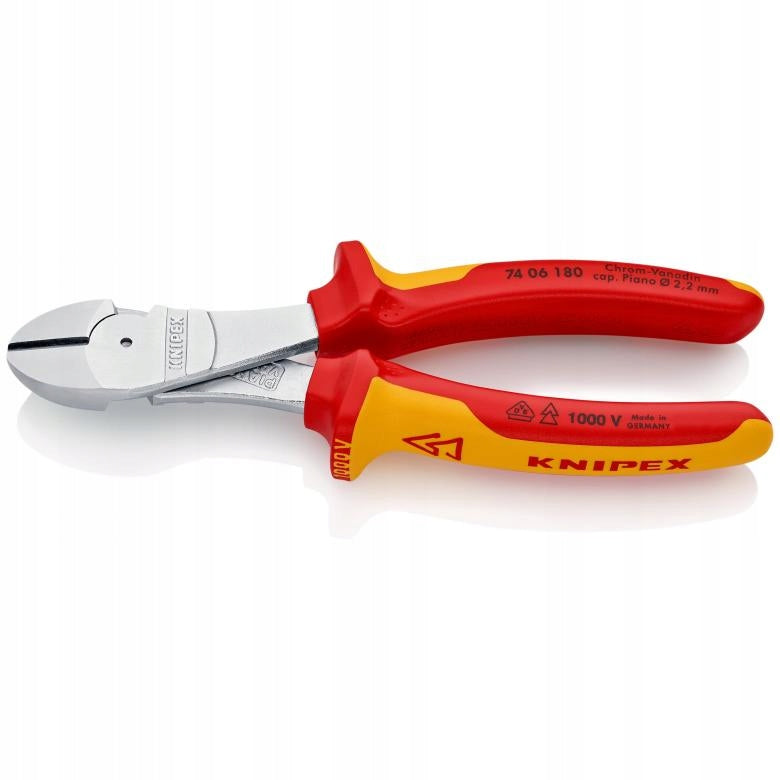

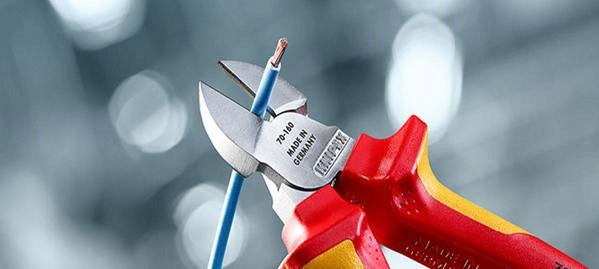

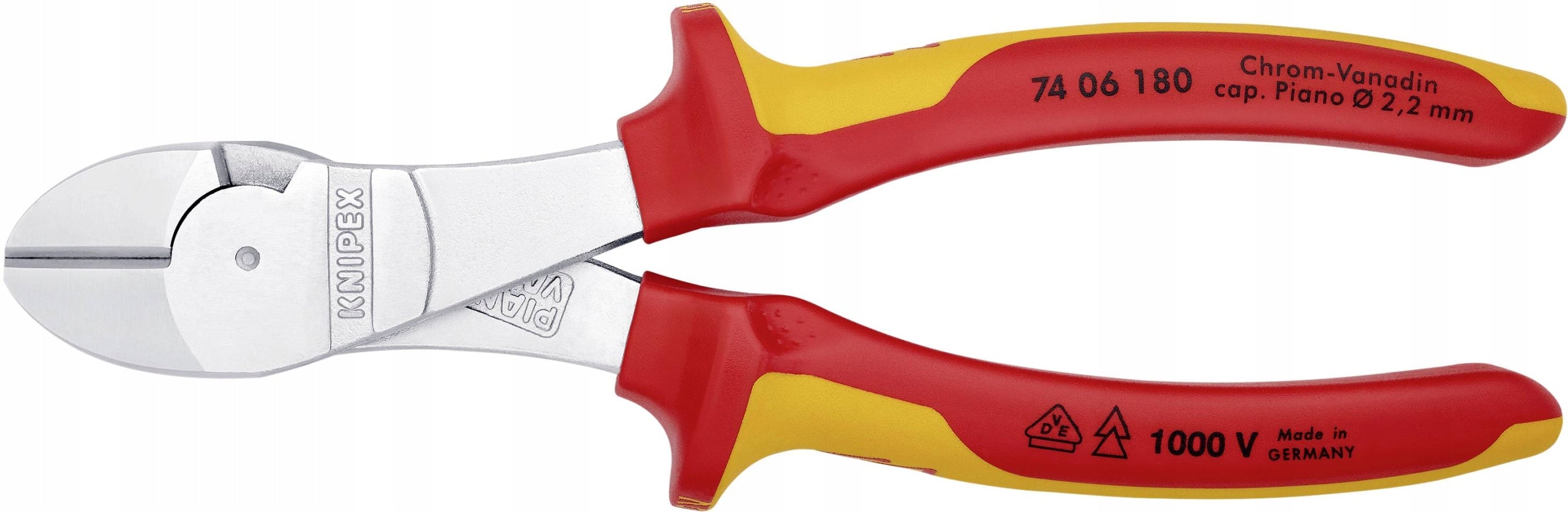

Šoninės replės Knipex 7406180, 180 mm, 64 HRC, VDE

Trumpai apie prekę

Prekė: Šoninės replės Knipex 7406180, 180 mm, 64 HRC, VDE. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 74 06 180
• Ilgis: 180 mm

Product information:

• reinforced VDE side cutting pliers by KNIPEX,
• of chrome vanadium high performance steel, oil-hardened and tempered - DIN ISO 5749,
• chrome-plated head,
• blades additionally inductively hardened (64 HRC),
• high strength gains,
• 20 % force savings thanks to a more favourable lever ratio compared to standard cutting side pliers of the same length,
• with a forged articulated axle for the largest loads,
• handles with multi-component plastic caps with recess and spray-on inscription,
• insulated up to 1000 V, according to IEC 60900, DIN EN 60900, VDE 0682/part 201.

Special features

• With forged joint axis for the toughest, long-lasting applications.
• optimal for all types of wire, including piano
• Optimal coordination of cutting angle and lever ratio ensures high cutting efficiency with minimal effort
• Blades additionally inductively hardened, blade hardness approx. 64 HRC
• Chrome vanadium steel, forged, oil hardened.

Characteristics

• With an articulated axle that works even under heavy loads
• Suitable for medium hard and very hard (piano) wire
• Inductively hardened precision blades with hardness approx. 64 HRC.

Technical data

• Product Length: 180 mm
• Material: chrome vanadium steel
• DIN standard: DIN ISO 5749, DIN EN 60900
• EN standard: EN 60900
• Material specification: tempered, chrome plated
• Pliers specification: with facet
• Cutting Hardness: 64 HRC
• Weight: 280 g
• Application of pliers: VDE
• Piano Wire Cutting Capacity: 2.2mm
• Hard wire cutting capacity: 2.7 mm
• Medium-hard wire cutting capacity: 3.8 mm
