Skaitmeninis universalus multimetras HABOTEST HT123

Trumpai apie prekę

Prekė: Skaitmeninis universalus multimetras HABOTEST HT123. Kategorija: Multimetrai.

• Gamintojas: Reball
• Modelis: APP0000153

XAPP0000153

⏩ ADVANTAGES

✔ COMPANY MODERN HABOTEST METER HT123

✔ IDEAL AUTOMATIC TROUBLE-FREE

✔ VERY SIMPLE OPERATION!

✔ LARGE EASY-TO-READ BACKLIT DISPLAY

✔ CABLE DETECTION

✔ BUILT-IN FLASHLIGHT

✔ COMPACT DIMENSIONS

AUTOMATIC METER HABOTEST HT123

SMART meter, for people who need to quickly and easily know the value of voltage, resistion, check the short circuit in the circuit, or detect wires in the wall.

Easy to use. You turn on and measure the basic values of alternating or direct current.

SMART meter dedicated as home, garage, car equipment.

It has a built-in mini flashlight, and after 15 minutes of inactivity it will automatically turn off.

Powered by two AAA batteries

⏩ FUNCTIONALITY

✔ AC/DC voltage measurement

✔ resistance measurement

✔ detection of cables under voltage NCV

✔ Hold function - stop indications

✔ intelligent identification of AC and DC voltages

✔ sound and optical (two-color LED) resistance signaling less than 50 ohms (short circuit test, continuity test)

✔ automatic sleep after 15 minutes

✔ battery level indicator

✔ flashlight

✔ screen backlight

✔ protective rubber case

⏩ TECHNICAL DATA

▶ power supply: 2x1.5V AAA (not included)

▶ maximum display indication: 2000

▶ display: TN

▶ dimensions: 118 x 58 x 26mm

▶ weight: 73g

▶ flashlight: yes

▶ screen backlight: yes

⏩ APPLICATION

✔ automotive diagnostics: battery, fuse alternator, switch, relays, ignition system, battery current consumption with engine off

✔ home electronics: wires, sockets, electronic equipment

✔ service: electric and electronic

✔ education: education and teaching

⏩ MEASURING RANGES

⚡ CONSTANT VOLTAGE DC(V):

• 4V/40V/400V (±0.5%+3)
• 600V (±0.5%+3)

⚡ AC VOLTAGE AC (V):

• 4V/40V/400V (±0.8%+3)
• 600V (±0.8%+3)

⚡ RESISTANCE (Ohm):

• 4K/40K/400K/4M/40M (±1.0%+5)

⚡ Supported frequency range for AC measurements:

• from 40Hz to 1000Hz

⏩ CONTENTS OF THE SET

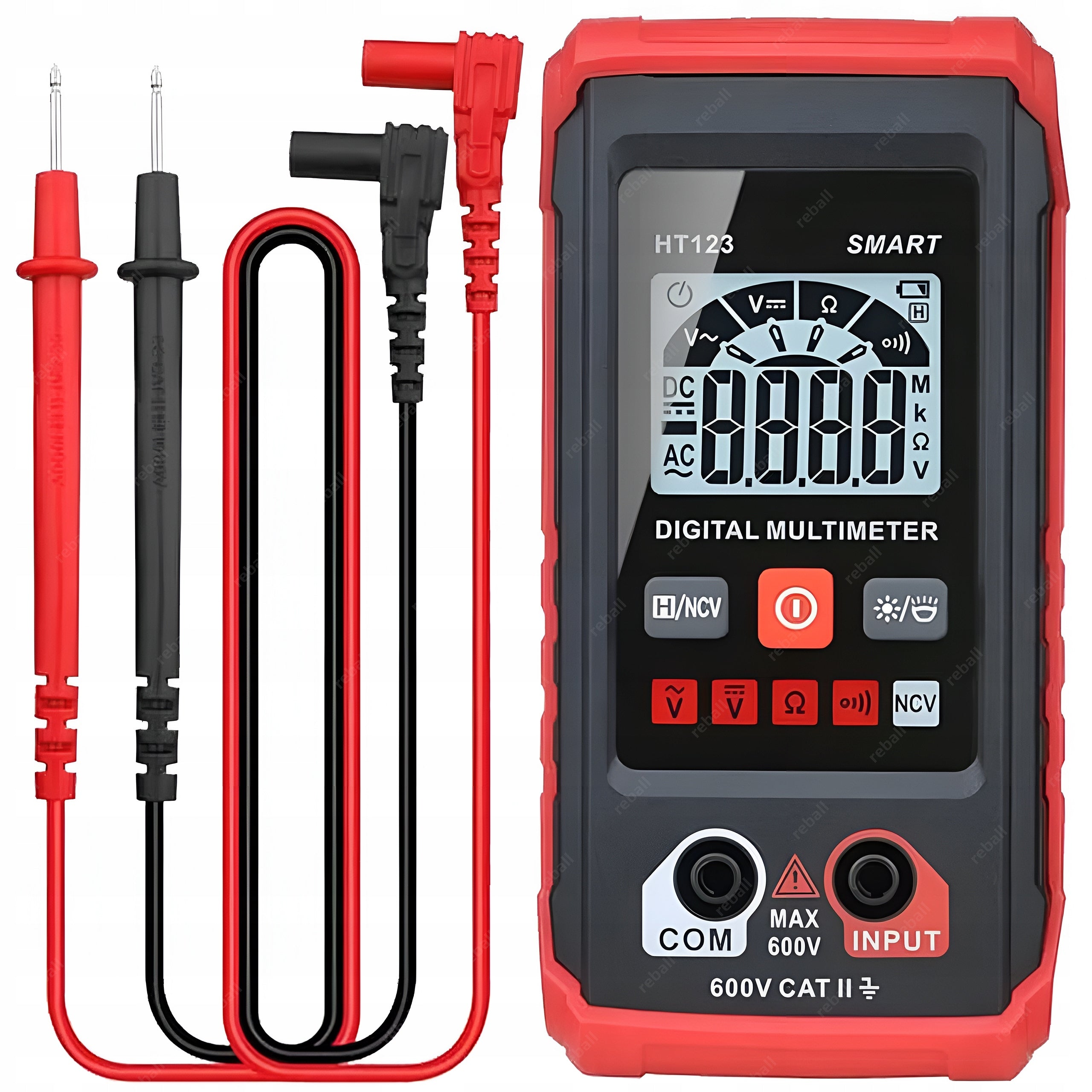

✔ multimeter HABOTEST HT123 (without battery) - 1 pc.

✔ measuring cables - 1 set

✔ original carton - 1 pc.

✔ polish manual - 1 pc.

You need other soldering or service accessories - check out our other listings.
