Skaitmeninis multimetras RICHMETERS 409B

Trumpai apie prekę

Prekė: Skaitmeninis multimetras RICHMETERS 409B. Kategorija: Multimetrai.

• Gamintojas: Reball
• Modelis: MIERNIK PRĄDU NAPIĘCIA MULTIMETR Z LCD

XAPP0000108

Universal measuring instrument necessary in every electrical, electronic and home workshop. Easy to use. Compact construction equipped with tilt base for easy observation of measurements and protective flexible housing to protect against mechanical damage.

Large inversion display allows for comfortable work in all lighting conditions.

In addition to the basic measurement functions offered by digital multimeters such as:

• AC/DC voltage measurement,
• AC/DC current measurement,
• measurement of resistance,

The meter also has additional features such as:

• temperature measurement,
• capacity measurement,
• analog ruler (linear indicator),
• contactless AC NCV alternating voltage detector e.g. under plaster,
• LED test,
• measurement of the effective value of True RMS,
• relative measurement of voltage, current and REL capacities,
• acoustic continuity tester,
• measurement of frequency and duty cycle,
• stop measurements (HOLD),
• automatic switch in case of inactivity,
• low drink indicator.

Application of multimeter:

• Car diagnostics: battery, alternator, fuses, switch, relays, ignition system, battery current consumption with engine off,
• home electronics: wires, sockets, electronic equipment,
• service: electric and electronic,
• education: education and didactics.

Specifications of the Richmeters 409B:

• Power supply: 2x battery 1,5 (AA not included)
• weight: 125g.

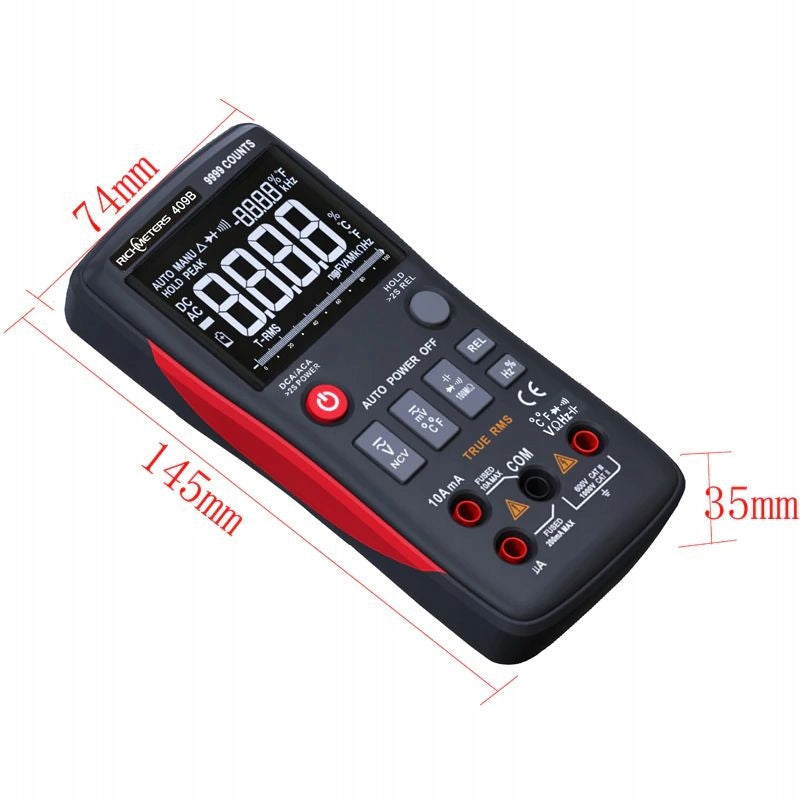

• height: 146mm
• width: 74mm
• thickness: 34mm
• operating temperature: 0°C ~ 40°C
• Storage temperature: -10°C - 60°C
• measurement method: dual A/D converter
• polarization: automatic
• sampling: 3x sec.
• display: LCD
• maximum indication: 9999

Measuring ranges:

• DC constant voltage: 99,99mV - 999,9VDC
• AC alternating voltage: 99,99mV - 750VAC
• Direct current DC: 99,99uA - 9,999A
• alternating current DC: 99,99uA - 9,999A
• resistance: 99,99Ohm - 99,99MOhm
• capacity: 9,999nF - 9999mF
• Frequency: 99,99Hz - 5000MHz
• work cycle: 1 - 99%
• temperature: -20°C - 1000°C/1°C (-4°F - 1832°F/1°F)
• sound signaling: < 30 Ohm

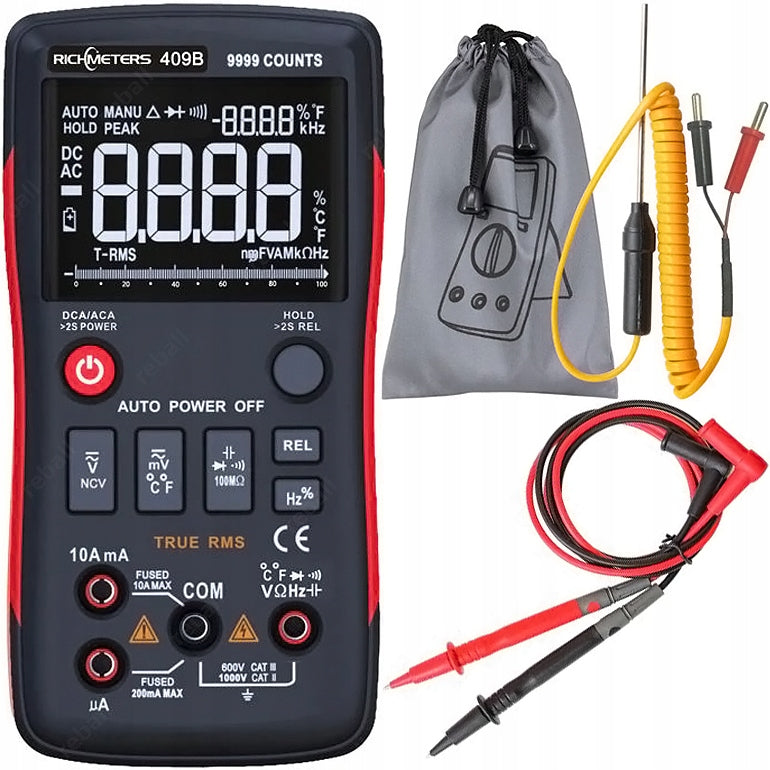

Set Contents:

• Richmeters 409B multimeter - 1 pc.
• measuring wires with a length of 70cm - 1 pair
• temperature sensor - 1 pc.
• practical bag for meter 13x19cm - 1 pc.
• polish manual - 1 pc.
• original carton - 1 pc.
