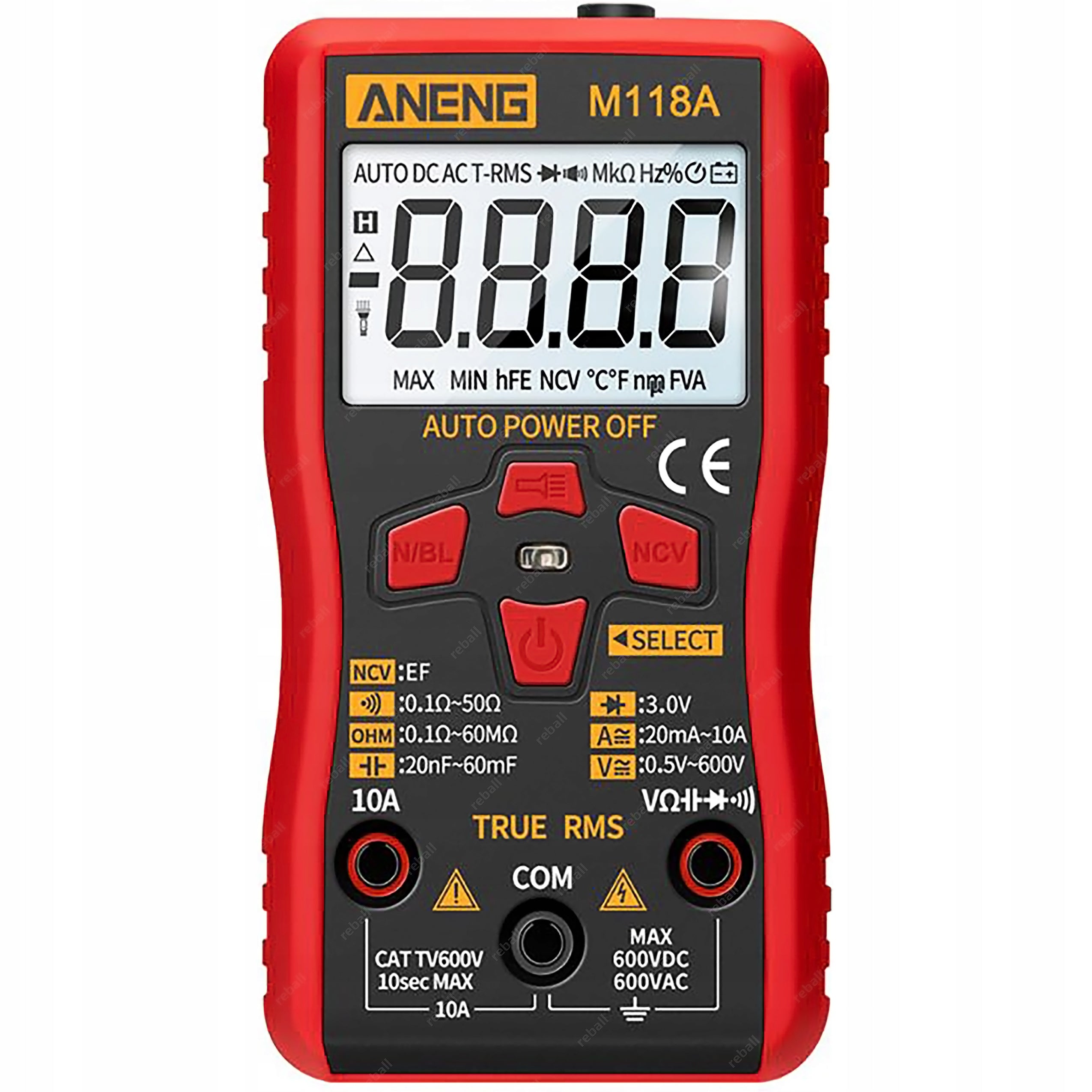

Skaitmeninis multimetras ANENG M118A True RMS NCV

Trumpai apie prekę

Prekė: Skaitmeninis multimetras ANENG M118A True RMS NCV. Kategorija: Multimetrai.

• Gamintojas: Reball
• Modelis: MIERNIK RĘCZNY MULTIMETR AUTOMATYCZNY M118A

APP0000122

ADVANTAGES

• automatic
• True RMS
• NCV - cable detection
• built-in flashlight
• automatic shutdown
• readable backlit display
• high quality of workmanship
• very high ratings from buyers!
• perfect as a gift!

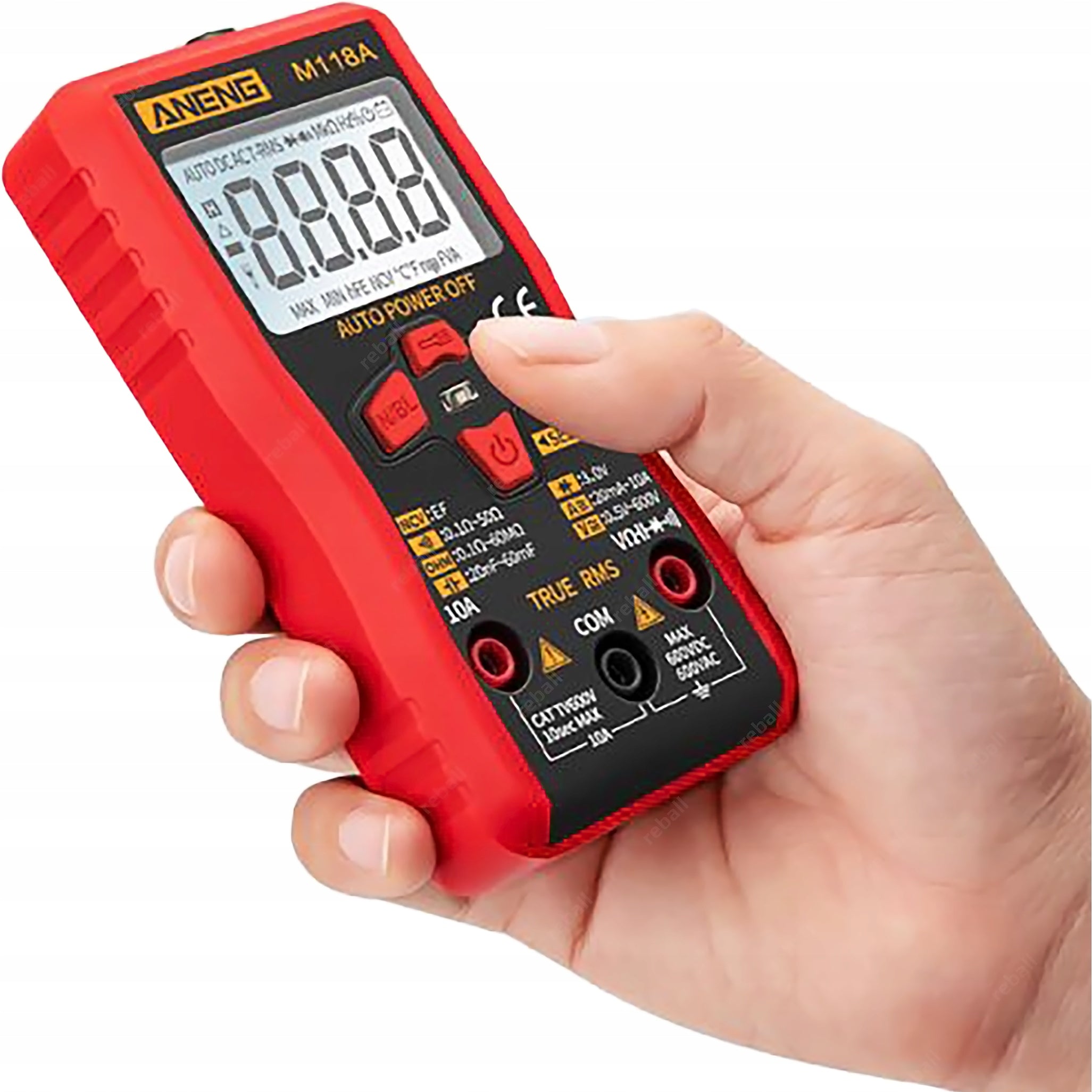

Universal measuring multimeter Aneng M118A indispensable in every electrical, electronic workshop as well as at home. Easy to use. The compact structure is equipped with a tilting stand for easy observation of measurements and a protective flexible housing to protect against mechanical damage.

Large display, additionally illuminated (button-activated backlight) allows for comfortable work in all lighting conditions.

In addition to the basic measurement functions offered by digital multimeters such as: measurement of voltage, current, resistance, stop of indications also has measurement functions of semiconductor diodes and sound resistance signaling less than 30 ohms (short circuit test, connection continuity).

Below is a full list of functions.

The set includes

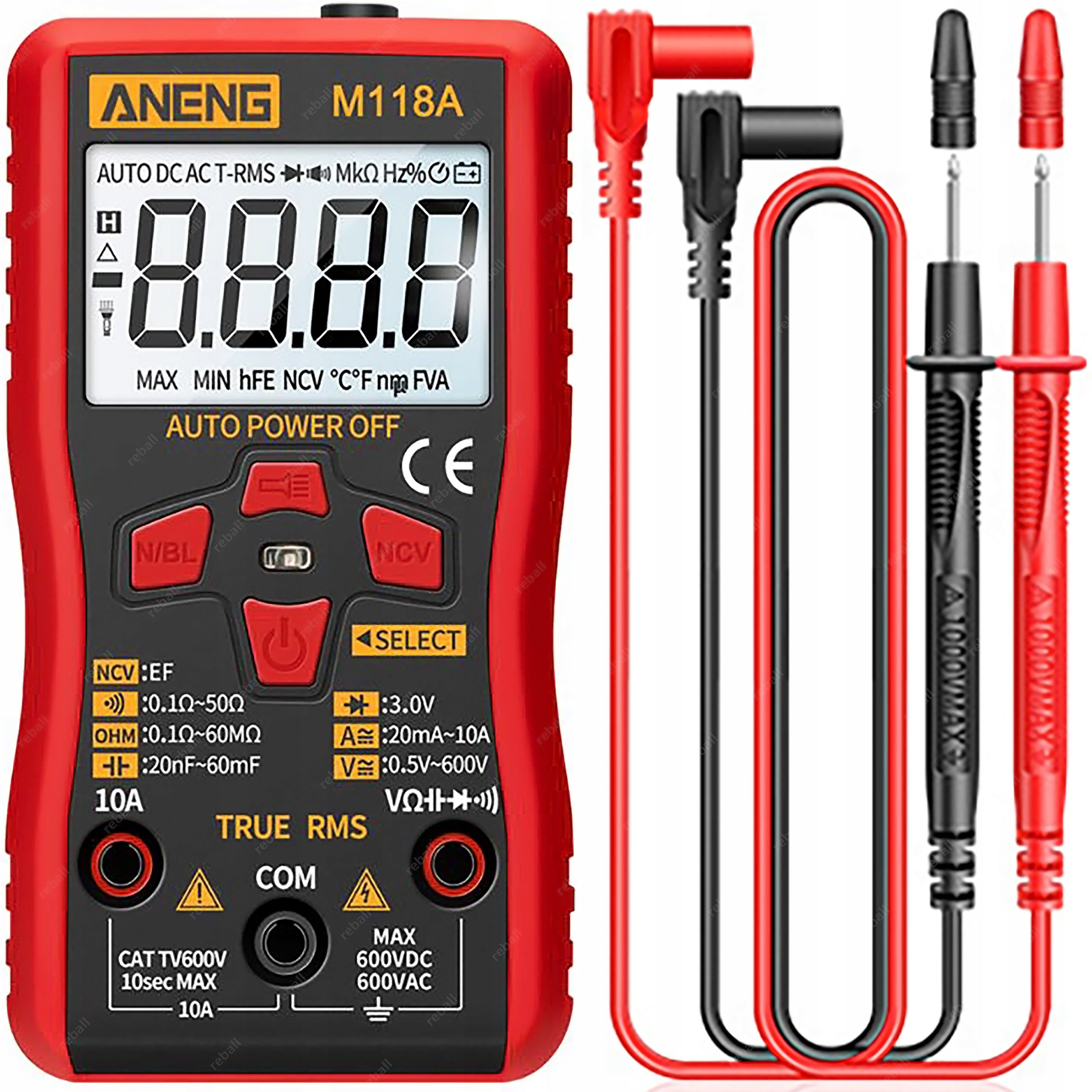

• multimeter Aneng M118A - 1 piece
• standard measuring cables 75cm - 1 pair
• Polish instruction manual - 1 piece
• The set does not include batteries
• Polish User Manual

Technical data

• Power supply: 2x AAA battery (not included),
• Weight: 100.5g,
• Dimensions: 115x60x25mm,
• Working temperature: 0°C ~ 40°C,
• Polarization: automatic,
• Sampling: 2x sec.
• Display: LCD 1,12 in.

Application

Due to its wide range of applications, the Aneng M118A multimeter is used in:

• car diagnostics: battery, alternator, fuses, switch, relays, ignition system, battery current consumption with engine off,
• home electronics: wires, sockets, electronic equipment,
• service: electric and electronic,
• education: education and didactics.

Measuring ranges

The Aneng M118A meter is characterized by the following measuring ranges:

• solid voltage: DC 6V/ 60V/ 600V ±(0.5% + 3),
• alternating voltage: AC 6V/ 60V/ 600V ±(0.5% + 3),
• direct and alternating current: 6A/10A ±(2% + 30),
• resistance: 600Ohm ±(0.8% + 5), 6kOhm/60kOhm/600kOhm/6MOhm ±(0.8% + 3) 60MOhm ± (2.5% + 3),
• capacity: 20nF - 60mF
• sound signaling: < 50Ohm,
• detection of wires under plaster: alternating voltage,
• flashlight mode,
• measurement of the effective value of True RMS,
• relative measurement of voltage, current and REL capacities,
• stop measurements (HOLD),
• automatic switch in case of inactivity,
• low drink indicator

You need other soldering or service accessories - check out our other listings.
