Prekė: Servo valdiklio modulis su 16 kanalų PCA9685. Kategorija: Priedai.
- Gamintojas: Adafruit
- Modelis: Adafruit 3416

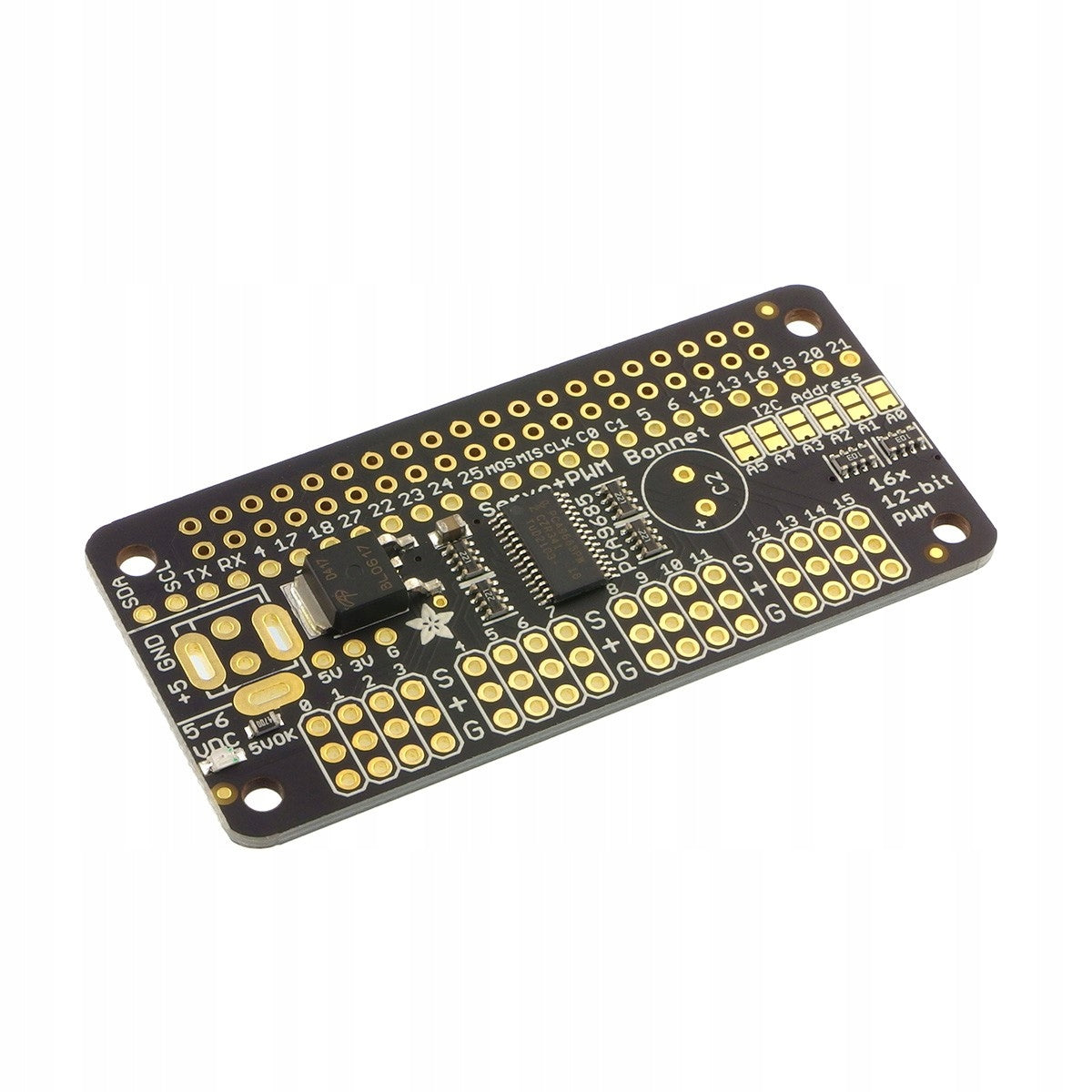

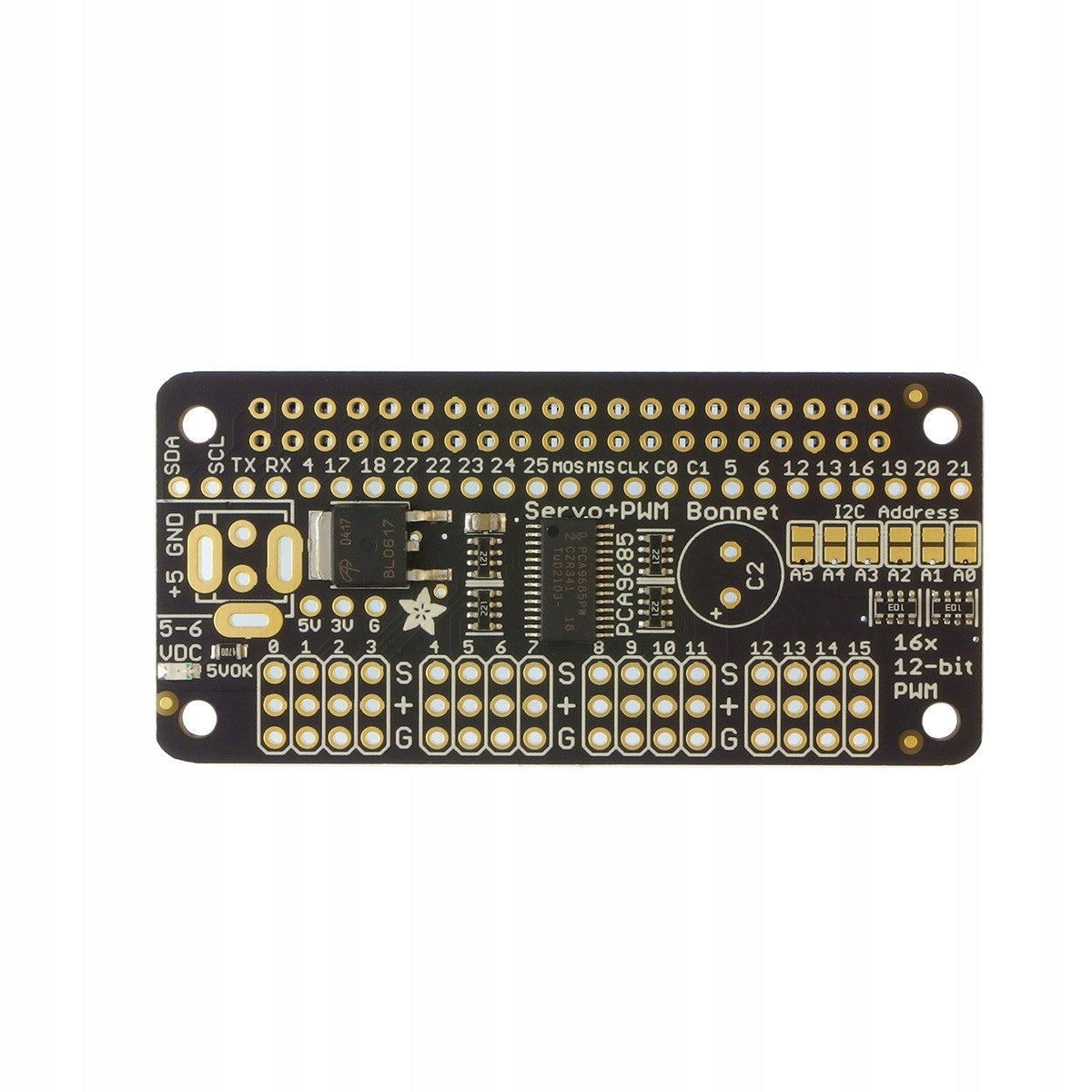

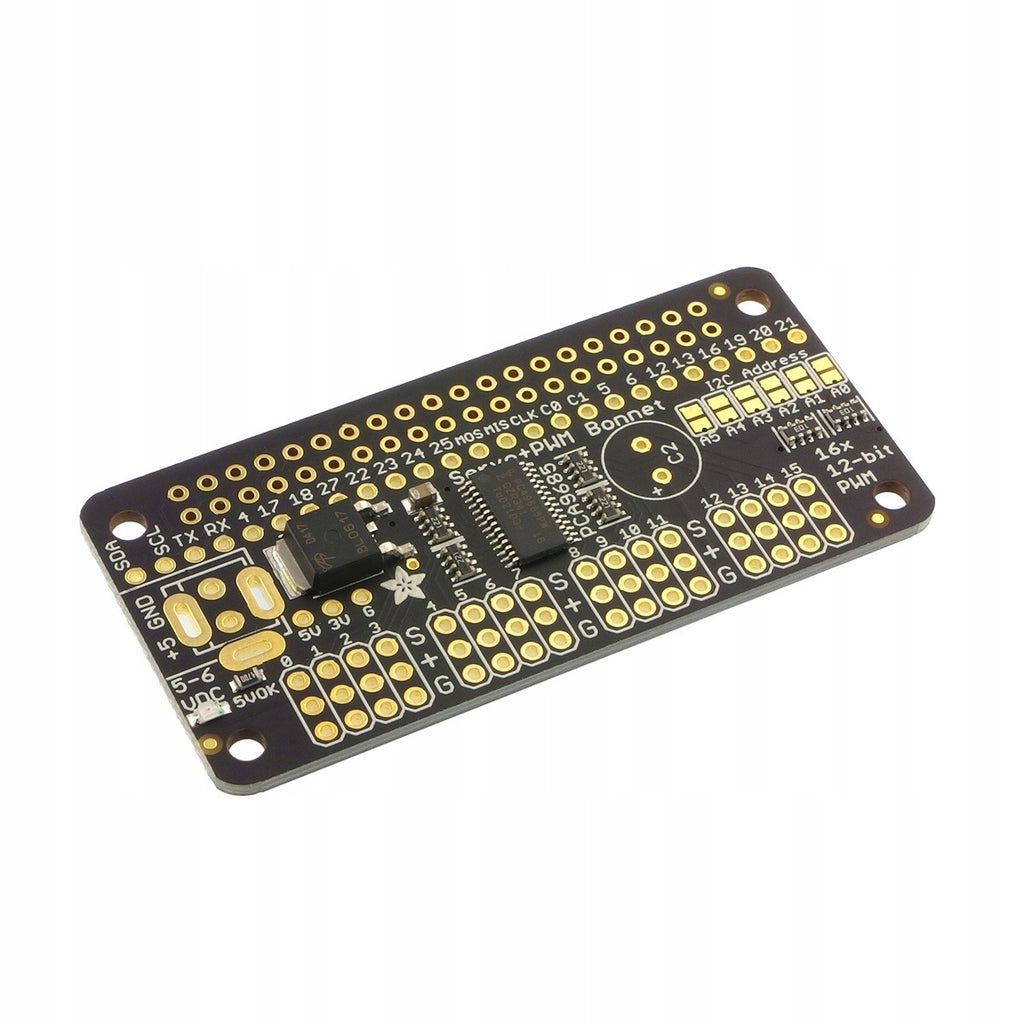

16-Channel PWM/Servo Bonnet - module with 16-channel servo controller PCA9685 for Raspberry Pi
Description
Module with PWM controller PCA9685 designed for minicomputers Raspberry Pi. It is equipped with a 40-pin connector, making it compatible with all versions of the minicomputer. The system allows you to control 16 model servos. The supply voltage of the servo is supplied by a screw connector or DC socket. It will be used in projects using servos, e.g. in the construction of a moving or humanoid robot. Full documentation with examples are available on the product page.
Properties
- Raspberry Pi 40-pin GPIO connector
- I2C interface
- I2C address configured with jumpers (up to 62 modules can be connected)
- Built-in PCA9685 chip provides 12-bit hardware PWM
- Screw connector/DC socket for servo power supply
- Power supply: 5 V to 6 V (VIN)
- Logical Voltage: 3,3 V
- Dimensions: 65 x 30,4 x 8 mm
Comes with
- 16-Channel PWM/Servo Bonnet
- 2-pin screw connector
- DC connector
- 4 x 3x4-pin male goldpin connector
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Adafruit 3416 |
| Parametry | Manufacturer | Adafruit |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904422317539 |
| Parametry | Batteries included | no |
