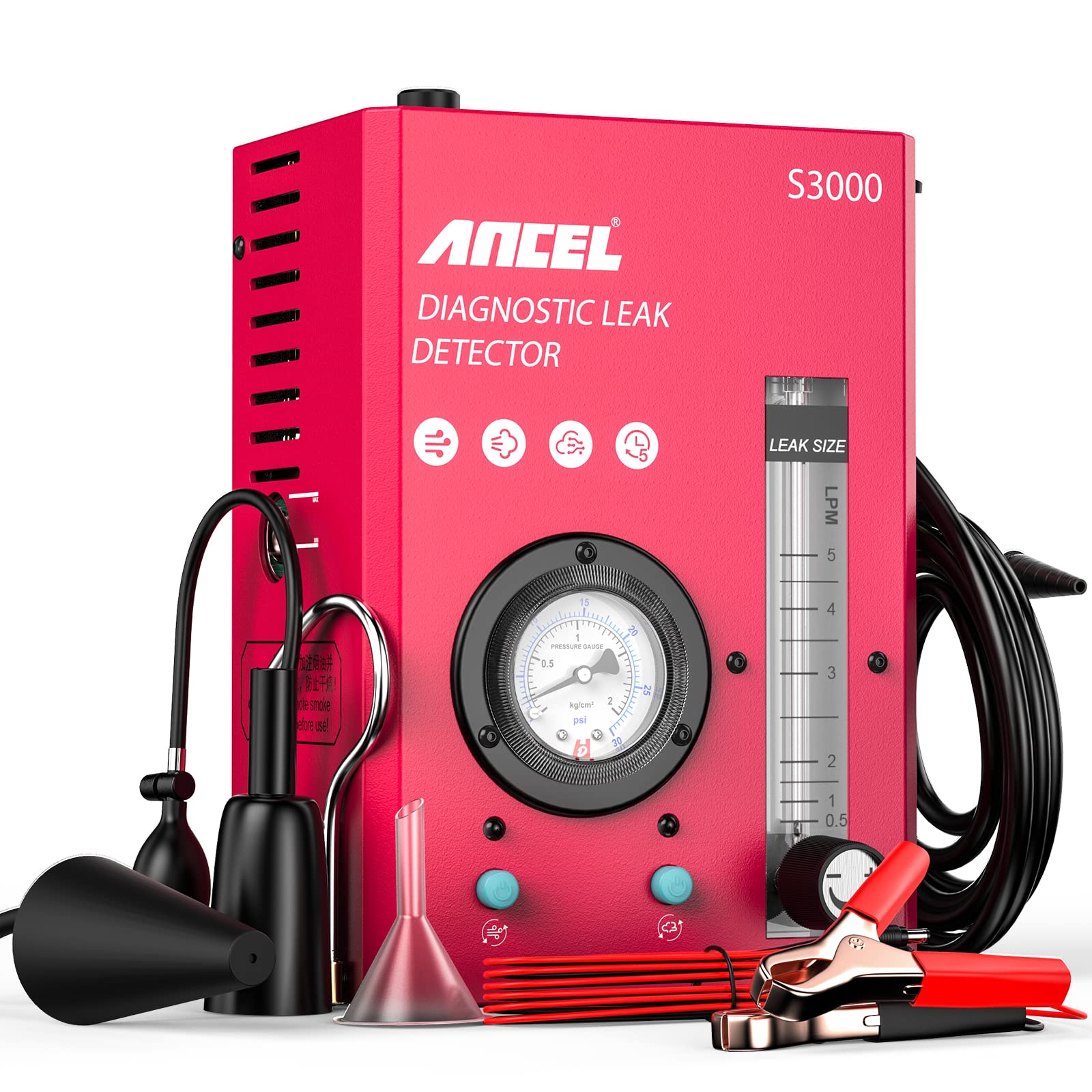

Sandarumo testeris ANCEL S3000 dūmų pūstuvas

Trumpai apie prekę

Prekė: Sandarumo testeris ANCEL S3000 dūmų pūstuvas. Kategorija: Slėgio jutikliai.

• Gamintojas: no brand
• Modelis: S3000

It has a built-in compressor!!!

Top model

!!! Equipment from Authorized Polish Distribution Ancel!!!

Leak detector of car smoke ANCEL S3000 is a professional tool for detecting leaks of automatic pipes. It will help us to quickly and accurately determine the leakage of motorcycles, cars, on pipe systems, such as intake system test, exhaust system test, crank system test, car seal test, fuel tank system test, Turbo system test, etc.

The generator is powered from the vehicle installation.

Has a built-in compressor.

!!! Equipment from Authorized Polish Distribution Ancel!!!

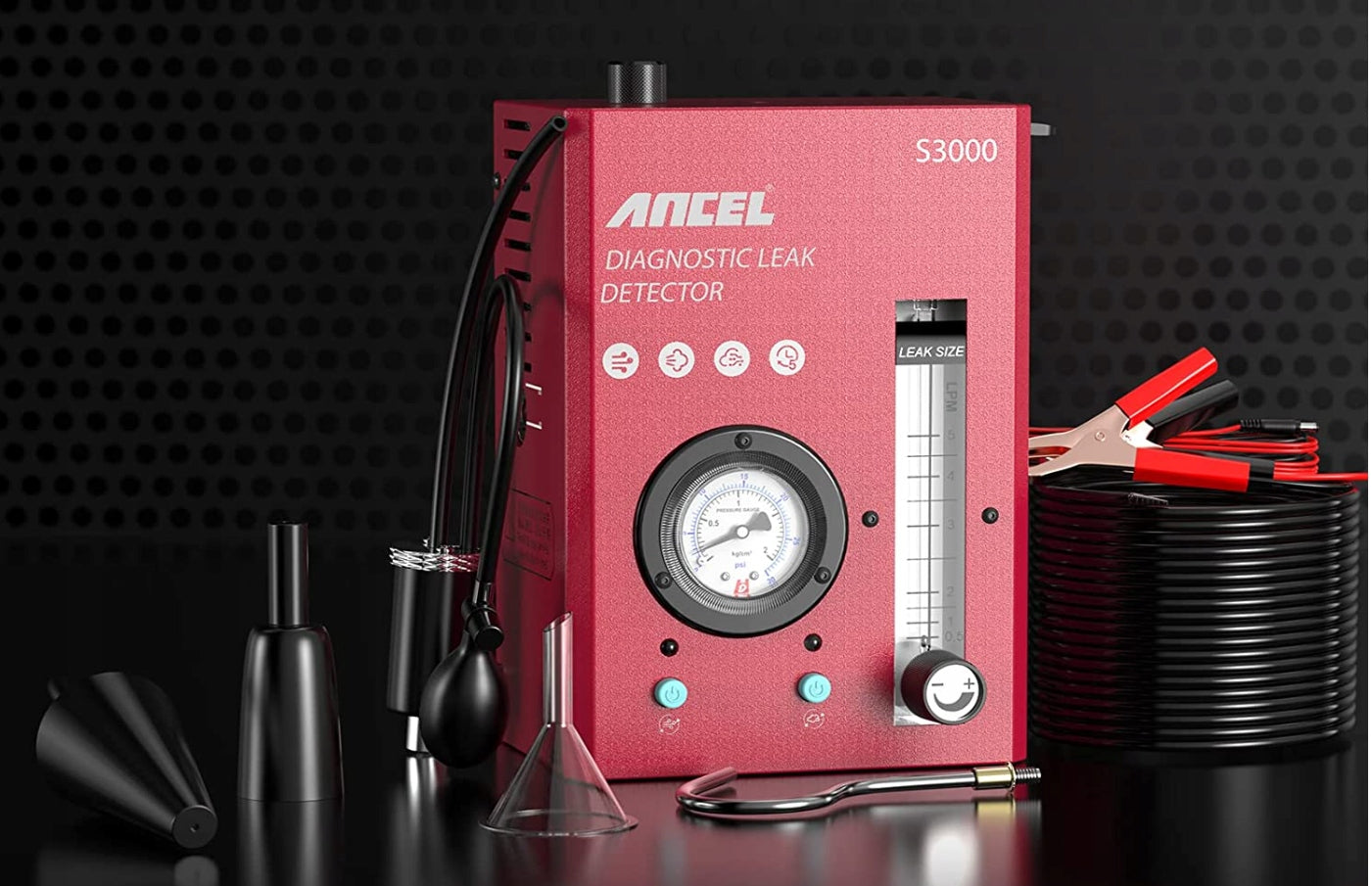

ANCEL S3000

The automotive smoke machine is equipped with a plethora of accessories that allow you to use it in almost any vehicle, Unlike other EVAP smoke machines, you will have to buy an air compressor in addition to the detector in most cases to be able to test your vehicles for leaks, the ANCEL S3000 already has this feature built in. So you save extra money!

Wide range of applications

Suitable for all cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and motor boats, etc. With the Ancel S3000, you can accurately find the vehicle problem and diagnose the fault.

Ancel S3000 supports multi-system testing

• EVAP system test
• Intake system Test
• Exhaust system testing
• Crankcase system test
• Car Seal Test
• Fuel tank system test
• Turbo system test
• Various test pipe fittings

The generator has protection:

Protection against overheating

Protection against frost

The device can also work normally at 20 ℃.

How to use a car smoke leak detector?

Note before leak test: turn off the vehicle ignition

● Assemble the smoke machine with a supply hose, electrical outlet and hook.

● Unscrew the oil filler cap and add the test oil. (Oil for children)

● Disconnect the pipes that need to be connected to the leak detector.

● Connect the car smoke generator power cord to the vehicle battery 12V (red clamp to the positive battery clamp black to negative, then the high power LED will be on)

● Enter the smoke supply hose into the pipeline to be tested with the adapter cone.

● Press the air control switch, wait a few seconds for the system to be under pressure, check the reading of the pressure gauge and flowmeter for leakage status. Turn on the smoke generator, adjust the amount of smoke to the right amount to quickly locate the leak position.

● The leak can be assessed depending on where the smoke appears.

Specification:

● Output pressure: 7-12 PSI

● Output flow rate:< 6L/min

● Power supply: DC12V, with vehicle battery

● Air source: built-in

● Test oil capacity: 10ml-20ml

● Material: iron

● Power cord length: 2.5 meters

● Smoke hose length: 2.5 meters

● Oil test: mineral oil or baby oil

● Multiple protections: oil outlet, overheat and overload protection

● Device Size: 13cm x 8.5cm x 18.5cm

● Package Weight: 2.3kg

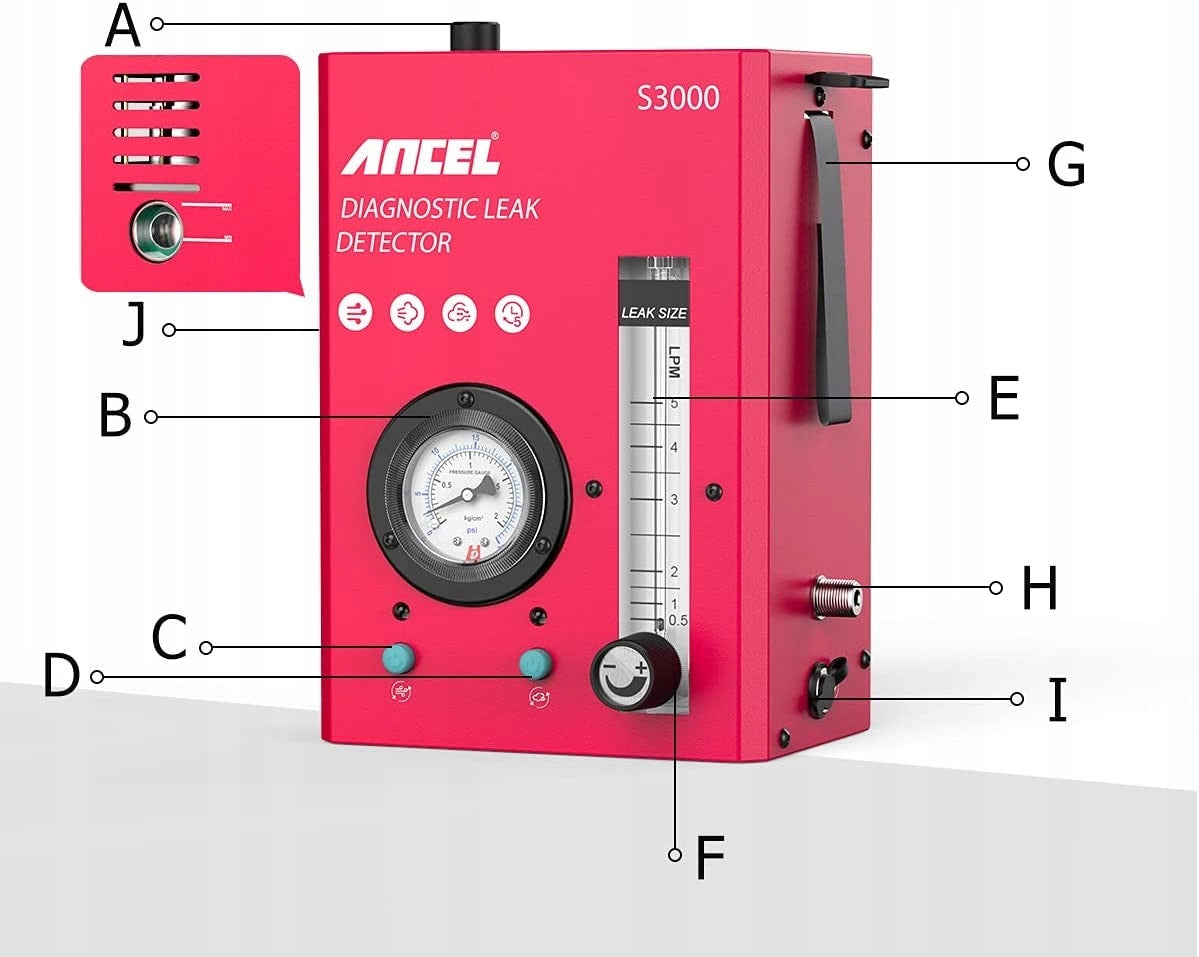

Construction:

A- Oil filler

B- Pressure gauge

C- Air mode

D- Smoke mode

E- Tide rate

F- Adjusting the amount of smoke

G- Strap

H- Air/smoke output

I- Power supply

J- Oil level

The set includes:

1. Tester Ancel S3000
2. Power cable
3. Long Smoke Hose
4. Hook
5. Standard conical adapter
6. Universal adapter - air pump
7. Funnel
8. Special EVAP connector
9. Warranty card
10. Paper instruction in English
11. User manual in Polish in electronic version
12. Oil 100 ml
