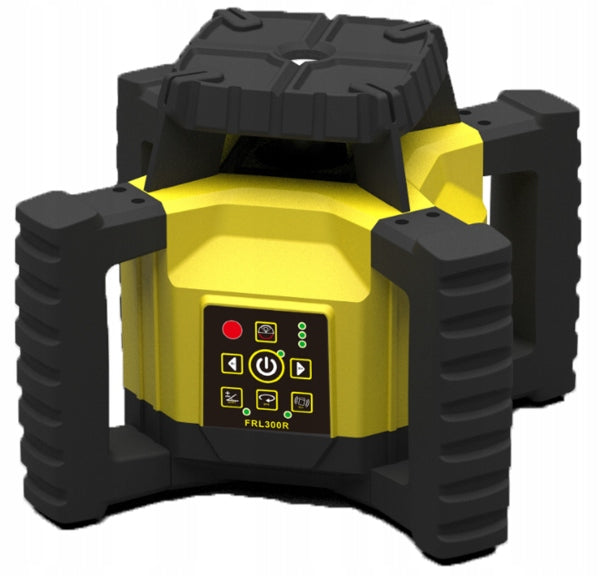

Rotacinis lazerinis nivelyras FIRECORE FRL300R

Trumpai apie prekę

Prekė: Rotacinis lazerinis nivelyras FIRECORE FRL300R. Kategorija: Optiniai nivelyrai.

• Gamintojas: Firecore
• Modelis: FRL300R

LASER ROTARY LEVELER WITH A SET OF ACCESSORIES

MAIN FEATURES

• UNIVERSAL
• HIGH PRECISION MEASUREMENTS 1,0MM/10M
• MODERN
• RANGE UP TO 600m
• READABLE MENU PANEL
• AUTOMATION OF THE LEVELING PROCESS
• DIGITAL LEVELING WITH DIGITAL SENSOR
• HIGH PRECISION MEASUREMENTS 1,0MM/10M
• SAFE USE FOR YEARS,
• HIGH COMFORT OF WORK
• RELIABLE, PROVEN DESIGN
• INCREASED RESISTANCE CLASS (IP55)
• RED BEAM
• BATTERY POWER
• MODERN DESIGN
• CAN BE OPERATED AT TEMPERATURES BELOW 0*
• FOR INTERNAL AND EXTERNAL USE

HIGHLY VISIBLE RED LASER BEAM LINES THANKS TO THE HIGH-POWER DIODES USED

* THE FRL300R LEVELER HAS AN AUTO-LEVELING FUNCTION, WHEN TURNED ON, THE EQUIPMENT WILL LEVEL ITSELF AND IS IMMEDIATELY READY FOR OPERATION.

* THE GENERATED RED LASER BEAM IS HIGHLY VISIBLE, DISPLAYED ON THE WALL CREATES A REFERENCE LINE FOR HORIZONTAL OR VERTICAL WORK.

* WHEN WORKING WITH THE SENSOR AND LASER PATCH, WE GET AN ACCURATE LEVELING SET,

* ONE PERSON IS ENOUGH TO MEASURE

THE * SCANNING FUNCTION ALLOWS YOU TO NARROW THE DISPLAYED BEAM IN A GIVEN RANGE, THUS OBTAINING A REFERENCE LASER LINE ONLY WHERE WE PERFORM WORK.

*1500 mAh BATTERY PROVIDES UP TO 15 HOURS OF CONTINUOUS OPERATION

* FAST CHARGING WITH TYPE C INPUT

MEASUREMENT RANGE FROM 1m TO 600m

EQUIPMENT WILL WORK GREAT IN M.IN

• LEVELING
• LAND EQUATION
• CONSTRUCTION
• PAVERING WORKS
• ASSEMBLY AND FINISHING WORKS
• INSTALLATION WORK
• CARPENTRY WORK
• RENOVATION WORK
• GARDENING AND AGRICULTURE

REMOTE CONTROL ENSURES HIGH COMFORT OF WORK AND SAVES TIME

*EQUIPMENT ALLOWS YOU TO WORK WITH BOTH HORIZONTAL AND VERTICAL PATCHES.

*THE PLANE CAN BE TILTED IN ONE OR TWO DIRECTIONS

MODERN ERGONOMIC DESIGN

INCREASED RESISTANCE CLASS IP55

TECHNICAL SPECIFICATION

• Model: FRL300R
• IP rating: IP55
• Laser wavelength: 635 nm
• Laser class: Class 2 (IEC/EN60825-1/2014) < 1 mW
• Alignment range: ± 5° (about 15 seconds)
• Rotary speed: 0,300,600 rpm. /min
• Tilt adjustment range: ± 5°
• Scanning angle in direction: 0°,10°,45°,90°,180°
• Horizontal/vertical accuracy: ± 3 mm / 30 m
• Range of operation with receiver: 600 m
• Power supply: 7,4V / 1500mAh lithium-ion battery
• Charging time: about 3,5 hours
• Continuous working time: about 15 hours
• Battery charger: USB 5V/1A
• Base with internal thread: 5/8"
• Working temperature: -10℃ - 50℃
• Storage temperature: -20 ℃ - 50 ℃

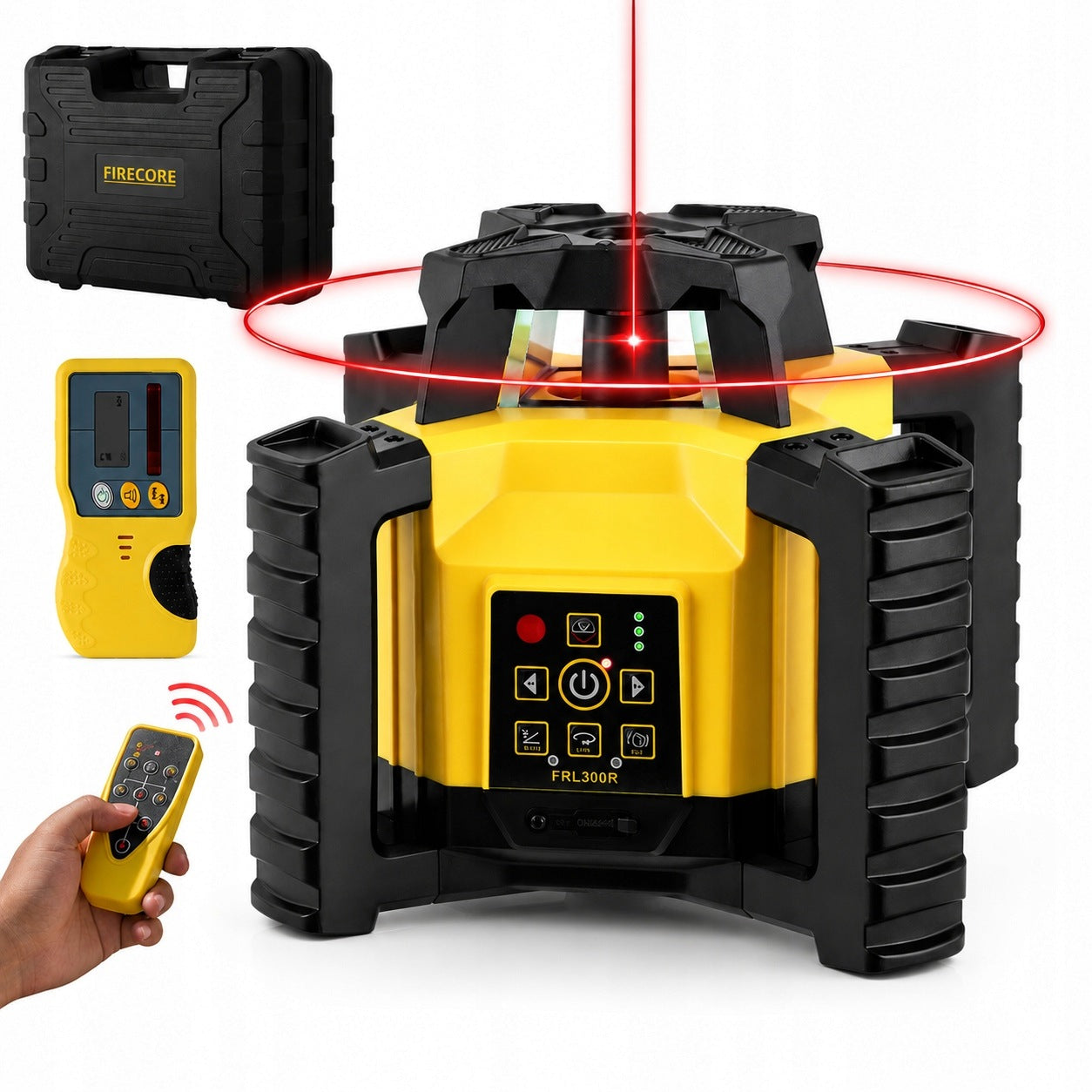

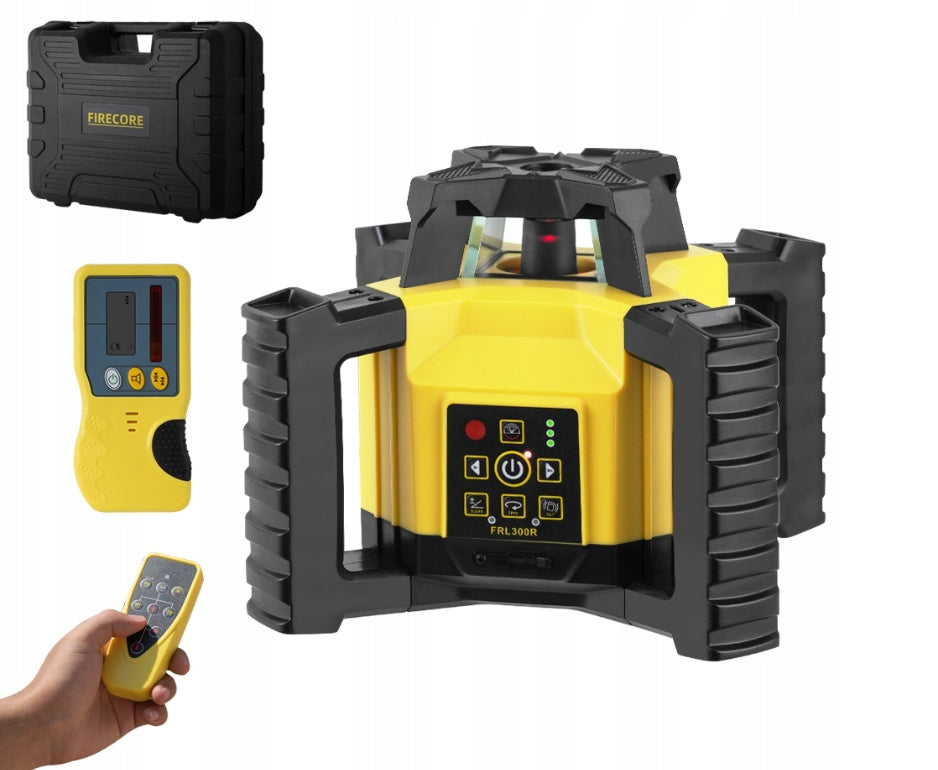

THE SET INCLUDES:

1. THE SET INCLUDES:
2. THE FIRECORE FRL300R LASER LEVELER
3. LASER BEAM RECEIVER
4. BATTERY
5. NETWORK CHARGER
6. REMOTE CONTROL
7. LASER GLASSES
8. RECEIVER/PATCH HANDLE
9. INSTRUCTION MANUAL (j.ang)
10. PROTECTIVE CASE
