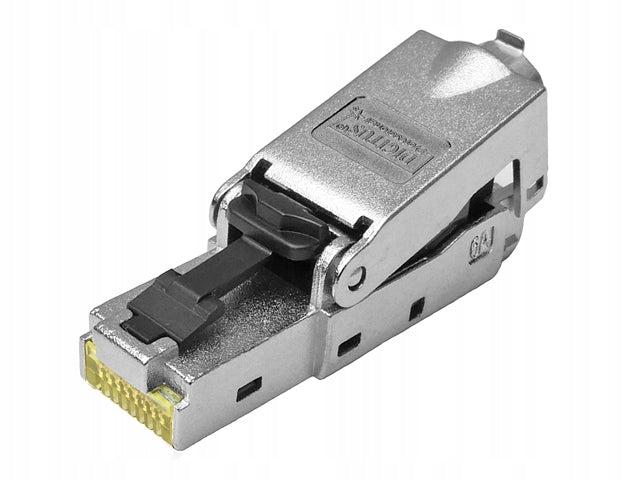

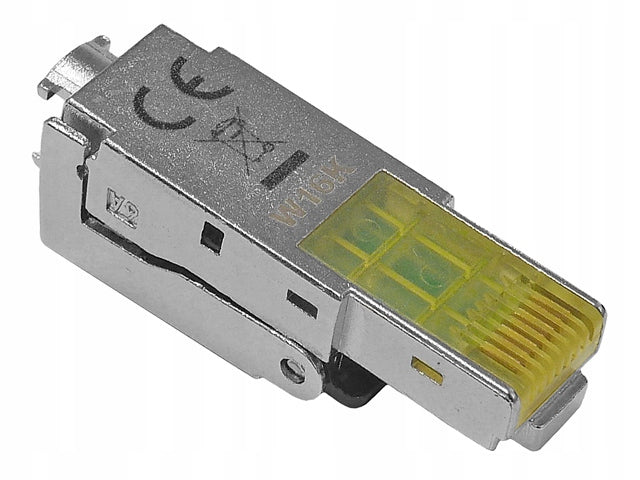

RJ45/8P8C kištukas, STP, kat. 6A, AWG22-27, be įrankių, DIGITUS

Trumpai apie prekę

Prekė: RJ45/8P8C kištukas, STP, kat. 6A, AWG22-27, be įrankių, DIGITUS. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: DN-93631-6A

Catalog No.: 41161

The supplier of the item is the renowned German company DIGITUS. The data sheet, hyperlink to the manufacturer’s website detailed specification and installation instructions are available at: www.stratos.pl/strony/41161.htm

The 8P8C (8 Position 8 Contact) plug, also called RJ45, is an eight-pin connector used in telecommunications installations and computer networks. The plug has eight pins, which are connected to the contacts-knives driven by insulation into the wires of the earned wire during assembly. The offered plug thanks to its design (metal housing, double-row contact module) allows installation on twisted pair S/FTP, U/FTP, SF/UTP with conductors with a diameter in the range of AWG22-27. Thanks to the appropriate profiling of contact contacts, it is possible to place the plug on a twisted pair with wires such as wire or cord (solid/strand).

The plug is designed for mounting conductors according to the T568A, T568B or Industrial standard, i.e. all used - the included sticker with the description of connections makes it easy to arrange conductors according to the selected standard. Quick assembly is possible without specialized tools - clamping of the module is done manually by folding and latching the housing.

The plug allows mounting on a twisted pair with wire conductors or cable with a thickness (wire with insulation) of 0.8~1.6mm, so virtually every available on the market. The included cover has a conical end (bending) to fit a 6mm thick cable. The bend can be cut to fit a cable with a thickness in the range of 6~9mm.

The plug meets the requirements of Gigabit Ethernet and 10 Gigabit Ethernet transmission (EA class, category 6A, band 500MHz).

• Plug type: RJ45/8P8C, class EA, cat 6A, band 500MHz, STP (shielded) to round cable (computer twisted pair)
• Material: Zinc alloy metal housing, gold plated contacts 0.8μm (30μin) on phosphor bronze backing
• Twisted pair conductor type: wire/link AWG22~27 (Ø conductors 0.4~0.8mm, Ø conductors in insulation 0.8~1.6mm)
• Dimensions (length, width, height): 67/14/13mm
• Diameter of cable input: 6~9mm
• Weight of 1 plug: approx. 19g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
