Prekė: Relinė plokštė su Raspberry Pi relėmis. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Waveshare 11638

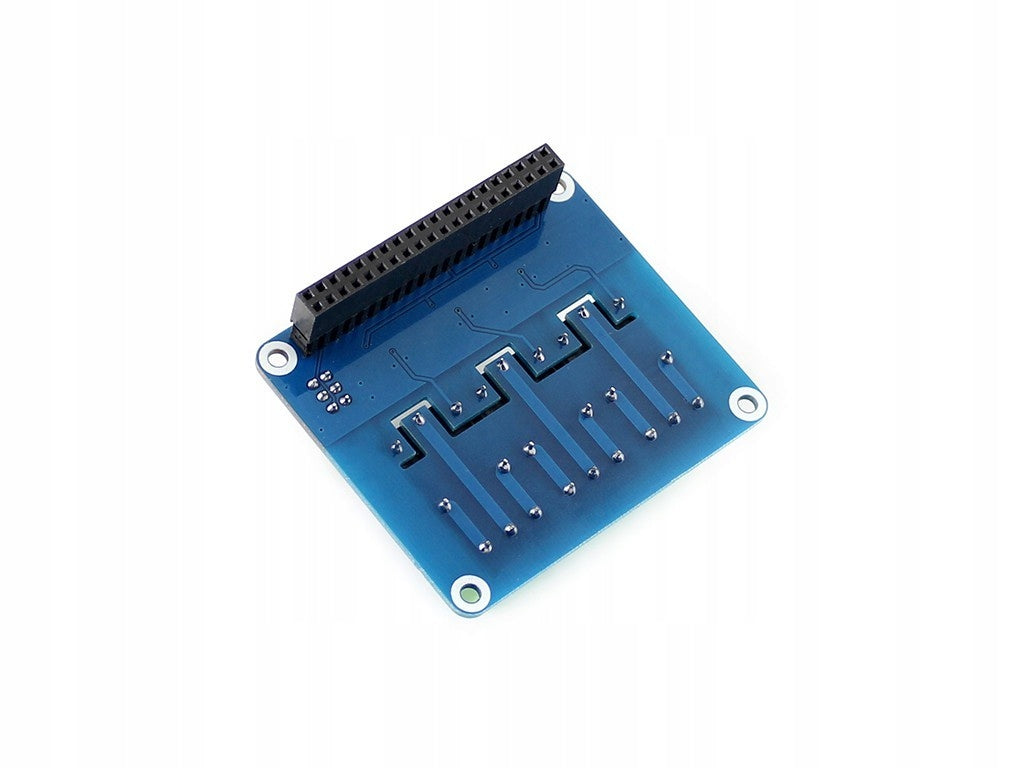

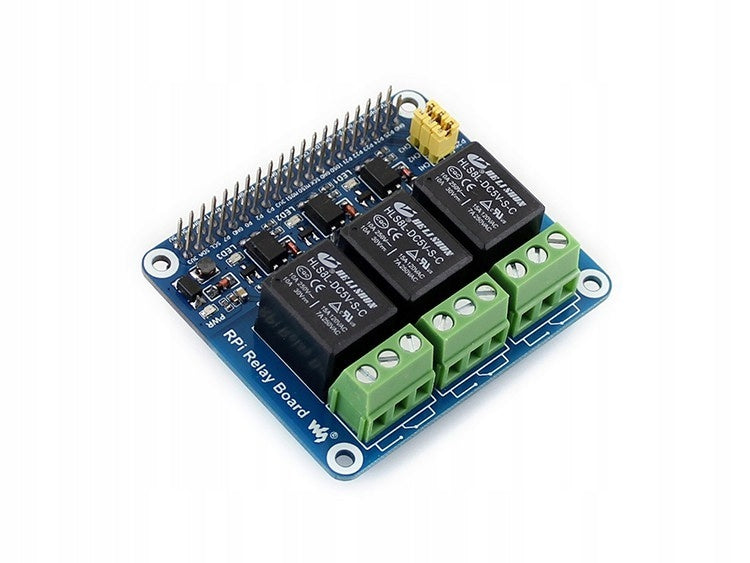

RPi Relay Board - module with relays for Raspberry Pi
Description
This module allows you to control high voltage powered devices from your Raspberry Pi computer (A+, B+, 2B, 3B), ideal for creating a smart home.
Attention!

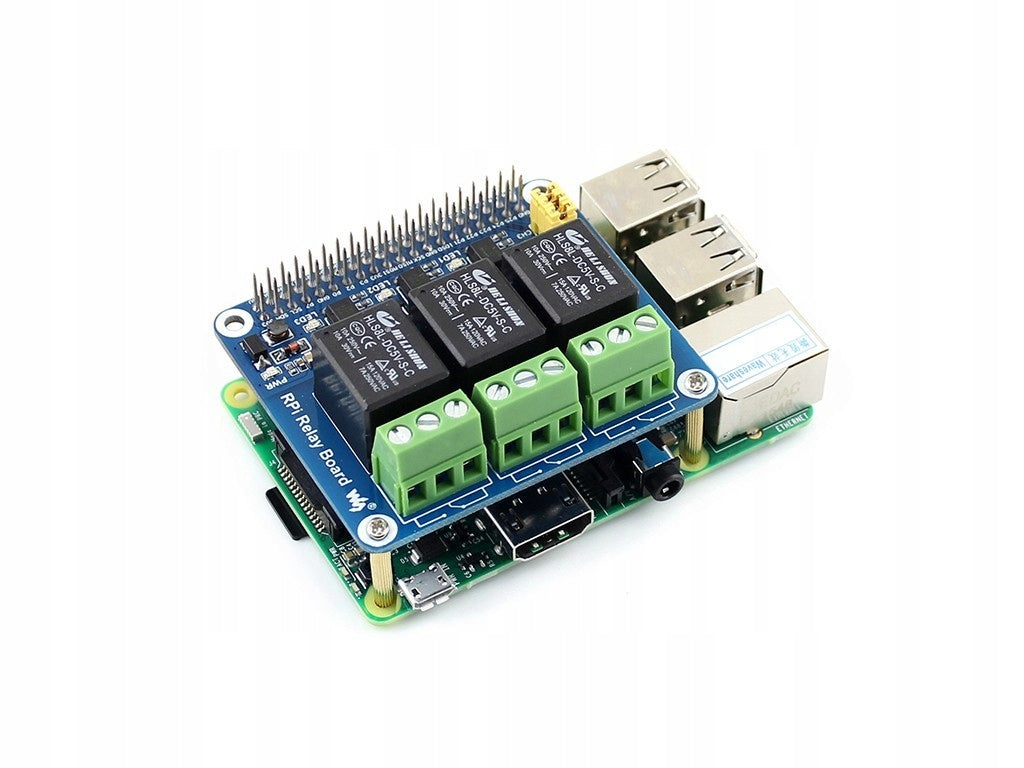

The Raspberry Pi computer shown in the picture is not included, it can be purchased separately.
Properties
- Compatible with Raspberry Pi versions A+, B+, 2B and 3B
- High quality relays, 250 V AV/5 A, 30 V DC/5 A
- Built-in optoisolator
- Diodes indicating the status of relays
- Jumpers for selecting Raspberry Pi lines controlling relays
- Examples are available (wiringPi, WebioPi, shell, python, BCM2835)
Description of elements
- Connector to fit Raspberry Pi computer GPIO slot
- Screw connectors for connecting devices powered by high voltage/high current
- Relays
- Optoisolator PC817
- Relay Status Diodes:
- LED lights - NC open, NO closed
- LED does not light - NC open, NO closed
Power Diode Configuration Jumpers:
- jumper assumed - the relay is attached to the default I/O line
- jumper removed - the relay should be connected with a cable to the selected I/O line
Comes with
- RPi Relay Board
- Set of screws and bushings for mounting
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Waveshare 11638 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904422371753 |
| Parametry | Batteries included | no |
