Trumpai apie prekę

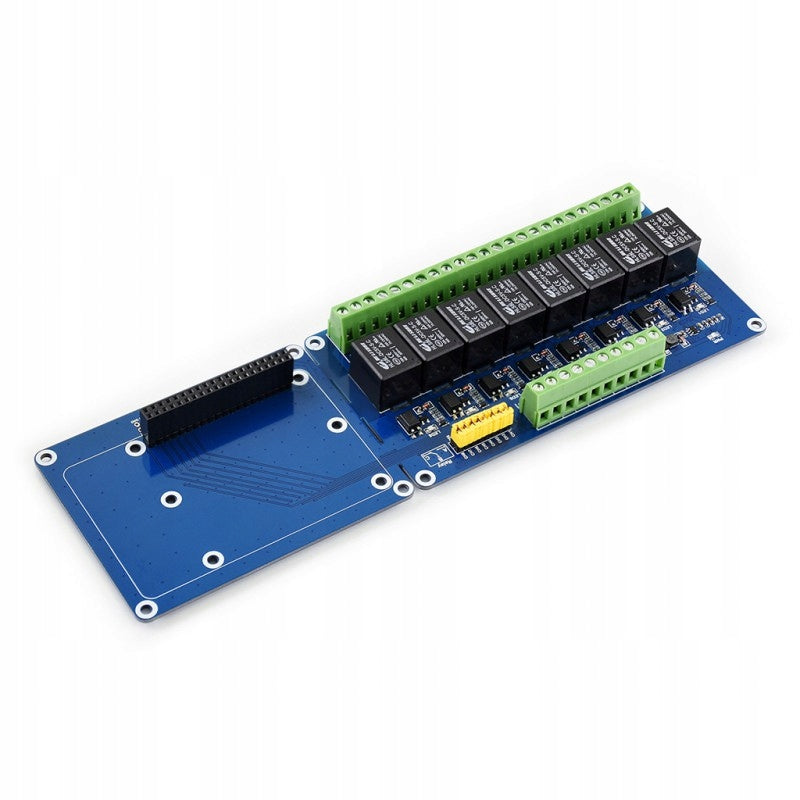

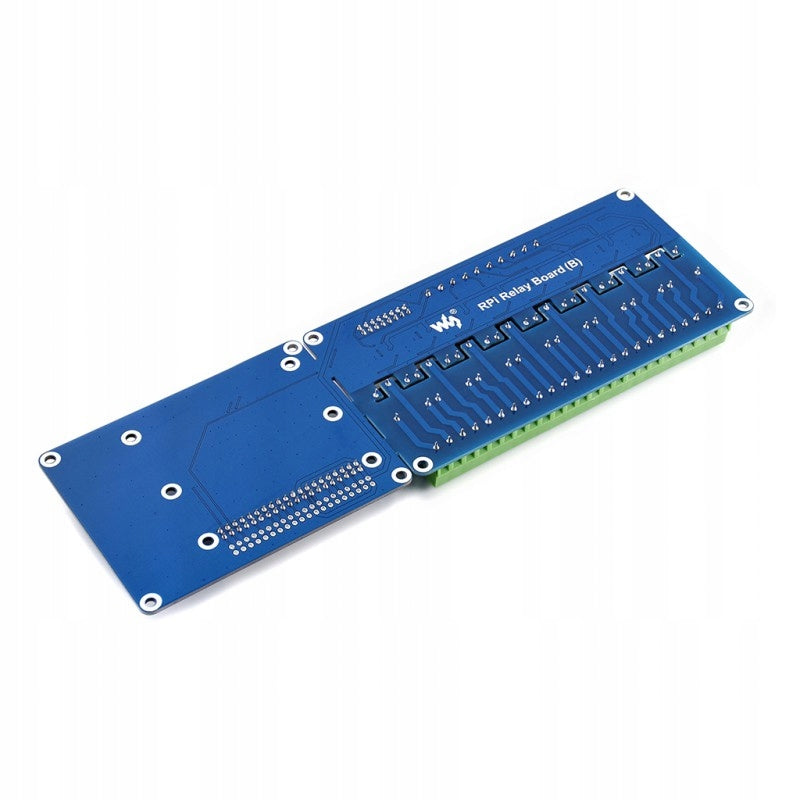

Prekė: Relinė modulis su 8 relėmis Raspberry Pi, DIN bėgiui, SKU:15423. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 15423
Extension for Raspberry Pi with 8 relays, which allows you to control high voltage\current, ideal for home automation systems.
Specification:
- Compatible with Raspberry Pi, Jetson Nano
- High quality relays with a permissible load capacity of 5A 250V AC or 5A 30V DC
- Rasperry Pi from relays was isolated using optocouplers

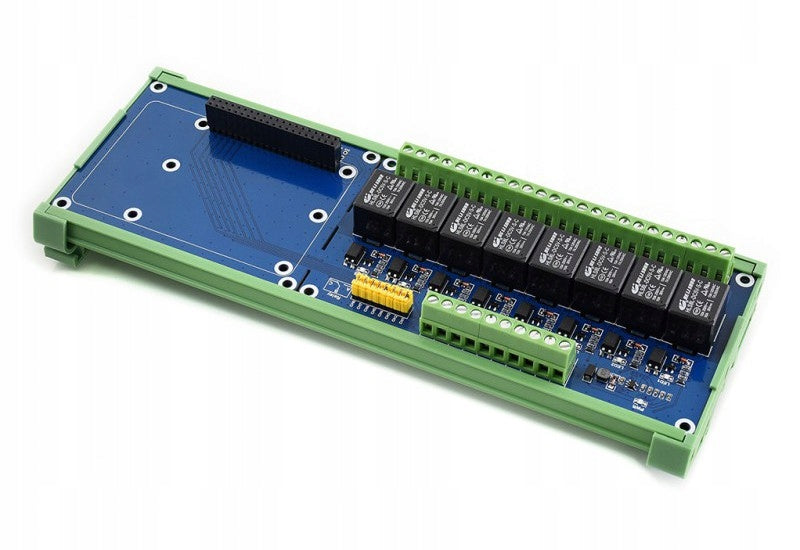

- The set includes an adapter for mounting the module on DIN rails
- Leds on PCB indicating the status of each relay
- Pins with which we control relays can be disconnected\changed using jumpers
- Available demo support: wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)
- Supply Voltage: 5V
- Relay control voltage: mass control, thanks to which the module works with 5v and 3.3V logic
- Number of relays: 8
- Relay contacts: SPDT-NO,NC
- Current consumed by the relay coil: 6mA
- Relay contacts output to screw connectors
- Dimensions: 232 x 72 mm
- Mounting hole diameter: 3 mm
Additional information: Wiki : www. waveshare . com/wiki/RPi_Relay_Board_(B)
Included:
- RPi Relay Board (B) x1
- Rail mount bottom case x1
- Screws pack x1
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 15423 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906852310609 |
