Trumpai apie prekę
Prekė: Relė modulis Pico su 2 kanalais, skirtas Raspberry Pi Pico. Kategorija: Priedai.
- Gamintojas: no brand
- Modelis: SKU21284

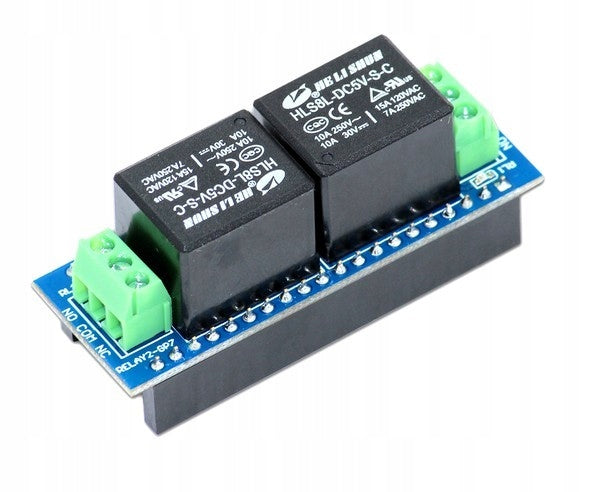

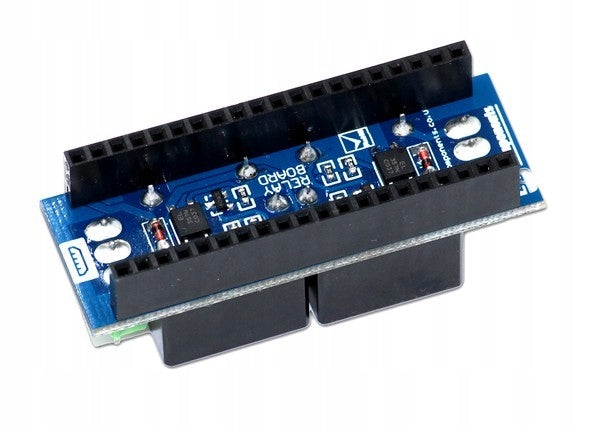

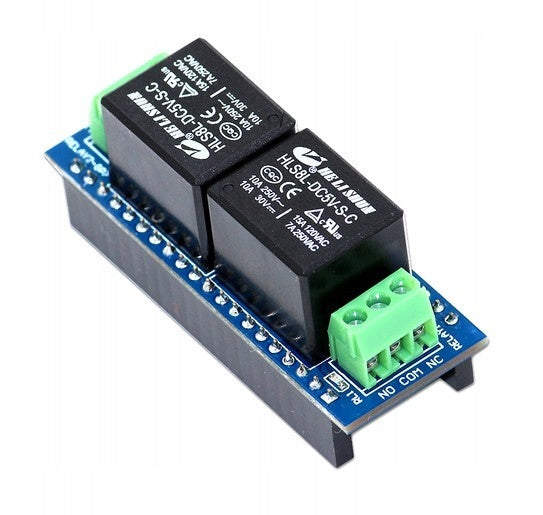

Pico Dual Channel Relay HAT - module with 2 relays for Raspberry Pi Pico
Description
Module with 2 relays designed to work with Raspberry Pi Pico. It allows you to control devices with an operating voltage of up to 250 V AC and an intensity of up to 7 A or a voltage of 30 V DC and an intensity of 10 A. The module will be used in applications in the field of home automation, industry and security systems. Full documentation with examples is available on the product wiki page.
Description of used leads
Properties
- 2 x 7 A 250 V AC or 10 A 30 V DC relay
- Relay Switching Status LED Indicators
- Optoisolation
- Screw connectors
- Control Voltage: 5 V
- PCB Dimensions: 58 x 21 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | SKU21284 |
| Parametry | Manufacturer | no brand |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5055652921284 |
| Parametry | Batteries included | no |
