Trumpai apie prekę
Prekė: RC lėktuvas HEEWING Hunter H1 Humi PNP 680mm 2S XT30 dviem varikliais. Kategorija: Dronai ir multikopteriai.
- Gamintojas: Avifly
- Modelis: H1-P-W

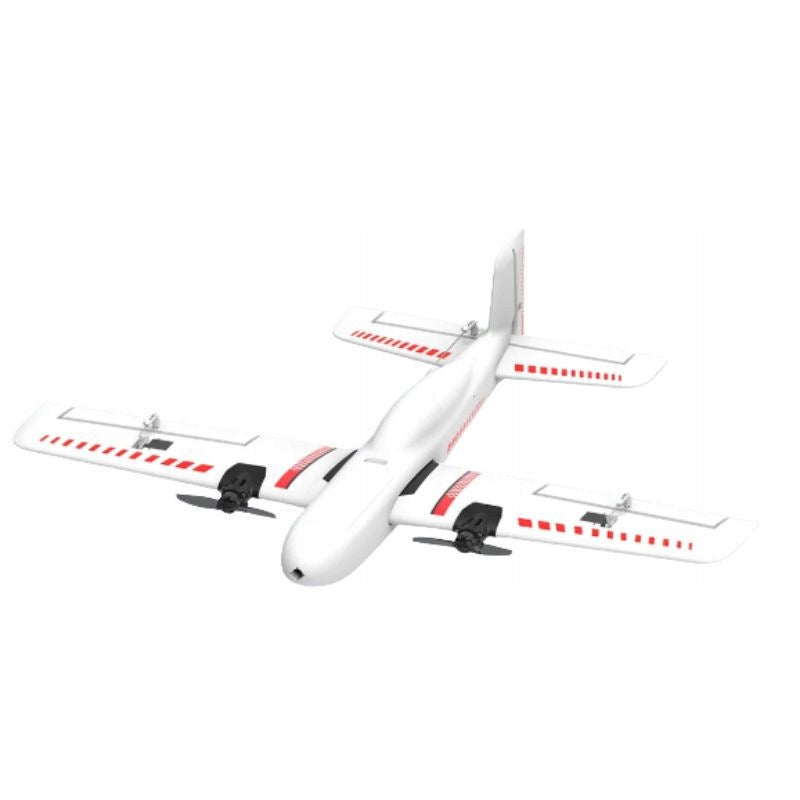

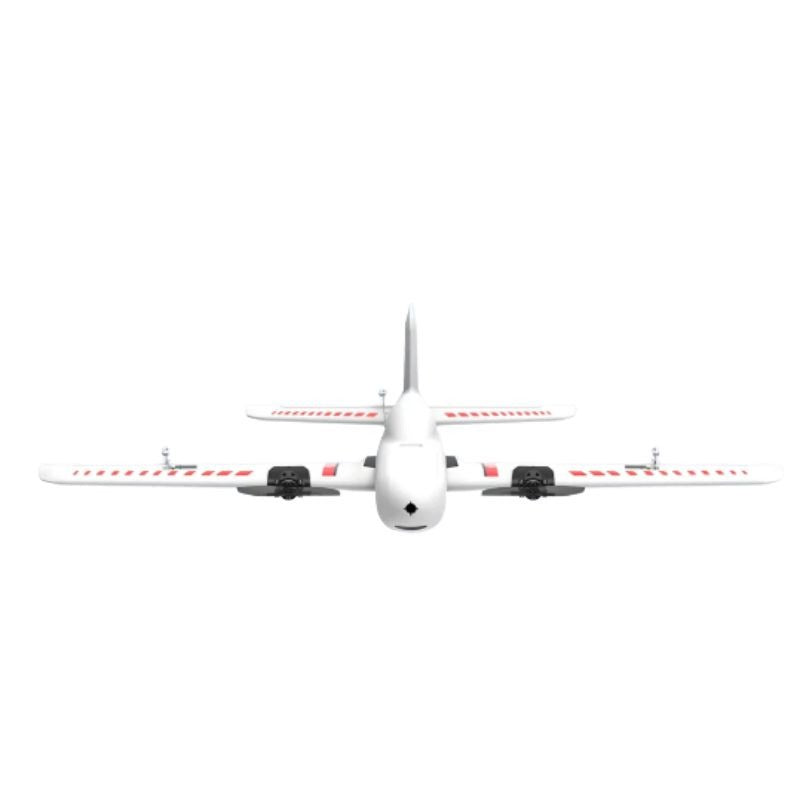

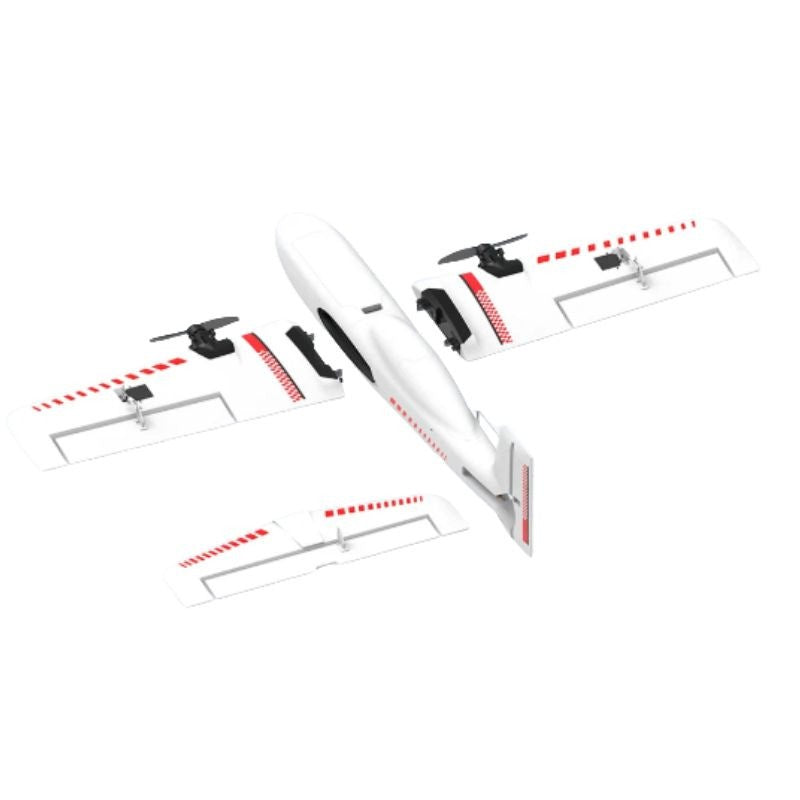

RC HEEWING Hunter H1 Humi PNP 680 mm aircraft
HEEWING Hunter H1 Humi PNP is a lightweight, twin-engine RC aircraft with a span of 680 mm, designed for recreational flights in sight and expansion with a FPV system.
The PNP version includes motors, ESC speed controller, servos and propellers. To start the model, you also need an apparatus, RC receiver, 2S LiPo battery with XT30 connector and charger.
The most important features
- Wingspan 680 mm - compact format for easy transport and manual start of the model
- Two-engine drive system - two brushless motors 1504 symmetrically spaced
- RColator ESC 10 A - support for factory drive model
- Three servos 4,3 g - basic control is included in the PNP set
- Propellers FX-3830 - elements adapted to the engines used
- EPP and PC design - low weight and resistance suitable for everyday flights
- LiPo 2S power supply - a popular standard in lightweight RC aircraft models
- XT30 connector - specific standard of battery connection
- Expandable with FPV - design adapted to mount camera, video transmitter and antenna
- Possible weight below 250 g - depending on the receiver, battery and accessory used
PNP version for self-configuration
The model includes basic drive and control electronics, but is not ready to fly without additional equipment. The user must mount their own RC receiver, connect the battery and configure the apparatus.
The HEEWING Hunter H1 Humi can be used as a classic RC aircraft or be extended with a FPV system. However, an additional camera, video transmitter and antenna affect the starting mass and the position of the center of gravity.
In the construction, a place for additional servo of the rudder direction was prepared. This servo is not included.
Technical specification
- Manufacturer: HEEWING
- Model: Hunter H1 Humi
- Version: PNP
- Model type: twin-engine RC aircraft
- Material: EPP and PC
- Wingspan: 680 mm
- Length: 550 mm
- Start weight: possible value below 250 g with light configuration
- Engines: 2x brushless 1504
- ESC speed controller: 10 A
- Servo: 3x 4,3 g
- Additional servo rudder direction: place prepared, servo not included
- Propellers: FX-3830
- Recommended battery: LiPo 2S
- Power connector: XT30
- Battery: not included
- RC receiver: not included
- Flight Controller: not included
- FPV system: not included
Contents of the set
- 1x HEEWING Hunter H1 Humi Aircraft Component Set
- 2x brushless motor 1504
- 1x ESC 10 A speed controller
- 3x servo 4,3 g
- 2x FX-3830 propeller
- Fastening, stiffening and mounting elements of the model
Elements needed to run
- RC apparatus
- Compatible RC Receiver
- 2S LiPo battery with XT30 connector
- LiPo Battery Charger with Balancer
- Adhesive suitable for EPP foam
- FPV system if the model is to be used with image preview
Important: The model requires final assembly, configuration of the apparatus, checking the direction of operation of the servos and setting the center of gravity. When configuring the drive, remove the propellers.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Avifly |
| Parametry | Model | H1-P-W |
| Parametry | EAN (GTIN) | 5908080510622 |
| Parametry | Manufacturer code | H1-P-W |
