Trumpai apie prekę
Prekė: Rankenos aušintuvas SHERMAN WRC 300B, 6 l talpa, 8 l/min, su signalizacija, 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: WRC 300B
Manufacturer: Sherman | Power supply: 230V | Capacity of tank: 6l | Power: 370W | Pump capacity: 8 l/min

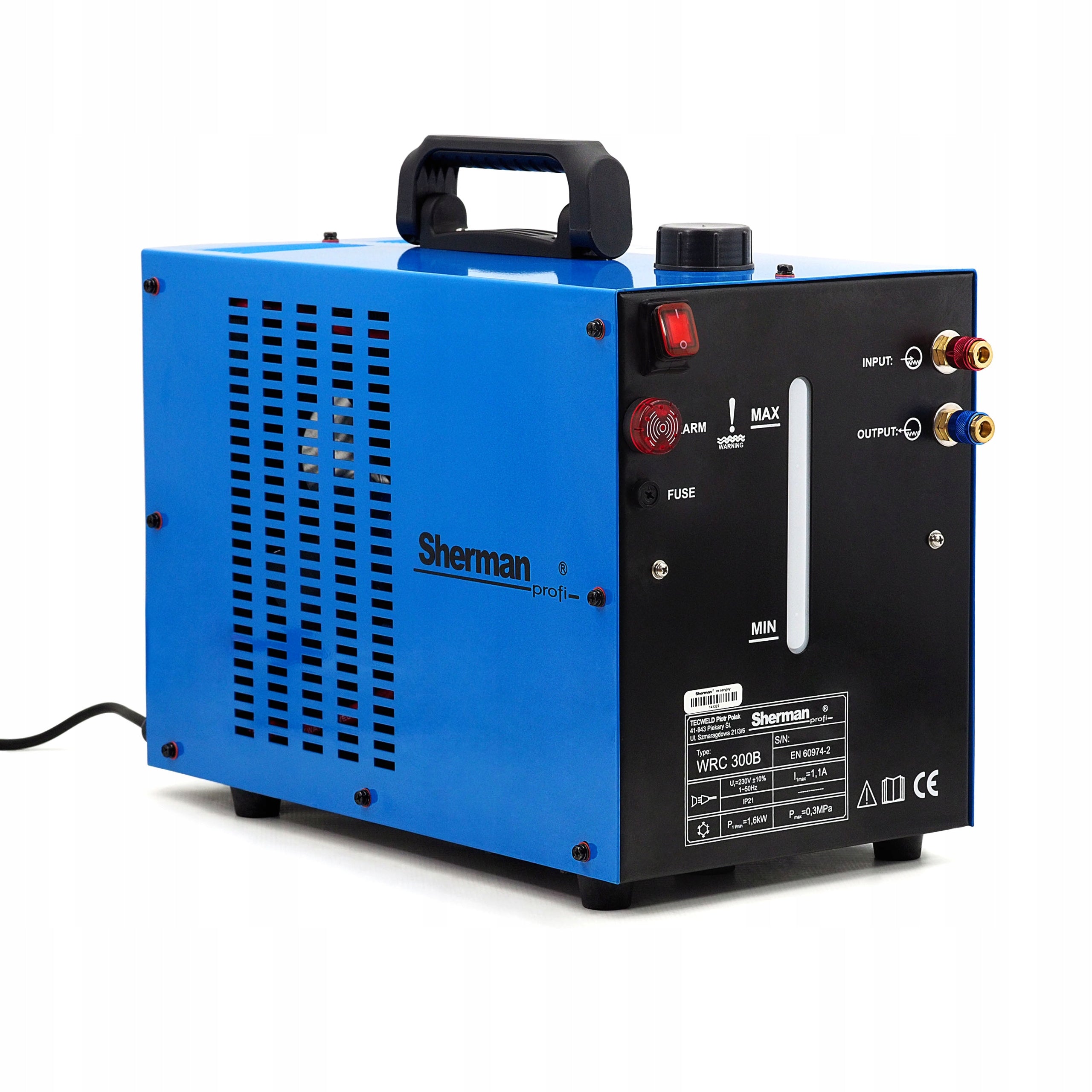

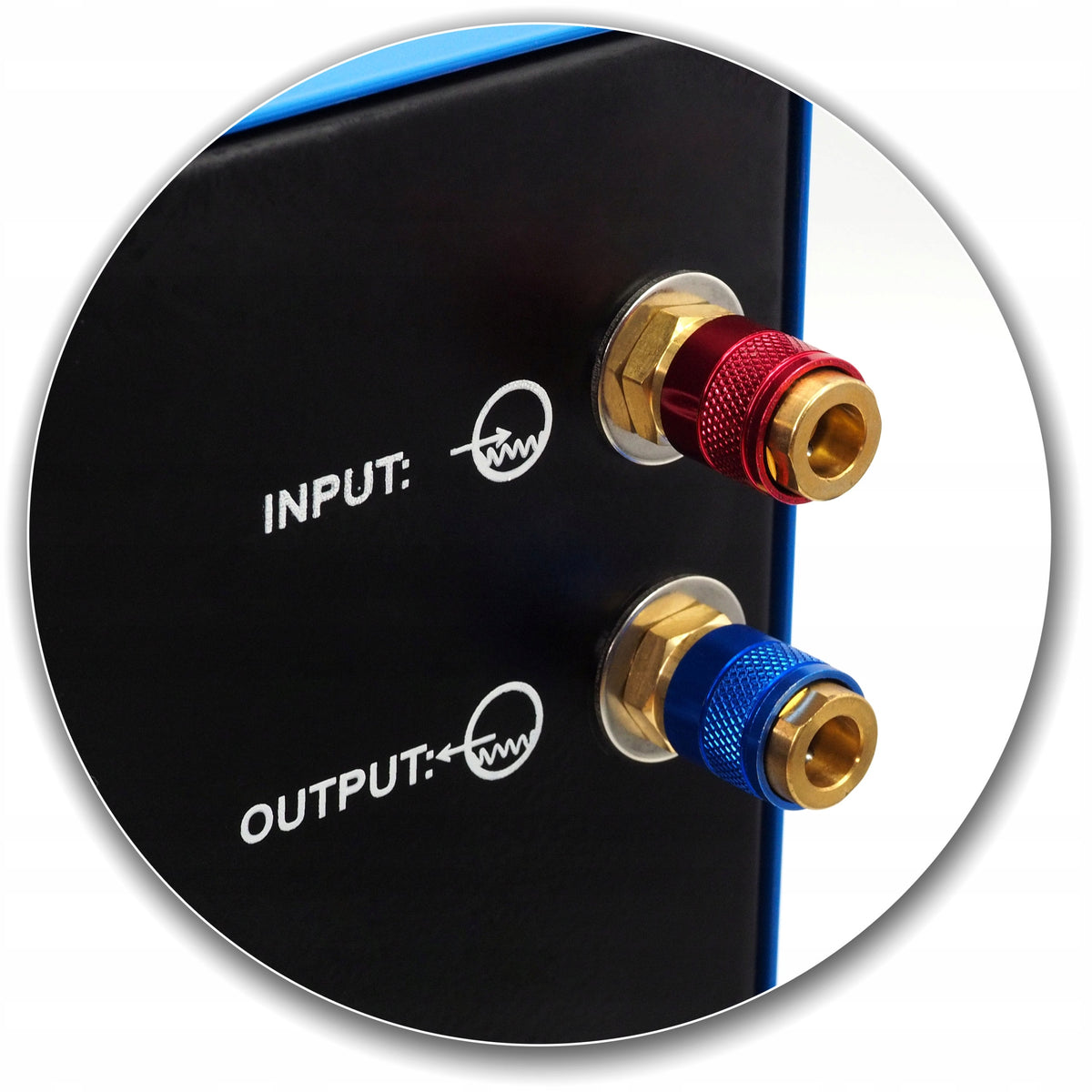

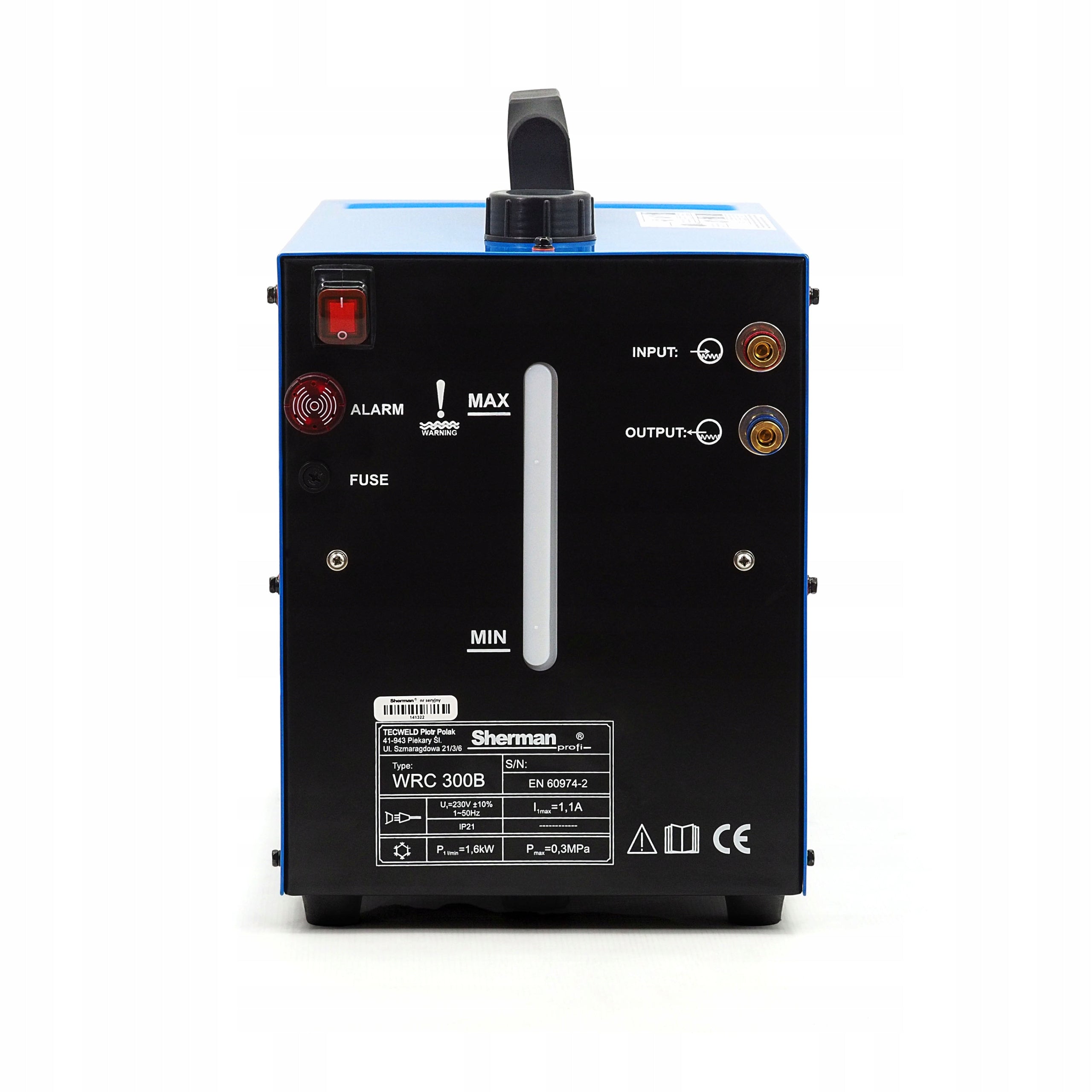

Professional cooler SHERMAN WRC 300B is a device that provides a closed coolant circuit for cooling welding torches in the MIG/MAG, TIG or plasma handles method.
The principle of operation of the radiator is based on heat exchange with the environment through the medium which is coolant. The heated liquid goes to the copper coil, where it is cooled with a fan and stored in a 6 liter tank. Then, with the help of an installed pump with an efficiency of 8l/min, the cooled liquid is pressed into the working handle, where its temperature is reduced through flow.
The set includes:
- Sherman WRC 300B
- User manual in Polish and warranty card
The cooler has a built-in sound alarm and flow sensor andinforming the user in the absence of coolant flow as a result of an obstructive cooling system (e.g. bend of the hose, too low level of fluid). This function increases work safety.
The Sherman WRC 300B refrigeration unit allows the operation of high-power welding equipment regardless of water supply, protects them from overheating and damage, and reduces costs associated with water use.
Advantages of WRC 300B:
- Large tank - 6l
- Adapted continuous operation (100% duty cycle)
- High Efficiency
- Simple and durable construction
- Compatible with most handles
- Maintenance-free operation
POWER SUPPLY PARAMETERS
- Power supply: 230V; 50Hz
TECHNICAL PARAMETERS
- Pump power: 370W
- Capacity of tank: 6l
- Pump capacity: 8l/min
- Coolant pressure: 0,3 MPa
- Rated cooling capacity: 1,6kW (1l/min)
PHYSICAL PARAMETERS
- Dimensions: 450 x 260 x 340 mm
- Weight: 14 kg
- Package size: 54,5 x 33 x 40 cm
- Weight with packaging: 16,40 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Welding methods | plasma cutting |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 100% |
| Parametry | Device weight | 14 kg |
| Parametry | Welding range | 10–300 A |
| Parametry | Product weight with unit packaging | 30 kg |
| Parametry | Manufacturer code | WRC 300B |
| Parametry | EAN (GTIN) | 5906372629236 |
| Parametry | Model | WRC 300B |
