Trumpai apie prekę
Prekė: Radiatorius Raspberry Pi CM5. Kategorija: Priedai.
- Gamintojas: Raspberry pi
- Modelis: SC1752

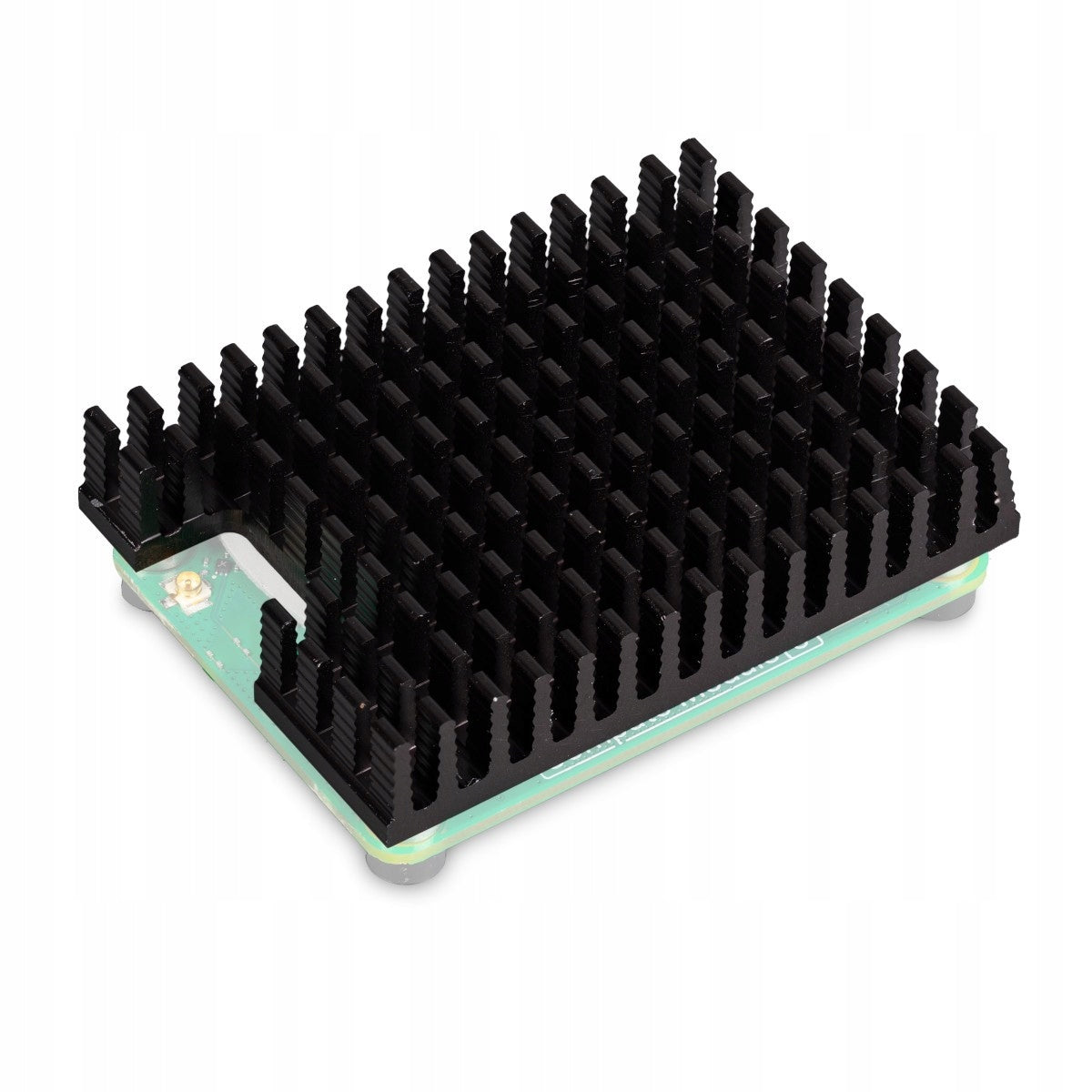

Heatsink for Raspberry Pi CM5
Description
The Raspberry Pi Compute Module 5 Passive Cooler is a passive heat sink designed specifically for the Raspberry Pi Compute Module 5, designed for users who want to optimize the performance of their device and protect it from overheating and potential mechanical damage. This heatsink is designed to efficiently cool key components such as the processor, RAM, eMMC, and power circuit, which helps to improve system stability and extend module life.
The heatsink is easy to install, ensuring that even users with minimal experience can handle its installation. The set includes four nylon washers M2.5 × H1.5 or M2.5 × H3 and four screws M2.5 × 8, which guarantee stable attachment of the heat sink to the module. Installation involves applying thermopads to the processor and other key elements of the Raspberry Pi Compute Module 5, then placing the heat sink and attaching it to the module with screws. Thanks to this solution, the heat sink perfectly adheres to the surface of the CPU and other components, which ensures effective heat dissipation.
The mechanism of operation of the Raspberry Pi Cooler is based on passive cooling, which means that there is no need to use fans or other moving parts that can generate noise and increase energy demand. The heat generated during the operation of the processor and wireless module is transferred via thermopads to an aluminum heat sink. Thermopads act as a medium with high thermal conductivity, which allows for efficient transfer of thermal energy without losses. The heat sink, thanks to its large surface area, allows heat dissipation to the environment, which reduces the temperature of the Raspberry Pi Compute Module 5 and ensures its stable operation even under heavy loads.
Properties
- Designed for: Raspberry Pi Compute Module 5
- Material: Aluminum with high thermal conductivity
- Thermopads: Included
- Dimensions: 56 mm × 41 mm × 12,7 mm
Comes with
- Heatsink
- Thermopads
- Nylon washers
- Four M2.5 × 8 screws
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | SC1752 |
| Parametry | Manufacturer | Raspberry pi |
| Parametry | Kind | Radiator |
| Parametry | EAN (GTIN) | 5056561805283 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
