Trumpai apie prekę
Prekė: PWM valdiklis Adafruit Mini Kit, 16 kanalų, servo varikliams. Kategorija: Priedai.
- Gamintojas: Adafruit
- Modelis: 2327

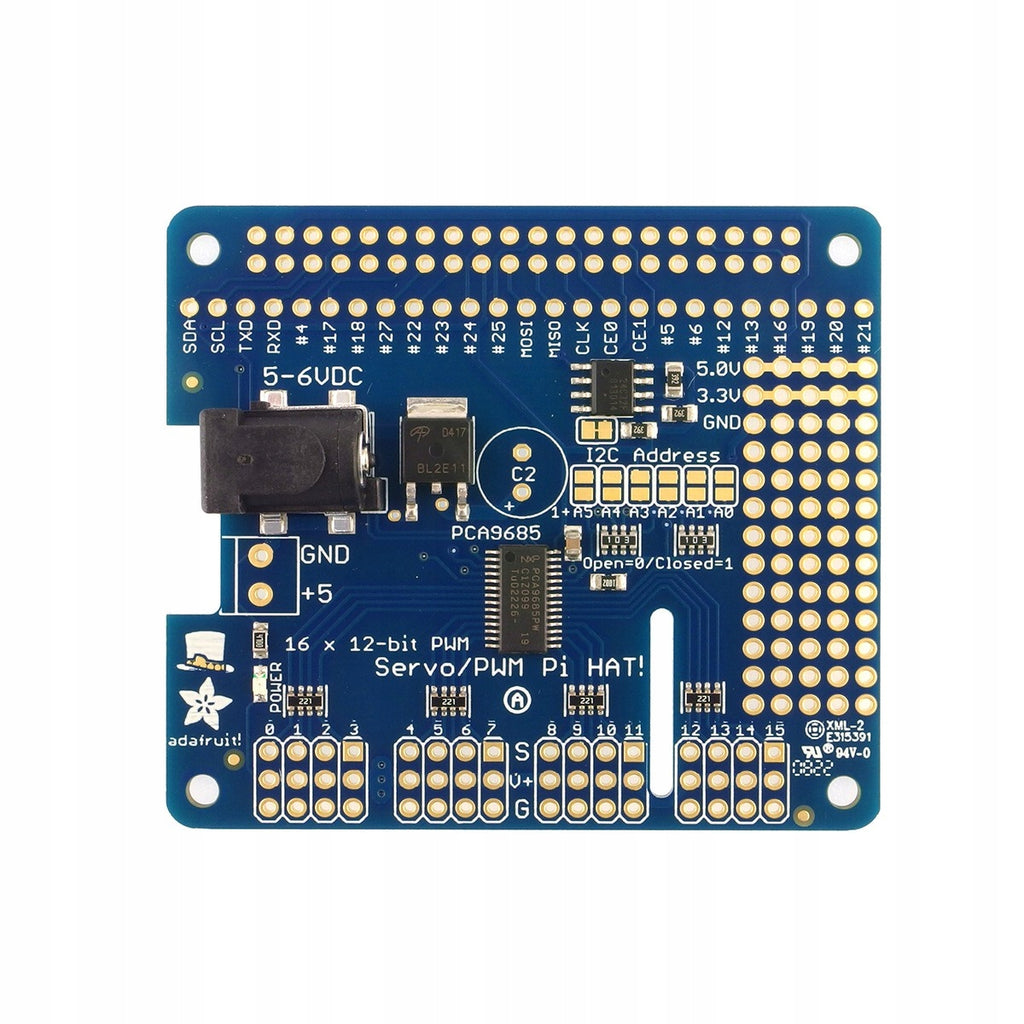

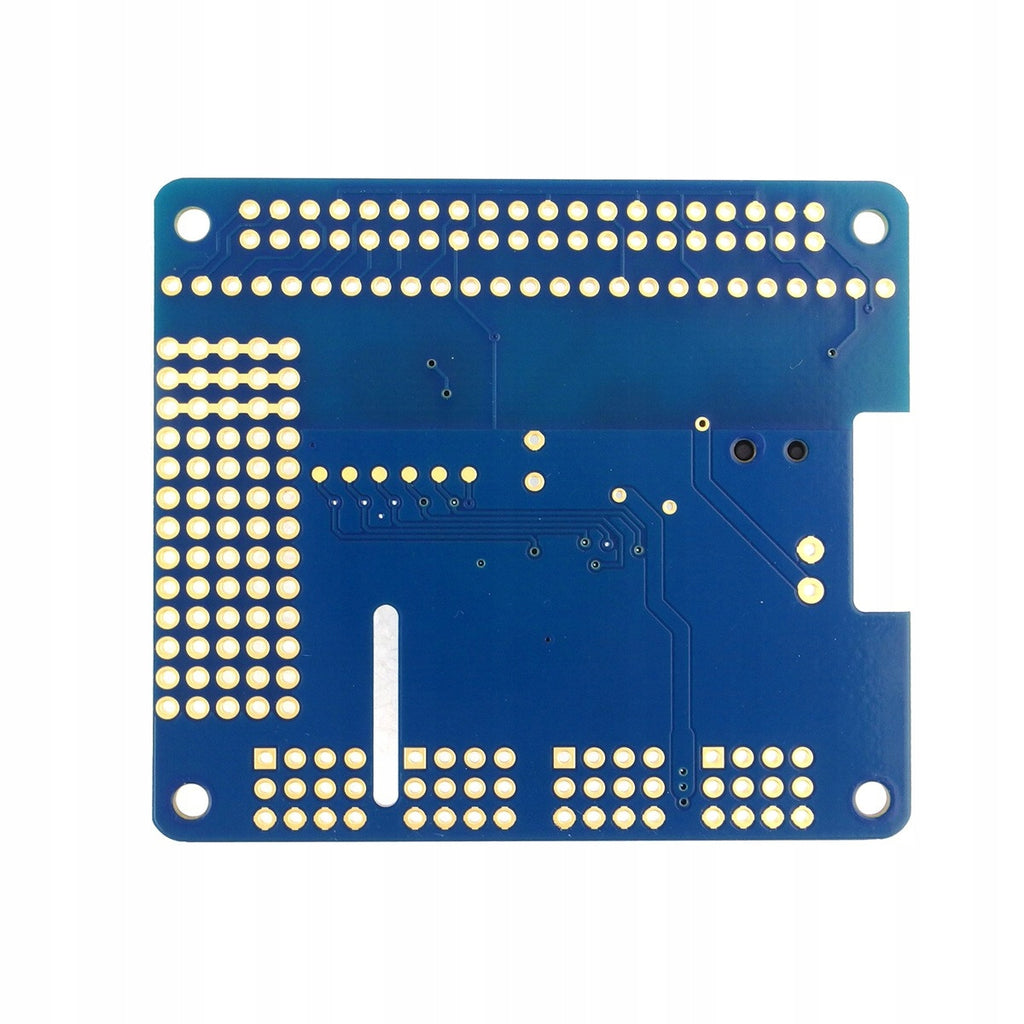

Adafruit Mini Kit 16 Channel PWM I2C Servo Driver for Raspberry Pi
Description
Expansion board for minicomputer Raspberry Pi adding the ability to control up to 16 servos with PWM signal. It can generate signals up to 1,6 kHz with 12-bit resolution. Thanks to the control via the I2C interface, it is enough to use 2 pins to control the servos simultaneously. It works with servos that require 5 V power supply and communication with the logical level of 3,3 V. The manufacturer also provides a library in Python, which allows you to quickly design a system using the module.
Properties
- Compatible with Raspberry Pi
- Interface: I2C
- Controls up to 16 servos
- Power supply: 5-6 V
- Dimensions: 65 x 56 x 13 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 2327 |
| Parametry | Manufacturer | Adafruit |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5904422354084 |
| Parametry | Batteries included | no |
