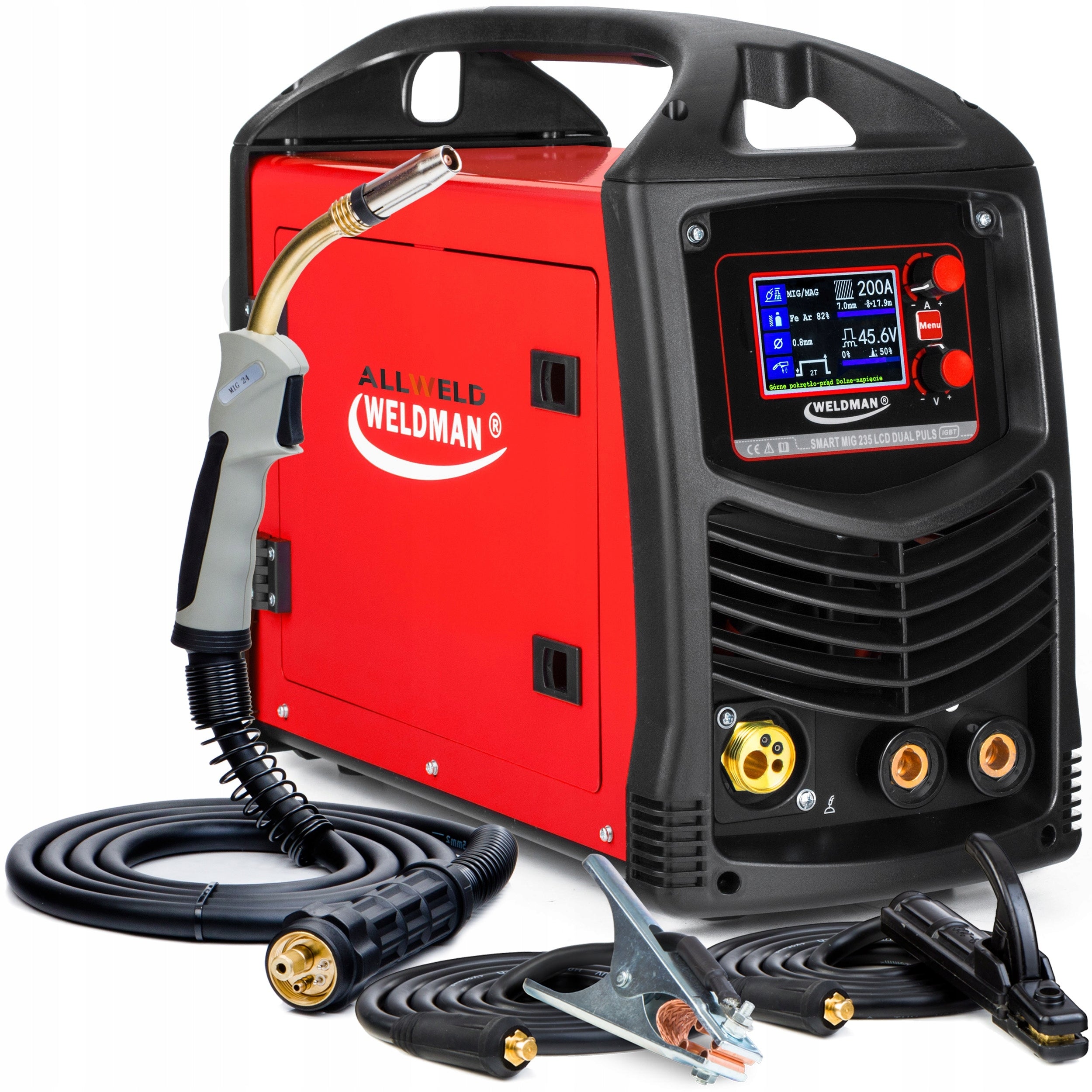

Pusiau automatinis suvirinimo aparatas WELDMAN SMART MIG 235 LCD, DUAL PULSE, IGBT, 200A, 230V

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas WELDMAN SMART MIG 235 LCD, DUAL PULSE, IGBT, 200A, 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: SMART MIG 235

MIGOMAT WITH DOUBLE PULSE FROM THE MENU AND VOICE MESSAGES in Polish !

Manufacturer: WELDMAN ║ Welding methods: MIG/MAG, FLUX, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

DISCOVER ALL THE ADVANTAGES OF THE WELDMAN SYNERGISTIC SEMI-AUTOMATIC

• 3in1 welder: MIG/MAG, MMA, TIG DC
• Double Pulse - the best welding quality
• Menu in Polish
• Voice messages in Polish
• Efficiency 60% for power 200A

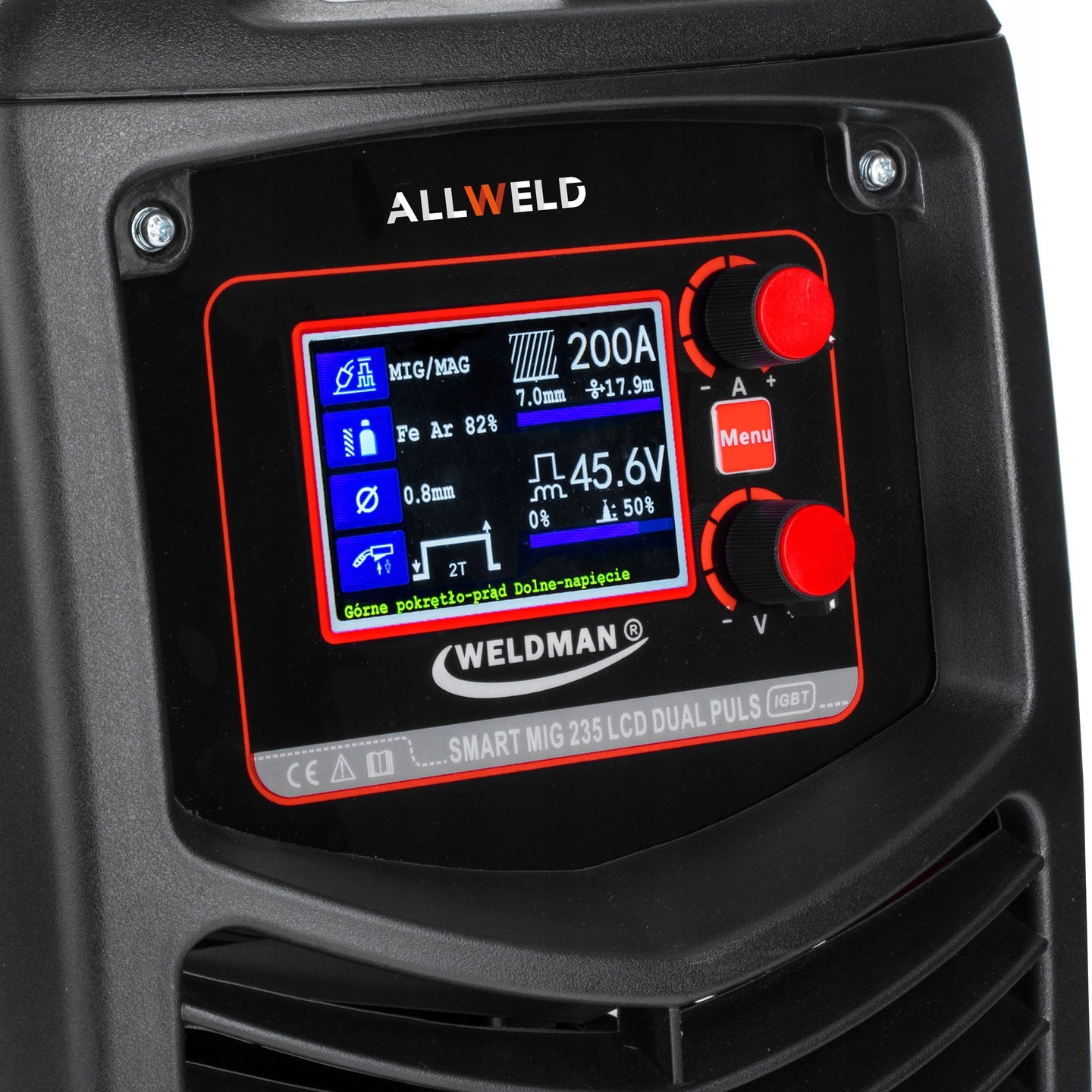

• Colourful and easy to read LCD display
• Excellent semi-automatic for welding ALUMINIUM in MIG method
• Great equipment for professional use
• Lutowelding
• INDUCTANCE regulation - less chipping
• 2T/4T mode
• Operation in S2T / S4T mode
• Channels memory - 20 write options
• Overload switch
• Point welding - the ability to adjust the time
• Welding with FLUX self-shielding wire - without gas
• BURN BACK function
• VRD
• HOT START
• ARC FORCE

The WELDMAN SMART MIG 235 LCD DUAL PULS inverter welder is an easy-to-use migomat that allows smooth regulation of welding current. The device allows welding with a maximum current of 200A at an efficiency of 60% by MIG/MAG, MMA and TIG methods. The device uses a large and easy-to-read LCD display. An additional advantage is the menu in Polish and voice messages also in Polish. The welder has a built-in settings memory, so we can save them and return to them at any time. This solution is helpful for people who have repeatability of cycles and do not want to re-set the welding machine every time. We have 20 memory channels. It will be used in locksmith workshops, repair workshops of assembly works. The SMART MIG 235 model will allow you to combine low-alloy, non-alloy steels, as well as magnesium, aluminum, nickel, copper and their alloys. WELDMAN SMART MIG can also be used for thin sheet metal processing, especially in the automotive industry.

ADDITIONAL FEATURES AND BENEFITS

SPOT WELDING - point joining of elements: ordinary SPOT (we can adjust the break time from 0,1 to 9,9s between welds)

S-2T - two-bar operation mode with hot start, useful when welding materials that require preheating.

S-4T - four-bar operation mode with hot start, useful when welding materials that require preheating.

IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

2T/4T - at two bars after pressing the start button, the welding process takes place after releasing the button, the welding process is stopped - at four bars after the first press and release of the button, the welding process stops at the second press. This is a more convenient solution for longer welds.

FULL SYNERGY - this is a modern electronic microprocessor control that automatically selects operating parameters depending on the wire diameter, type and thickness of the material.

SYNERGIC PROGRAMS FOR MIG/MAG WITH PULSE AND MIG/MAG WITH DOUBLE PULSE

Fe CO2 - 0,8-1,0 - MAG welding of carbon steel in CO2 shield (not available in pulse or double pulse welding)

Fe Ar82% - 0,8-1,0 - MAG welding of carbon steel in Ar82%+CO2 18% compound sheath

AlMg5 Ar - 1,0-1,2 - Welding of aluminium alloys with magnesium by MIG method in argon sheath

AlSi5 Ar - 1,0-1,2 - Welding of aluminium alloys with silicon by MIG method in argon sheath

E308 Ar98% - 0,8-1,0 - MIG welding of SS 308 stainless steel in Ar 82%+CO2 2% compound sheath

E316 Ar98% - 0,8-1,0 - MIG welding of SS 316 stainless steel in Ar 98%+CO2 2% compound sheath

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50Hz
• Power protection: 20A

TECHNICAL PARAMETERS OF MIG MAG

• MIG/MAG welding current: 40 ÷ 200A
• MIG/MAG welding voltage: 22 ÷ 24 V
• Efficiency: 60%
• Feeder: 2R
• Spool diameters with wire: to 200mm
• Max. Spool size: 5kg
• Wire diameter: 0.8/1.0/1.2 mm

PARAMETERS MMA

• MMA welding current range: 20 ÷ 180A
• Work cycle: 60%
• Diameter of electrode: 1,6-4,0

TIG DC PARAMETERS

• TIG DC welding current: 10 ÷ 180A
• Work cycle: 60%

ADDITIONAL FUNCTIONS

• DOUBLE PULSE: YES
• SINGLE PULSE: YES
• MMA function: YES
• PULSE function: YES
• SYNERGY function: YES
• HOT START function: YES
• ARC FORCE function: YES
• 2T/4T function: YES
• HOT 2T/4T function: YES
• SPOT function: YES
• TIG LIFT function: YES
• VRD function: YES
• Point welding: YES
• Welding without gas: YES

PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: fan
• Weight: 14 kg
• Dimensions: 540x260x450mm

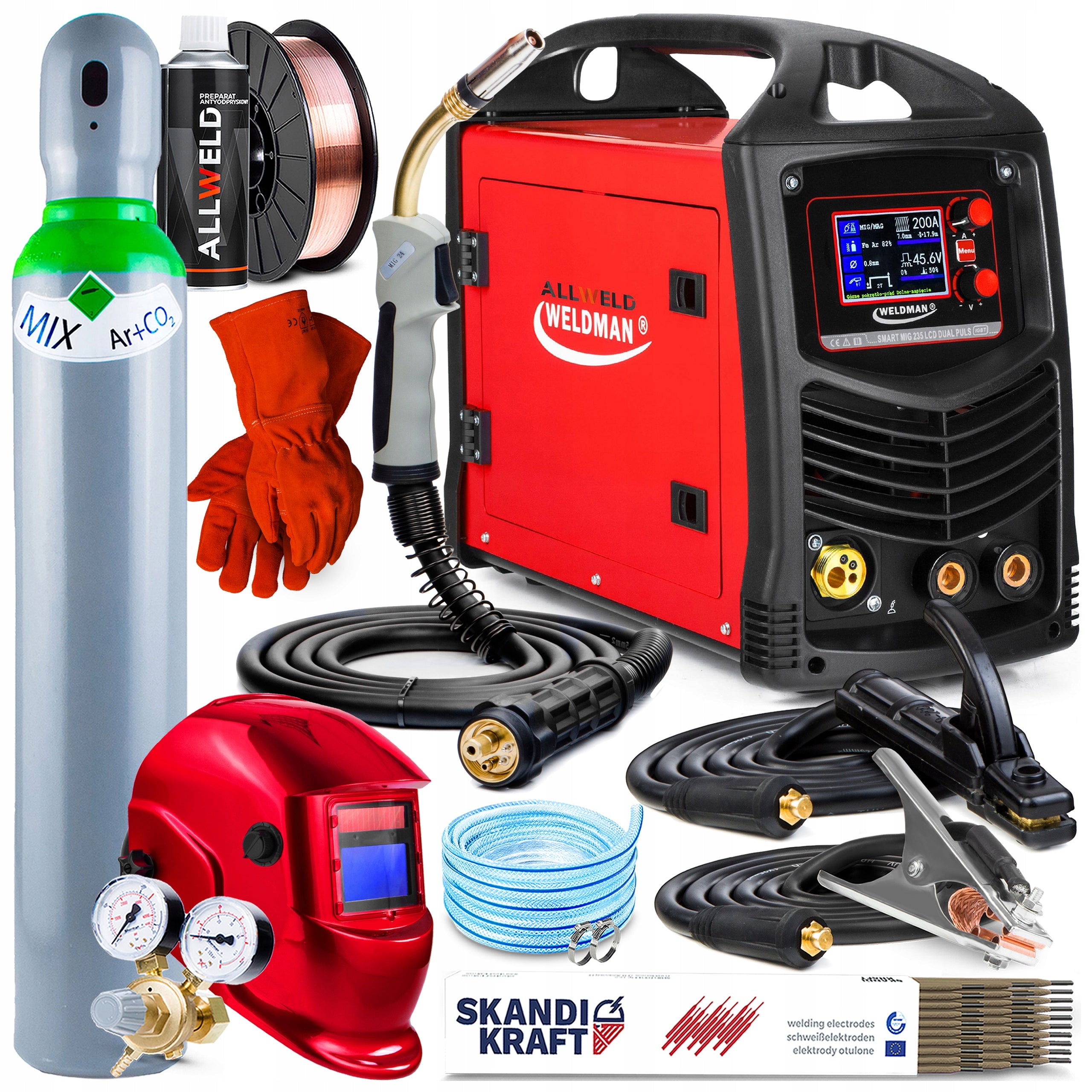

THE SET INCLUDES:

• Welder WELDMAN SMART MIG 235 LCD SYN DUAL PULS
• Welding torch MIG/MAG type MB 24 - 3m
• Electrode holder - 2,5m
• Bulk holder - 2,5m
• Teflon cartridge - 1 pc.
• Aluminium wire feeder roller - 1 pc.
• Steel wire feeder roller - 1 pc.
• Gas nozzle - 1 pc.
• Current terminals - 4 pcs.
• User manual in Polish

WELDING ACCESSORIES:

• Visor self-tinting
• Cylinder with gas mixture Argon/CO2
• Cylinder reducer Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 - 1kg
• Anti-chipping preparation ALLWELD
• Gas connection hose - 1 pcs
• Clippers - 2pcs
• Electrodes SKANDI KRAFT 1kg - 1pcs
• Gloves welding - 1 pair

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	14 kg
Parametry	Product weight with unit packaging	17 kg
Parametry	Manufacturer code	103 134 #ZESTAW2AK
Parametry	EAN (GTIN)	5907195561499
Parametry	Packaging status	original
Parametry	Model	SMART MIG 235
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO holders,LCD display
