Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas TIG MIG/MAG MMA 250A IGBT Stamos Ge. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Stamos
- Modelis: 4250928641168
- Ilgis: 54 mm
- Plotis: 24 mm
- Aukštis: 41 mm
DESCRIPTION

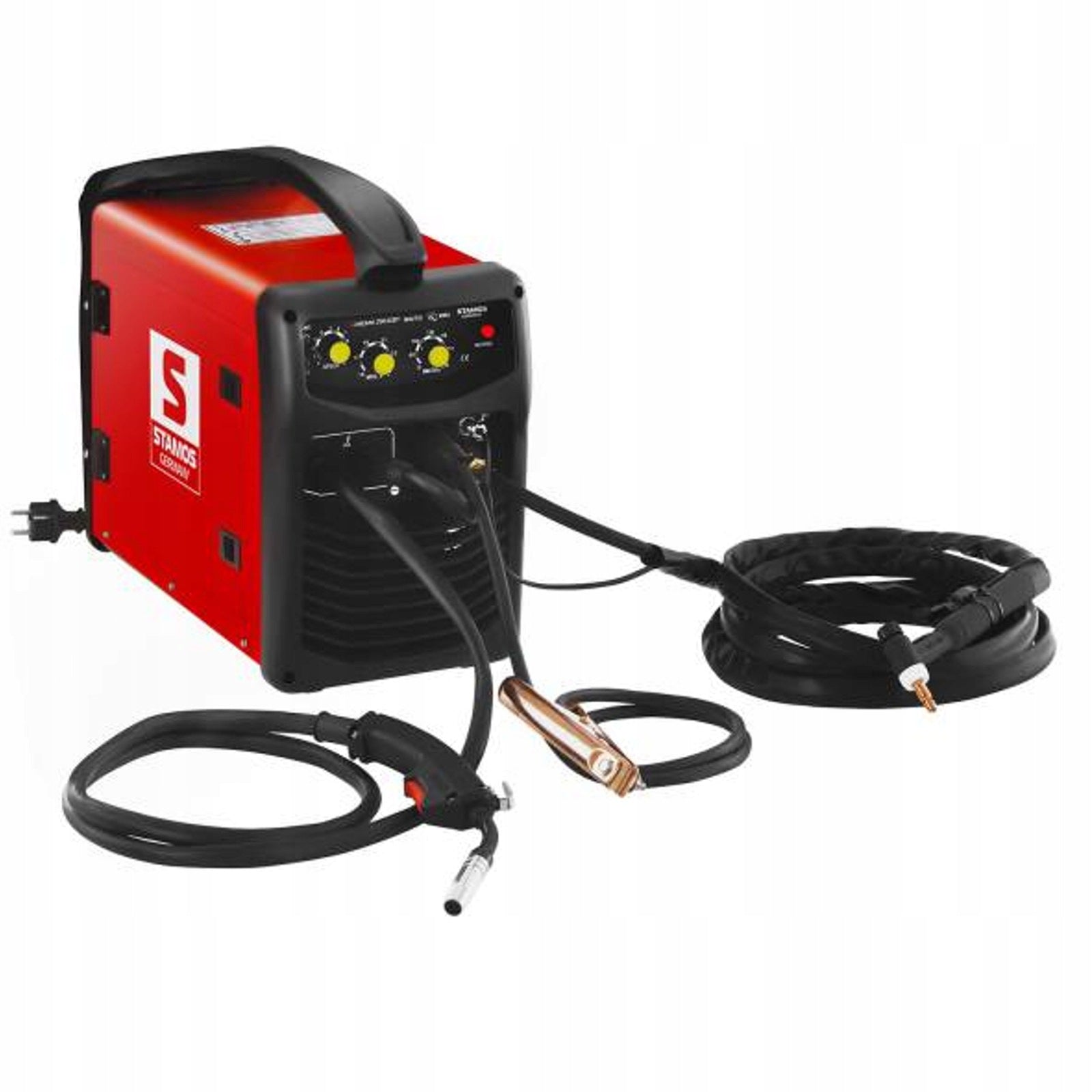

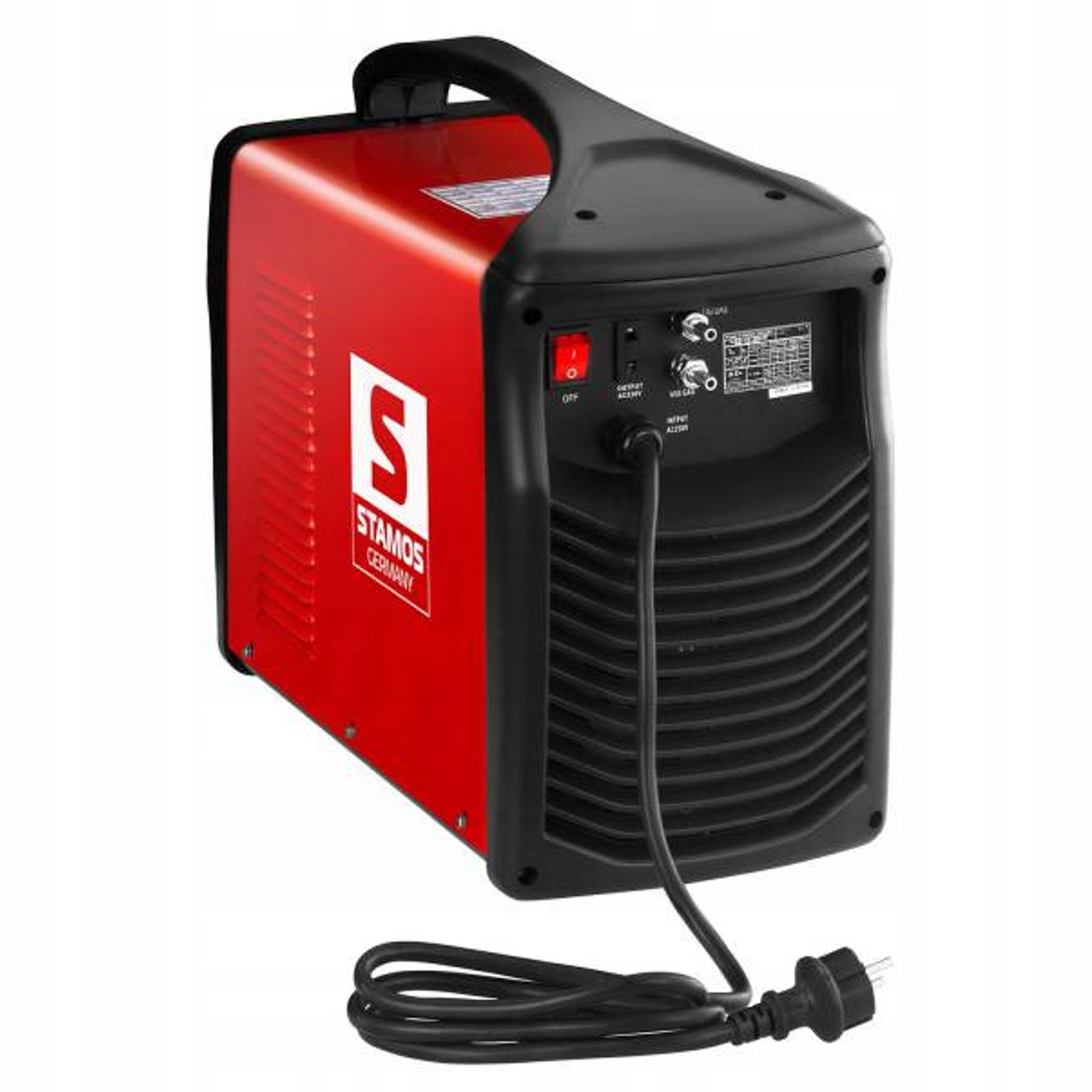

Semi-automatic welding machine S-MIGMA 250. IGBT from Stamos Germany is a multifunctional device for processing metal elements. It enables welding in MIG, MAG, FCAW, TIG and MMA modes, which gives a wide range of applications. The IGBT inverter technology ensures stable operation and short-circuit resistance, while stepless current adjustment up to 250 A allows for precise selection of parameters.
FEATURES
- Work in MIG, MAG, FCAW, TIG and MMA modes.
- Stepless regulation of welding current up to 250 A.
- IGBT inverter technology with a three-pin short-circuit resistant semiconductor element.

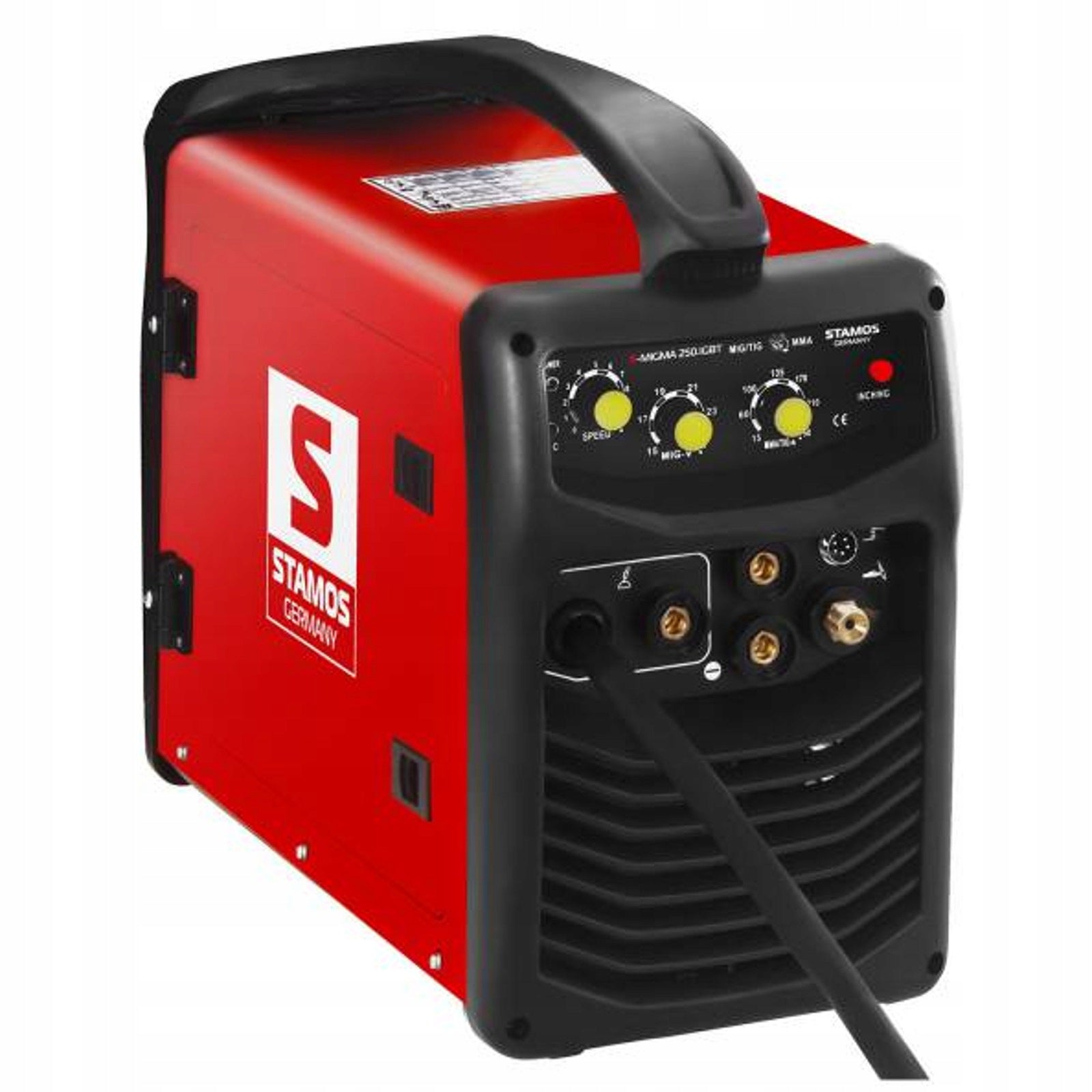

- Knobs for precise setting of inductance, welding current and wire feed rate.
- Compact design with handle for easy carrying.
- Compliance with CE and RoHS standards.
PARAMETERS
- Model: S-MIGMA 250. IGBT
- Catalog No.: 2208
- Power supply: 230 V / 50 Hz
- Rated Input Current: MIG 29,5 A / MMA 33 A / TIG 22,5 A
- Maximum input current: MIG 38 A / MMA 43 A / TIG 29 A
- Idle Voltage: 62 V
- MIG Current: 50-250 A
- MMA Current: 10-250 A
- TIG Current: 10-250 A
- Welding current at 60% duty cycle: 250 A (MIG/MMA/TIG)
- Welding current at 100% duty cycle: 193 A (MIG/MMA/TIG)
- Working cycle: 60%
- Welding thickness: 0,5-10 mm
- Diameter of TIG electrodes: 0,5-4 mm
- Diameter of MMA electrodes: 1,6-5 mm
- Cooling: fan
- Handle Cooling: Gas
- Hot Start: yes
- Wire feeder: 2,5-13 m/min
- Cable with MMA handle: 1,4 m
- Ground wire: 1,3 m
- Cable with MIG holder: 1,75 m
- Cable with TIG handle: 3,7 m
- Safety Class: IP21
- Insulation Class: F
APPLICATION
The device is designed for welding steel, stainless steel and aluminum elements in workshops, production plants and service works. It works well in the processing of sheets and profiles with a thickness of 0,5 to 10 mm.
SET INCLUDES
- S-MIGMA 250 welding machine. IGBT - 1 pc.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Stamos |
| Parametry | Power consumption | 9.89 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Wire diameter (mm) | 0,8-1,0 |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 10–250 A |
| Parametry | Height | 41 mm |
| Parametry | Length | 54 mm |
| Parametry | Width | 24 mm |
| Parametry | Length of ground cable | 130 cm |
| Parametry | Welding cable length | 370 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 31.59 kg |
| Parametry | Manufacturer code | 4901683050794 |
| Parametry | EAN (GTIN) | 4901683050794 |
| Parametry | Model | 4250928641168 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
