Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas Sherman MIG DIGIMIG 203L SWIFT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: 7812675
- Ilgis: 490 mm
- Plotis: 220 mm
- Aukštis: 375 mm
! Devices are available in stock - immediate implementation!

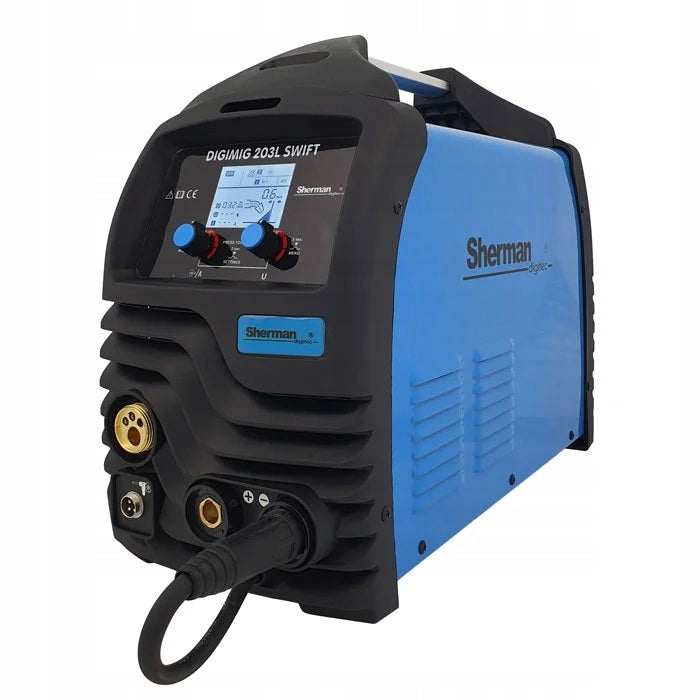

Semi-automatic welding machine MIG DIGIMIG 203L SWIFT Sherman
Product Description
Synergic welding machine DIGIMIG 203L SWIFT is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (wrapped electrode), TIG Lift, and MIG/MAG methods. The MIG/MAG method can be used in manual and synergistic mode, simplifying its operation and allowing the use of the welding machine by people with less experience and hobbyists.
Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires.
The device allows connection of the Spool Gun (SG) type handle with a mini wire feeder mounted in it and a D100 spool of steel or colored wire.

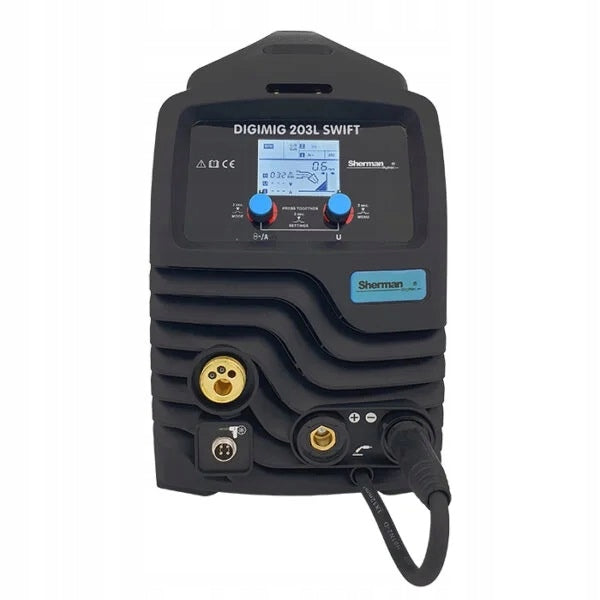

The welder is equipped with a clear LCD display. The welder is made in IGBT technology allowing for a significant reduction in weight and dimensions of the device and an increase in efficiency while reducing energy consumption.
The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.
Technical data:
- Supply voltage: AC 230V 50Hz
- Welding methods: MIG, MMA, Lift TIG, soldering
- Technology: IGBT
- Welding current: MIG: 200, MMA: 160, TIG: 160A
- Working cycle: 60%
- Max. Power Consumption: 32A
- Max. Power consumption: 7,7kVA
- Welding Current Adjustment: Smooth
- Spool diameter with wire: 100, 200mm
- Weight: 12 kg
- Dimensions (D x SZ x W): 490 x 220 x 375 mm
Functions: Digital control, 2T/4T, TIG Lift, Inductance adjustment, Gas-free welding, 2-roll feeder, Spool Gun option, Manual MIG, Synergistic MIG, MMA, TIG Lift, Gas-free welding, Gas outflow time adjustment

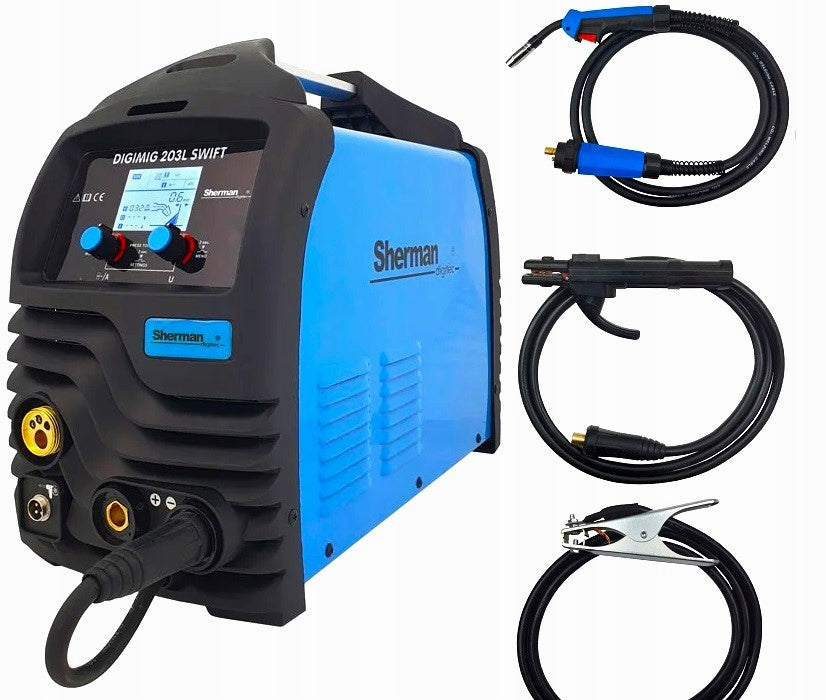

Included:
- Welding torch TW-15/3m
- Electrode cable
- Bulk cable
- Hammer with brush
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 7.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Device weight | 16.5 kg |
| Parametry | Welding range | 50–200 A |
| Parametry | Height | 375 mm |
| Parametry | Length | 490 mm |
| Parametry | Width | 220 mm |
| Parametry | Manufacturer code | 7812675 |
| Parametry | EAN (GTIN) | 5903686617690 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
