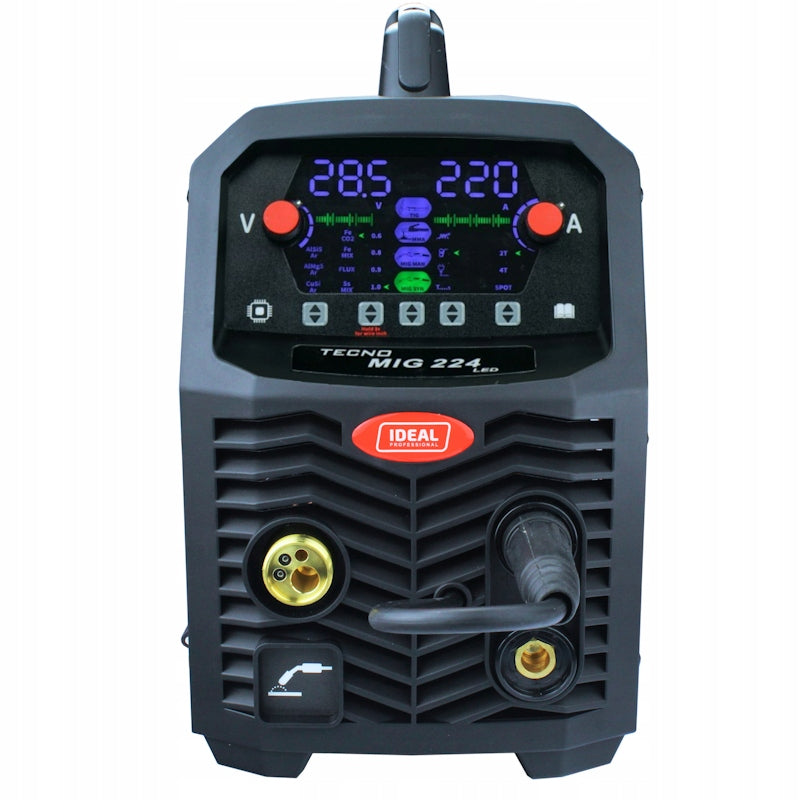

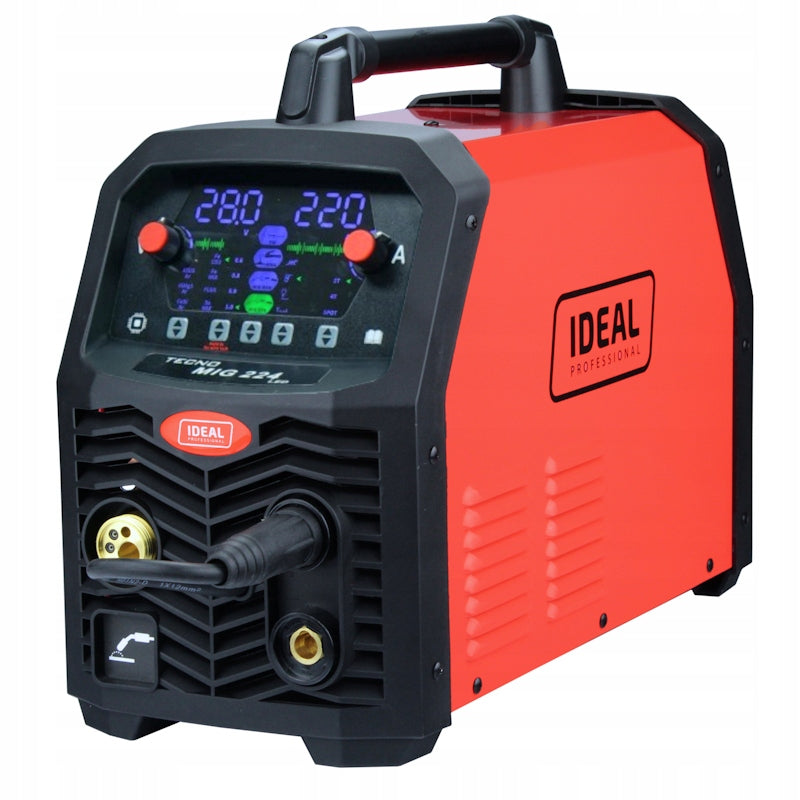

Pusiau automatinis suvirinimo aparatas MIGOMAT 4x4 MIG/ALU/MMA/TIG 200A 230V 224LED

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIGOMAT 4x4 MIG/ALU/MMA/TIG 200A 230V 224LED. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG224LED-T

Inverter semi-automatic welding machine

TECHNICAL PARAMETERS

• Power 5,7 kW
• Idle voltage 62 V
• Maximum current 220 A
• Current at work 100% 170 A (MIG/TIG) / 140 A (MMA)
• Current at 60% 220 A (MIG/TIG) / 180 A (MMA)
• Diameter of aluminium wire 1,0 mm
• Wire diameter for soldering 1,0 mm
• Diameter of self-shielding wire 0,8-1,0 mm
• Steel wire diameter 0,6 - 1,0 mm
• Stainless steel wire diameter 0,6 - 0,8 mm
• Welding electrode diameter 1,6 - 4,0 mm
• Degrees of welding current regulation Gradually
• Welding Current Adjustment Range 30 - 220 A (MIG) / 15 - 220 A (TIG) / 20 - 180 A (MMA)

PHYSICAL PARAMETERS

• Wire spool size 0,45 - 5 kg
• Degree of protection IP 21
• Weight of the device / set 15/17 kg
• Overall dimensions L x W x H 510x230x370 mm

TECNOMIG 224 SYNERGIC LED 4x4 is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.

TECNOMIG 224 SYNERGIC LED 4x4 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

By using a 4-roll feeder, the device ensures stable wire feeding so important when welding aluminum and copes very well with 5-meter welding handles.

With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock), 4T (button lock for long welds) or spot welding (SPOT)

THE MOST IMPORTANT FEATURES OF THE DEVICE

• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• The device is equipped with synergic programs facilitating the welding process.
• Intuitive controls - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Maximum spool with 5 kg wire - allows for a long working time without the need for frequent replacement of the spool with wire
• Device equipped with EURO socket for connecting a welding torch
• Welding bracket MB 15 with a length of 3 m - allows you to work freely without having to change the location of the migomate (possibility of changing to other lengths - eurodisconnector)
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• For MIG-MAG welding and MMA adjustable: welding current, wire feed speed
• Professional wire feeder: internal, 4-roller
• Polarity change for FLUX welding without shielding gas
• The device has a fan cooling system which significantly increases its efficiency
• governance is equipped with overload protection, which increases its reliability
• Price of the device with accessories: MIG 15/3m welding torch with EURO plug, mass cable, electrode cable

Large and easy-to-read LED display allows you to control and adjust MIG/MAG welding parameters on an ongoing basis, such as:

• Inductance
• Wire access
• Wire burning
• Spot weld time (in SPOT mode)

The device also has MMA parameter adjustments such as:

• regulation of ARC FORCE
• regulation HOT START
• ANTISTICK function (ON/OFF)
• VRD (voltage reduction device) reduces the idle voltage on the electrode to a safe value; it allows you to work in an environment with increased humidity. (ON/OFF)

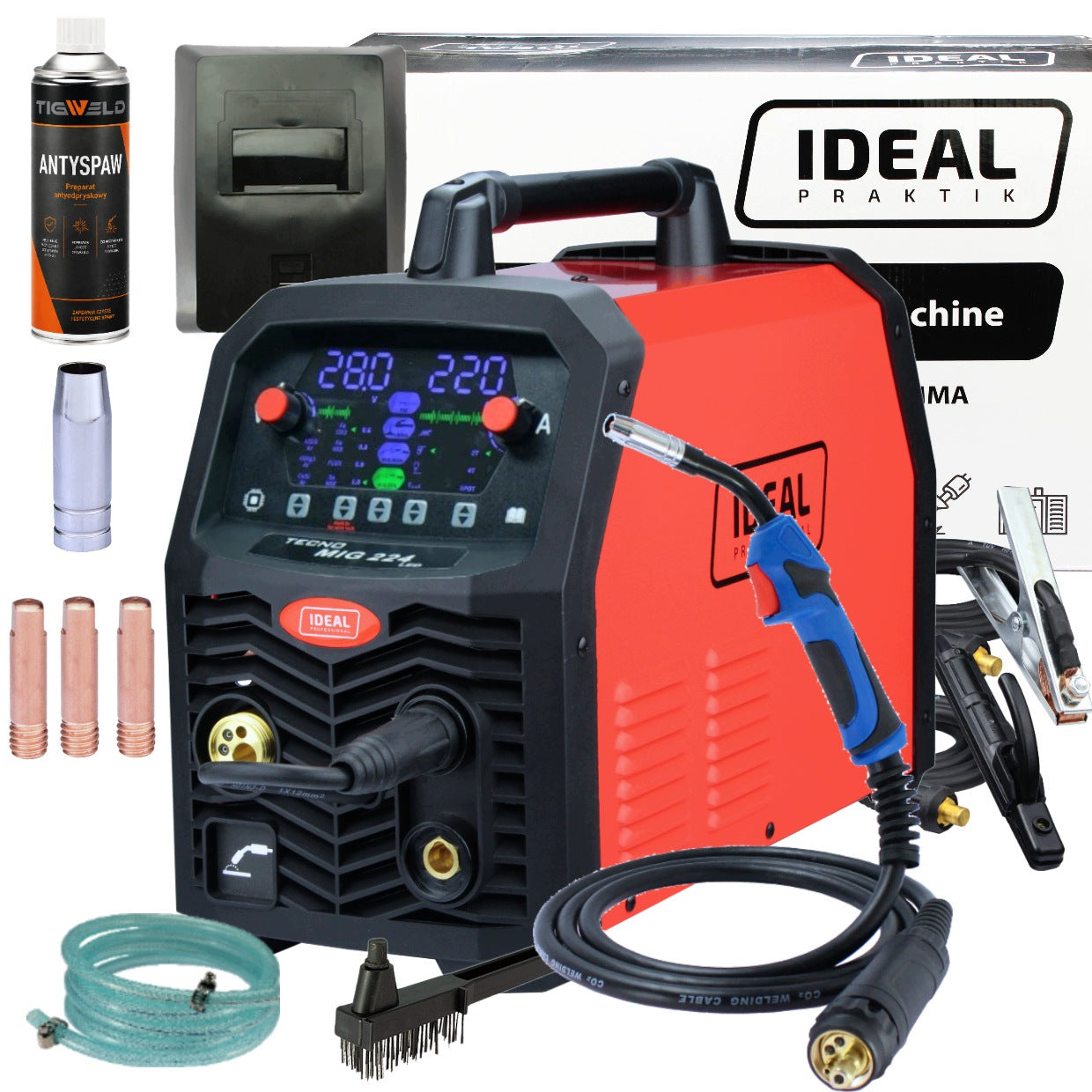

DELIVERY CONTAINS

• Semi-automatic welding machine TMIG224LED
• MIG welding torch 15/3 m with EURO plug
• Mass cable 2 m
• Electrode cable 2 m
• Passive welding disc
• Brush-hammer
• Spray anti-chipping
• Gas nozzle
• 3x current tip 0,8
• Operating instructions
• Warranty card

Specifications
