Prekė: Pusiau automatinis suvirinimo aparatas MIG MAG TIG ACX 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TECNO MIG203MMATIG
- Ilgis: 440 mm
- Plotis: 170 mm
- Aukštis: 290 mm

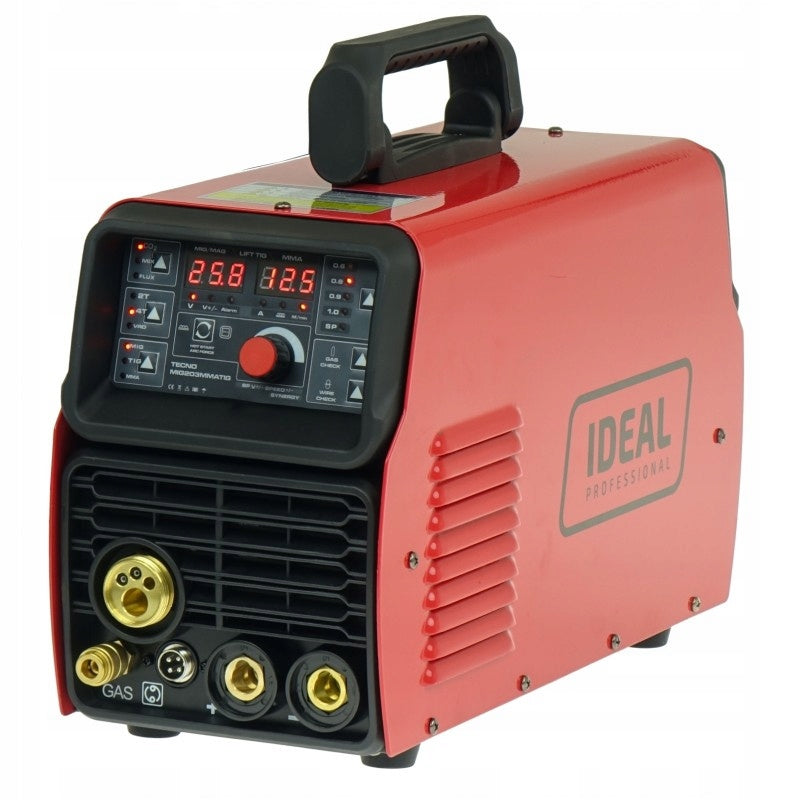

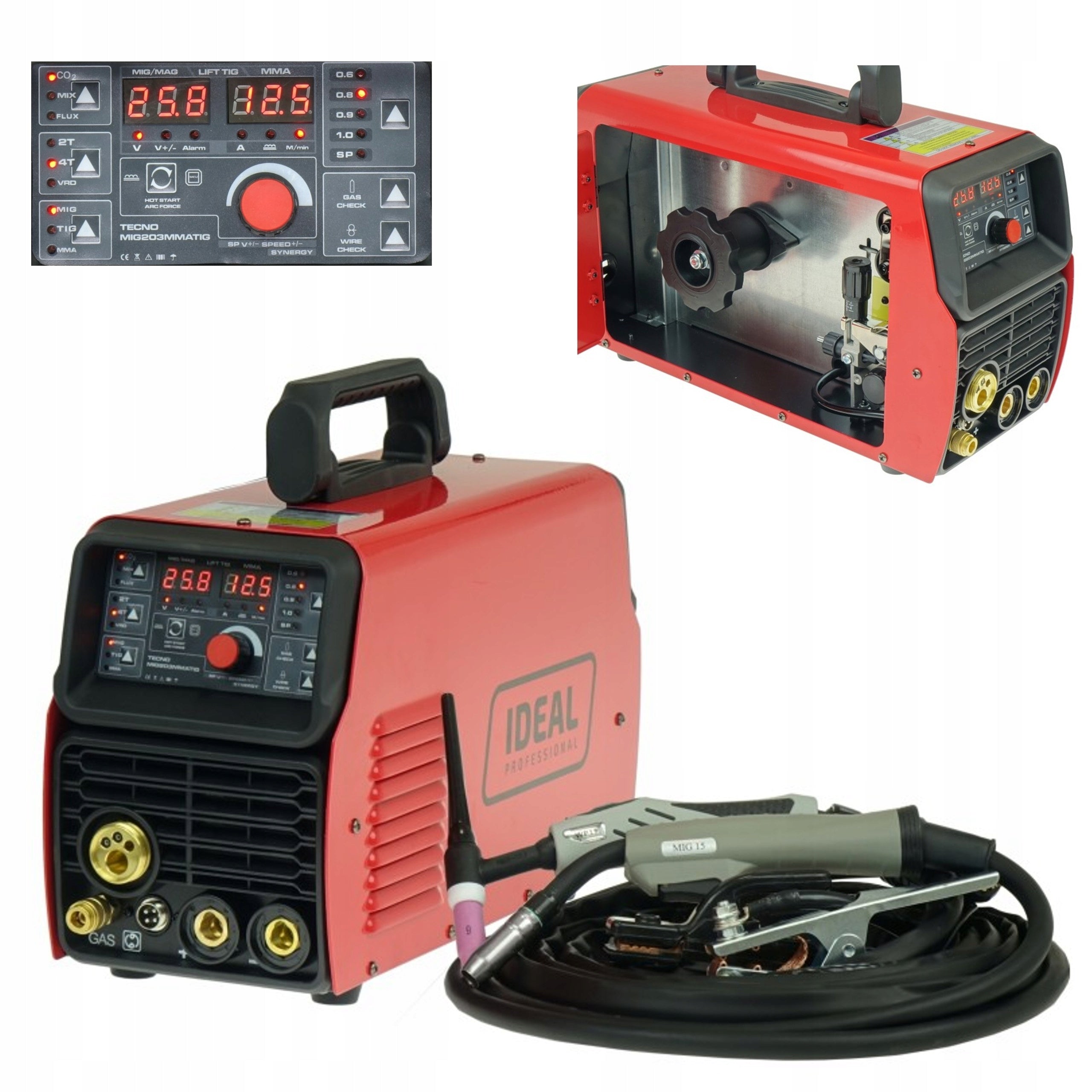

TECNO MIG 203 MIG/TIG/MMA SYNERGIC VRD + TIG ACX
Microprocessor-controlled semi-automatic welding machine for MIG-MAG welding, soldering, FLUX, TIG Lift and MMA welding. Welding current 200A (TIG/MIG), 160A (MMA). Power supply 230V. Welding wire diameter. 0,6-1,0mm. 2-roll wire feeder. Synergy
TECNOMIG 203 MIG/TIG/MMA SYNERGIC VRD is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.
TECNOMIG 203 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.
With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock)/4T (button lock for long welds)
With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides over-the-counter safety when working in humid environments.
Physical parameters
The device has a fan cooling system which significantly increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase power supply. The device is equipped with a power plug.
Equipment

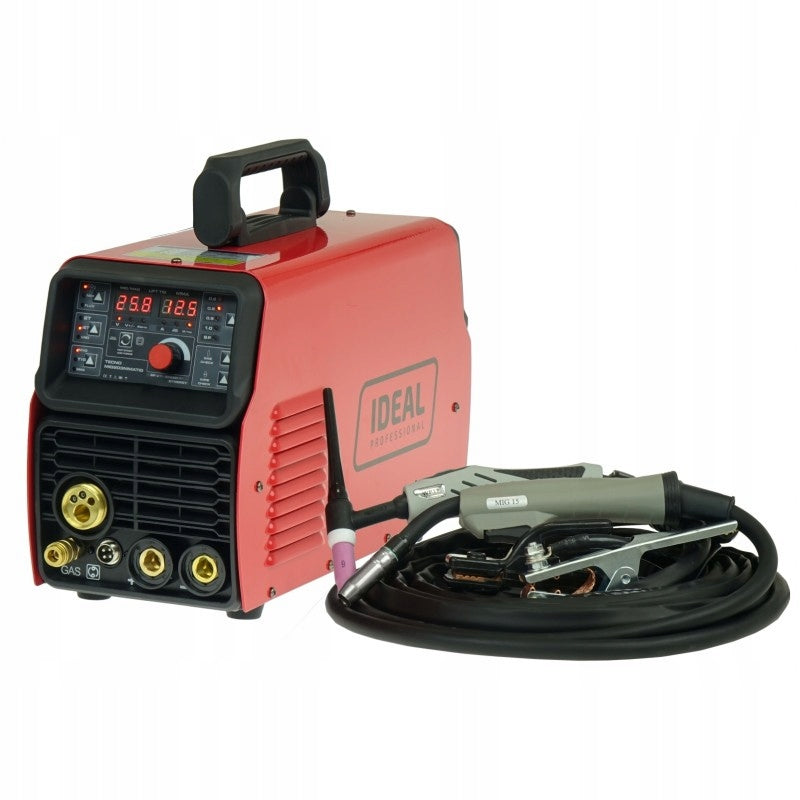

The delivery includes a device with a welding torch MIG 15 with a length of 3 meters, a handle TIG 17 with a length of 4m, a mass cable with a length of 2 meters and an electrode cable with a length of 3 meters.
TECHNICAL DATA:
Physical parameters
- Degree of protection IP21S
- Weight of the device / set 12 / 14 kg
- Overall dimensions L x W x H 440x170x290 mm
- Package dimensions L x W x H 505x340x335 mm
Technical parameters
- Power 5,9 kW
- Idle voltage 50 V
- Current at work 100%155 A
- Current at work 60%200 A
- Diameter of aluminum wire 0,8 - 1,0 mm
- Wire diameter for soldering 0,8 mm
- Diameter of self-shielding wire 0,8 - 1,0 mm
- Steel wire diameter 0,6 - 1,0 mm
- Stainless steel wire diameter j0,6 - 1,0 mm
- Welding electrode diameter 1,6 - 4,0 mm
- Welding Current Adjustment Range 50 - 200 A (MIG) / 10 - 160 A (MMA) / 10 - 200 A (TIG)
Power supply parameters
- Power supply network protection 25 A immediate (type C)
- Rated supply voltage 230 V; 50Hz (1ph)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 7.2 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 12 kg |
| Parametry | Welding range | 50–200 A |
| Parametry | Height | 290 mm |
| Parametry | Length | 440 mm |
| Parametry | Width | 170 mm |
| Parametry | Length of ground cable | 2 cm |
| Parametry | Welding cable length | 3 cm |
| Parametry | Product weight with unit packaging | 20 kg |
| Parametry | Manufacturer code | IDEAL TECNOMIG 203 |
| Parametry | EAN (GTIN) | 5903991101983 |
| Parametry | Model | TECNO MIG203MMATIG |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
