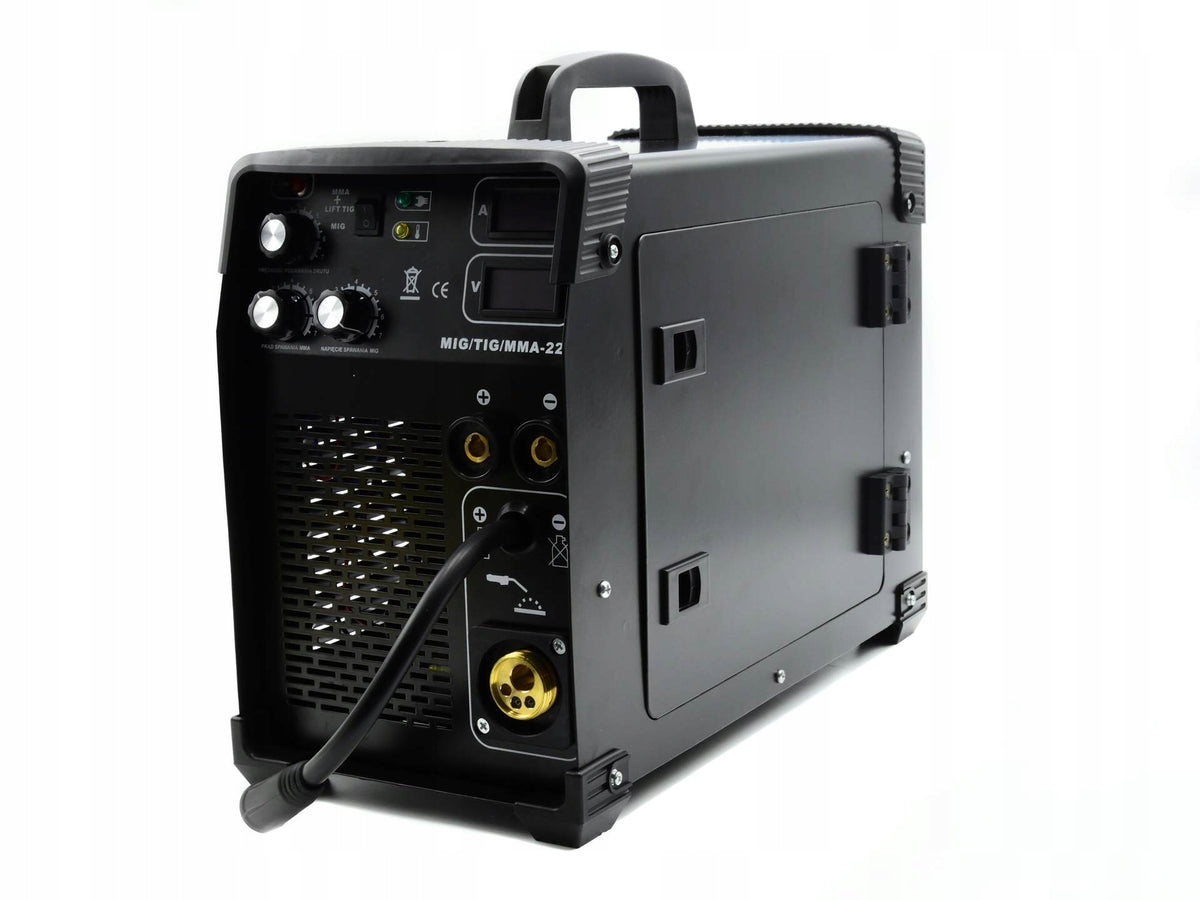

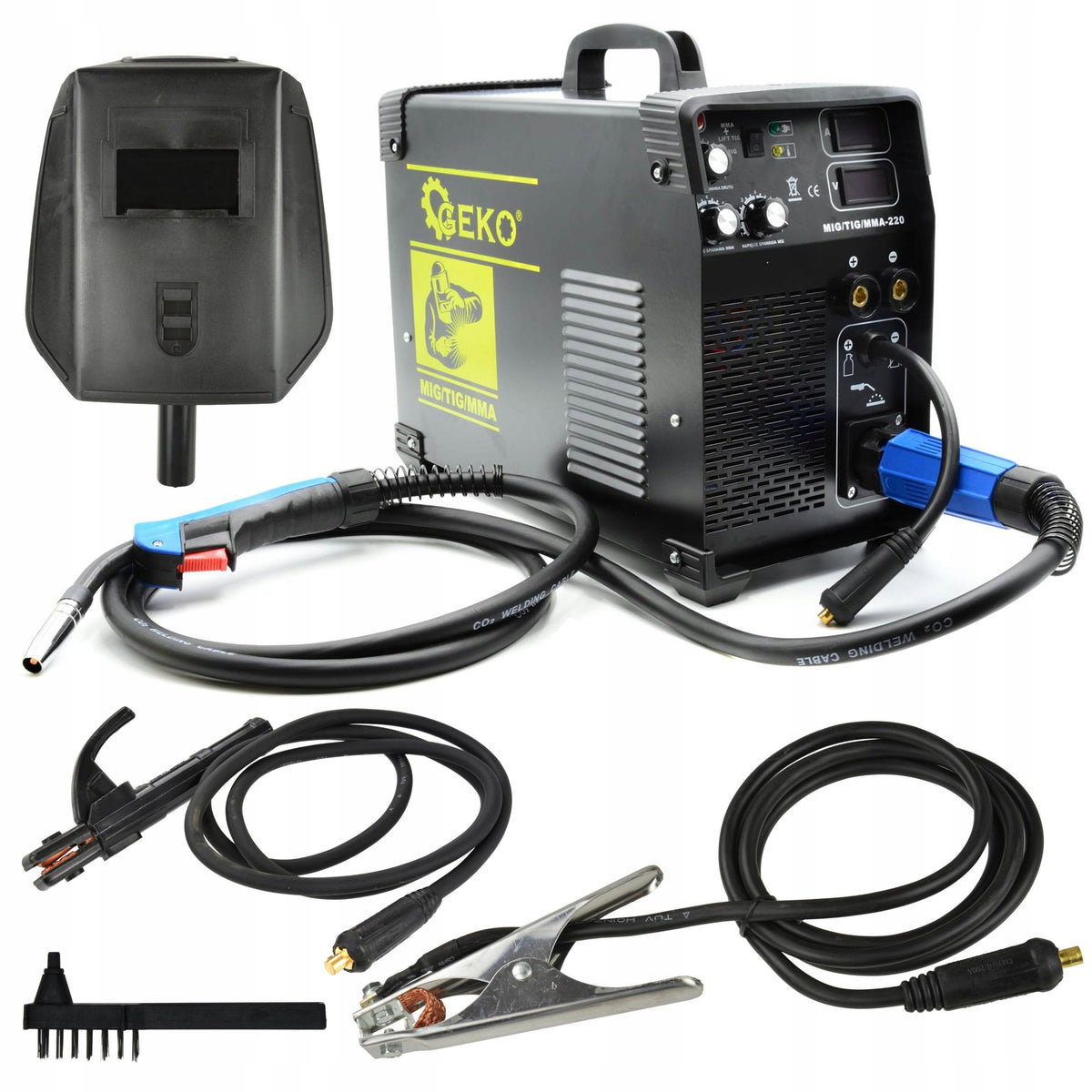

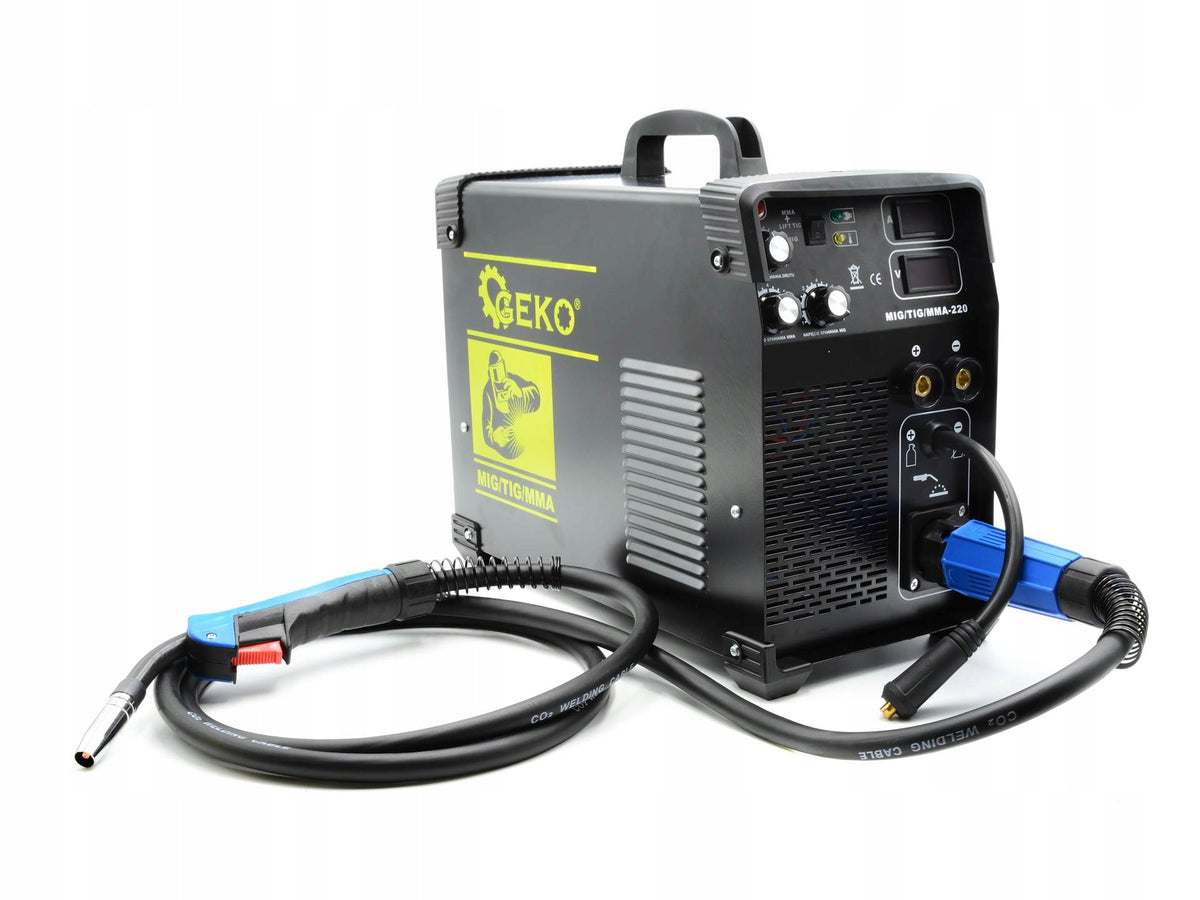

Pusiau automatinis suvirinimo aparatas MIG 220A

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIG 220A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Geko
• Modelis: G80096

G80096 MIG/TIG/MMA 220A

The 3in1 welding machine allows welding with the most popular welding methods such as: MIG, MMA and TIG (it is necessary to buy a TIG cable). Designed for welding low-carbon steels, low-alloy steels, alloy steels. This device is used in flashing works or workshop works.

The device allows welding using the most popular (traditional) MMA method using wrap welding electrodes, the TIG Lift method and welding using the MIG/MAG method using hot melt wire in a gas shield or FCAW using self-shielding wire.

MIG

• Working cycle100%60%
• Welding current160 A220 A
• Welding voltage22 V25 V

TIG

• Working cycle100%60%
• Welding current160 A220 A
• Welding voltage16.4 V18.8 V

MMA

• Working cycle100%60%
• Welding current160 A220 A
• Welding voltage26.4 V28.8 V

Product characteristics:

• high quality of workmanship using the highest quality components
• possibility of MIG/MAG/FCAW/MMA/TIG Lift welding (it is necessary to purchase TIG cable)
• two easy-to-read LCD displays
• compact size
• 2-roll wire feeder
• welding range 20A - 220A
• SAFETY: built-in thermal switch that disconnects the device if the permissible duty cycle is exceeded

MIG/MAA welding

consists of welding with an electric arc produced between the hot melt electrode and the welded material. The hot melt electrode is a wire fed continuously. The arc and lake of liquid metal are protected by a stream of shielding gas.

FCAW

(Flux Cored Arc Welding) - an abbreviation for the MIG/MAG (GMAW)-like welding method, except that instead of solid wire, core wire (powder) is used. If the wire is filled with powder producing protective gases (Innershield method) during welding, the feeding of shielding gas from the outside (from the cylinder) is not required.

TIG welding (Tungsten Inert Gas)

consists in the production of an electric arc using a non-melting tungsten electrode in an inert gas shield. The designation GTAW (Gas Tungsten Arc Welding) is often found (mainly in the USA).

The welding arc between the non-melting electrode and the welded material melts the surface of the material. In TIG welding it is not necessary to use additional material. Welded elements can be joined by melting the welding groove. However, if additional material is used, it is introduced into the lake manually and not with a welding torch as in the MIG/MAG method.

MMA welding

Arc welding with a wrapped electrode is the oldest and most universal method of arc welding.

In the MMA method, a wrapped electrode is used, which consists of a metal core covered with a compressed sheath. An electric arc is produced between the end of the electrode and the welded material. The arc glow is contact by touching the end of the electrode to the welded material. The electrode melts and drops of molten metal electrodes are transferred through the arc to a liquid lake of welded metal forming a weld after cooling.

TECHNICAL DATA:

• Supported wire diameters 0,6 - 1,0 mm
• Supported electrode diameters 2,0 - 3,2 mm
• Wire feed speed 0,6 - 1,0 mm
• Idle voltage 56V
• Power supply current, I1max 30.3 A
• Power Current, I1eff 22.2 A
• Power factor 0.93
