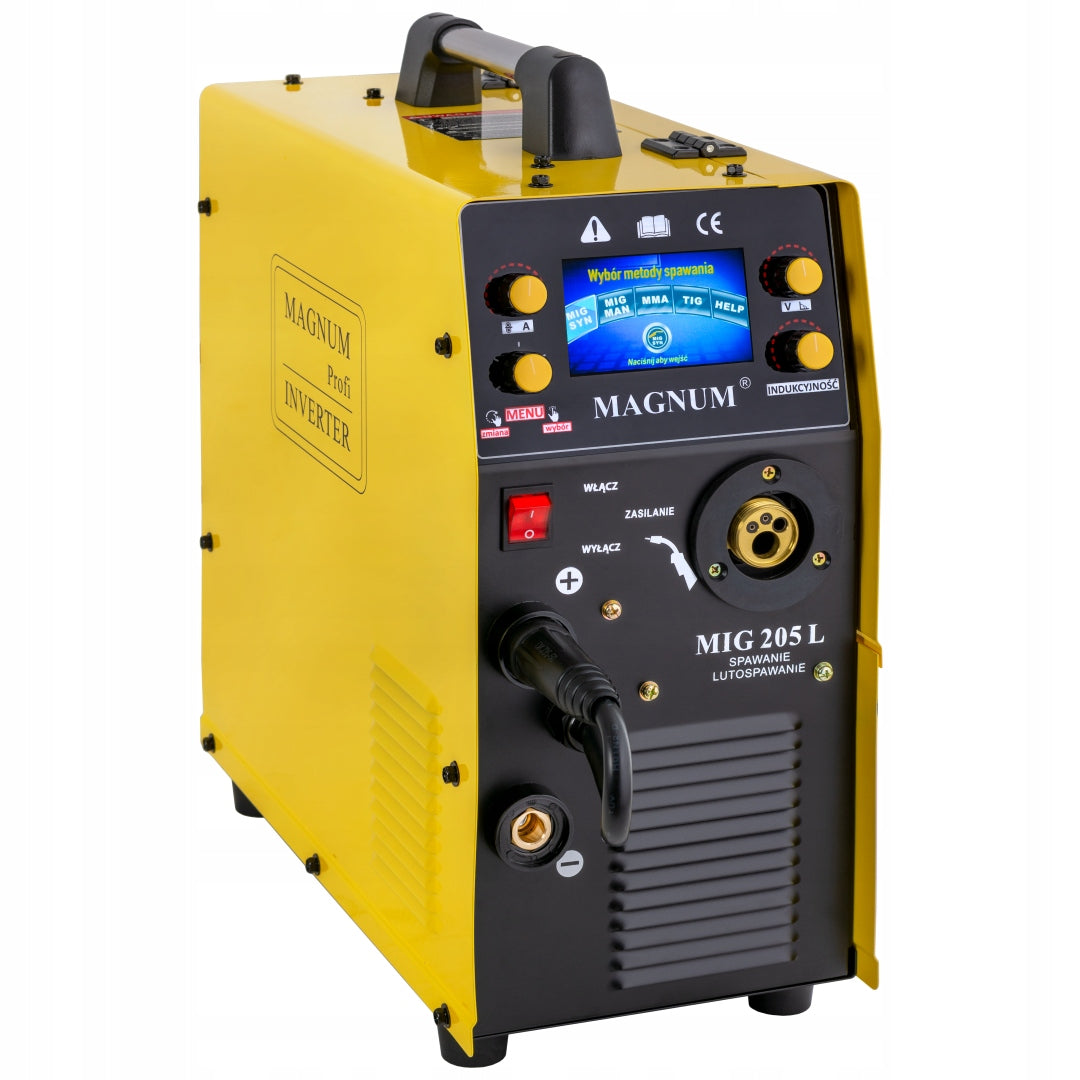

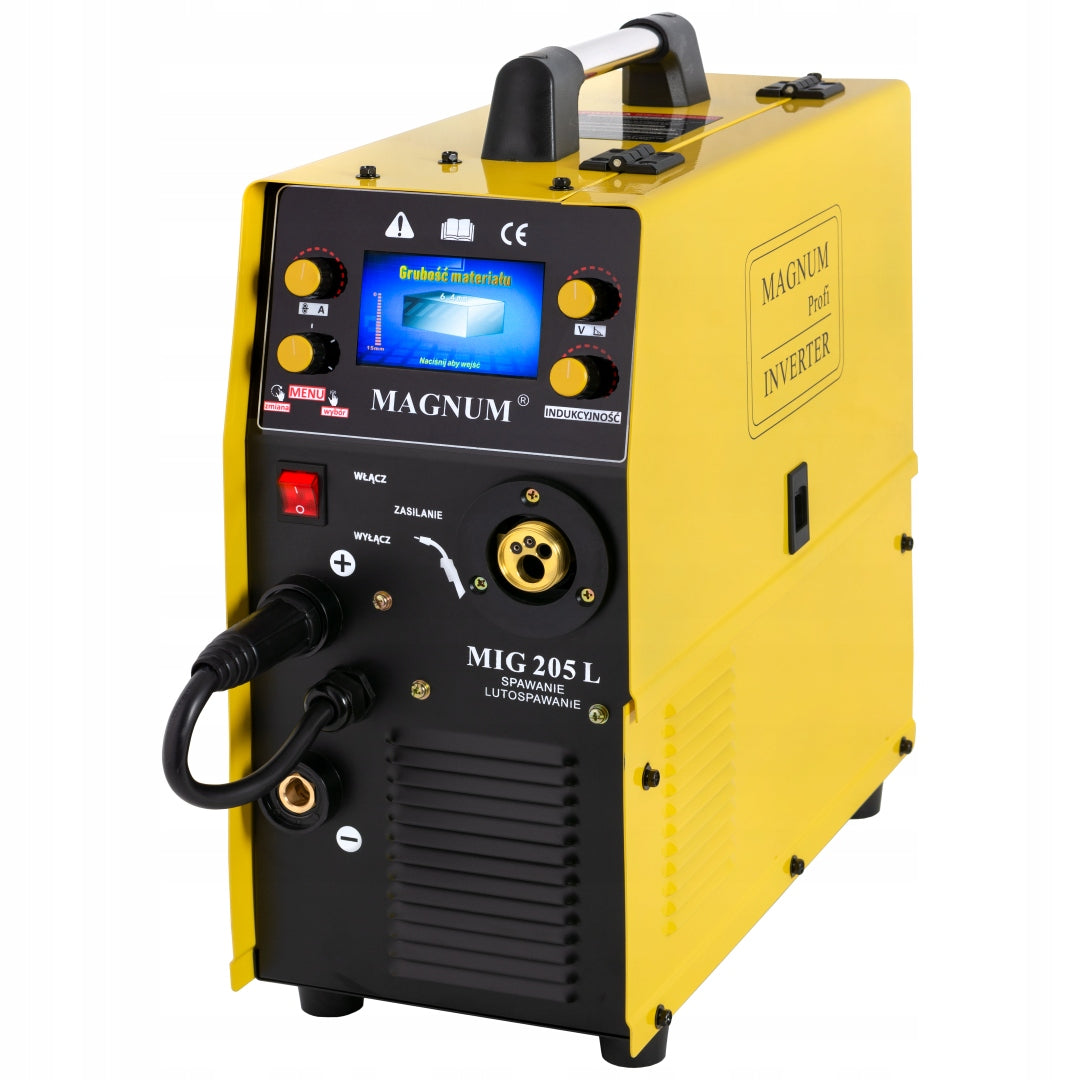

Pusiau automatinis suvirinimo aparatas Magnum MIG 205L, LCD, 200A

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Magnum MIG 205L, LCD, 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM MIG 205L

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

MIG 205 L by MAGNUM is a professional semi-automatic welding machine designed for welding low carbon steel, low alloy steel (MAG), alloy steel (MIG), aluminum and its alloys and for soldering!!! It also has the ability to weld with wrapped electrodes (rutile, alkaline, acidic - MMA), as well as self-shielding wires (welding "without gas"). This device is used in heavy production (industrial) conditions as well as in repair workshops. It is adapted to power from the mains 230 V, 50 Hz. MIG 205 L has a professional wire feeder, a "euro connector" socket, which allows the use of different types of welding torches and output to the gas heater. This device is equipped with an overload thermal protection system, preventing excessive overheating.

MIG 205 L has the possibility of soldering. It is an intermediate metal joining process between hard soldering and welding. The connection is obtained only by melting a special binder-solder (copper-based binder SG-CuSi3, SG-CuSn6), without melting the joined metals, while the process technique and method of preparing the edges of the joined objects are similar to that of welding.

Currently, it is very common to use zinc galvanized sheets. In the welding process, evaporating zinc is the cause of the porosity of the welds, because high temperatures formed in this area destroy the protective layer, and the combined elements lose their corrosion resistance. Mechanical removal of zinc before welding, as well as re-application from places where evaporation occurred is a very expensive process. On the other hand, replenishing cavities with "zinc spray" preparations does not sufficiently protect the structure against corrosion. In addition, when welding galvanized sheets, there is a very large emission of zinc vapours harmful to health. All these problems are avoided using MIG/MAG soldering technology.

The device has a clear, easy-to-read panel on which i.a.:

• - Welding current display,
• - Inductance adjustment knob (which allows us to set the "hardness" of the arc)
• - MIG-MAG and MMA welding current adjustment knob,
• - Wire feed switch (quick/slow)
• - Switch (mig/mma)
• - Wire feed speed adjustment knob for MIG-MAG.

TECHNICAL DATA:

- Power supply: AC 230 [V] / 50 [Hz]

- Max. Power consumption: 5,2 kVA

- Security required: 20A

- MIG/MAG welding current: 40 - 200A

- MMA welding current: 50 - 180 A

- Efficiency: 60 %

- Wire spool weight: max. 5 kg

- Wire diameter: 0,6 / 0,8 / 1,0 mm

- Welding "without gas": YES

- Housing protection class: IP23

- Weight: 9 kg

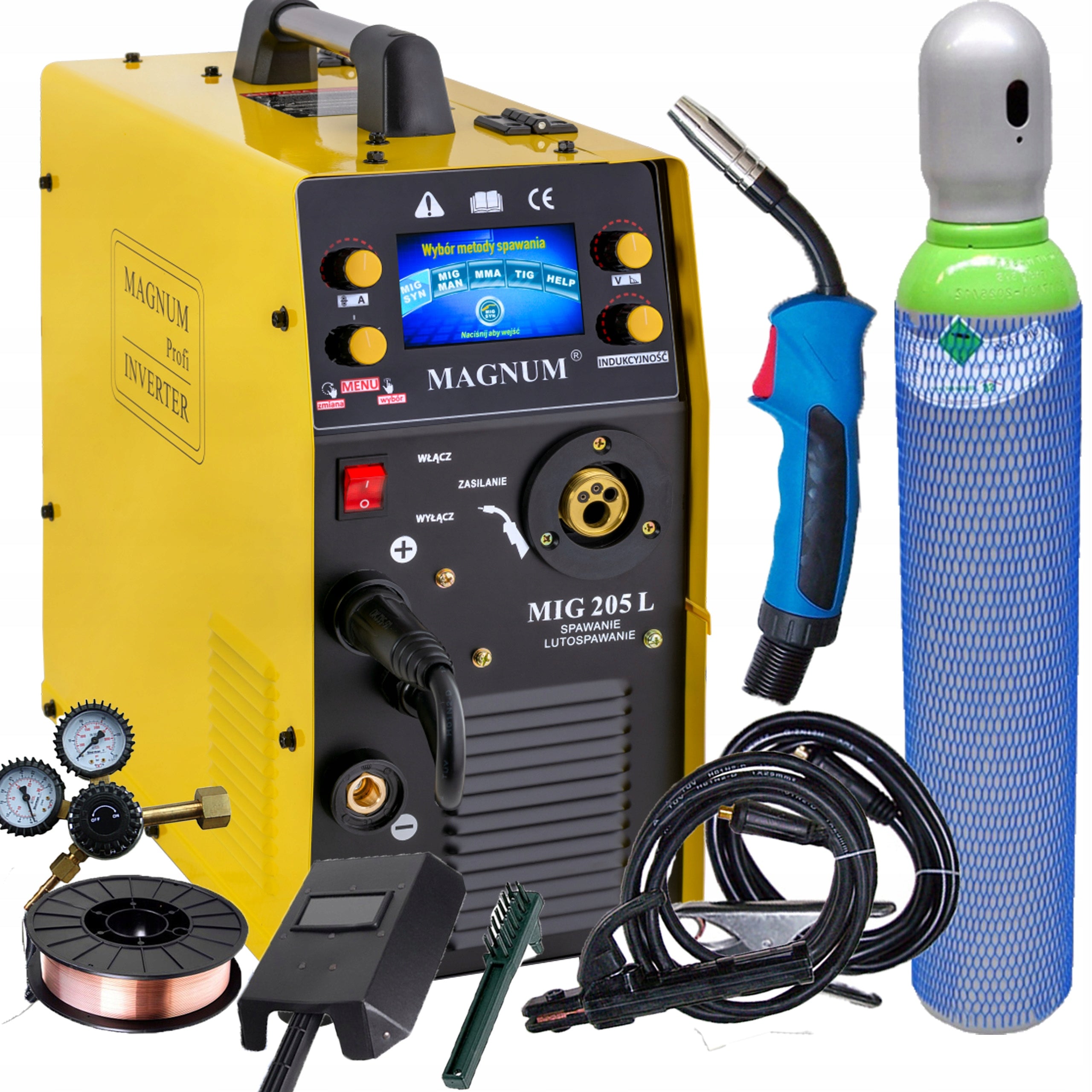

• WELDING MACHINE MAGNUM MIG 205L
• MIG welding torch MB15-3meters
• mass handle
• electrode holder
• Argon/Co2 8l cylinder
• Reducer
• Wire 0,8/5kg
• Consumable parts for MIG handle

Specifications
