Pusiau automatinis suvirinimo aparatas Dnipro-M MG-20P, MIG/MMA, 200A, Flux, TIG

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Dnipro-M MG-20P, MIG/MMA, 200A, Flux, TIG. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Dnipro-M
• Modelis: MG-20P

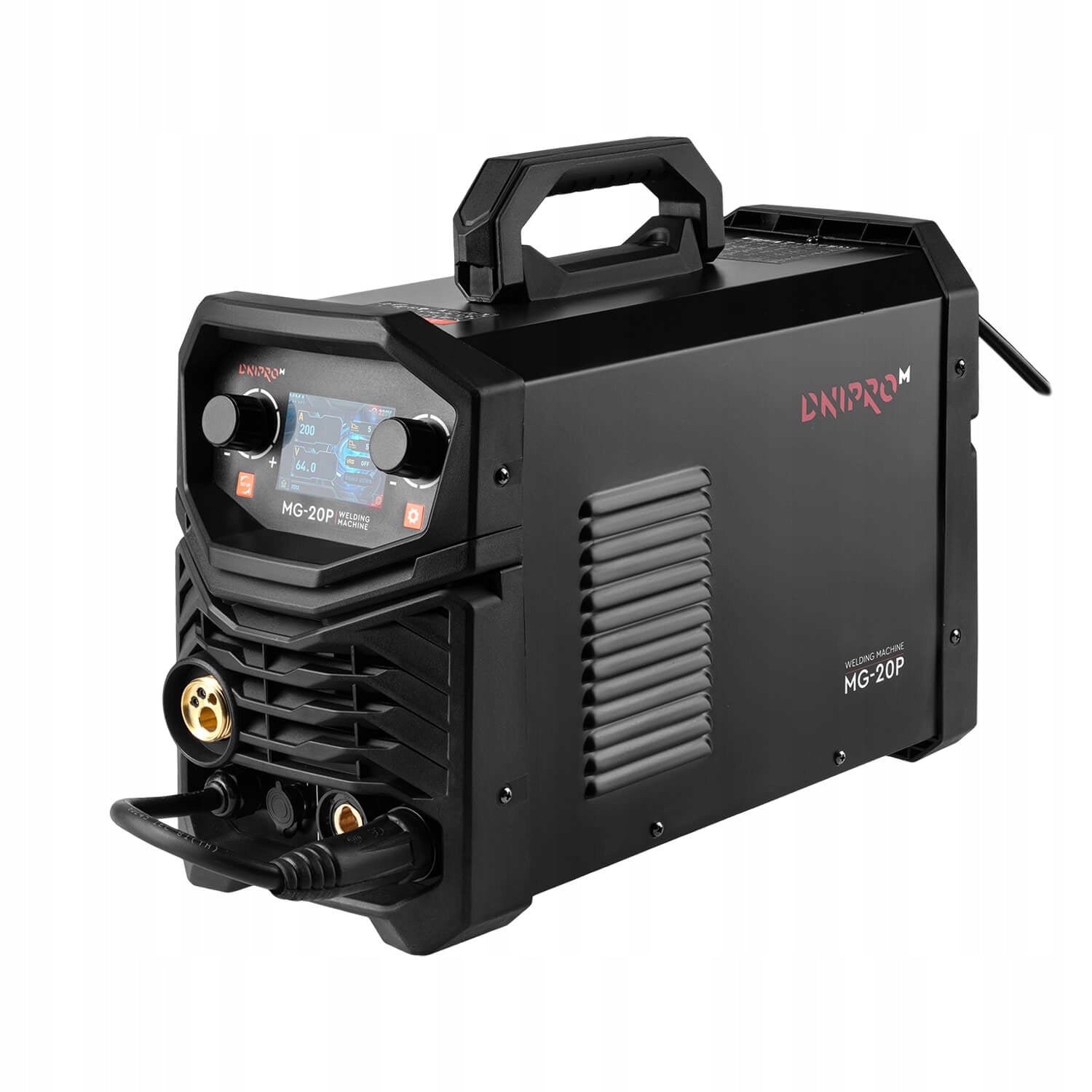

Semi-automatic welding machine Dnipro-M MG-20P

Dnipro-M MG-20P is an inverter semi-automatic welding machine for MIG/MAG, MMA, Lift TIG, Flux and Spool Gun methods. It will work in the workshop, garage, service, repair of steel structures, assembly work and regular welding of metal.

Current range up to 200 A, power 10 kVA and wire support 0,6 – 1,2 mm allow you to work with thinner and thicker elements. The device can weld with gas, without gas with Flux self-shielding wire, wrapped electrode and Lift TIG method using the appropriate handle.

The welder maintains stable power even when the voltage drops to 160 V, which helps maintain the quality of the weld in places where the power supply is not always equal.

Why choose Dnipro-M MG-20P?

• Welding current up to 200 A — more power supply for regular work with metal and thicker components.
• Stable operation from 160 V — the welding machine maintains power with voltage fluctuations, which helps maintain high quality of welds.
• MIG/MAG, MMA, Lift TIG, Flux and Spool Gun — several welding methods in one device.
• Synergic and manual control — quick selection of automatic settings or individual adjustment of parameters.
• Full color LCD display – precise control of the welding process and more convenient parameter setting.
• 2T/4T mode – convenient operation with short points and long welds.
• DC wire feed speed control — more accurate adjustment of the welding process to the material and wire.
• Adjustable Anti-Stick, Arc Force and VRD — better MMA control, more stable arc and greater welding comfort.
• MIG wire 0,6 – 1,2 mm and electrodes 1,6 – 5 mm — a wide range for workshop, service and assembly tasks.
• Professional accessories included — MB-24K 3 m holder, mass cable, electrode holder, gas hose, feed roller and Teflon cable

Technical data:

• Make / model: Dnipro-M MG-20P
• Device Type: Semi-automatic Inverter Welding Machine
• Working methods: MIG/MAG, MIG Flux, MMA, Lift TIG, Spool Gun
• Power Supply: Mains
• Rated voltage: 230 V
• Network frequency: 50/60 Hz
• Stable operation at reduced voltage: from 160 V
• Maximum power consumption: 10 kVA
• MMA current adjustment range: 10 – 200 A
• Maximum welding current: 200 A
• MIG wire diameter: 0,6 – 1,2 mm
• Wire Type: Copper/Self-shielded Flux
• MMA electrode diameter: 1,6 – 5 mm
• Diameter of mounted wire spools: up to 200 mm
• Wire feed speed: 1 – 12,5 m/min
• DC wire feed speed control: yes
• MIG modes: 100% CO₂, 25% CO₂, 80% Ar + 20% CO₂, 97,5% Ar + 2,5% CO₂, 100% Ar, Flux cored, Spool Gun
• Synergistic control: yes
• Manual control: yes
• 2T/4T mode: yes
• Display: full color LCD
• MIG duty cycle at maximum current: 30% at 200 A
• MMA duty cycle at maximum current: 30% at 200 A
• Efficiency: 77%
• Hot Start: yes
• Anti-Stick: yes, adjustable
• Arc Force: yes, adjustable
• VRD: yes, adjustable
• Idle Voltage: 64 V
• Degree of protection: IP21S
• Product weight: 12 kg
• Certificate of conformity: CE
• Set: MG-20P semi-automatic welding machine, MB-24K professional welding torch 3 m 100% copper, mass wire 100% copper, cable with electrode holder 100% copper, gas hose 3 m, additional feed roller, Teflon cable for argon sheath welding, power cord, user manual, packaging
• Application: steel welding, workshop work, service, assembly, repair of metal structures and steel elements

Modes of operation

MIG/MAG with gas — a good choice for welding steel when you want a stable arc and aesthetic weld. The device supports work with CO₂ and mixtures of argon and CO₂.

Flux cored — self-shielding wire welding without gas cylinders. It is a convenient solution for working outside a permanent position, for repairs and tasks in the field.

MMA — welding with an electrode wrapped in 1,6 to 5 mm. Useful for structural repairs, assembly work and situations where it is easier to use an electrode than wire.

Lift TIG — TIG welding with contact ignition using the appropriate handle. It works well for more precise work requiring more control.

Spool Gun — mode for operation with a special handle with wire feeder. Useful for selected tasks when standard wire feeding is less convenient.

Stable operation and precise welding control

The MG-20P maintains stable power even when the voltage drops to 160 V, so it will work in places where the power supply is not always perfectly equal. This helps to maintain the quality of the weld and efficient operation even with voltage fluctuations.

The full-color LCD display makes it easy to set and control the parameters. The 2T/4T mode allows you to work comfortably both at short points and at long welds. The user can choose synergistic or manual control – quick automatic settings or more complete control over the process.

The adjustable functions of Anti-Stick, Arc Force and VRD improve the comfort of working with the electrode, and the DC wire feed speed control allows you to more accurately match welding to the material, wire and selected mode.
