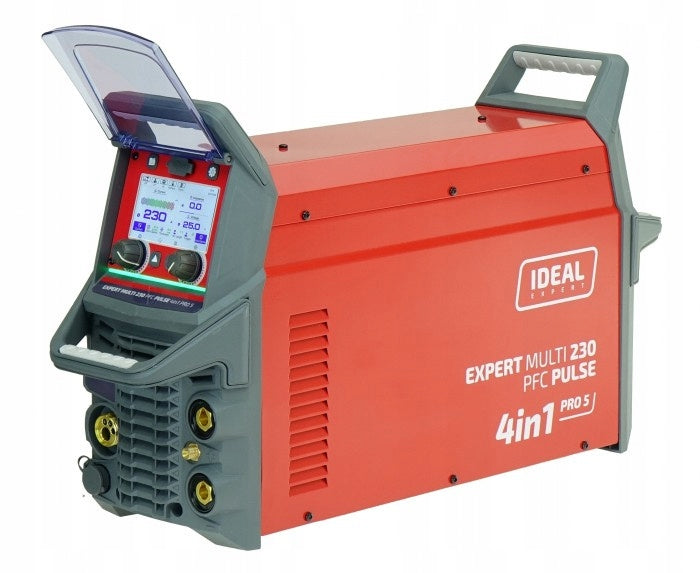

Pusiau automatinis suvirinimo aparatas Badek EXPERT MULTI 230 PFC PULSE 4in1 Pro5

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Badek EXPERT MULTI 230 PFC PULSE 4in1 Pro5. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT

EXPERT MULTI 230 PFC PULSE 4in1 Pro5 is an inverter, synergistic and multifunctional welding source, designed for arc welding using MIG/MAG, FLUX, TIG and TIG PULS alternating current (AC), direct current (DC), and MMA method (wrapped electrode) direct current (DC) and alternating current (AC). It also enables MIG/MAG welding with pulsed current: single PULSE and double PULSE.

The device has been designed for a wide range of applications: from maintenance work, through welding of steel structures, to repairs of car bodies. It is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture, and with reverse polarity without gas.

TIG DC and TIG DC PULS function is used for welding stainless steel, carbon and low alloy steels, copper and titanium.

TIG AC and TIG AC PULS function: allows welding of aluminum and its alloys and brass.

By adjusting TIG PULS pulsed welding parameters, we have an impact on the shape of the weld and the focus of the arc. Pulse welding also reduces the amount of heat supplied to the material and is applicable when welding thin materials.

Arching occurs in non-contact (HF) or lift (LIFT) mode.

The LIFT function is used during welding in environments with a high risk of electromagnetic interference affecting the environment.

In addition, the source has a dedicated TIG method (SMART TIG), in which the user selects the basic welding parameters sequentially. On their basis, the device selects optimal parameters of welding current or shielding gas outflow.

It also has a number of additional features, for use in special conditions. These include MIX AC/DC, MULTITACK, EXTRA FUSION, Q-START, DYNAMIC ARC and MULTIWAVE (hybrid characteristics).

With the MIG/MAG method, we can choose the button mode in the handle, between SPOT mode (point welding), 2-bar (without lock), 4-bar (button lock for long welds), S2-bar and S4-bar.

With the TIG method, we can choose the button function in the handle, between 2-bar, 4-bar, SPOT mode and a special PRT mode (two-level welding current).

The clear and easy-to-use 5-inch touch LCD display allows you to adjust welding parameters using physical buttons and knobs as well as using touch (touch screen).

The device has a manual mode (MIG MAN) and a synergistic mode (MIG SYN) with the possibility of adjusting:

gas before welding

gas after welding

wire access

Wire burning

voltage corrections

spot welding time

inductance

Rising/falling current

In the MIG/MAG method there are also pulse modes (PULSE, DP), which additionally include such functions as:

length of the arc in the pulse

arc length at initial/final current

base current in pulse

pulsation time

The touch LCD display makes it easy to adjust the TIG parameters of the device:

initial outflow of shielding gas

initial current

time of rising/falling current

welding current

base current

final current

pulse cycle

pulse frequency

AC balance

AC frequency

final outflow of shielding gas

MMA welding (wrapped electrode), in addition to selecting the type of current (DC or AC), is also possible with the pulse current function (PULSE) enabled. There are also additional features:

HOT START

HOT START time

ARC FORCE

VRD

The device has an extensive system of recording and reading welding parameters (JOB function), it facilitates work on various materials, without the need to re-adjust the device, with any changes (e.g. gas or wire), as well as a fan cooling system, which significantly increases its efficiency.

Fan cooling system - NORMAL or SMART mode (only activated if necessary) - reduces contamination inside the device.

EXPERT MULTI 230 PFC PULSE 4in1 Pro5 is equipped with a power plug, and overload protection, over and undervoltage, to work with a generator (+/- 15%), which increases its reliability. It also has a PFC (Power Factor Correction) module, improving the power factor and "stability" of the network connection.

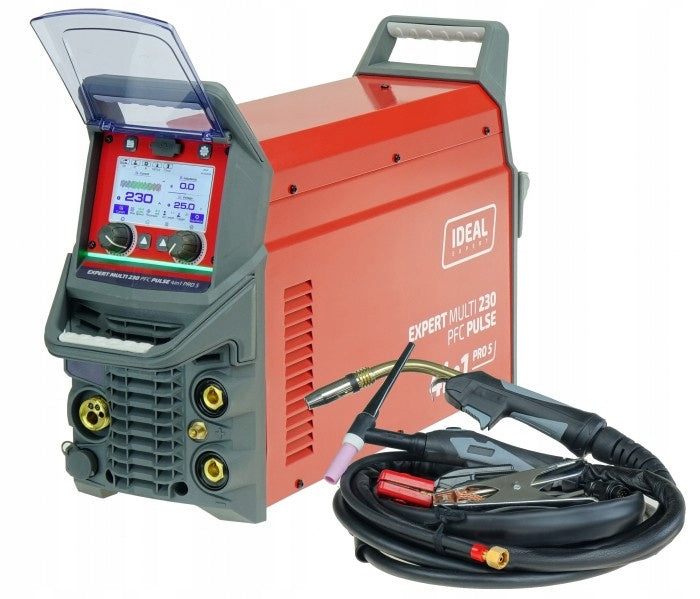

The delivery includes a device with a MIG 24 welding torch with a length of 3 meters, TIG 26 with a remote adjustment (potentiometer) with a length of 4 meters and an electrode and mass cable with a length of 3 meters. In addition, the set includes a hose with a quick coupler and consumable parts of the TIG 26 handle.

Parameters:

Pulse Cycle

5÷95%

Current taken from the grid

31A

Securing the power supply network

C25A

Rated supply voltage

230V; 50-60Hz (1ph)

AC Balance

(-)5÷(+)5

Time of electricity build-up

0÷10s

Time of falling current

0÷10s

Frequency AC

50÷250Hz

Pulse Frequency

0.5÷999.0Hz

Gas after

0÷10s

Gas before

0.1÷2.0s

Idle voltage

72V

Current at work 100%

115A (MIG/MAG/TIG) / 100A (MMA)

Current at work 60%

148A (MIG/MAG/TIG) / 130A (MMA)

Diameter of aluminum wire

0.8÷1.2mm

Wire diameter for soldering

0.8÷1.0mm

Diameter of self-shielding wire

0.8÷1.2mm

Diameter of steel wire

0.6÷1.0mm

Stainless Steel Wire Diameter

0.8÷1.0mm

Welding electrode diameter

1.6÷5.0mm

Welding Current Adjustment Range

25÷230A (MIG/MAG) / 10÷230A (TIG) / 10÷200A (MMA)

Wire spool size

D200 (2kg and 5kg)

Degree of protection

IP21S

Weight of the device / set

20/25kg
