Pusiau automatinis suvirinimo aparatas ANDELI MIG/TIG/MMA

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas ANDELI MIG/TIG/MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Andeli
• Modelis: MIG-135PLUS
• Ilgis: 330 mm
• Plotis: 150 mm
• Aukštis: 238 mm

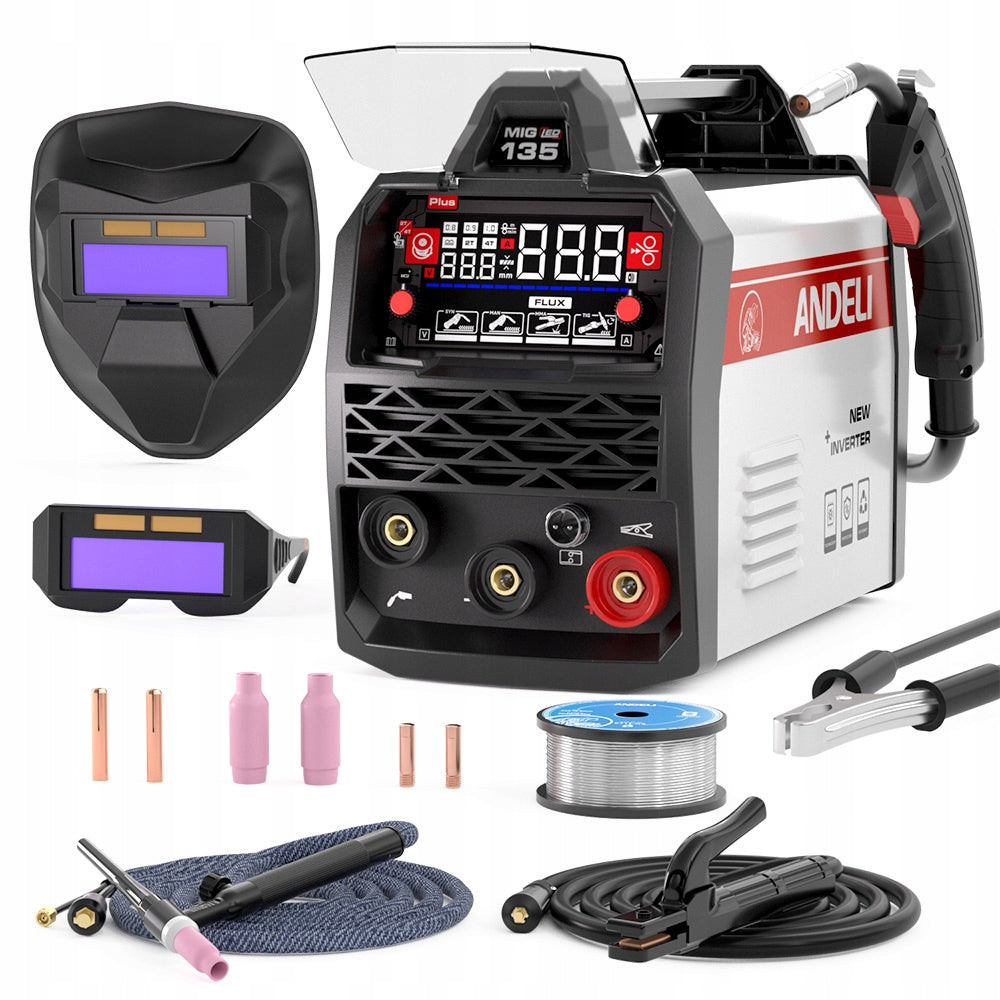

ANDELI Semi-automatic MIG Welding Machine Lift TIG MMA MIG 3 in 1 Gasless Synergy MIG Welders Inverter Soldering Welder

【Powerful Welder】Get ultimate flexibility and power. Adapt to any outlet and unleash unstoppable welding performance with robust output and a steady arc on 220V.This welder delivers a powerful output, capable of handling mild steel up to 5.0 mm (0.19")thick. It is compatible with 0.8 and 1.0mm flux-core wire and ideal for heavy-duty projects. For stick welding, adjustable Hot Start and Arc Force functions ensure a superior experience.

【4-in-1 Versatile Welder】 This portable 135A MIG welder combines MAN Gasless MIG, SYN Gasless MIG, Lift TIG, and MMA Welding capabilities in one machine, catering to a wide range of welding needs. Perfect for flux-cored welding on carbon steel, stainless steel, or thicker materials, this ANDELI 4-in 1 welder is an excellent choice for home DIY projects, outdoor repairs, rusty metal, farm equipment, road maintenance, and more.

• Model:MIG-135
• Power:4.2KVA
• Voltage:230V
• Frequency:50/60HZ
• Mode:MIG,TIG,MMA
• Open Circuit Voltage:56V
• Welding Current Range:20-135A
• Duty cycle:60%
• Power Factor:0.7
• Efficiency:≥80%
• Protection Class:IP21S
• Insulation Class:F
• Length:330MM
• Width:150MM
• Height:238MM
• Weight:4.1KG
• Operating Temperature Range:10°C ~ +40°C(-14°F~104°F)
• Storage Temperature Range:-20°C ~ +55°C(-4°F~131°F)

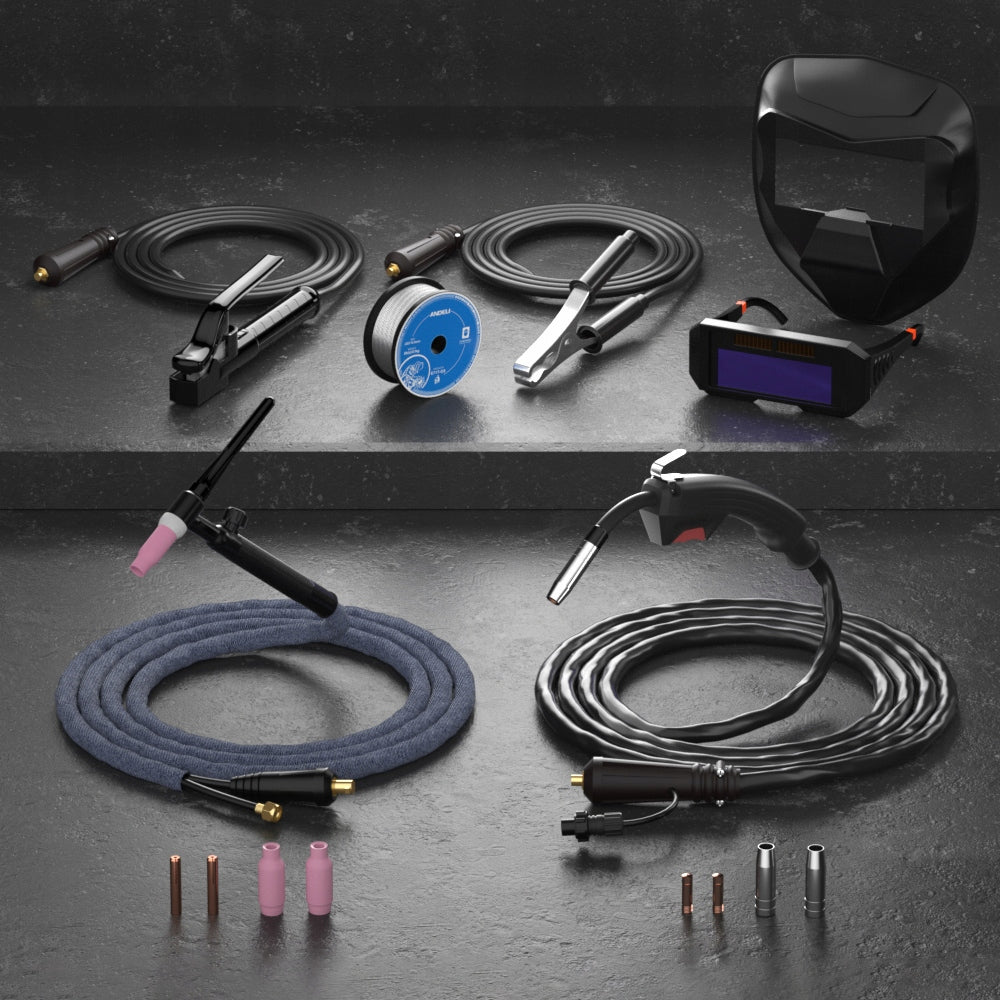

【Exclusive bonus】Nothing More to Buy.Our welder comes fully equipped with all essential accessories

1PC 3M MlG Torch

1PC 3M MMA Holder

1PC 0.8MM Flux-cored Wire

1PC 3M TIG Welding Torch

1PC 2M Ground Clamp

1PC Auto Darkening Welding

Glasses

2PCS Gas Nozzle

2PCS Contact Tips

2PCS Nozzle

2PCS Collet

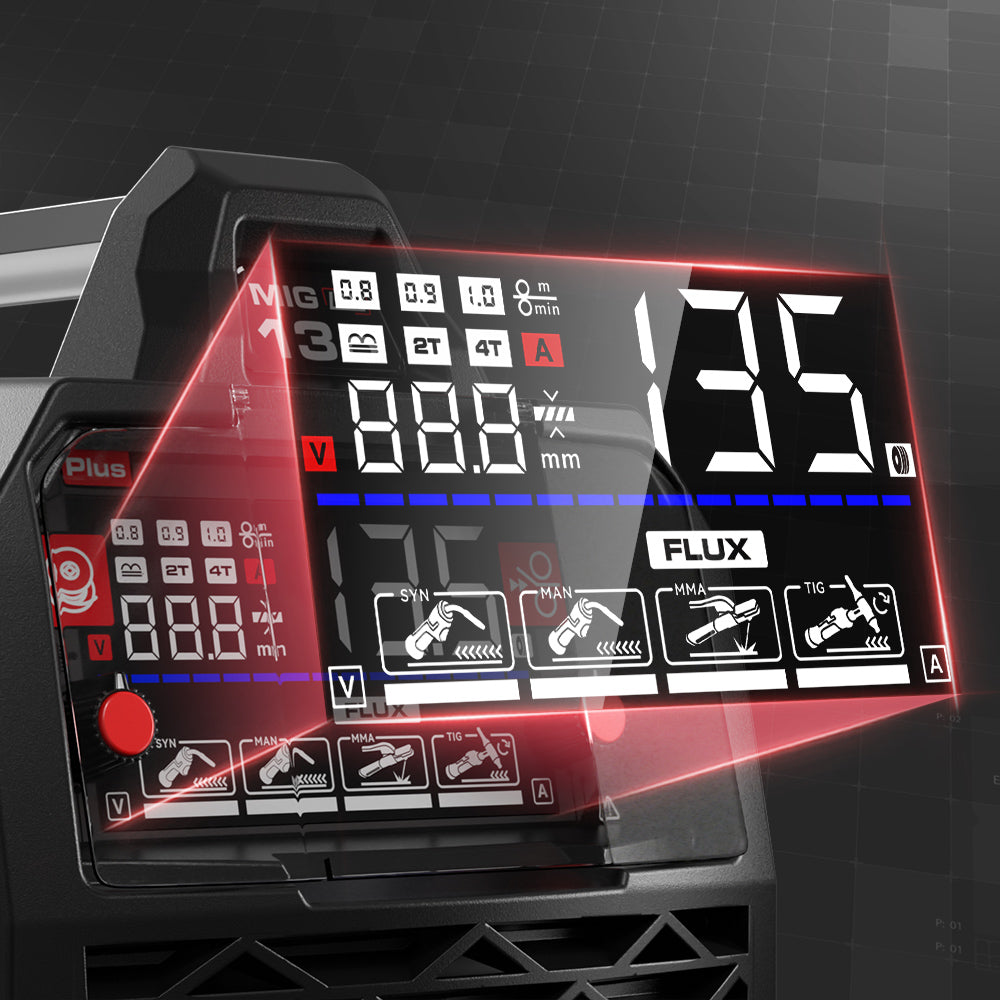

• 4.1 Inch LED Display with Reinforced Protection: This 135A MIG welder features an oversized 4.1-inch LED screen for crystal-clear visibility, delivering real-time data with pinpoint accuracy—no need to remove your helmet mid-task. The MIG welder machine's transparent protection cover safeguards the welder machine's display against impacts, sparks, and debris, ensuring rugged durability and extended machine longevity for demanding workshop or job-site conditions.
• Beginner-Friendly:Adopt IGBT and integrated wire feed technology to automatically adjusts parameters based on your current settings. ,also you can adjust the welding current according to your welding habit.Perfect for both beginners or professional welders.
• Light & Portable:At only 9.04 lbs, this compact, lightweight welder features a carrying handle for easy transport—ideal for on-the-go welding projects.

Connect the electrode holder to the Negative

(-) Output Terminal and the work clamp to the

Positive (+) Output Terminal. Recommended

for welding thin metals or when required by

specific electrode types.

Connect the MIG welding torch to the Euro Torch Connector on the machine.

Connect the welding clamp to the positive (+) output terminal, making sure it is firmly attached to the clean, bare metal

part of the work piece (avoid rust or paint).

Load the wire spool into the chassis and feed the wire into the welding torch through the wire feeder

Press the trigger of the welding torch or hold the value adjustment knob to feed the wire through the welding torch.

· Remove the Wire Drive Polarity Lead from the Positive (+) Output and Negative (-) Output Terminals.

· Connect the TIG torch cable to the welder’s Negative (-) Output Terminal.

· Connect the work cable connector to the welder’s Positive (+) Output Terminal.

· Ensure the work clamp has good contact with the workpiece on a clean, bare metal surface free of rust, paint, or

coating

· Connect the TIG torch gas line to the gas regulator (use 100% Argon gas only).Turn on the gas at the regulator, check

for gas flow,and adjust the flow rate as needed.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Andeli
Parametry	Power consumption	4.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	2.4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	4.1 kg
Parametry	Welding range	20–135 A
Parametry	Height	238 mm
Parametry	Length	330 mm
Parametry	Width	150 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	9.5 kg
Parametry	Manufacturer code	69367027
Parametry	EAN (GTIN)	6936702709665
Parametry	Model	MIG-135PLUS
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,EURO holders
