Presavimo replės Knipex dviem rankomis

Trumpai apie prekę

Prekė: Presavimo replės Knipex dviem rankomis. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 97 52 13
• Ilgis: 250 mm

Manufacturer: Knipex / Product number: 822446 / Product weight: 0.61kg / EAN: 4003773048084

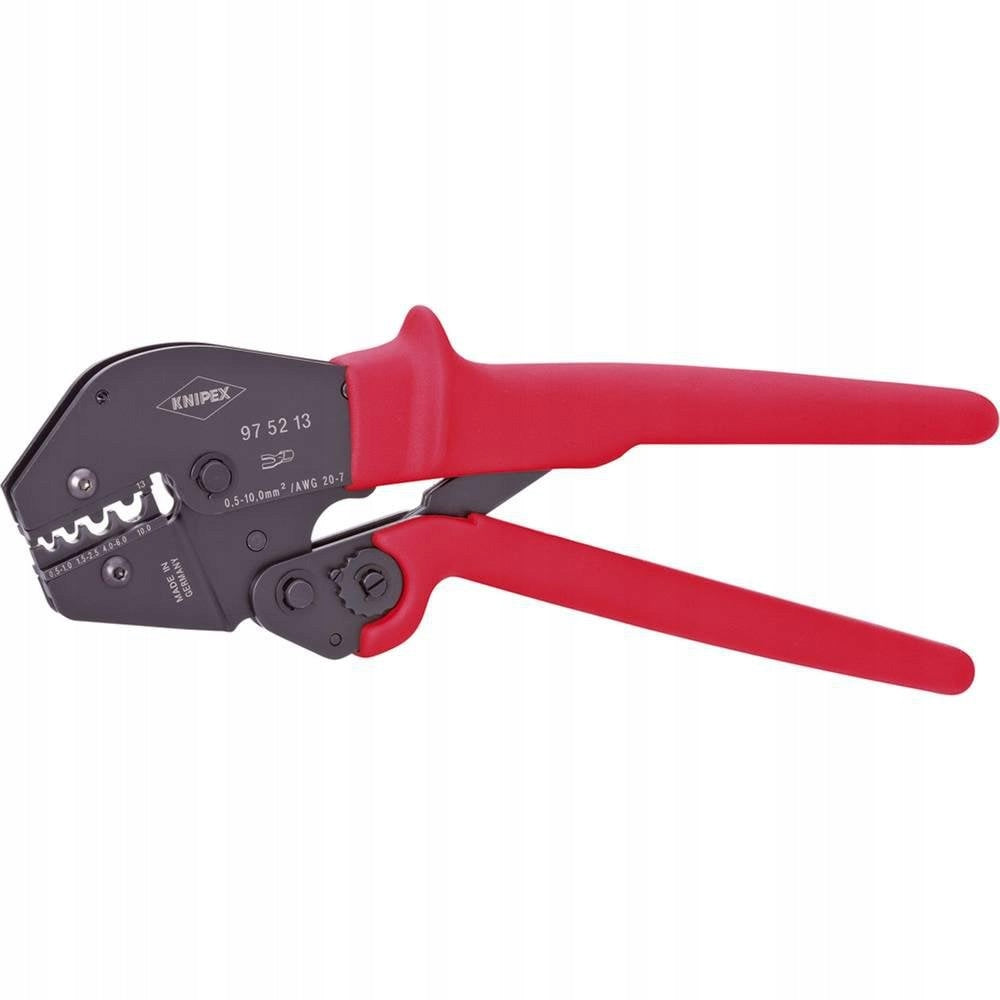

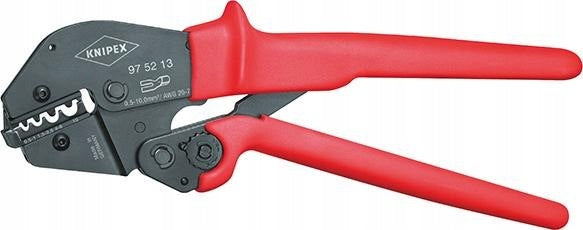

Supported by two hands crimping pliers

Crimping pliers of the new generation. For unsoldered electrical connections. Compared to standard crimping pliers, the lever transmission enables a force reduction of up to 30% The precise die and lock (removable) ensure consistently high crimping quality The pressure is precisely set at the factory (calibration) The possibility of two-handed operation enables efficient crimping of large-section wires The tool has a curved head and ergonomically designed handles with special grip for the right weight distribution Improved chrome-vanadium electric steel, oil-hardened

Special features

• For unsoldered electrical connections
• Compared to standard crimping pliers, the lever transmission allows you to reduce the force by up to 3 %
• Consistently high crimping quality thanks to precise die and lock (removable)
• The pressure has been factory precisely adjusted (calibrated), adjustable
• The possibility of operating with two hands allows for efficient crimping of wires with a large cross-section

Characteristic

• for unsoldered electrical connections
• Compared to standard crimping pliers, the lever transmission allows you to reduce force by up to 30%
• Precision die and lock (removable) ensure consistently high crimping quality
• Factory precisely set pressure (calibration)
• The possibility of operating with two hands allows for efficient crimping of wires with a large cross-section
• tool with a curved head and ergonomically made handles with special portability allowing for proper weight distribution
• New generation crimping pliers

Technical data

• Further technical data: AWG 20 - 7
• Number of sockets: 4 pcs.
• Product Length: 250 mm
• Maximum cross-section of the crimped element: 10 mm²
• Maximum cross-section of crimped element (AWG standard): 7
• Material: chrome vanadium electrotechnical steel
• Minimum cross-section of crimped element: 0.5 mm²
• Minimum cross-section of crimped element (AWG standard): 20
• Material specification: oxidized, tempered
• Weight: 558 g
• Application: non-insulated tube terminals, non-insulated cable terminal, non-insulated male cable terminal, non-insulated terminal block, non-insulated contact terminals
