Trumpai apie prekę
Prekė: Pramoninis tinklo komutatorius TP-Link IES208G, 8x1Gbit. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: TP-Link
- Modelis: IES208G
- 8 gigabit ports (6 RJ45, 2 RJ45/SFP combos)
- Professional industrial grade design: Permissible operating temperature-40~75°C, 6kV lightning protection and 1+1 redundant power input
- Advanced features: VLAN, QoS and STP/RSTP
- Centralized management in the cloud via the Omada† website or application
- Durable IP40 aluminum housing and can be mounted on DIN rail and wall

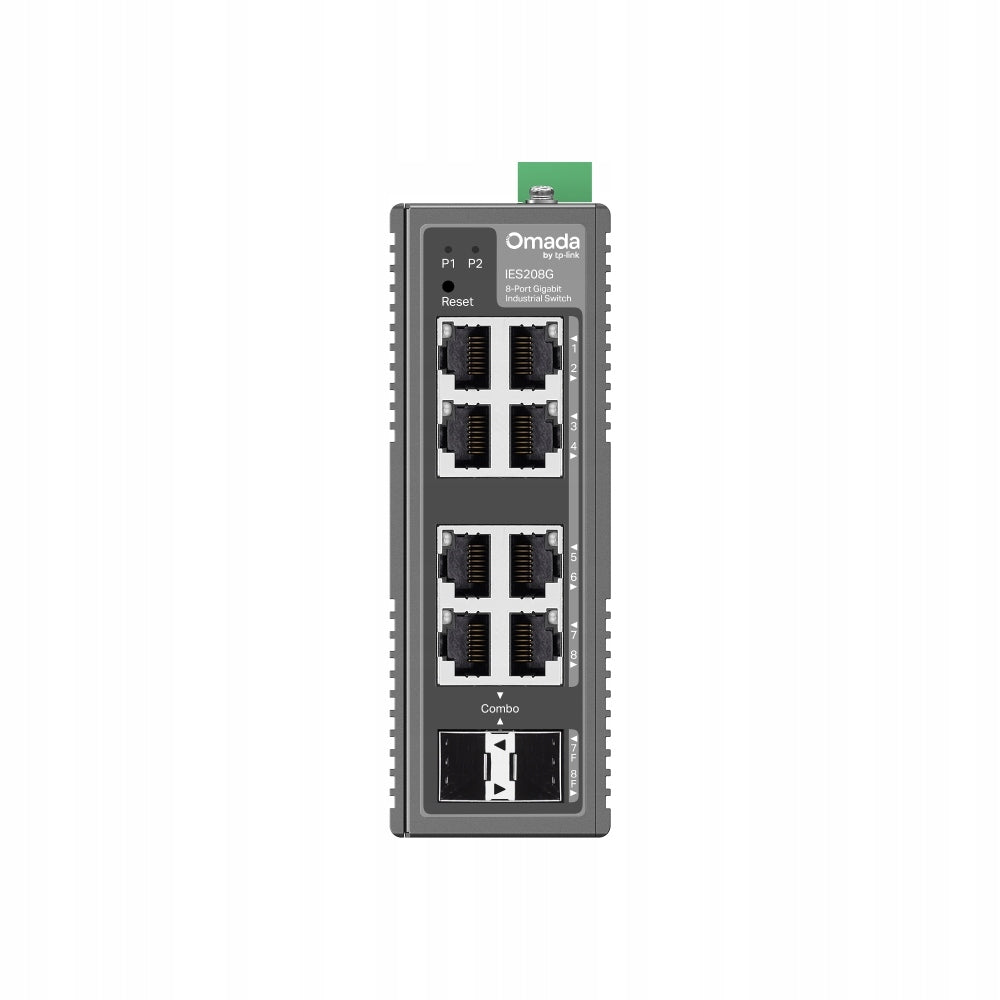

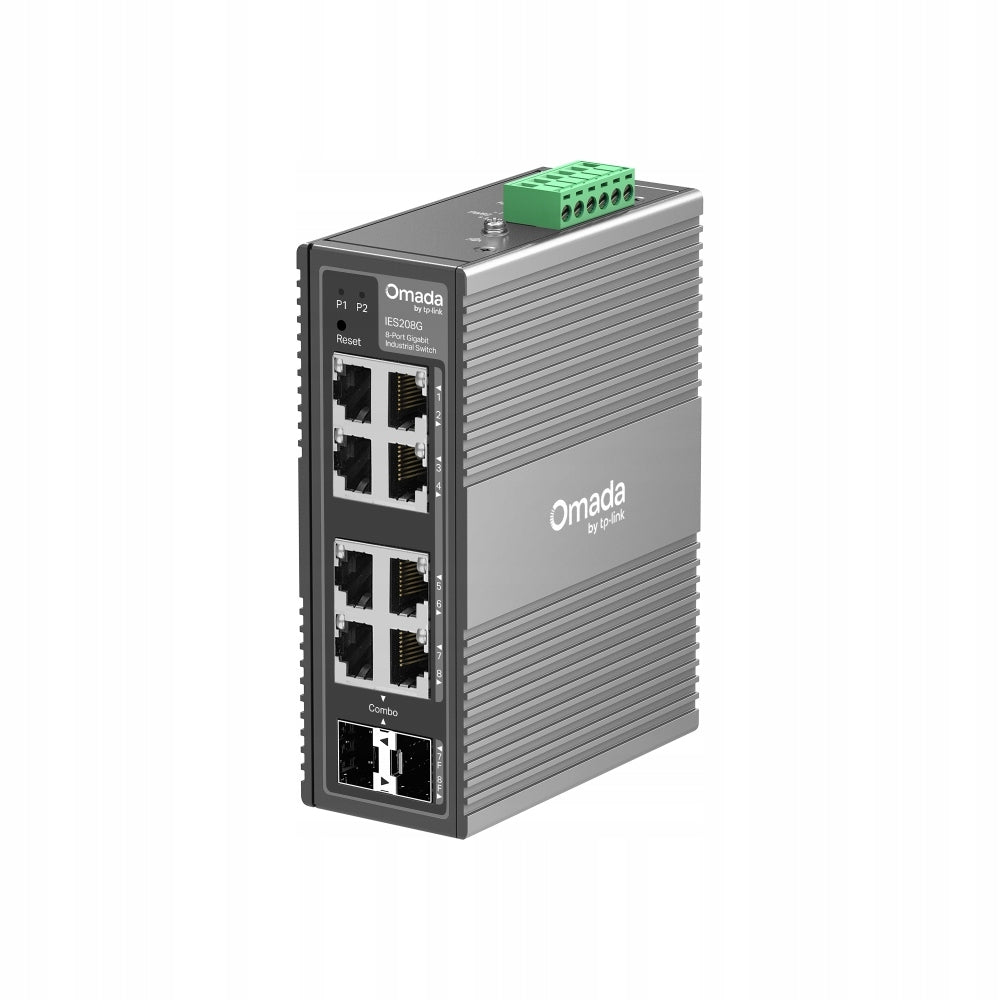

TP-Link IES208G – industrial Easy Managed Omada switch, 8 Gigabit ports
TP-Link IES208G is an industrial network switch designed for stable operation in demanding environments such as IP monitoring systems, industrial automation, company network infrastructure or IoT installations. Thanks to its robust industrial-grade construction and wide operating temperature range, the device is perfect for places where standard network equipment does not provide adequate reliability.
8 Gigabit ports for fast communication
The switch is equipped with 8 gigabit network ports, including 6 RJ45 ports and 2 RJ45/SFP combo ports, which allows for flexible connection of network devices and the use of optical fiber for data transmission over longer distances. Gigabit bandwidth provides a fast and stable connection for IP cameras, access points, computers or industrial equipment.
Professional industrial design
The TP-Link IES208G is designed to operate in harsh environmental conditions. The device operates in the wide temperature range from -40°C to 75°C, has lightning protection 6 kV and redundant power supply 1+1, which increases the reliability of operation and minimizes the risk of network interruptions.
Advanced network functions
The switch offers management features that allow for better organization and control of network traffic. Support for VLAN, QoS and STP/RSTP enables network segmentation, traffic prioritization and increased infrastructure stability and security.
Central management in the cloud Omada
The device can be managed centrally via the Omada platform, both from the web browser and mobile application. This allows administrators to easily monitor and configure the network from anywhere.
Sturdy housing and flexible installation
The switch has a solid aluminum housing with protection class IP40, which protects the device from mechanical damage and the influence of the industrial environment. The possibility of mounting on a DIN rail or on a wall allows for easy installation in control cabinets, switchboards and other industrial installations.
The most important features
• 8 Gigabit Ethernet ports – 6 × RJ45 and 2 × RJ45/SFP combo ports
• Industrial design – work at temperatures from -40°C to 75°C
• 6 kV lightning protection – increased surge resistance
• Redundant 1+1 power supply – greater reliability of operation
• Advanced network functions – support for VLAN, QoS, STP/RSTP
• Central management Omada – configuration via cloud, web or mobile application
• Solid IP40 aluminium housing – high durability in industrial environments
• Assembly on DIN rail or wall – easy installation in control cabinets and industrial installations
Technical specification – TP-Link IES208G
HARDWARE FEATURES
Ports
- 6 × RJ45 10/100/1000 Mbps ports
- 2 × gigabit Combo ports SFP/RJ45
The switch supports automatic speed negotiation and Auto MDI/MDIX.
Design and installation
The device has a fanless housing, adapted to work in an industrial environment.
- mounting on rail DIN
- installation on the wall
Power supply
Redundant power supply 1+1 DC.
- Input voltage range: 9,6 – 60 V DC
Dimensions
129 × 95 × 45 mm
Overvoltage protection
- ±6 kV (general mode) – Ethernet ports
- ±4 kV (general mode) – DC power inputs
PERFORMANCE
- switching bandwidth: 16 Gbps
- package forwarding speed: 11,9 Mp/s
- MAC address table: 8K
- package buffer: 4 Mb
- Jumbo frames: up to 15 KB
QUALITY OF SERVICE (QoS) FUNCTIONS
The switch supports DSCP and 802.1p priorities and offers 8 priority queues with a WRR (Weighted Round Robin) schedule.
- configuration of queue weights
- capacity control
- speed limitation based on port
- Storm Control (kbps/p/s)
Storm Control allows you to control traffic:
- Broadcast
- Multicast
- Unknown-Unicast
LAYER 2 SWITCH FUNCTIONS
- Static link aggregation
- up to 2 aggregation groups, maximum 4 ports per group
- Loopback Detection (Loopback Detection)
- flow control 802.3x
- Port Mirroring (One-to-One, Many-to-One, Ingress, Egress)
- Port statistics
- 802.1ab LLDP
Support for spanning tree protocols:
- STP (802.1D)
- RSTP (802.1W)
L2 MULTICAST
- IGMP Snooping v1
- IGMP Snooping v2
- IGMP Snooping v3
- Fast Leave
VLAN
- MTU VLAN
- VLAN based on ports
- 802.1Q Tag VLAN
Supported parameters:
- maximum 32 VLAN groups
- 4K VID
Method of transmission
Store-And-Forward.
MANAGEMENT
The switch supports management via the Omada application, requiring a controller:
- Omada hardware controller
- Omada cloud-based controller
- Omada software controller
Available functions:
- centralised management
- access to the cloud
- maintenance-free ZTP configuration (with cloud controller)
Functions of the management panel
- Web GUI interface
- DHCP client
- wiring diagnostics
- Digital Diagnostic Monitoring (DDM)
- automatic detection of devices
- group configuration
- Group software update
- Unified configuration
CERTIFICATES
- FCC
- CE
- RoHS
CONTENT OF THE PACK
- switch IES208G
- mounting bracket for DIN rail
- wall mounting plates
- installation instructions
WORKING ENVIRONMENT
Working temperature: –40°C to 75°C
Storage temperature: –40°C to 85°C
Working humidity: 10% – 95% (non-condensing)
Storage humidity: 5% – 95% (non-condensing)
How to add Easy Smart switches in the Omada controller
The TP-Link Easy Smart series switches are not visible by default in the Omada controller, because the controller manages devices from the full Omada SDN system as standard. In order for the controller to detect and manage Easy Smart switches, Easy Management mode must be enabled in the location settings.
How to enable Easy Management in the Omada controller
- Log in to Omada Controller.
- Go to Controller → Global View.
- Open the Dashboard tab.
- In the Location List (Sites) list, select the location that you want.
- Click the Edit / Edit icon next to the selected location.
- In the settings, find the option Switch Type.
- Select Easy Management.
- Save the changes.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | TP-Link |
| Parametry | Number of ports | 8 |
| Parametry | EAN (GTIN) | 1210002602099 |
| Parametry | Manufacturer code | IES208G |
| Parametry | Packaging status | original |
