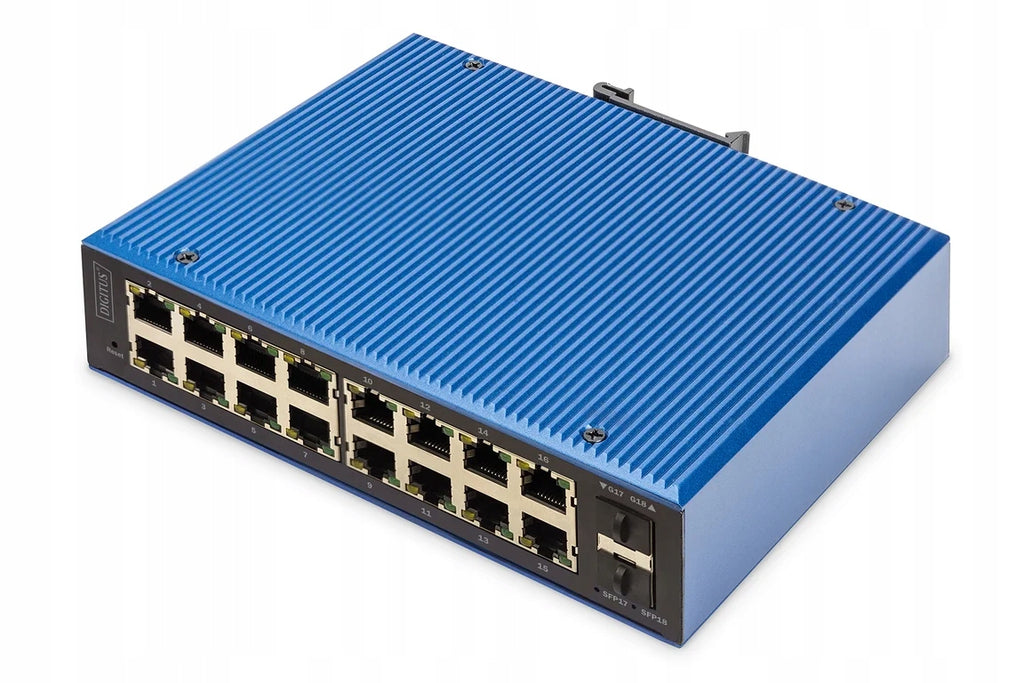

Pramoninis tinklo jungiklis Digitus, 16+2 valdomi Gigabit Ethernet prievadai

Trumpai apie prekę

Prekė: Pramoninis tinklo jungiklis Digitus, 16+2 valdomi Gigabit Ethernet prievadai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Digitus
• Modelis: 445281

Digitus Industrial 16+2 Port Managed Gigabit Ethernet PoE L2 Switch. Switch Type: Managed, Switch Layer: L2. Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000), Basic RJ-45 Switching Number of Ethernet Ports: 16, Number of SFP Modules Installed: 2. Full duplex. Address table size: 8000 inputs, Routing/switching throughput: 1 Gbit/s. Communication standards: IEEE 802.3af. DC input voltage: 48 - 57 V. PoE support

✏ The most important technical parameters:

• Network - 10G support: No
• Network - Communication standards: IEEE 802.3af
• Network - Ethernet interface type: Gigabit Ethernet
• Network - Data transfer speed over Ethernet LAN: 10,100,1000 Mbit/s
• Network - Port duplication: Yes
• Network - Full duplex: Yes
• Network - Half duplex: Yes
• Network - Flow control support: Yes
• Network - Connection aggregator: Yes
• Network - Traffic increase control: Yes
• Network - VLAN support: No
• Network - Virtual LAN functions: IP subnet-based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
• Network - Number of VLANs: 4094
• Ports and interfaces - Basic RJ-45 switching Number of Ethernet ports: 16
• Ports and interfaces - Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Ports and interfaces - Number of Gigabit Ethernet ports: 16
• Ports and interfaces - Number of SFP modules installed: 2
• Ports and interfaces - Fiber optic connector: SFP
• Performance - MTBF (Mean Interval Period): 300000 h
• Performance - Suitable for outdoor use: No
• Data transfer - Routing/switching bandwidth: 1 Gbit/s
• Data transfer - Forwarding speed: 42 Mpps
• Data transfer - Address table size: 8000 inputs
• Data transfer - Store-and-forward: Yes
• Data transfer - Compatible with Jumbo Frames: Yes
• Data transfer - Jumbo Frames extension: 10240
• Data transfer - Packet buffer memory: 4,1 MB
• Power - Power Source: DC/PoE
• Power - Backup Power Support (RPS): Yes
• Power - Power consumption: 15 W
• Power - Protection against sudden voltage increase: 4 kV
• Construction - Rack mounting options: No
• Features - Protection against sudden voltage increase: Yes
• Design - Stackable product: No
• Features - PoE Support: Yes
• Protection - Access Control List (ACL): Yes
• Features - Total Power over Ethernet (PoE) budget: 30 W
• Design - Colour of product: Black, Blue
• Construction - Housing material: Metal
• Features - DC input voltage: 48 - 57 V
• Protection - IGMP snooping: Yes
• Features - Bandwidth: 56 Gbit/s
• Protection - MAC Address Filtering: Yes
• Features - Country of origin: China
• Construction - Vandal-proof: No
• Construction - DIN mounting on rail: Yes
• Working conditions - Temperature range (operation): -40 - 80 °C
• Working conditions - Temperature range (storage): -40 - 80 °C
• Working conditions - Relative humidity range: 5 - 95%
• Working conditions - Permissible relative humidity: 5 - 95%
• Weight and sizes - Product width: 175,6 mm
• Weight and sizes - Product depth: 135 mm
• Weight and sizes - Product height: 45,5 mm
• Weight and sizes - Product weight: 1,2 kg
• Strength - IP rating: IP40
• Management Features - Switch Type: Managed
• Management features - Switch layer: L2
• Management Features - Service Quality Support (QoS): Yes
• Packaging data - Package width: 186 mm
• Packaging data - Package depth: 72,5 mm
• Packaging data - Package height: 208 mm
• Packaging data - Weight including packaging: 75 g
• Power Supply - Power Supply Included: Yes
• Content of the package - Quick Start Guide: Yes
• Logistics data - Package capacity: 2804,88 cm³
• Logistics data - Mask with serial number: 85176200
• Classification - Manufacturer code: DN-651159
• Classification - EAN: 4016032490234
• Classification - Product ID: 113949041
