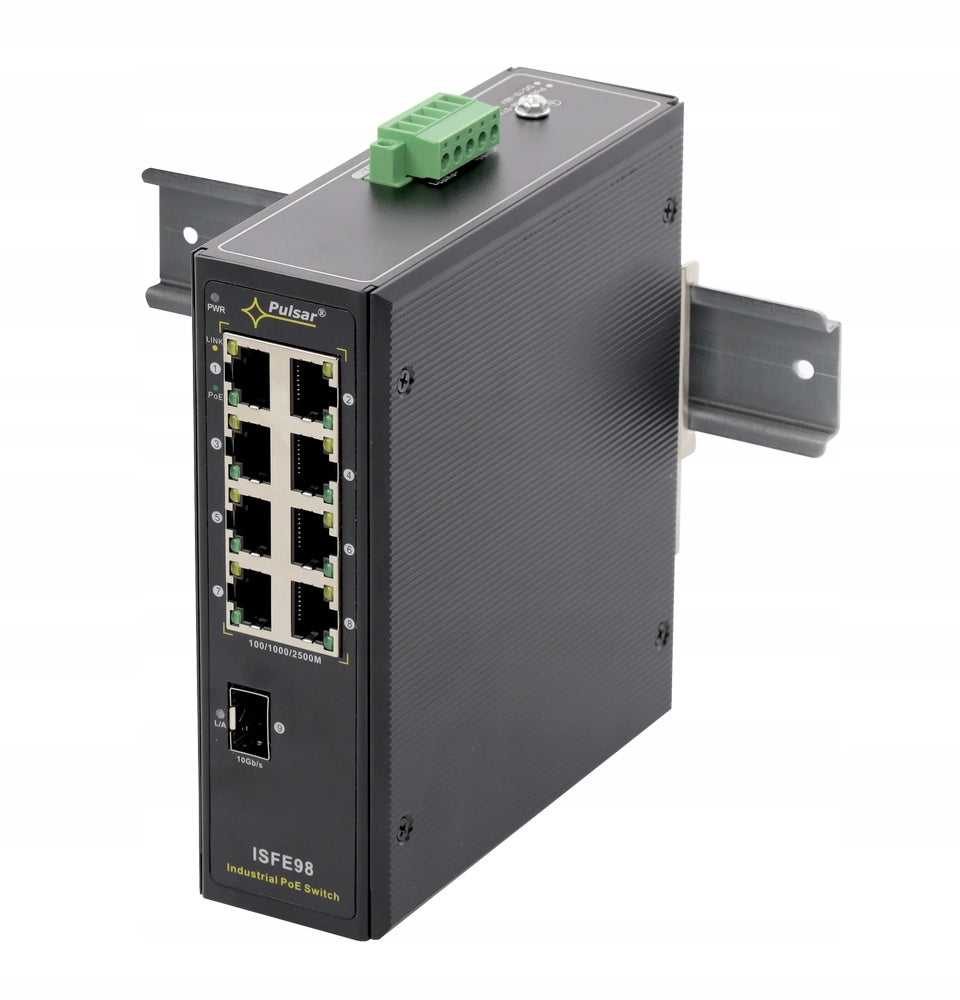

Pramoninis PoE komutatorius Pulsar ISFE98, 8x PoE 802.3af 2.5GbE, 1x SFP+ 10Gbps

Trumpai apie prekę

Prekė: Pramoninis PoE komutatorius Pulsar ISFE98, 8x PoE 802.3af 2.5GbE, 1x SFP+ 10Gbps. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Pulsar
• Modelis: ISFE98

Characteristics:

• Industrial switch 9 port

  8 PoE ports 100/1000/2500Mb/s (data and power supply)

  1 port 1000/2500/10000Mb/s SFP+

• 30W for each PoE port, support IEEE802.3af/at (PoE+) compliant devices
• Support auto-learning and auto-aging MAC addresses (8K size table)
• Optical signalling
• Redundant power supply
• DIN rail mounting (TH35)
• No power supply included

ISFE98 is a 9-port PoE switch designed to power IP cameras operating in the IEEE 802.3af/at standard.

Switch on ports 1 to 8 has the function of automatic detection of devices powered in the PoE / PoE + standard.

The UP LINK port is used to connect subsequent network devices using optical fiber (GBIC insert should be used).

On the front panel there is an indication of the operating status of the device realized on LEDs. The device has solutions that allow power supply from two sources (emergency power supply, redundant) - in the event of failure of one source, there is an immediate switch to backup.

PoE technology provides a network connection and reduces installation costs, eliminating the need to supply a separate power cable to each device. In addition to cameras, network devices that use this technology can be powered in this way, e.g. IP phone, access point, router.

Technical parameters:

Ports

• 8 ports 100/1000/2500 Mbps (PoE)
• 1 port 1000/2500/10000 Mbps (UP LINK)

  with automatic connection speed negotiation, Auto MDI/MDIX

  automatic patching

PoE power

• IEEE 802.3af/at (1÷8), 52 V DC / 30 W per port (max 180W for all ports)

Protocols, standards

• IEEE802.3, 802.3u, 802.3x, 802.3ab, 802.3z, TCP/IP

Capacity

• 60Gbps

Method of transmission

• Store-and-Forward

Optical work signaling

• Power supply of the switch;
• Link;
• PoE Status

Power supply

• Switch: 12-57V DC; 3.5 A max.
• PoE: 48-57VDC; 3.5A max.
• No power supply included

Working conditions

• Temperature -30°C ÷ 70°C,
• Relative humidity 5% - 90%, non-condensing

Dimensions (W x H x D)

• W=48, H=161, H1=16, D=142, D1=8 [+/- 2 mm]

Power consumption for own use

• 5W max.

Net/gross weight

• 0,7/0,9kg

Protection class PN-EN 60950-1:2007

• I (first)

Storage temperature

• -30°C ÷ 70°C

Declarations

• CE
