Pramoninis PoE komutatorius BCS-ISP04G01G, 4 gigabitiniai prievadai, 1 RJ45 uplink, 120W, DIN montavimas

Trumpai apie prekę

Prekė: Pramoninis PoE komutatorius BCS-ISP04G01G, 4 gigabitiniai prievadai, 1 RJ45 uplink, 120W, DIN montavimas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 1437

BCS

4 port industrial PoE switch for DIN rail

Series: BCS Universal

Model: BCS-ISP02G-2SFP

BCS-ISP04G01G is a DIN rail-mounted industrial PoE switch designed to expand LAN networks and power network devices in demanding industrial environments. It has 4 1 Gbps PoE ports and 1 RJ45 1 Gbps uplink port for fast and stable network connections. The switch supports IEEE 802.3af/at standards, providing a total PoE power of up to 120W, allowing you to power multiple devices simultaneously.

The most important advantages and features

• 4 high-speed 1 Gbps PoE ports for powering cameras, access points, and other network devices
• RJ45 1Gb/s uplink port for easy connection to main network
• IEEE 802.3af and 802.3at PoE support for compatibility with various devices
• Industrial housing with DIN rail mounting – ideal for installation in harsh environments
• High total PoE power up to 120 W allows you to power multiple devices at the same time
• Automatic speed negotiation and full duplex for optimal network performance
• LEDs indicating power, connection and PoE status for easy monitoring
• Operation in a wide temperature range from -40°C to +80°C

Detailed technical specification

Ports and standards:

• 4 RJ45 1 Gb/s ports with PoE (Power over Ethernet)
• 1 RJ45 1 Gb/s uplink port
• Transmission speeds: 10/100/1000 Mbps, half-duplex/full-duplex
• Support for auto-negotiation and automatic switching MDI/MDIX
• Switch bandwidth: 20 Gbps
• MAC array: 8 000 addresses
• Package Buffer: 1 Mbit

PoE power supply:

• PoE standards: IEEE 802.3af (up to 15,4 W per port), IEEE 802.3at (up to 30 W per port)
• Total PoE power: up to 120 W (at 48 V DC), 90 W (24 V DC), 60 W (12 V DC)

Network functions and management:

• No advanced management features (switch works in unmanaged mode)
• Automatic packet forwarding (1,48 million packets per second)
• Supports Ethernet 802.3x (flow control) and 802.3az (energy saving) standards

Security:

• Basic security features derived from PoE standards and Ethernet protocols
• Protection against short circuits and PoE overloads

Physical parameters and power supply:

• Power supply: 12 to 48 V DC (not included)

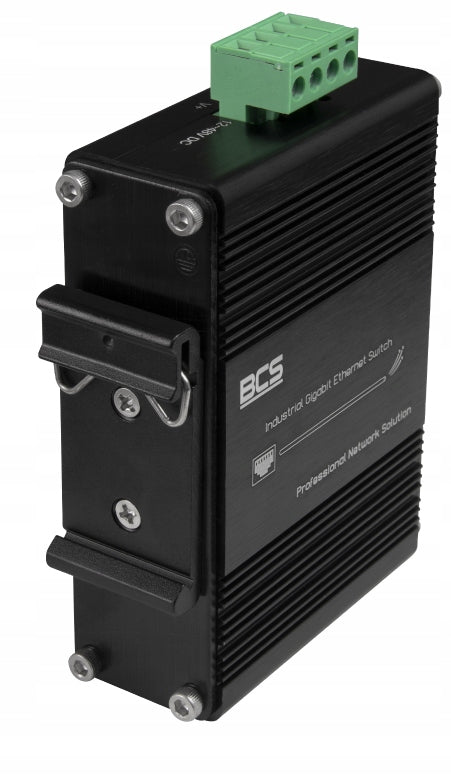

• Industrial housing, DIN rail mounting

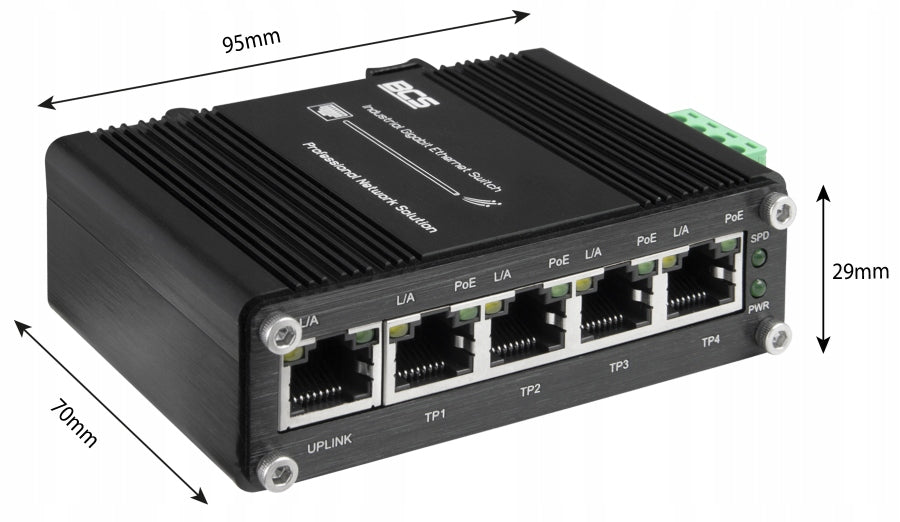

• Dimensions: 95 × 70 × 29 mm
• Weight: 0,25 kg
• Operating conditions: temperature from -40°C to +80°C, humidity up to 95% RH
• MTBF (mean time between failures): 200 000 hours

Explanation of technical abbreviations and terms

• PoE (Power over Ethernet) – technology that allows you to transfer electricity over an Ethernet network cable, which allows you to power devices such as IP cameras or access points without the need for a separate power supply.
• RJ45 is a standard Ethernet port used to connect computers and other network devices.
• SFP – a module that allows you to connect optical fibers or other types of connections (here the switch does not have SFP ports, only RJ45 uplink).
• IEEE 802.3af/at – PoE standards specifying how much power can be transmitted over the cable (af up to 15,4 W, at up to 30 W per port).
• Auto-negotiation – a function of automatically adjusting the speed and mode of operation of ports to connected devices.
• Half-duplex/Full-duplex – communication mode; full-duplex enables simultaneous sending and receiving of data, half-duplex alternately.
• MTBF (Mean Time Between Failures) – average operating time of the device without failure.
• DIN rail – standard for the installation of electronic equipment in industrial cabinets and switchgears.

The BCS-ISP04G01G switch is a robust and reliable solution for industrial PoE networks, which, thanks to its high power supply and durable construction, is perfect for harsh environments. Simple DIN rail installation and automatic network functions guarantee stable and efficient operation of network devices, making it an ideal choice for installers and users who need a fast and durable PoE switch.
