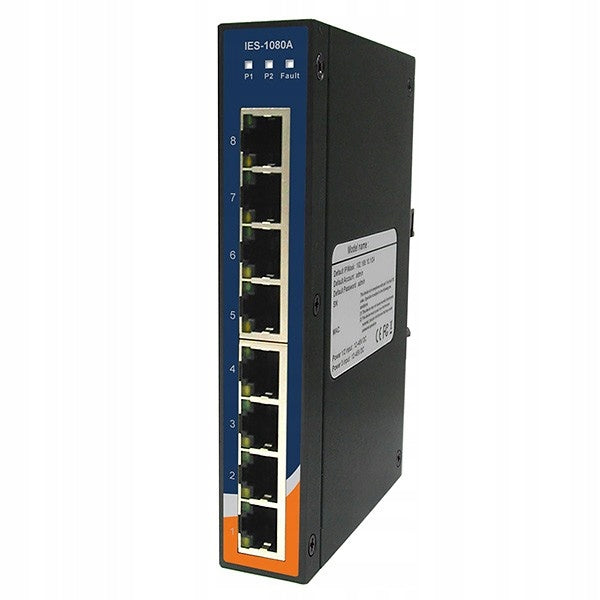

Pramoninis jungiklis 8x 10/100 RJ-45, nevaldomas

Trumpai apie prekę

Prekė: Pramoninis jungiklis 8x 10/100 RJ-45, nevaldomas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Oring
• Modelis: RB06653

Product number: RB06653

Ports

RJ-45 10/100 Base-T(X) Auto MDI/MDIX ports: 8

Technologies

Ethernet Standards: IEEE 802.3 for 10BaseT,IEEE 802.3u for 100BaseT(X),IEEE 802.3x for Flow control

MAC array capacity: 2048 addresses

Package Processing Scheme: Store-and-Forward

LED indicators

Power Indicator: Green x2

Error indicator: yellow - indicates the occurrence of power failure PWR1 or PWR2

RJ-45 10/100TX port indicator: green for Link/Activity, yellow for Duplex/Collision

Emergency connector

Forwarding: alarm output can transfer 1A at 24VDC

Power supply

Input: dual DC input, 2x 12÷48VDC on 6-pin terminal block connector

Power Consumption (Typical): 4W

Current Overload Protection: Current

Reverse polarity protection: present on terminal block connector

Physical characteristics

Housing: IP-30

Dimensions (S x G x W): 33mm x 95mm x 144mm

Weight: 391g

Resistance to external factors

Storage temperature: -40÷85°C (-40÷185°F)

Operating temperature: -40÷70°C (-40÷158°F)

Permissible humidity: 5%÷95% non-condensing

Compliance with standards/recommendations

EMI: FCC Part 15,CISPR(EN55022) class A

EMS: EN61000-4-2 (ESD), EN61000-4-3 (RS),EN61000-4-4 (EFT),EN61000-4-5 (Surge),EN61000-4-6 (CS),EN61000-4-8,EN61000-4-11

Shock: IEC60068-2-27

Fall: IEC60068-2-32

Vibration: IEC60068-2-6

Safety of use: EN60950

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Oring
Parametry	Number of ports	8
Parametry	EAN (GTIN)	0747126318069
Parametry	Manufacturer code	RB06653
