Trumpai apie prekę
Prekė: Pramoninis gigabitinis Ethernet jungiklis Delock 80163, 8x RJ45, DIN, 9–48 V. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Delock
- Modelis: 80163

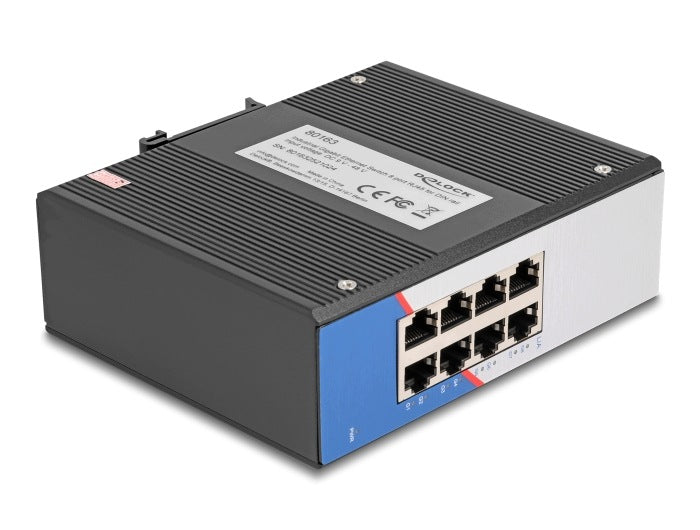

Industrial 8-port Gigabit Ethernet Delock switch for mounting on a 35 mm DIN rail. It offers 8 RJ45 10/100/1000 Mbps ports, redundant 9 to 48 V DC power supply, metal housing, fanless design and operating range from -40 °C to 85 °C.
Industrial Gigabit Ethernet Switch 8-Port Delock
The Delock Industrial Gigabit Ethernet Switch is used to connect network components in industrial installations. It is equipped with 8 RJ45 ports supporting 10/100/1000 Mbps Base-T transmission.
Redundant 9 to 48 V DC power supply
The switch allows you to connect two power sources via a 5-pin terminal connector. Redundant power supply allows you to increase the availability of the device in installations requiring continuous operation.
For industrial applications
The device meets the requirements of the industrial standards IEC 61000-4-2 for ESD, IEC 61000-4-4 for EFT and IEC 61000-4-5 for surges at level 4. It also meets the requirements of IEC 60068-2-6, IEC 60068-2-27 and IEC 60068-2-32 for vibration, impact and free fall respectively.
Metal housing and DIN mounting
The sturdy metal housing and fanless design allow the switch to be used in industrial environments. The device is designed to be mounted on a 35 mm DIN rail and can operate at temperatures from -40 °C to 85 °C.
Specification
- 8 x RJ45 10/100/1000 Mbps Base-T
- 1 x 5-pin terminal power connector
- Data transfer rate: up to 1 Gbps
- Supported standards: IEEE 802.3, 802.3u, 802.3z, 802.3ab
- Redundant power supply: 9 to 48 V DC
- Power consumption: max. 4 IN
- LEDs for status monitoring
- Fanless design
- Sturdy metal housing
- Mounting on DIN rail 35 mm
- Degree of protection: IP40
- Operating temperature: -40 °C to 85 °C
- Dimensions: approx. 142 x 116 x 48 mm
Requirements
- DC 9 – 48 V power supply – not included
Contents of the pack
- Switch
- User manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Delock |
| Parametry | Number of ports | 8 |
| Parametry | Number of LAN (RJ-45) ports | 8 |
| Parametry | LAN port operating standard | 10/100/1000 Mbps |
| Parametry | EAN (GTIN) | 4043619801633 |
| Parametry | Manufacturer code | 80163 |
| Parametry | Packaging status | original |
