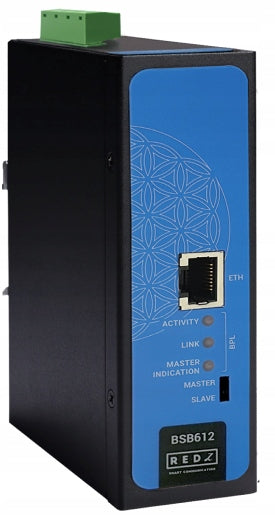

Pramoninis Ethernet komutatorius su BPL perdavimu BSB612-PP-AC

Trumpai apie prekę

Prekė: Pramoninis Ethernet komutatorius su BPL perdavimu BSB612-PP-AC. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: REDZ-BSB-612

BSB612-PP-AC is a compact industrial unmanaged Ethernet switch that enables network communication both via the Ethernet port and via power lines using BPL (Broadband Power Line) technology.

The device has a 1 Ethernet port 10/100Base-T(X) and a BPL interface, which allows data transmission via power cables. Thanks to this, it is possible to build communication infrastructure in places where Ethernet cables are difficult or impossible to run.

The switch is designed to work in demanding industrial environments such as energy, industry, urban infrastructure, Smart Grid systems and IoT installations.

• 1 Ethernet port 10/100Base-T(X)
• 1 BPL (Broadband Power Line)
• data transmission via energy lines
• power supply 110 – 240 V AC
• Support for phase-to-phase and phase-to-neutral transmission
• Master / Slave operating mode selection
• automatic MDI / MDI-X
• Support for Full-Duplex / Half-Duplex
• mounting on rail DIN
• Industrial housing IP40
• wide operating temperature range -40°C to +85°C
• designed to work in harsh industrial environments

The device is used in:

• industrial automation
• energy networks
• Smart Grid systems
• monitoring of infrastructure
• industrial installations
• IoT and Smart City systems
• building a network in places without Ethernet infrastructure

BPL technology enables data transmission through existing power cables.

Transmission parameters

• PHY bandwidth: up to 30 Mbps
• Support for up to 10 network hops
• Support for up to 1000 devices on the network
• up to 432 sub-carriers
• Analog band 2 to 28 MHz
• modulation of OFDM-432
• MAC CSMA/CA protocol

Security of transmission

• AES 128-bit encryption
• LDPC-C FEC error correction

Standards

• IEEE 802.3 – 10Base-T
• IEEE 802.3u – 100Base-T(X)
• IEEE 802.3x – Flow Control

Parameters

• 1 RJ45 10/100Base-T(X)
• automatic MDI / MDI-X
• Full-Duplex / Half-Duplex mode

Architecture

• processing method: Store-and-Forward
• MAC table: 1000 addresses
• packet buffer: 448 Kbit

The device allows you to configure the operating mode:

• Master
• Slave

The mode is selected using the switch on the device.

The device has LEDs informing about the operating status:

• Power LED – power supply
• Ethernet Activity LED – Ethernet port activity
• BPL Activity – data transmission through the power line
• BPL Link – BPL connection status
• Master Indicator

  LED ON – Master

  LED OFF mode – Slave

  mode

The device is powered by voltage:

• 110 TO 240 V AC
• 50 – 60 Hz

The power supply is connected via the power terminal (pins 1 and 2).

The device supports several transmission modes.

PP – Phase to Phase (standard)

Transmission between phases:

• L1 – L2
• L2 – L3
• L1 – L3

PN – Phase to Neutral

Transmission between:

• phase and neutral (L-N)

DC Model

Transmission via DC line (e.g. 24 V DC).

Housing: metal

Degree of protection: IP40

Dimensions:

43 × 95 × 124 mm

Weight:

approximately 400 g

Working temperature:

-40°C to +85°C

Storage temperature:

-65°C to +150°C

Moisture:

5 to 95% non-condensing
