PoE tinklo jungiklis GETFORT 4+2, Gigabit Ethernet, 65W

Trumpai apie prekę

Prekė: PoE tinklo jungiklis GETFORT 4+2, Gigabit Ethernet, 65W. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: getfort
• Modelis: GF-106-4PG-65

SWITCH POE GETFORT 4+2 Gigabit Ethernet 65W

SWITCH POE GETFORT 4+2 Gigabit Ethernet 65W

Key features:

• 4 ports 1000Mbps RJ45
• 4 PoE ports 802.3 af/at
• Support 803.3bt 60W Hi PoE (port1)
• Watchdog function
• PoE support: up to 30W per port
• Long range PoE mode, up to 250m
• Support for VLAN port isolation

The Getfort GF-106-4PG-65 switch is a 4-port universal PoE Gigabit switch designed to transfer data and power devices such as IP cameras, VoIP phones, Wi-Fi access points, etc.

Equipped with 4 Gigabit ports supporting the PoE (802.3af/at) standard, which provide power to PoE devices via Ethernet cable.

This allows you to power and communicate with your devices without the need for separate power cables.

GetFort

GetFort is one of the fastest growing brands of active and passive network devices. The offered products are characterized by high durability and precision, attractive design and innovative technical solutions. Our products are widely used in the construction of datacenter, alarm, CCTV and RTV systems.

​

Compliance with standards: Switch PoE compliant with international standards such as IEEE 802.3af (PoE) and 802.3at (PoE+), allowing compatibility with various PoE devices. An additional feature is support for 802.3bt (HI-PoE) with support for up to 60W per port (port 1)

Power Management: Supports power management features such as automatic port shutdown in case of inactivity of the device connected to the PoE port, which helps to save energy.

Power range: It can supply power over Ethernet cable up to 100 meters away, which is standard for Cat 5e or Cat 6 cables.

Thanks to the Long-Range function, devices up to 250m from the device can be powered at a lower transfer.

​

Automatic PoE recognition: Switch Getfort can automatically recognize whether a connected device requires PoE power and adjust ports accordingly.

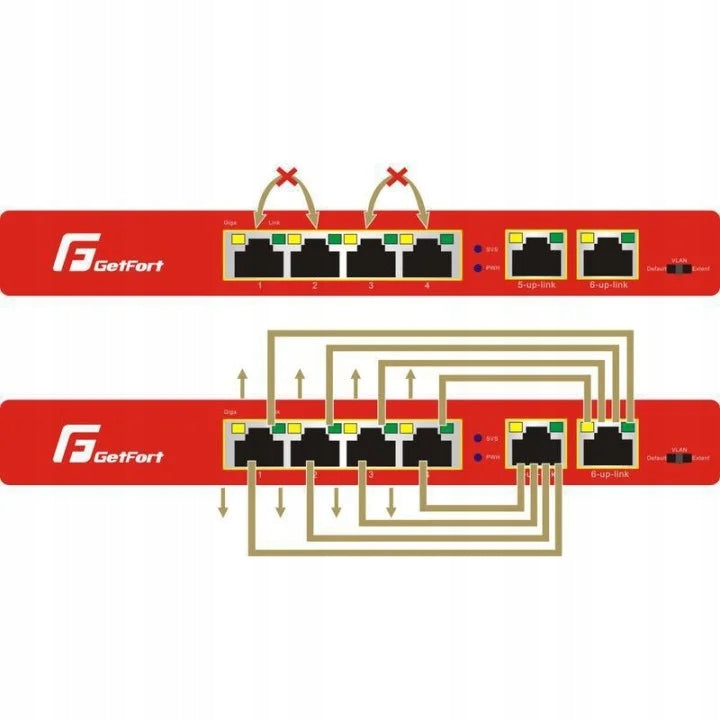

VLAN support: Port isolation mode allows you to segment traffic and increase network security.

Easy installation: It is simple to set up and use, allowing for quick installation even by those without advanced technical knowledge.

Built-in LEDs: Built-in LEDs on the front panel allow you to monitor the status of connections and power supply on individual ports.

Technical specification

ModelGF-106-4PG-65Interface4*10/1000Base-TX PoE port（Data/Power）2*10/1000Base-TX uplink RJ45 port(Data)PoE PortsPorts 1-4 support 802.3 af/at (Port 1 support Hi-PoE60W)FunctionN: NormalV: Port IsolationE: Long Range Mode(Ultra Far)Network ProtocolsIEEE 802.3 IEEE 802.3i 10BASE-TIEEE 802.3u 100BASE-TX IEEE 802.3x IEEE 802.3af/at/PoE++Standard PoEIEEE802.3af/at/PoE++/HiPoEPorts10/100/1000BaseT（X）AutoTransmission MethodStore and ForwardBandwidth16Gbps Packet Forwarding Rate14.44MppsMAC Table Size2KBuffer2.5KTransmission Distance10BASE-T ： Cat3,4,5 UTP(≤250 m) 100BASE-TX ： Cat5 or later UTP(150 m) 1000BASE-TX ： Cat6 or later UTP(150 m)Port Load Capacity15.4W/30W (Port 1 60W)Power ConsumptionMAX 65W （AC100-240V）Standby ：＜3WPoE：＜65WLEDP: PowerV: Port IsolationE: (Ultra-far)Input PowerBuilt-in AC Power Supply：100～240V 50-60Hz 1AWorking Temperature-10～+55°CDevice Dimension190mm*130mm*35mmPackage Dimension305mm*205mm*55mmWeight0.9kgProtection Level3KV 8/20usIP30

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	getfort
Parametry	Product weight with unit packaging	0.9 kg
Parametry	Number of ports	6
Parametry	EAN (GTIN)	5905817937431
Parametry	Manufacturer code	GF-106-4PG-65
