Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
Trumpai apie prekę
Prekė: PoE maitinimo sistema 8 kameroms BCS-IP8/E-S, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: BCS
- Modelis: 5904890706262
BCS-IP8/E-S
BCS

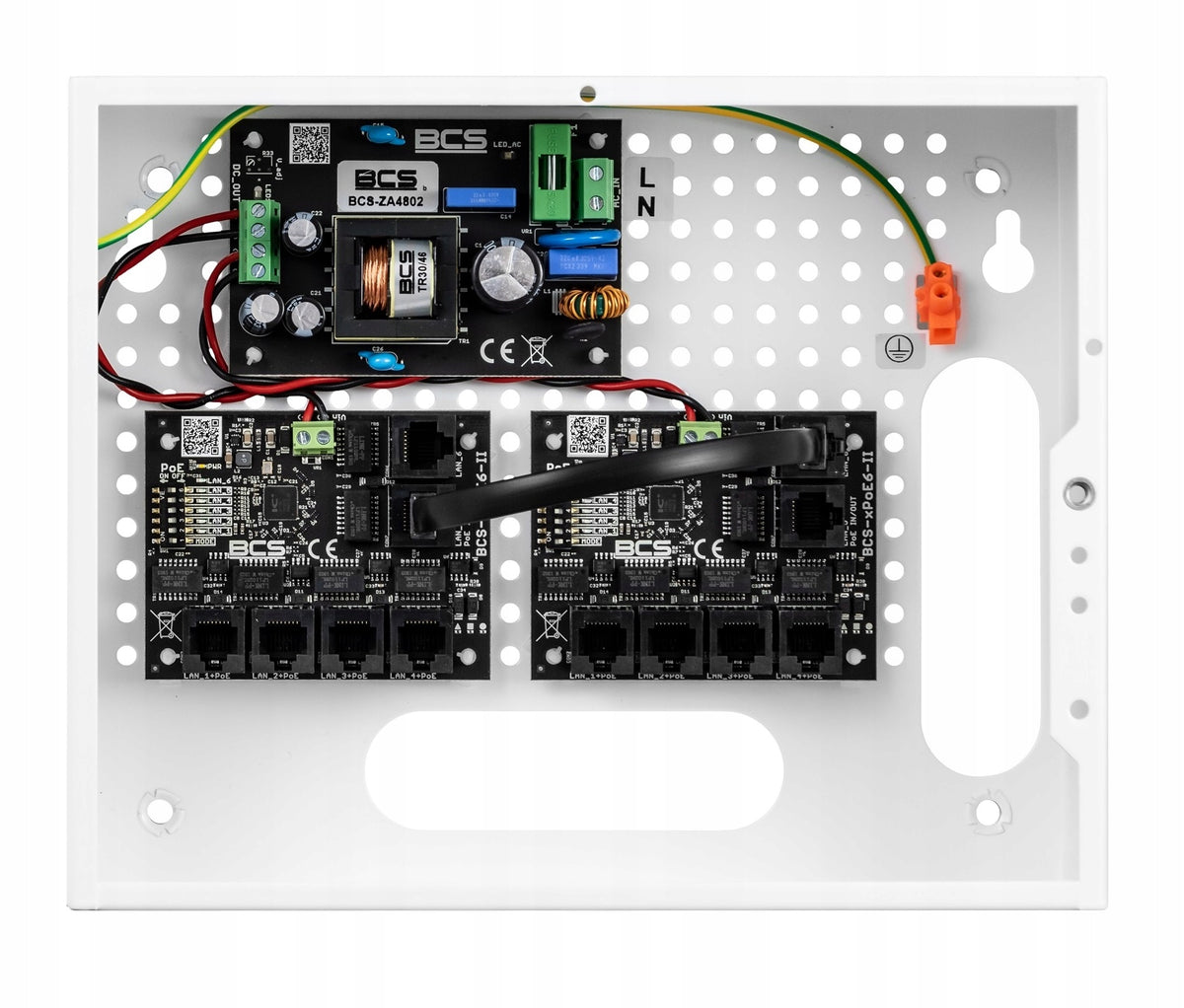

The modular BCS/IP8/E-S power supply system consists of a switching power supply (ZA4802/UPS) and two unmanaged switches with 6 ports: 4x PoE and 2x LAN (xPoE6). Supports up to 8 IP (PoE) cameras.
Basic parameters of the buffer power supply system BCS IP8 E S:
- Complete, modular high-efficiency power supply system for 8 PoE IP cameras
- Output Voltages:
- DC 12 V +/- 15 % from power supply
- DC 48V +/- 5% for PoE IP cameras;
- DC 12 V +/- 5 % for DVR
- Continuous power: 96 W
- Efficiency: above 90 %
- Low power consumption
- Security:
- 48 V short-circuit outputs
- anti-overload at level 3A
- thermal
- short-circuit protection of each port separately
- Optical signaling of power supply of each port
- Housing dimensions: 250 × 200 × 85 [mm]
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | BCS |
| Parametry | Product weight with unit packaging | 1.52 kg |
| Parametry | Number of ports | 9 |
| Parametry | EAN (GTIN) | 5904890706262 |
| Parametry | Manufacturer code | 5904890706262 |
| Parametry | Certificates of conformity | CE,WEEE |
