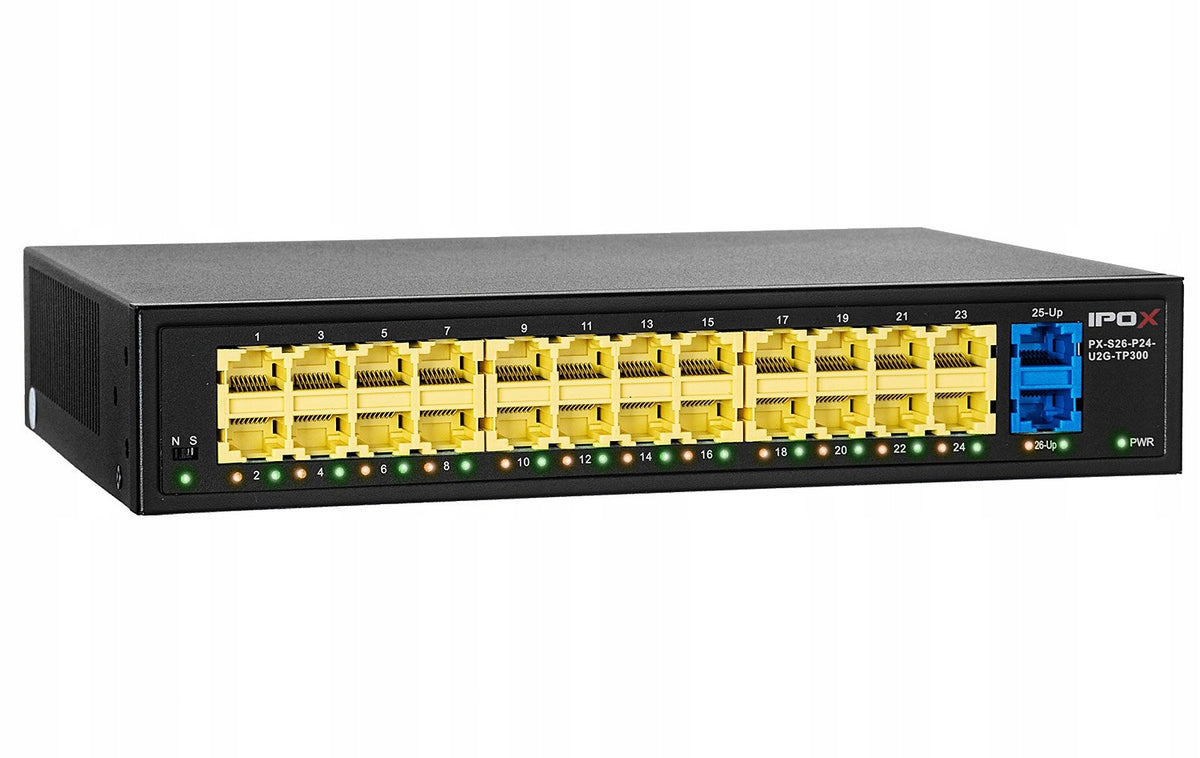

PoE komutatorius PX-S26-P24-U2G-TP300, 24 prievadų + 2 RJ45

Trumpai apie prekę

Prekė: PoE komutatorius PX-S26-P24-U2G-TP300, 24 prievadų + 2 RJ45. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 1885

IPOX PoE Switch PX-S26-P24-U2G-TP300 is a modern network device designed for power supply and data transmission for IP cameras operating in the IEEE 802.3af/at (PoE+) standard. It is an advanced IPOX solution designed to work in IP surveillance systems that require stability, reliability, and high bandwidth.

The PX-S26-P24-U2G-TP300 is equipped with 24 PoE ports with automatic detection of powered devices and 2 UpLink RJ45 ports, which allow easy connection of subsequent network elements. The LEDs on the front panel provide a quick view of the operating status of each port, making it easy to diagnose and operate on a daily basis.

Thanks to Plug & Play technology, the installation of the switch does not require additional configuration, and the robust construction guarantees stable operation in demanding installation environments. Switch PX-S26-P24-U2G-TP300 is the perfect choice for installers looking for an efficient and reliable device to power their extensive IP CCTV systems.

interface:

24x RJ45 PoE port 802.3af/at (10/100Mbps, Auto MDI/MDX)

2x RJ45 UpLink port (10/100/1000Mbps)

PoE power supply: 300W (at< 30W per port, af< 15.4W per port)

PoE range: 100m (normal mode), 250m (SUPER MODE CCTV mode)

bandwidth: 16Gbps

Layer 2 switch, unmanaged

Functions: normal, SUPER MODE CCTV

Housing type: desktop / RACK (handles included)

LED working optical signalling

Protection: 4kV surge protection

Simple installation and operation (plug and play)

clamp for connecting a protective cable

power supply: AC 230V 50-60Hz

dimensions: 240x175x45mm (width. /l. /h. )

Application of IPOX switch

Reliable switch PX-S26-P24-U2G-TP300 is a LAN device that will skillfully complement any network infrastructure available in the home, store or office. Using the wide functionality of the IPOX switch in professional IP surveillance installations, it is possible to comprehensively power IP cameras in places free from power sources and, as a result, implement effective security systems.

PoE+ technology

PoE+ is an improved version of PoE technology that allows you to provide power to peripheral devices that are elements of the network using an Ethernet cable. The IEEE 802.3at protocol-based technology enables users to power peripheral devices up to 30 W. An important advantage of the improved version of the technology is also high quality and high data transfer rate. Thanks to such high data transfer capabilities, the PoE solution has been widely used in extensive monitoring networks. PoE+ technology allows you to transfer images from 4K cameras in real time while maintaining full smoothness.

Intelligent protection mechanism

The advantage of the PX-S26-P24-U2G-TP300 switch is the ability to produce up to 30W of output power transmitted to one device. In addition, the device has an intelligent protective mechanism that regulates power consumption at the time of overload on an ongoing basis. If the power of all powered devices exceeds 48W, the switch will automatically disconnect the communication port with the lowest priority. This will protect the installation from overload and ensure the proper and uninterrupted functioning of the remaining equipment.

Specifications
