Prekė: PoE kartotuvas Hikvision DS-3E0505P-E/R. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Hikvision
- Modelis: DS-3E0505P-E/R
190.08
69602

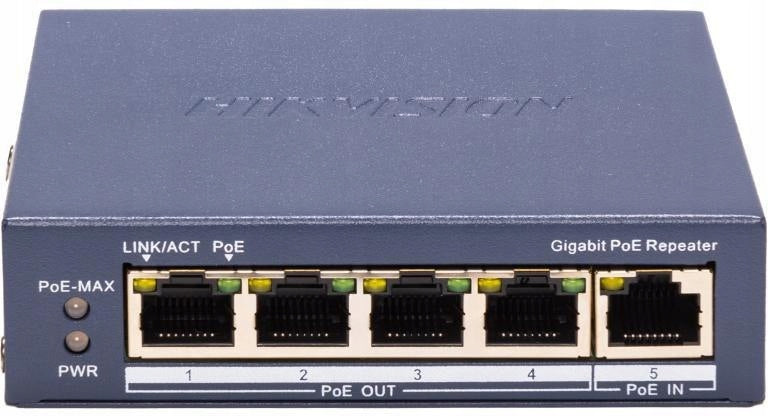

Hikvision DS-3E0505P-E/R PoE repeater
Model: DS-3E0505P-E/R
Key features
- Gigabit PoE Repeater
- 5 × PoE RJ45 port 10/100/1000 Mb/s
- Port 5 (PoE IN): IEEE 802.3af/at/bt compliant
- Ports 1 to 4 (PoE OUT): IEEE 802.3af/at compliant, total PoE power budget 60W
- 6 kV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding with non-blocking architecture
- Store-and-forward forwarding mode.
- Durable, high-resistance metal housing
- Fanless design with high reliability
Technical specifications
Model
DS-3E0505P-E/R
Case
Metal material
Net weight
0.25 kg (0.55 lb)
Gross weight
0.50 kg (1.10 lb)
Dimensions (width × height × depth )
105.00 mm × 27.6 mm × 83.1 mm (4.13'' × 1.08'' × 3.27'')
Operating temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity
5% to 95% (non-condensing)
Relative humidity
5% to 95% (non-condensing)
Power supply
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Hi-PoE Power Supply
Mounting type
On the desk, on the wall
Surge protection
6 kV
Network parameters
Ports
4 x Gigabit PoE ports (output), 1 x Gigabit PoE port (input)
MAC address table
2 K
Switching performance
10 Gb/s
Packet forwarding speed
7.44 Mp/s
Internal cache
1 Mb
PoE power supply
PoE Standard
IEEE 802.3af; IEEE 802.3at
Power pin PoE
8-pin power supply: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE port
PoE Output: Ports 1 to 4; PoE Input: Port 5
Max. Port power supply
30 W
PoE power budget
60 W
Approval
EMC
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Security
CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (2nd edition), CE-LVD (EN 62368-1:2014+A11:2017)
Biochemical test
CE-RoHS (201165EU); WEEE (201219EU); Scope (Regulation (EC) No. 1907/2006)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Hikvision |
| Parametry | Product weight with unit packaging | 0.4 kg |
| Parametry | Number of ports | 5 |
| Parametry | EAN (GTIN) | 6936422154578 |
| Parametry | Manufacturer code | DS-3E0505P-E/R |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
