PoE jungiklis BCS-UPS/IP8/E-S, 9 kameroms, 10/100 Mbps, maitinimo bloko korpusas

Trumpai apie prekę

Prekė: PoE jungiklis BCS-UPS/IP8/E-S, 9 kameroms, 10/100 Mbps, maitinimo bloko korpusas. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: BCS
• Modelis: 1482

BCS

9-Port Buffer PoE Switch

Series: BCS Power

Model: BCS-UPS/IP8/E-S

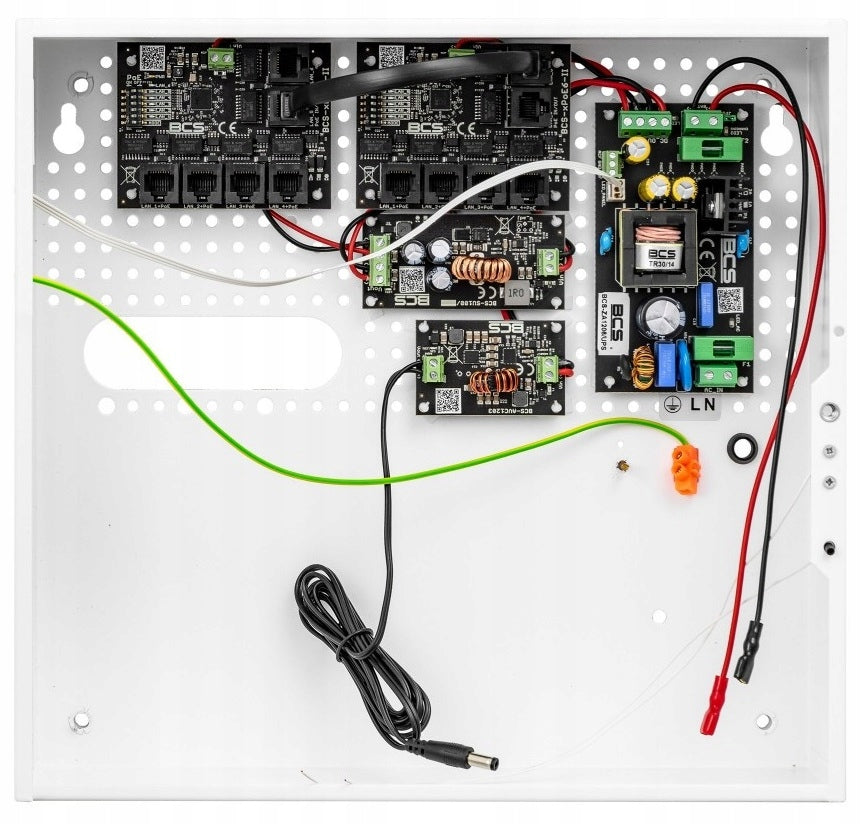

BCS-UPS/IP8/E-S is a PoE switch with a built-in buffer power supply, designed to power and stable operation of up to 9 IP cameras and other network devices powered by the PoE standard (802.3at/af and PoE PASSIVE). The device enables uninterrupted operation of the monitoring system thanks to cooperation with a 12V/18Ah battery and the function of extended transmission range up to 280 meters. It is enclosed in an aesthetic, metal housing designed for installation inside buildings.

The most important advantages and features

• Buffer power supply for 9 PoE devices (cameras and other network devices)
• Support for PoE 802.3af (up to 15,4W), 802.3at (up to 30W) and PoE PASSIVE (up to 70W)
• Built-in space for 12V/18Ah battery (gel or AGM) to work without interruption during mains voltage failure
• LONG RANGE mode for data transmission up to 280 m on standard UTP twisted pair cable
• Independent electronic short-circuit protection on each PoE port with automatic reset
• Possibility to turn off power on individual PoE ports
• High efficiency of the power supply (>90%), which reduces heating and power consumption
• Simple installation and quick start-up with no setup required
• Robust, aesthetic steel housing, with easy wall mounting and security system (tamper)

Detailed technical specification

Ports and standards

• 10 RJ45 10/100 Mbps ports
• 9 PoE ports (LAN 1...LAN 5, LAN 6 as UPLINK without PoE)
• LAN ports 1 to 4: PoE PASSIVE input (up to 40W), PoE output for PASSIVE receivers (up to 40W), 802.3af (up to 15,4W), 802.3at (up to 30W)
• LAN port 5: PoE PASSIVE input (up to 70W), PoE output (up to 70W)
• LAN port 6: UPLINK without PoE

Data transmission modes

• STANDARD mode: 10/100 Mbps, range up to 100 m on all ports
• LONG RANGE mode: 10 Mbps, range up to 280 m on LAN ports 1 to 4, LAN 5 to 6 remain 10/100 Mbps

Power supply and electrical parameters

• 72 W power supply, input voltage 190 – 260 VAC, 50 Hz
• PoE Output Voltage: 48 VDC ±2%
• Power Supply Output Voltage: 12 VDC ±15%
• Battery charging current: 1 A or 2 A (selectable)
• Protections: fuses and electronic overload and short-circuit protection

Battery

• Support 1 lead-acid battery or AGM, 12V/18Ah
• Protection against reverse connection and deep discharge

Network functions and management

• No configuration – plug and play
• ON/OFF switches for switching off PoE power on LAN ports 1 to 5

Physical parameters and assembly

• Steel housing, powder coated white
• Dimensions: 300 x 320 x 90 mm
• Weight: 2,45 kg
• Wall mounting (6 mm mounting holes)
• Degree of protection: IP20
• Operating temperature: -10 to +40 °C
• tamper protection (enclosure opening alarm)

Work signal

• LEDs: mains power supply, output power supply, battery charging, PoE power supply on ports

Explanation of technical abbreviations and terms

• PoE (Power over Ethernet) – technology for simultaneously transferring data and power over an Ethernet network cable, which eliminates the need for a separate power supply for cameras or other devices.
• 802.3af / 802.3at – PoE standards specifying maximum power supply: up to 15,4 W for af and up to 30 W for at.
• PoE PASSIVE – a method of powering PoE without a standard protocol, often with higher power, but without power negotiations.
• LONG RANGE – a special mode that allows you to transmit signal and power over a distance of up to 280 m (standard up to 100 m) on a regular twisted pair cable.
• UPS (Uninterruptible Power Supply) – an emergency power supply that ensures continuity of power supply to devices in the event of a power failure, thanks to the battery.
• AGM – a type of lead-acid battery, maintenance-free and safe for use in buffer devices.
• Fuse – a protection element against overload and short circuit, which can be replaced after operation.
• Tamper – protection informing about unauthorized opening of the device housing.

BCS-UPS/IP8/E-S is a reliable and convenient device that combines the function of a PoE switch and a buffer power supply for IP cameras and other network devices. Thanks to the battery support and LONG RANGE mode, it ensures continuity of operation and flexibility of installation even over long distances. Robust construction and simple operation make it an ideal solution for both small and medium-sized monitoring systems, guaranteeing safety, aesthetics and energy efficiency.
