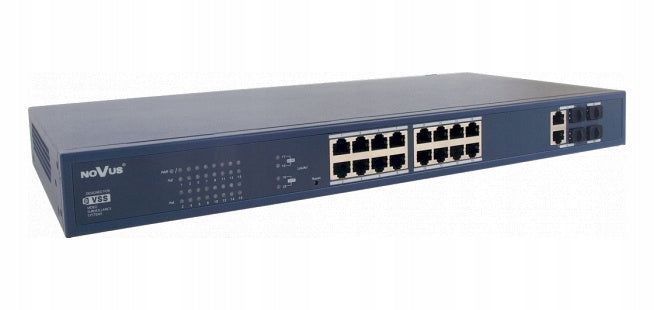

PoE+ 16 prievadų valdomas tinklo jungiklis

Trumpai apie prekę

Prekė: PoE+ 16 prievadų valdomas tinklo jungiklis. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Novus
• Modelis: NVS-5116SP

✅ UPLINK PORTS

✅ CONFIGURATION FROM THE WEB INTERFACE

Allows you to configure:

• PoE ports
• virtual VLANs
• connection security
• limiting connection data bandwidth

and many others

✅ POE+ PORTS

✅ POE AUTOCHECK

After configuration, the option checks whether the device on the set address works and responds to queries.

If the device does not respond, it is restarted.

Specification

GENERAL

➡ Device type: PoE+ managed network switch

NETWORK

➡ External ports: PoE+ ports: 16 x 10Mb/s / 100Mb/s (number of PoE+ ports available simultaneously limited by power supply performance), UPLINK SFP port 1Gb/s x2 ,, Uplink Combo x 2 :SFP(1Gb/s) + RJ45(1Gb/s)

➡ Standards PoE: IEEE802.3af, Class 3, IEEE802.3at, Class 4

➡ PoE power mode: Endspan (1,2+ / 3,6-)

➡ Total bandwidth: 11.2 Gbps

➡ Supported protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1Q

➡ Additional network functions: VLAN, IGMP snooping, bandwidth management

➡ QoS support: yes

➡ Support CoS: yes

➡ Jumbo frame (bytes): 2K

➡ MAC Address List: 8K

FUNCTIONS

➡ Buttons: 1 reset button for the whole device

➡ Surge protection: yes

INSTALLATION PARAMETERS

➡ RACK 19": 1U

➡ Housing: Metal, navy blue

➡ Dimensions (mm): 200 (W) ) x 44 (H) ) x 440 (L )

➡ Weight: 2.9 kg

➡ Power supply: 100 ~ 240 VAC, 50/60Hz

➡ Power consumption: 270 W (maximum)

➡ Port capacity: 250 W for ports 1 to 16, not more than 30 W for one port

➡ Operating temperature: 0°C ~ 40°C
