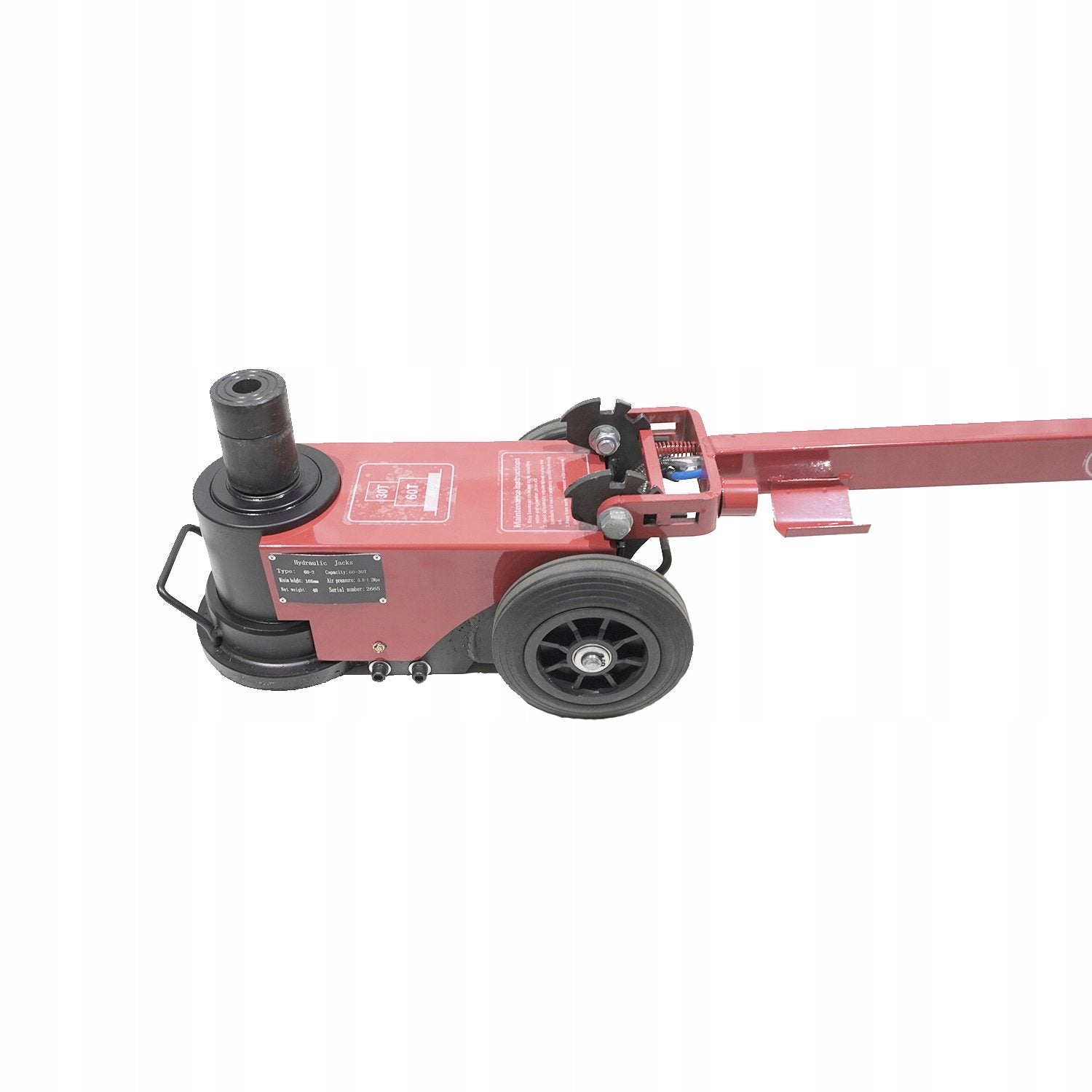

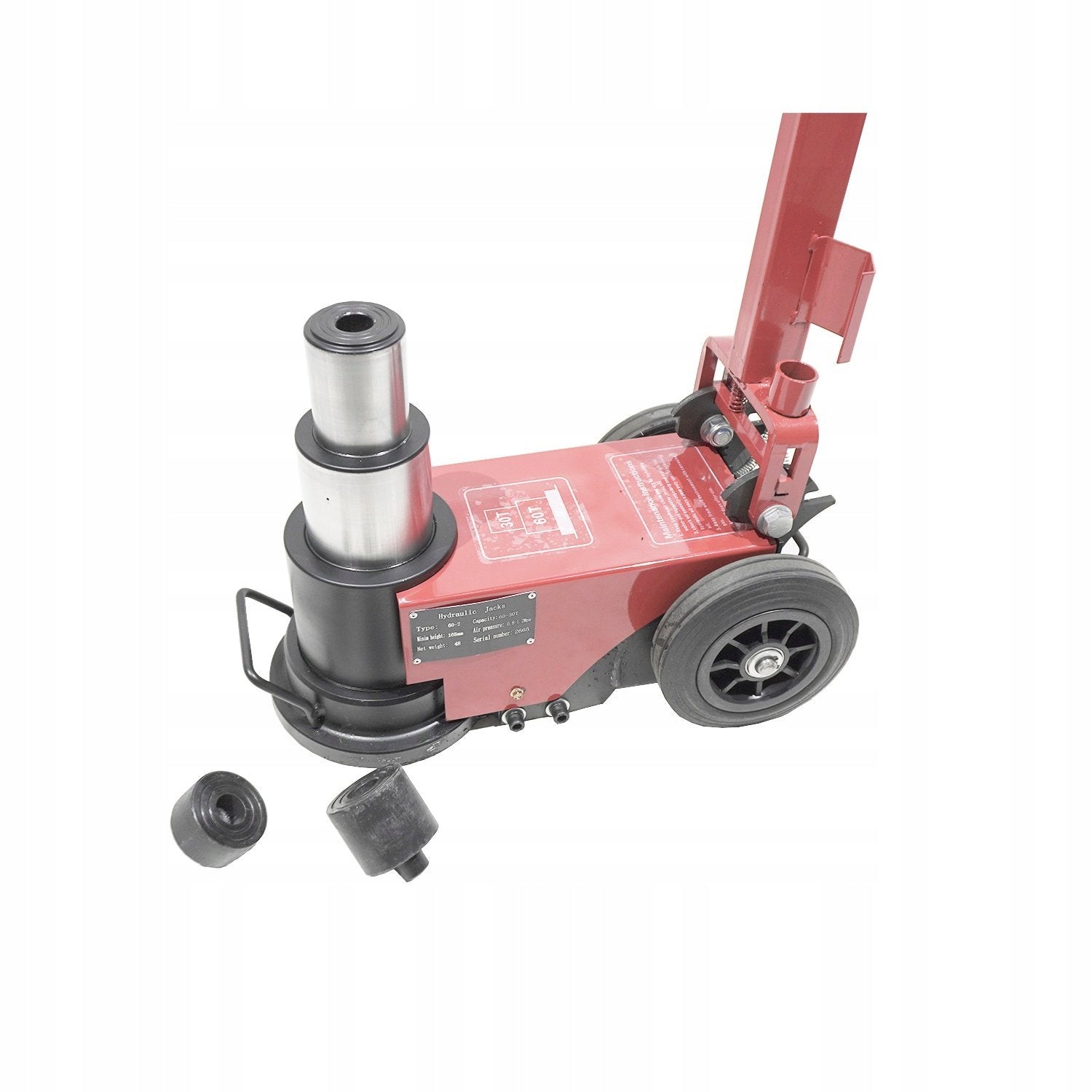

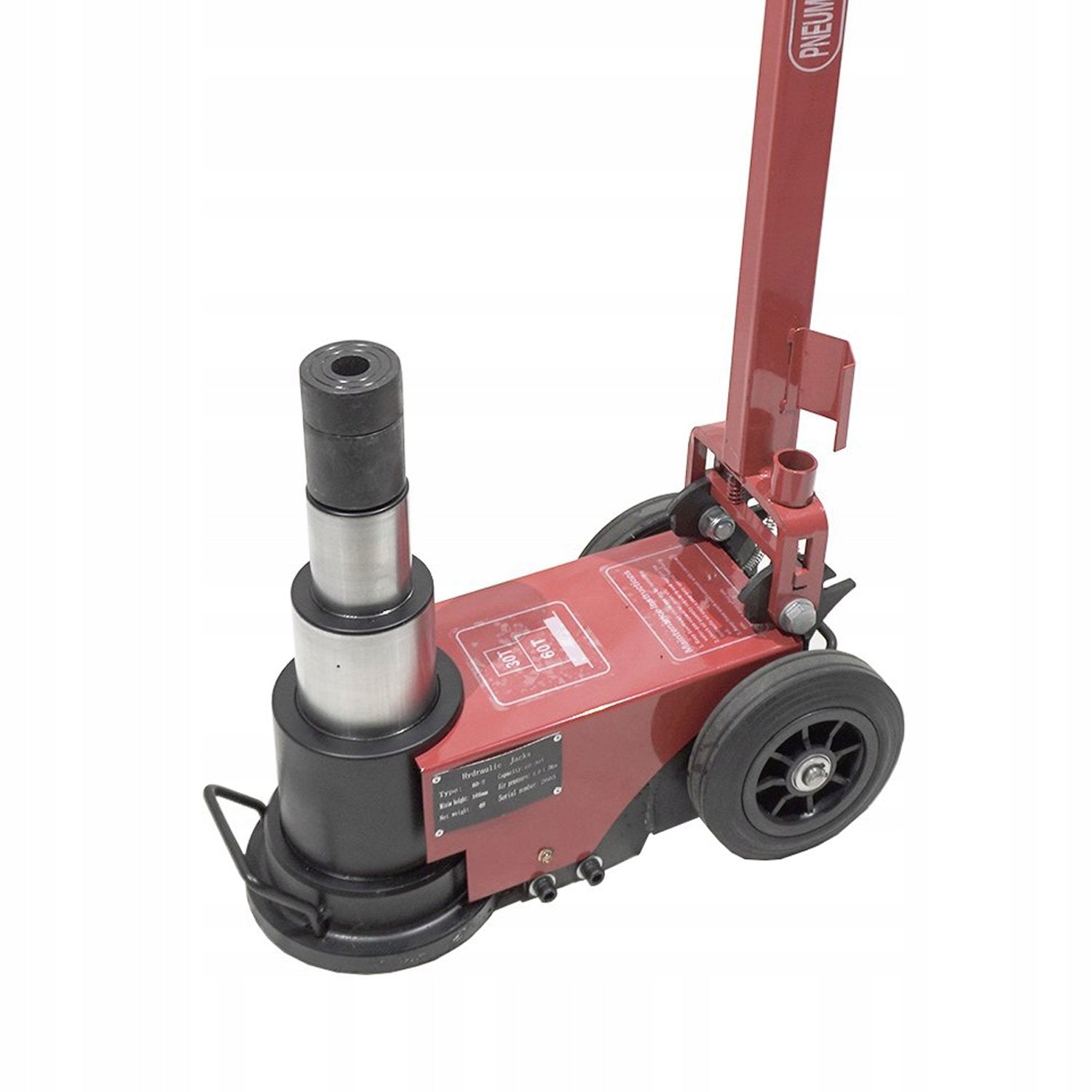

Pneumohidraulinis cilindrinis keltuvas Kraft HW AFJ30/60

Trumpai apie prekę

Prekė: Pneumohidraulinis cilindrinis keltuvas Kraft HW AFJ30/60. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Well Kraft
• Modelis: 08793

The pneumohydraulic lifter with a lifting capacity of 30/60 ton belongs to the group of point lifters whose task is to lift the vehicle along the vertical axis. The lift is driven by compressed air, which rotates the hydraulic pump increasing the pressure in the hydraulic cylinder section. The increase in pressure causes the telescopic part of the actuator to move upwards.

• The drop in pressure causes it to lower and move downwards. Another important structural element is the length of the lift, which affects the comfort when lifting vehicles with difficult access to support points.

  ONE PRODUCT, MANY ADVANTAGES

• Lifts of this type are equipped with support rollers, thanks to which they can move in the field. There are also versions designed for portable use that are much lighter and smaller, so they can be easily transported in a company car
• The 30/60t pneumohydraulic lift is designed for jobs that require heavy loads.

DESIGNED FOR HEAVY LOADS

• Ideal for use in automotive workshops, tire repair workshops, farms and places where there is a need to lift heavy vehicles, machinery and equipment.
• Lifting buses, trucks and agricultural tractors with this lift is pure pleasure.
• It is equipped with wheels, making it easy to transport to the designated place. The lifting handle can be adjusted in three different positions for added comfort. Distance bases can be replaced quickly.
• The installed oiler reduces the friction force between the cooperating surfaces, which reduces wear and protects against corrosion. The oil also often acts as a coolant.

PREFERENCES:

• Powered by compressed air
• Handle adjustable in three ranges.
• Very high quality workmanship
• Equipped with support rollers, allowing you to move it anywhere under the vehicle.
• Recommended hydraulic oil: L-HL 46.

• Article: 08793
• Bearing capacity, kg: 60/30
• Lifting height, mm: 360
• min. height, mm: 195
• Total height of product, mm: 210
• Total width of product, mm: 275
• Total product length, mm: 530
• Weight (kg: 46

Specifications
