Pneumatinis sniego žmogaus tipo keltuvas, 3 t

Trumpai apie prekę

Prekė: Pneumatinis sniego žmogaus tipo keltuvas, 3 t. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Bituxx
• Modelis: HD19583

HD19583

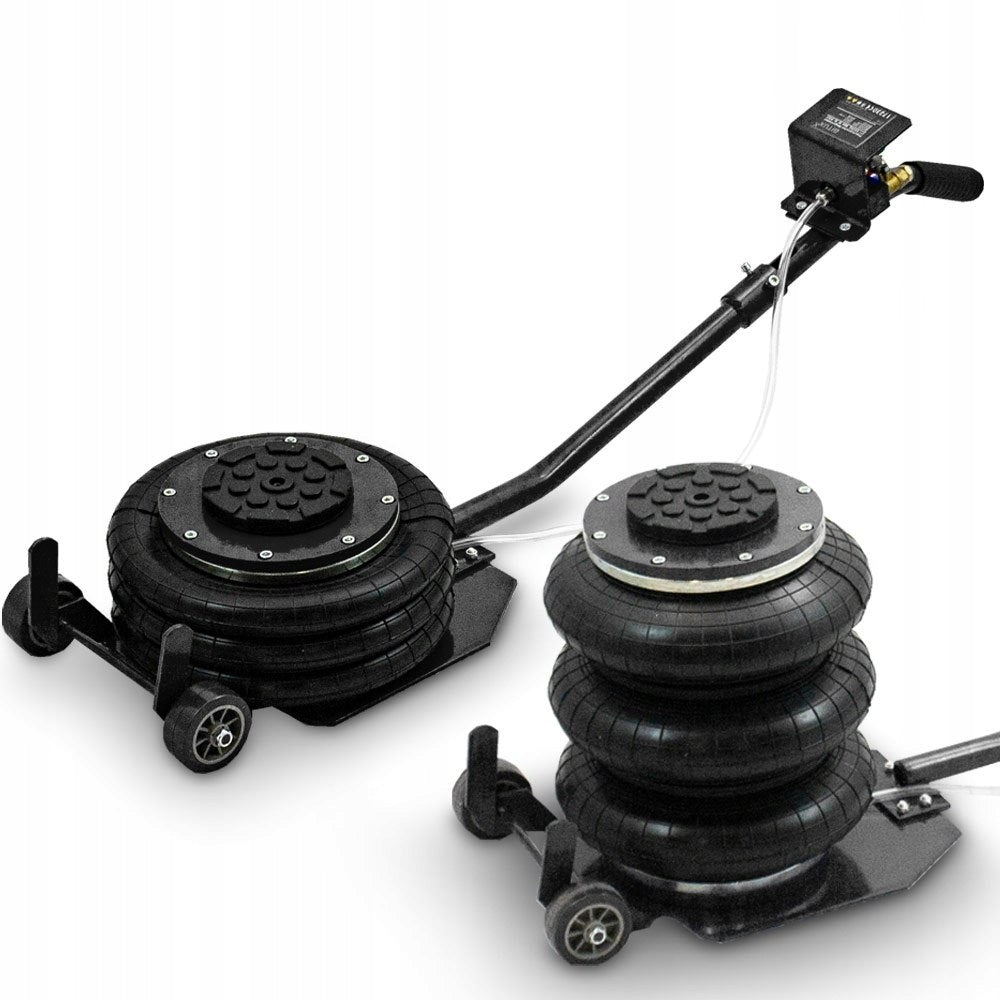

PNEUMATIC CUSHION SNOWMAN LIFT 3T

Pneumatic cushion lift from BITUXX is the highest quality equipment for many years!

Successfully copes with work in car workshops, plants

vulcanization, or on farms and in your own garage.

It has a telescopic frame inside the cushion that ensures stability of the structure and

safety of operation even when lifting at maximum load.

The lifter is easily able to lift a 3T load in just 5 seconds!

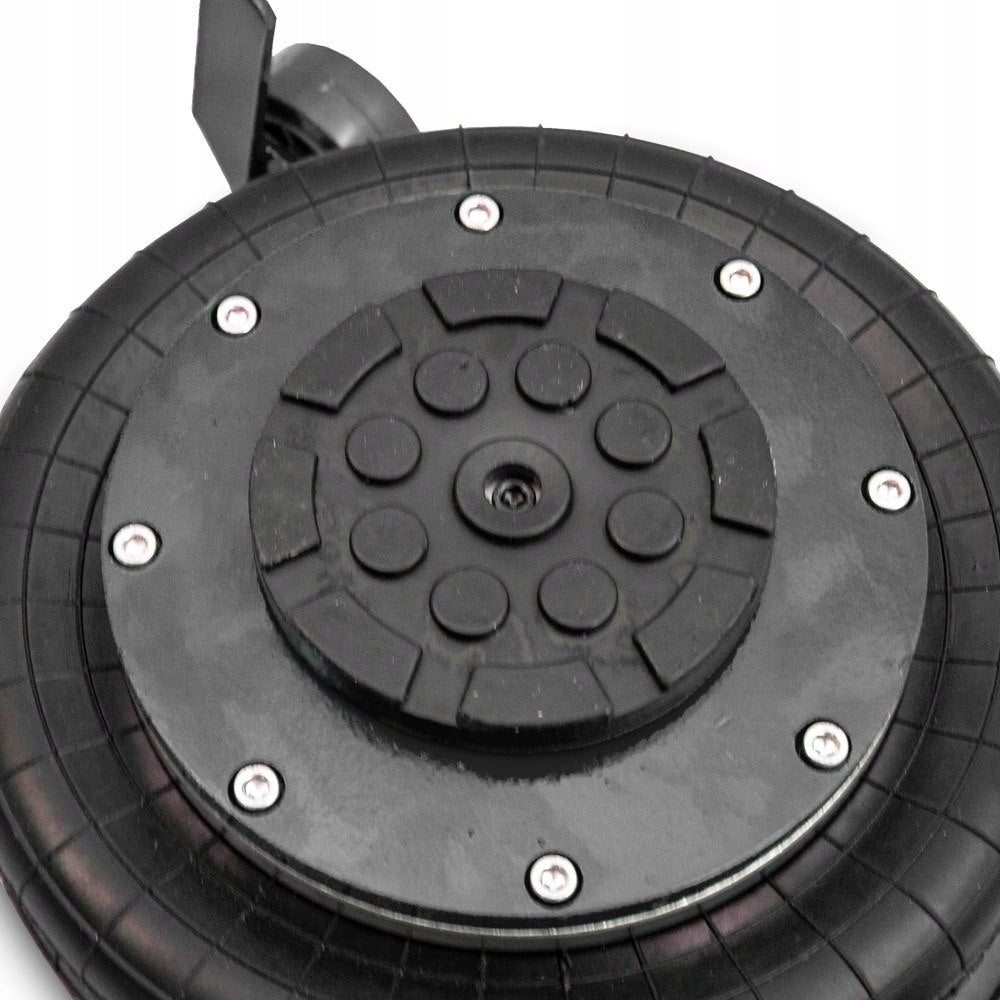

In addition, it has a rubber pad, so that the raised vehicle does not slip

and protects thresholds and other supporting elements against scratches or damage.

Thanks to the very low height at rest -only 14,5cm! - lift great

It will work even with cars with very low suspension.

It has two strong wheels, which facilitate entry and maneuvering of the lift

under the vehicle, and thanks to the rubber pad location of the lift we

the right place is much faster and easier.

The lift is powered by compressed air with a maximum

working pressure 10 bar, just connect it to the compressor and it's ready for use!

After finishing work, it is enough to set it in the vertical position, thanks to which it takes up little space.

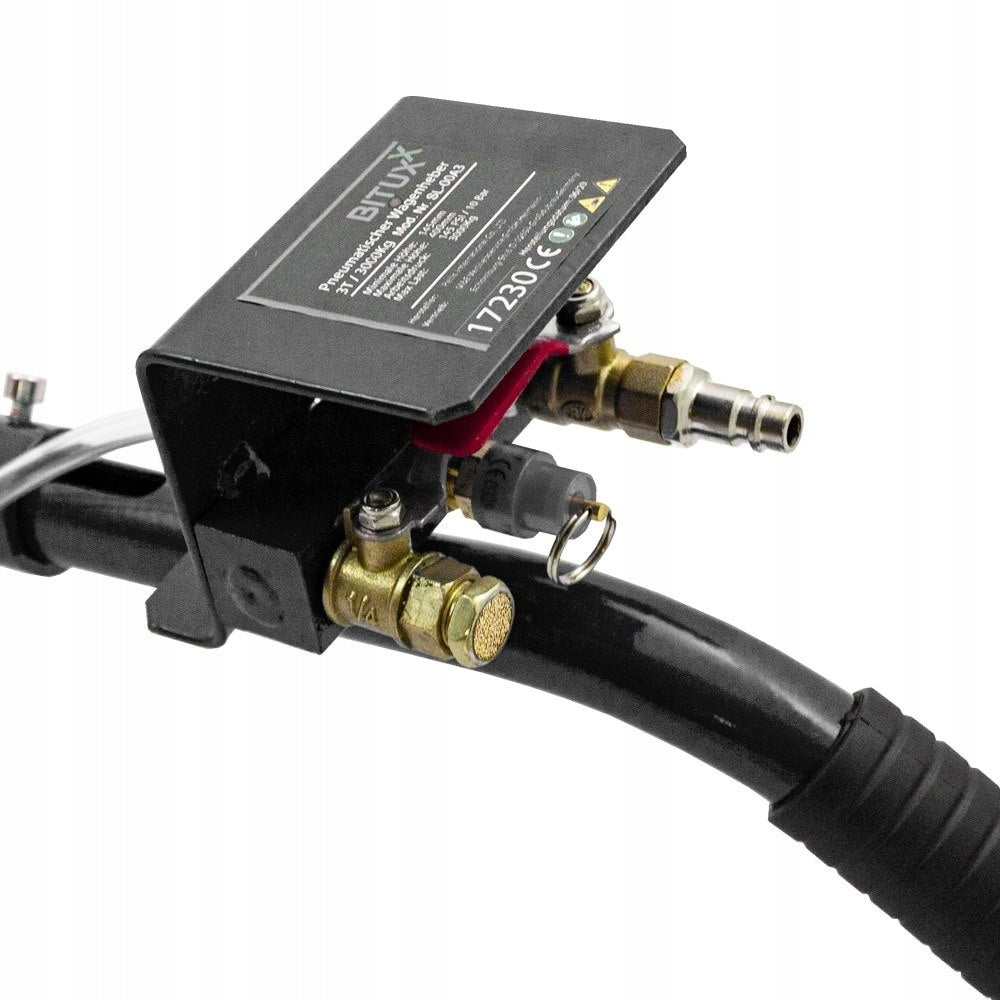

• Inlet valve - power supply,

• Exhaust valve - for lowering,

• Safety valve.

Inlet and outlet valve protect against self-contained

fall of the lift after disconnecting the air source.

Safety valve prevents the cushion from tearing in

case of too high compressed air pressure - above 10 bar.

• The product of the esteemed company BITUXX,

• Strong, stable construction reinforced with telescopic frame,

• Long, contoured handle, two strong wheels for easy maneuverability of the lift,

• Cushion made of durable, strong rubber,

• It allows you to lift cars with very low suspension,

• Non-slip rubber pad protects against scratches and shifting of the vehicle,

• Three valves: inlet, outlet and safety,

• Possibility of storage in an upright position.

• Maximum load: 3000kg 3T,

• Operating pressure: 10 Bar / 1,0 Mpa, 145 PSI,

• Minimum height: 14,5cm,

• Maximum height: 40cm,

• Handle length: 66cm,

• Pillow diameter:26,5cm,

• Operating temperature range:from -60C to +50C,

• Connection: 1/4",

• Lifting speed: 5 seconds,

• Weight: 16,8kg.

• Pneumatic snowman cushion lift.
