Trumpai apie prekę
Prekė: Pneumatinis keltuvas SATRA SNOWMAN 3T. Kategorija: Pneumatiniai keltuvai.
- Gamintojas: Satra
- Modelis: S-ABJ3

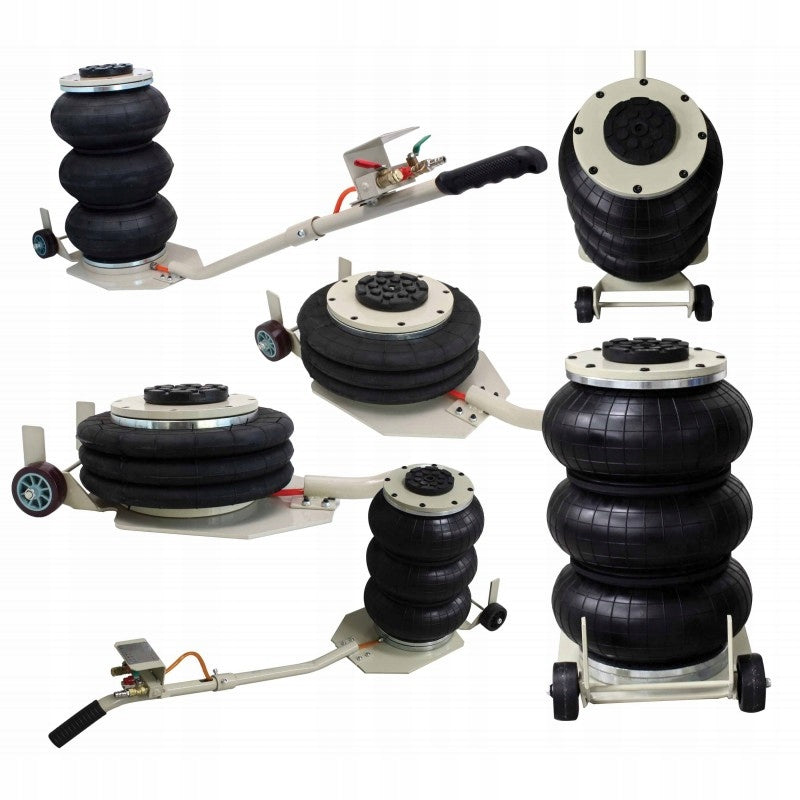

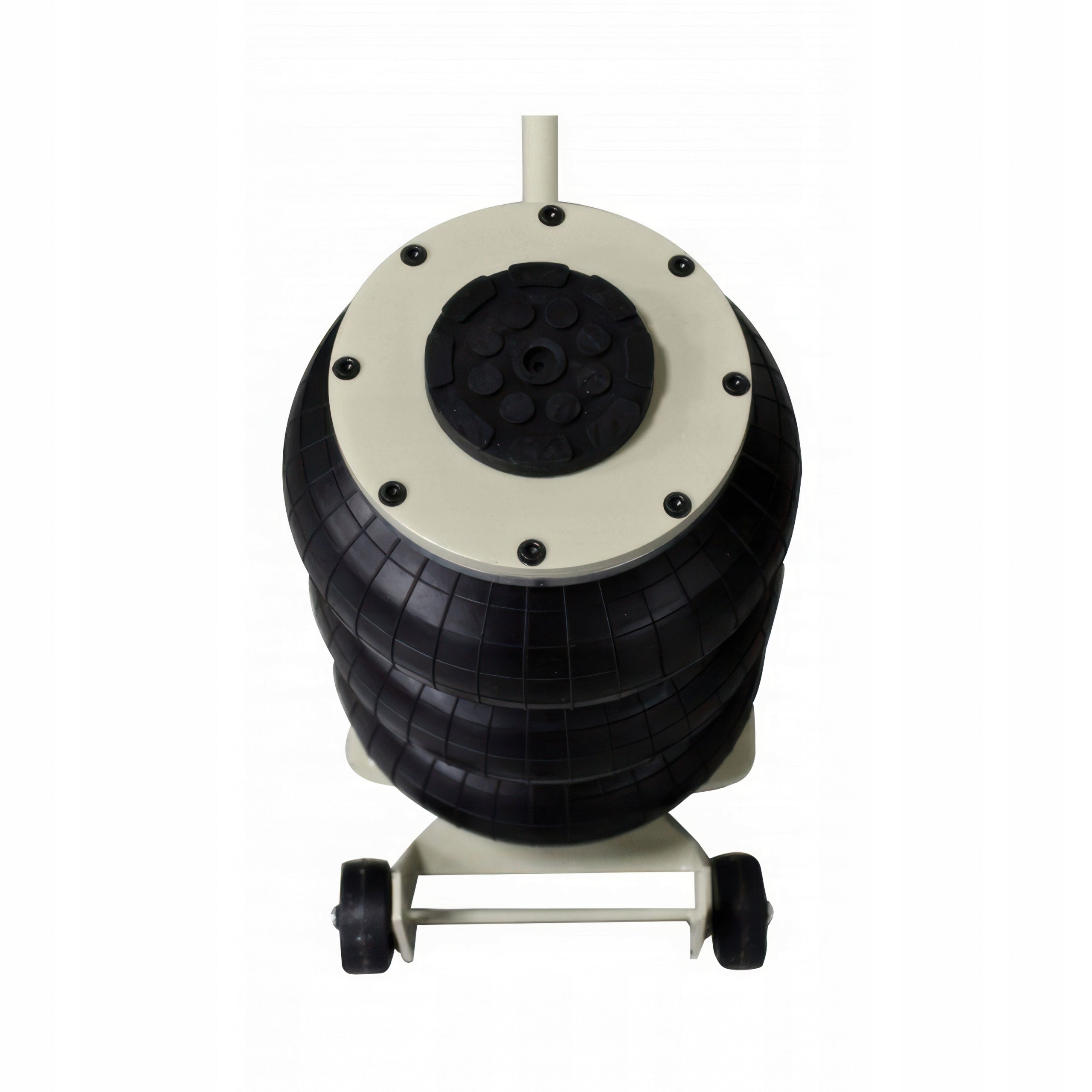

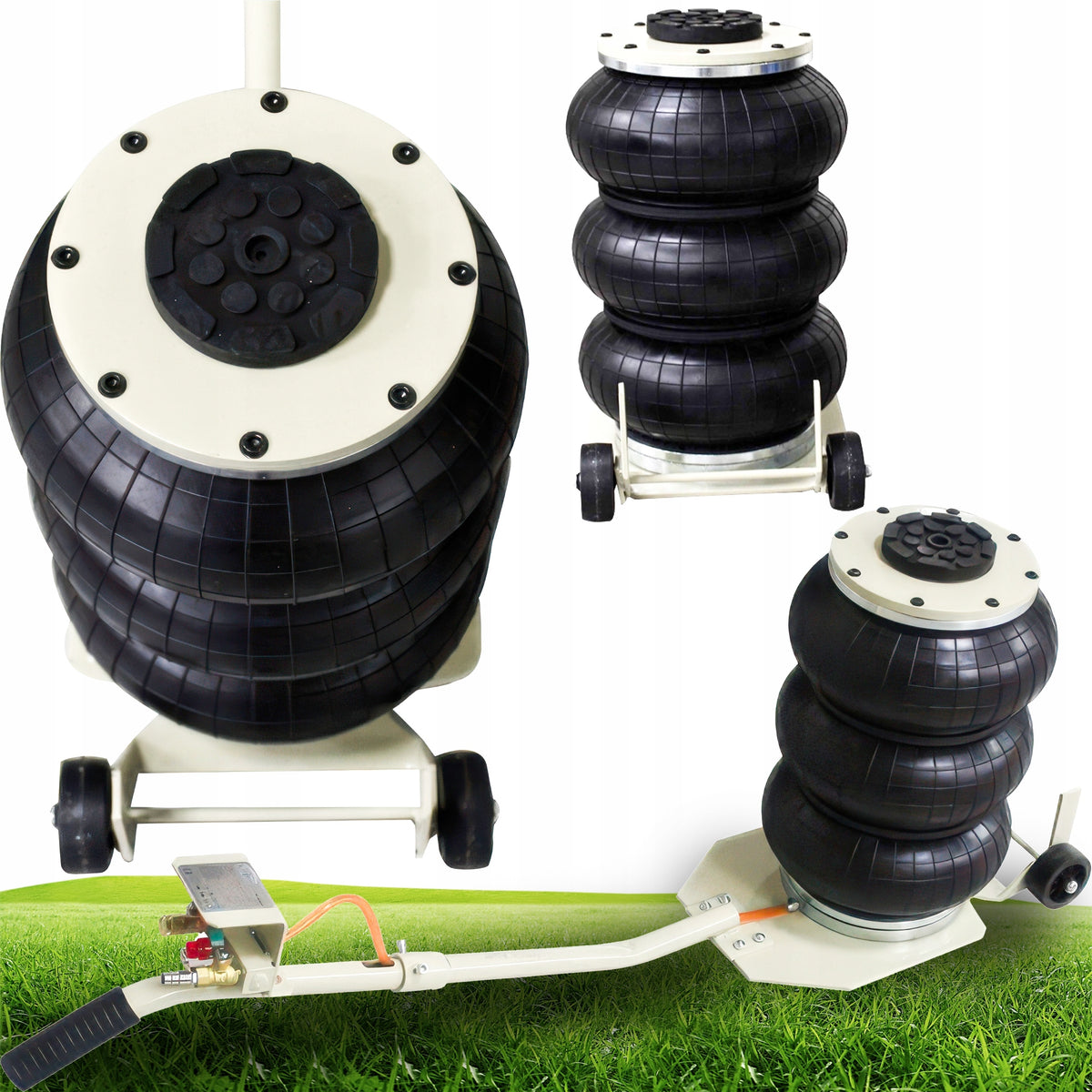

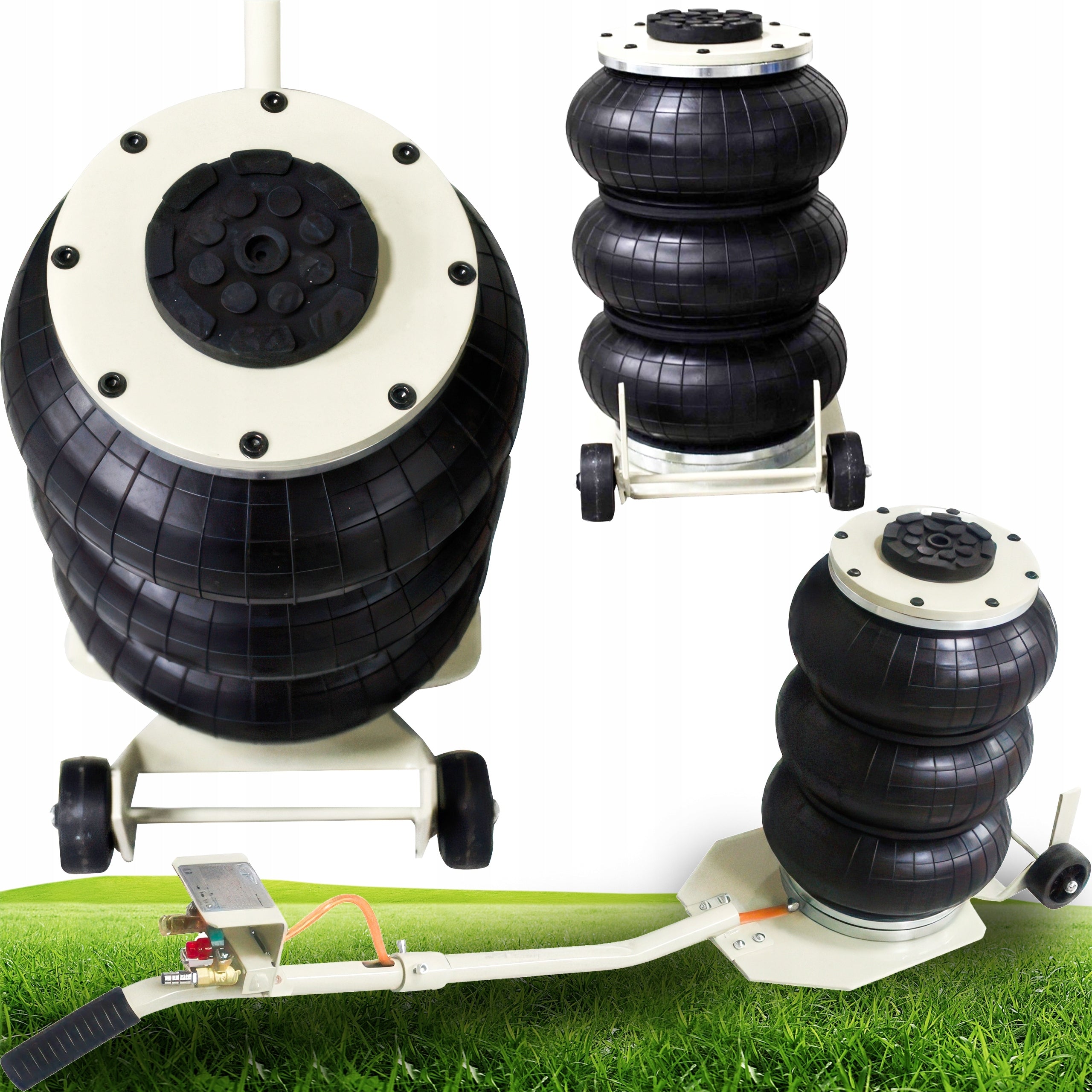

The pneumatic cushion lift commonly known as the SATRA snowman was designed and manufactured to lift vehicles up to 3000 kg.
The lift has two control valves, inlet and outlet, making control very easy.
After filling the bellows and disconnecting the compressed air supply, there is no risk of the lifted vehicle falling down automatically.
This is ensured by an automatic check valve, the opening of which is possible only by the operator of the lift.
The drain valve is located at the top of the handle.
The lift is designed so that its storage and transport does not cause problems: a curved handle, two wheels and stands for verticalizing the lift for easier storage.
The bellows of the lift are made of reinforced rubber, and the guide sleeves used inside the bellows will ensure the stability of the structure during lifting.
In addition, the rubber separator prevents the lifted load from moving.
Technical data:
- Maximum load: 3000kg
- Minimum lifting height: 145mm
- Maximum lifting height: 400mm
- Rubber cushion diameter: 270mm
- Operating pressure: 6 – 12bar
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 26 kg |
| Parametry | Brand | Satra |
| Parametry | Manufacturer code | S-ABJ3 |
| Parametry | EAN (GTIN) | 5903246525205 |
| Parametry | Lifting capacity | 3000 kg |
| Parametry | Minimum lifting height | 145 mm |
| Parametry | Maximum lifting height | 400 mm |
