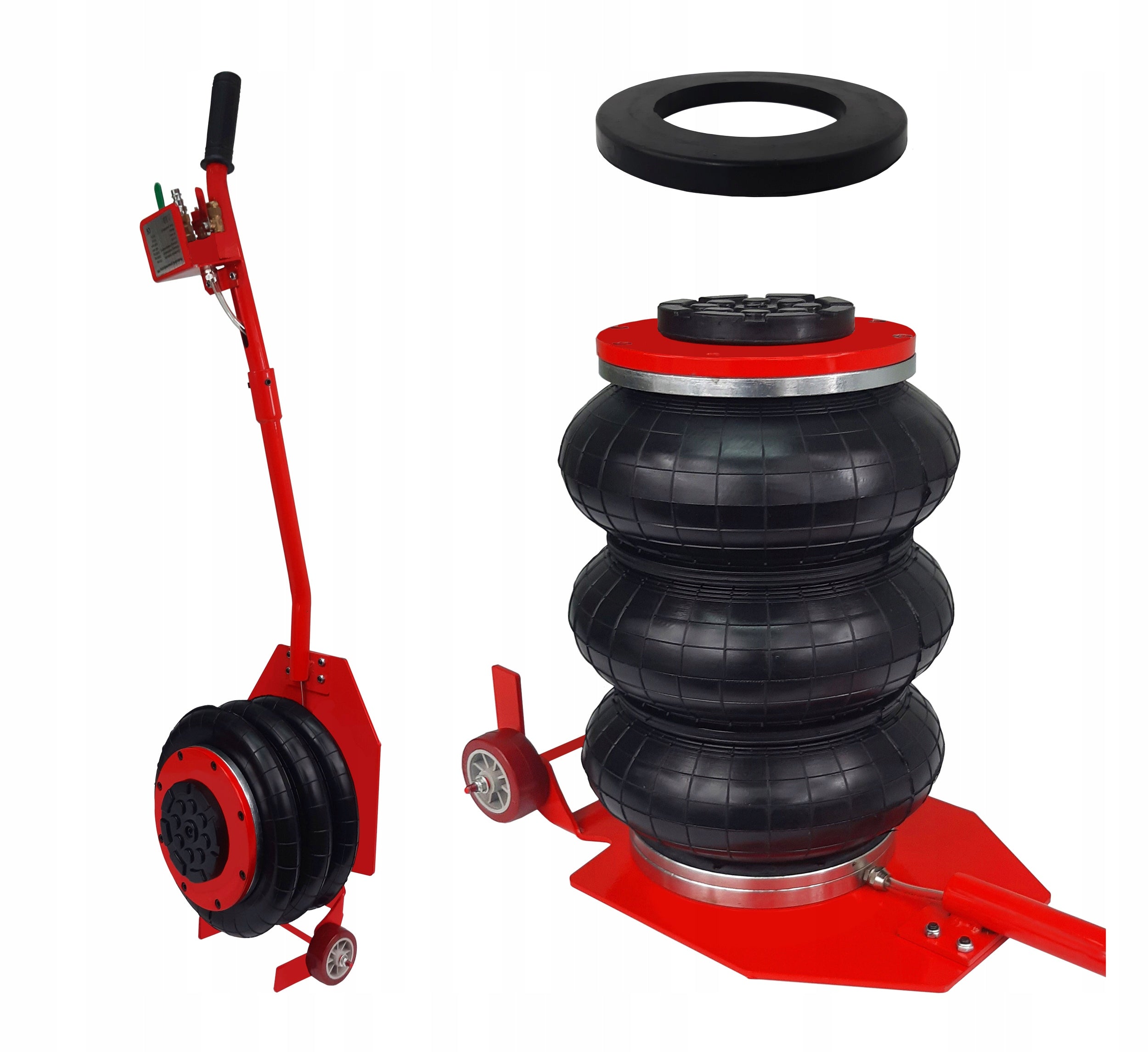

Pneumatinis keltuvas PP1 Snowman 3500 kg

Trumpai apie prekę

Prekė: Pneumatinis keltuvas PP1 Snowman 3500 kg. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Sherman
• Modelis: PP001

Workshop pneumatic lift PP1 snowman type, made of the highest quality materials. The lift is designed to work in car workshops, vulcanizations, households and places where there is a need to lift equipment and machinery. The set includes a rubber ring that protects the frets and other supporting elements from scratches or bending. The rubber ring makes it easy to place the lift in the right place and allows it to be lifted safely.

TECHNICAL DATA:

• Maximum load capacity: 3500 kg
• Operating air pressure: 10 bar
• Minimum height: 14,5 cm
• Maximum height: 40 cm
• Weight: 18 kg

ADVANTAGES:

• steel construction with the possibility of removing the handle
• powder coating for corrosion protection
• possibility of vertical positioning of the lift without additional support

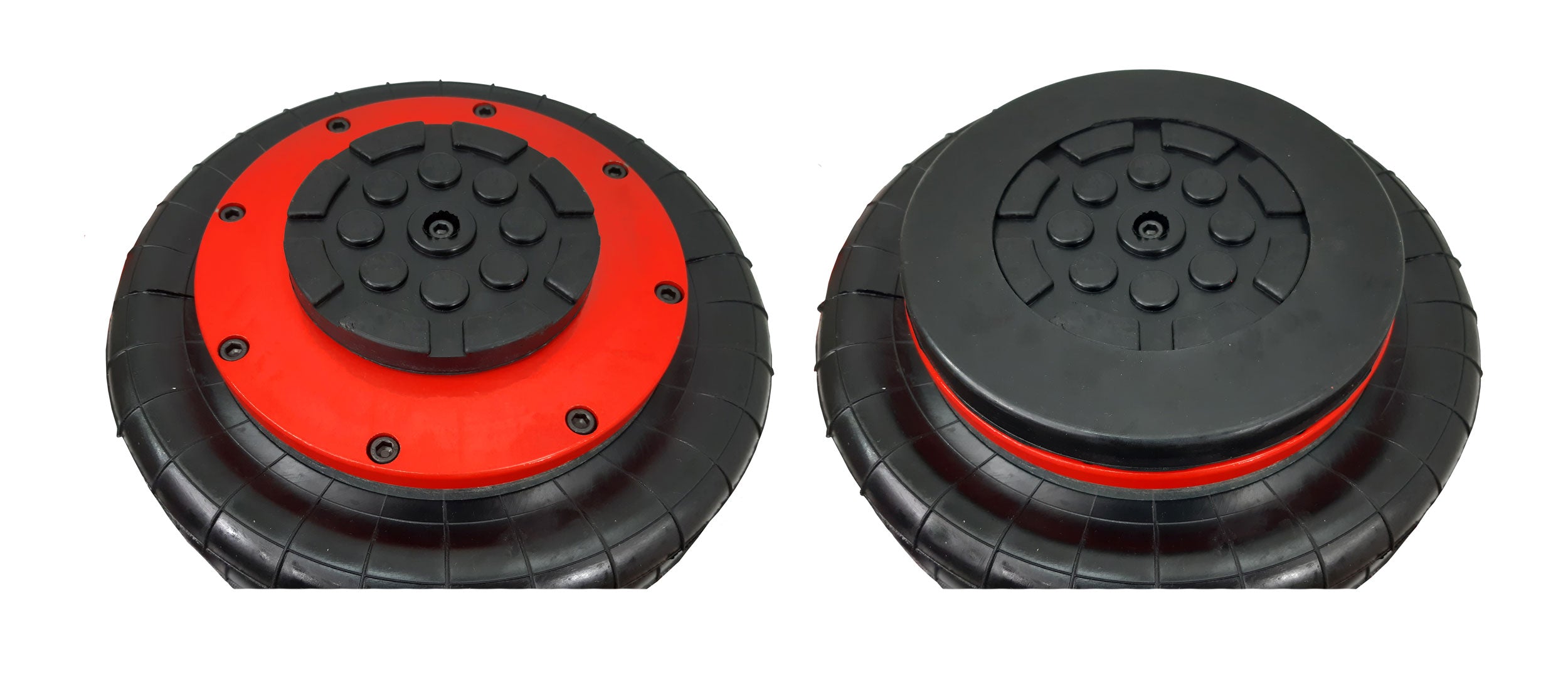

• Rubber 3-Tier Bellows with Durable Rubber
• stabilizing telescope inside bellows
• 73 cm long contoured handle that makes it easy to maneuver the lift
• non-slip corrugated rubber grip
• wheels with a diameter of 6,5 cm, made of durable plastic, facilitating the insertion of the lift under the chassis
• ball valves with levers, colour: green – power supply (lifting), red – drain (lowering)
• red safety valve, preventing the cushion from tearing if the permitted compressed air pressure is exceeded – above 10 bar

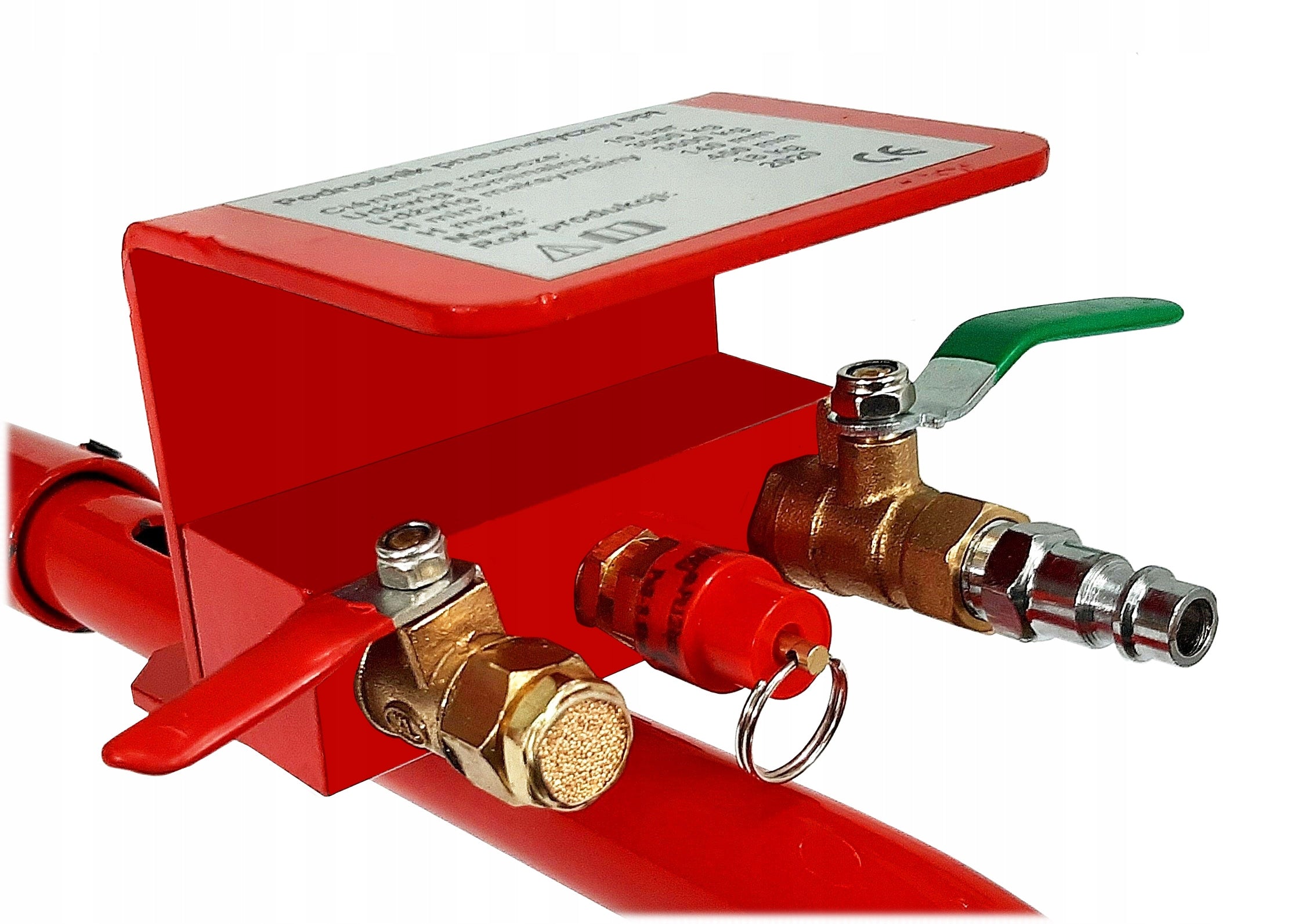

LIFT CONTROL

The lift is controlled through the valves of the air distributor located on the drawbar. Opening the green valve causes lifting, and opening the red valve lowering the lift. The middle, red safety valve will work automatically when the lift load exceeds the critical value (above 10 bar).

ADVANTAGES:

• powder painting constituting anti-corrosion protection
• possibility of vertical positioning of the lift without additional support
• rubber 3-level bellows with durable rubber
• profiled handle with a length of 73 cm, which makes it easy to maneuver the lift
• anti-slip handle with corrugated rubber
• wheels with a diameter of 6,5 cm, made of durable plastic, making it easy to slide the lift under the chassis
• ball valves with levers, colour: green - power supply (lifting), red - drain (lowering)
• red safety valve, preventing the cushion from tearing if the permitted compressed air pressure is exceeded - above 10 bar

Possibility of vertical positioning of the lift without additional support
