Pneumatinis hidraulinis keltuvas 25T 50T FROG TIR SNOWMAN dirbtuvėms

Trumpai apie prekę

Prekė: Pneumatinis hidraulinis keltuvas 25T 50T FROG TIR SNOWMAN dirbtuvėms. Kategorija: Prailgintojai (varlės).

• Gamintojas: Vorfal
• Modelis: V08386

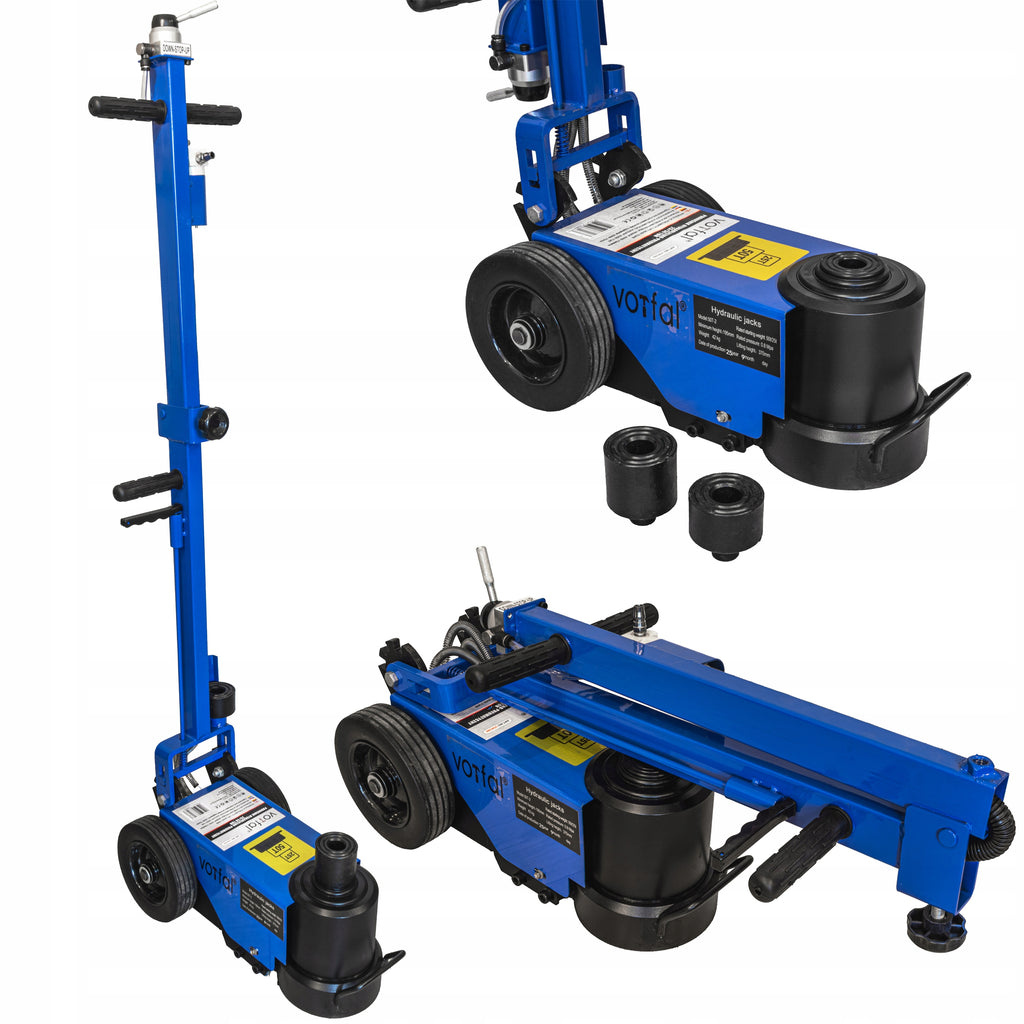

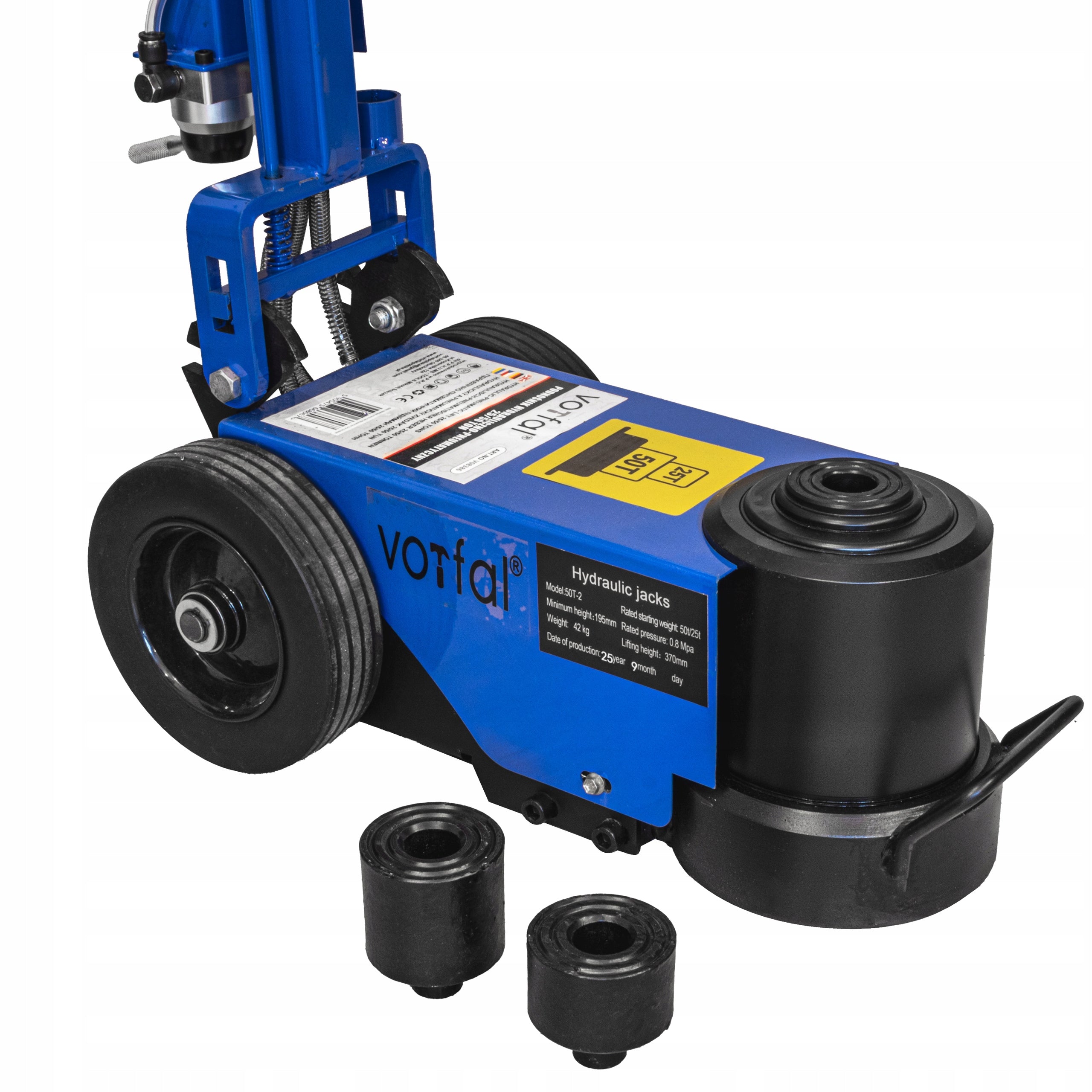

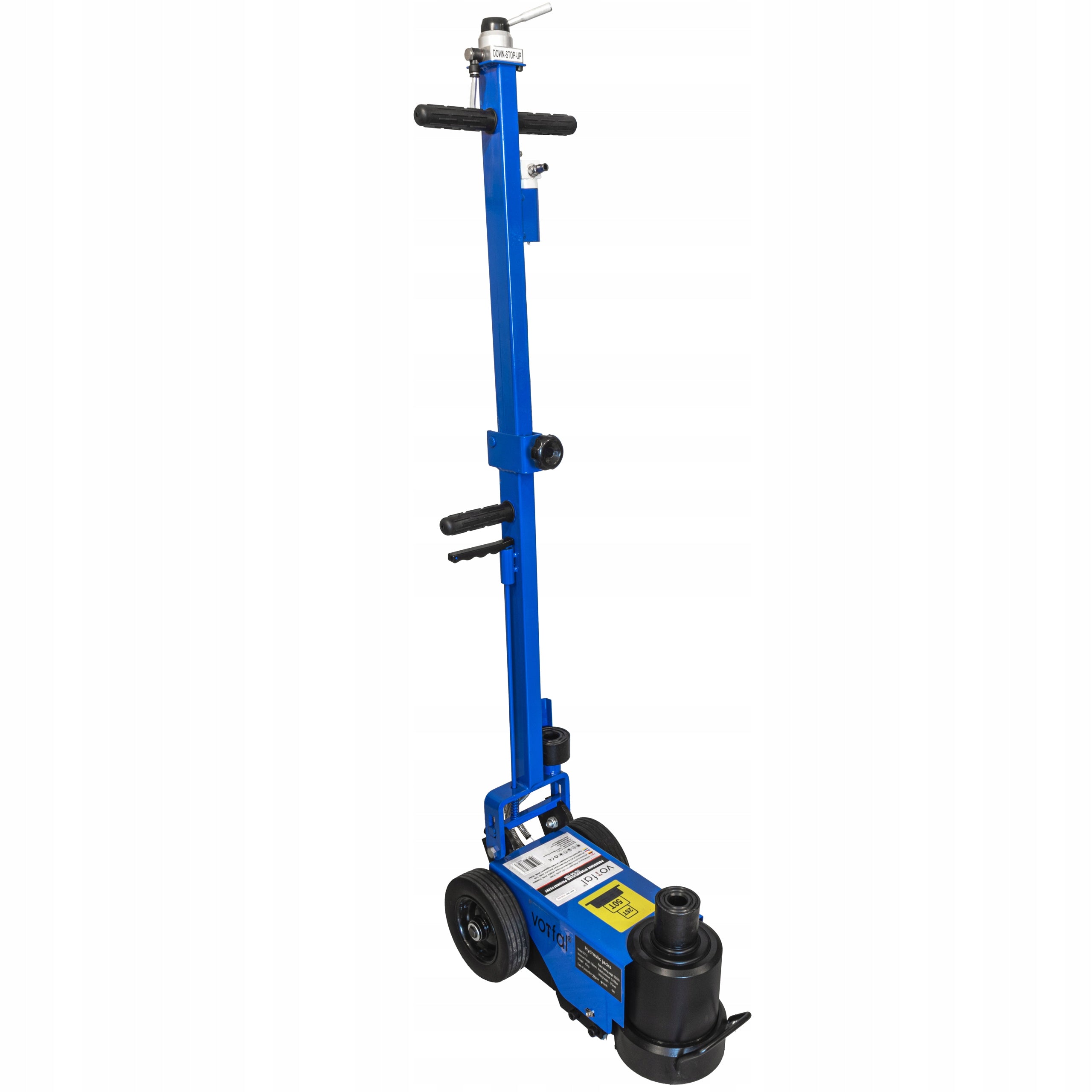

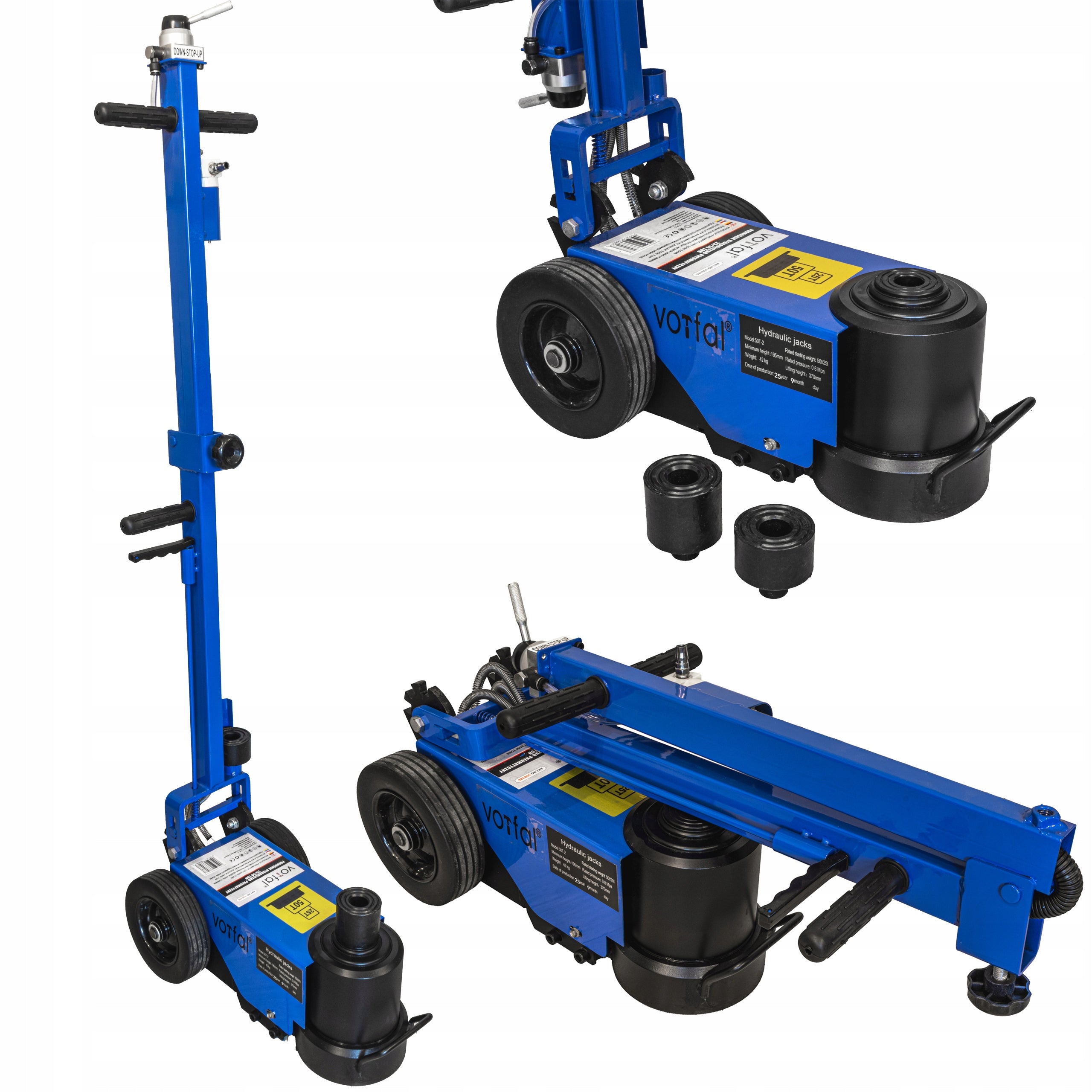

HYDRAULIC-PNEUMATIC LIFTER 50/25T

V08386

The 50/25T hydraulic-pneumatic lift is a specialized device designed for lifting vehicles and heavy-duty machinery. The construction is based on a combination of pneumatic and hydraulic technology, which guarantees high efficiency, repeatability of work and safety during lifting. Thanks to its durability and functionality, the lift is used in professional workshops, mobile services, transport companies and in the agricultural and industrial industries. Compressed air drives the hydraulic pump, producing the pressure responsible for ejecting the telescopic actuator. This mechanism ensures smooth and stable lifting of even very heavy structures. The design of the device has been designed to allow you to work in demanding conditions – both in stationary and off-road services. Particularly noteworthy is the oiler used, which reduces friction between the cooperating elements, protects them from corrosion, improves the working culture and extends the life of the entire system. The lift is equipped with wheels that allow easy movement of the device, as well as a handle adjustable in three positions, ensuring comfortable operation and a better fit for the workspace. The set also includes two additional tips that increase the working height of the lift and allow it to be adapted to different types of vehicles. Thanks to its compact design and high lifting capacity, the device is suitable for both everyday service work and heavy operating conditions.

TECHNICAL DATA:

• Lifting capacity: 25/50T
• Minimum height: 195 mm
• Maximum height: 370 mm
• Recommended Hydraulic Oil: L-HL 46
• Operating pressure: 6 to 12 bar

APPLICATION:

• Hydraulic-pneumatic lift 50/25T is designed for lifting:
• trucks of buses and coaches
• agricultural and construction machinery
• semi-trailers and trailers
• special and military vehicles
• large industrial machinery requiring point support

PRODUCT FEATURES:

• Dual lifting capacity 50/25T – allows you to work in a wide range of loads, adjusting the lifting force to your current needs.
• Hydraulic-pneumatic working system – provides high power, smoothness and precision of operation. Telescopic actuator – stable extension and controlled lifting of even very heavy vehicles. Driving wheels – convenient movement of the device around the workshop or square.
• Oiler as standard – reduces wear of components, improves work culture and protects the system against corrosion.
• Adjustable handle (3 positions) – ergonomic operation and easy maneuverability.
• Additional height lifting tips – increased functionality and the ability to work with different types of vehicles. Robust metal construction – resistant to heavy use and demanding working environment.
• Optimal lift length – facilitates access to hard-to-reach support points.
• 6 to 12 bar air supply – compatible with most workshop compressors.

BENEFITS FOR THE USER:

• the ability to safely and quickly lift heavy-duty vehicles
• excellent mobility thanks to wheels and adjustable handle reduces the risk of damage to the system thanks to the efficient oiler universal use in many industries
• high durability and resistance to intensive use
• stable and precise operation of the telescopic actuator ergonomics and comfort of use

GREAT FOR:

• truck workshops
• mobile services
• transport companies
• agricultural holdings
• industrial plants
• Military bases and vehicle fleet service centres

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Vorfal
Parametry	Manufacturer code	V08386
Parametry	EAN (GTIN)	5905475668067
Parametry	Lifting capacity	50000 kg
Parametry	Minimum lifting height	195 mm
Parametry	Maximum lifting height	370 mm
