Pneumatinis automobilio keltuvas Snowman, 3,5 t, su gumine pagalve

Trumpai apie prekę

Prekė: Pneumatinis automobilio keltuvas Snowman, 3,5 t, su gumine pagalve. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: MAPOWER
• Modelis: MPBJ01r2

📢Buy from the product set - we add something useful for every DIYer! 🆓🎁

✔ Lifting capacity 3500 kg / 3.5 t

✔ Lifting range up to 135 – 430 mm

✔ 5-section telescopic cartridge

✔ Copper safety valve

✔ Operating pressure 6 to 12 bar

✅ Technical Specifications

• Brand: MAPOWER
• Model: MPBJ01
• Type: Pneumatic Air Bag Jack / Snowman Jack
• Power Source: Compressed Air
• Max Lifting Capacity: 3500 kg / 3.5 t
• Lifting Range: 135–430 mm
• Operating Pressure: 6–12 bar
• Air Inlet: 1/4"
• Air Bag Diameter: 265 mm
• Centering Insert: Telescopic, 5-section
• Telescope Section Diameters: 95 / 83 / 73 / 63 / 53 mm
• Valves: Inlet / Outlet / Safety
• Handle Length: 74 cm
• Wheel Diameter: 60 mm
• Weight: 16.2 kg

✅ MAPOWER MPBJ01 – pneumatic lift 3.5 t with increased operating range

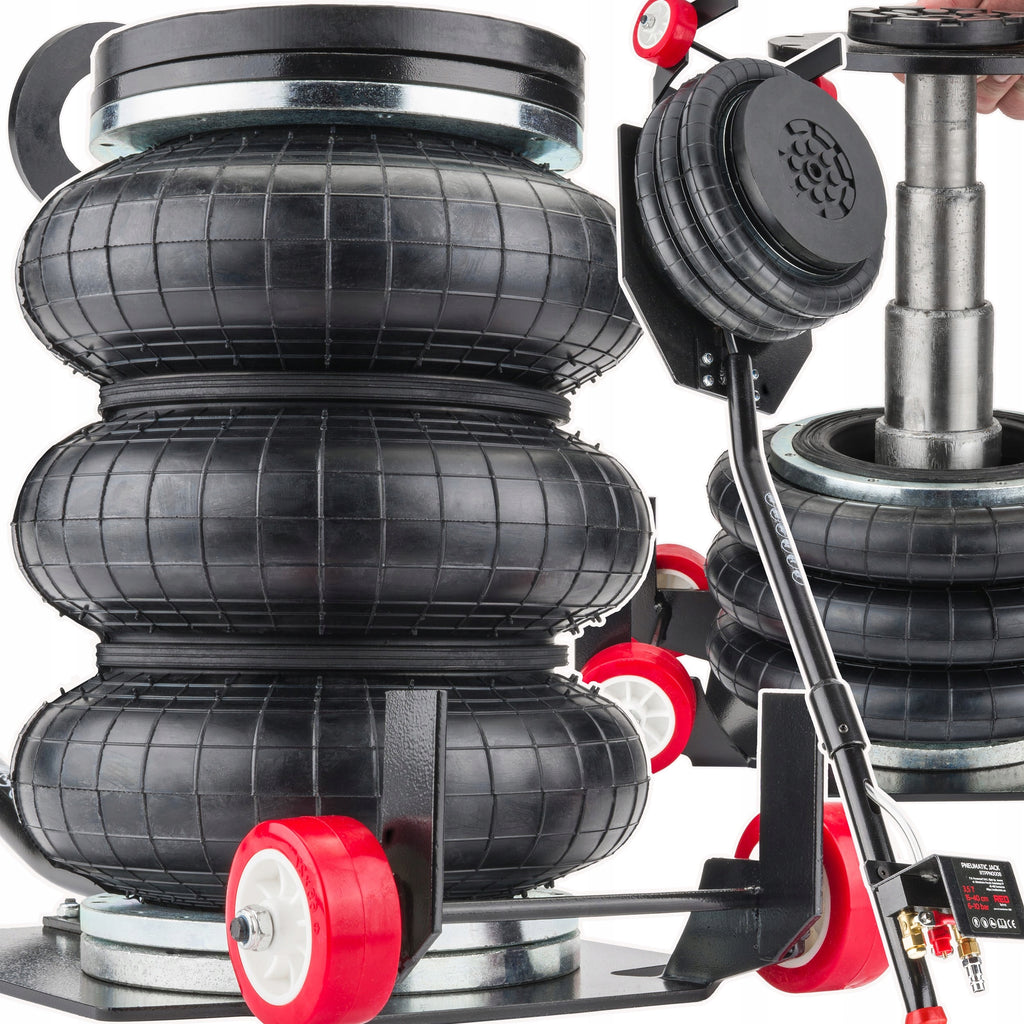

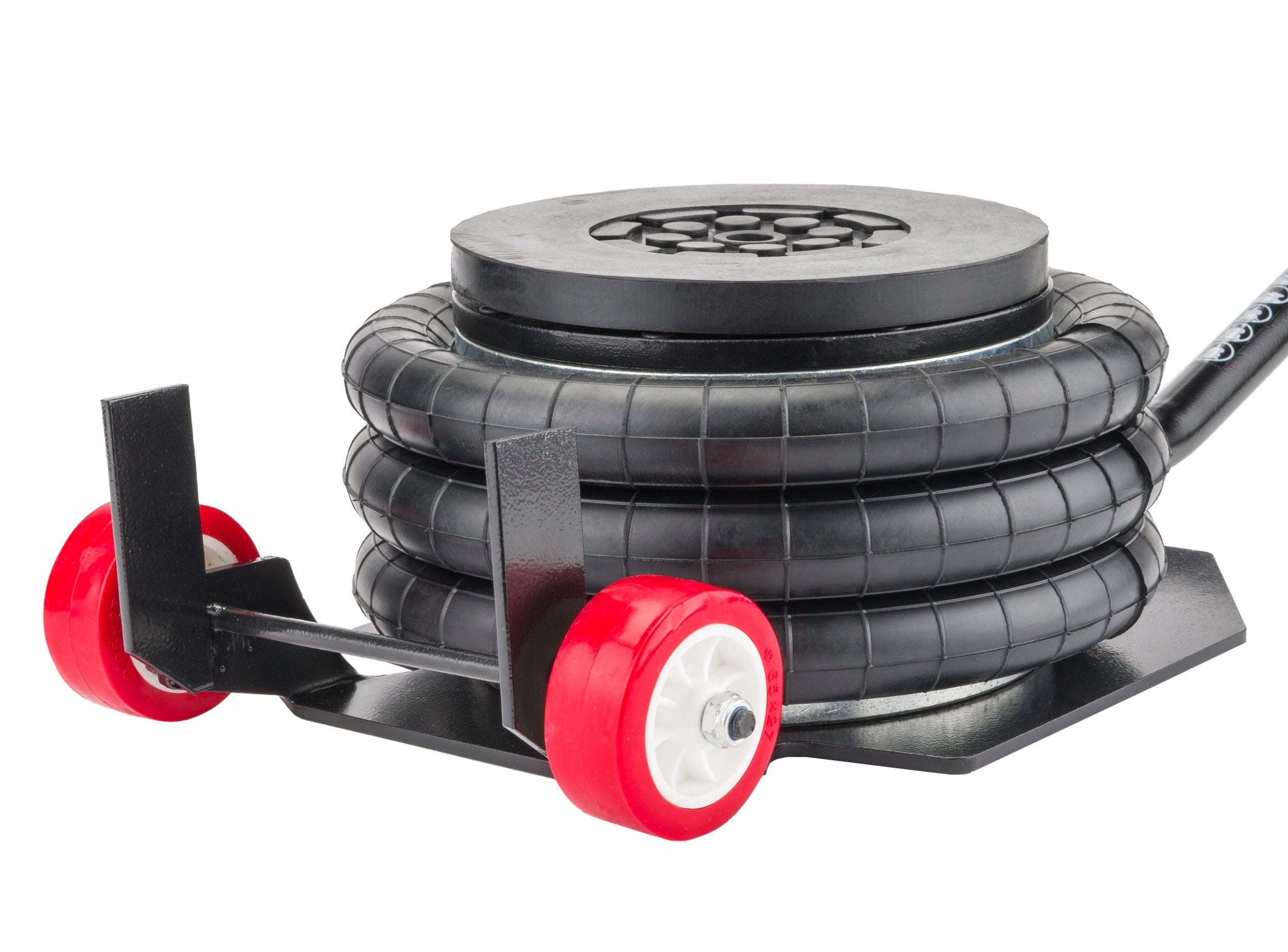

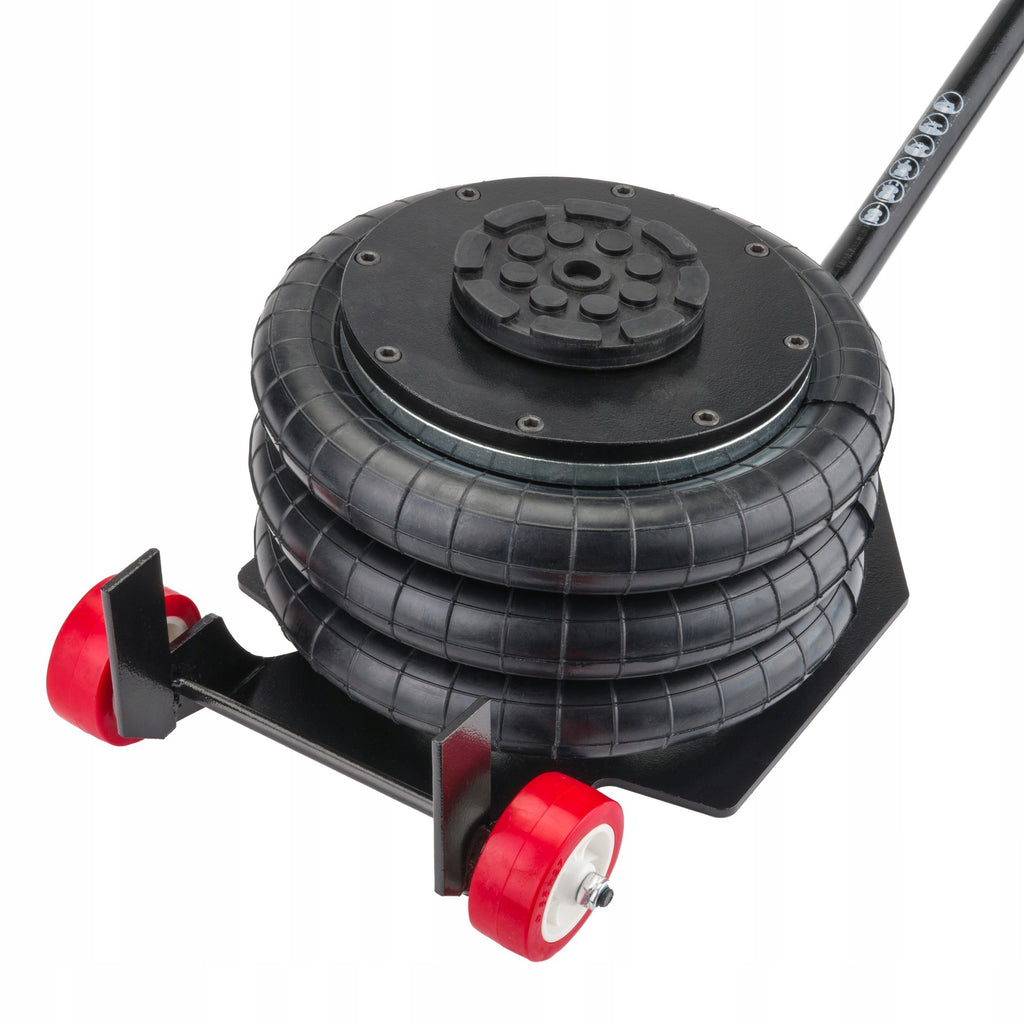

MAPOWER MPBJ01 is a pneumatic car lift type snowman, designed for quick and convenient lifting of vehicles with compressed air.

► The maximum lifting capacity of 3500 kg / 3.5 t allows you to use the lift when operating many passenger cars and SUVs within the permissible load.

► The pneumatic mechanism eliminates the need for multiple manual pumping, improving daily work.

► The MPBJ01 model is distinguished by its lifting range up to 430 mm, 5-section telescope and copper safety valve.

It is a practical solution for car workshop, tire service, vulcanization and home garage.

✅ Up to 430 mm in height – greater lifting range

One of the most important advantages of the MAPOWER MPBJ01 is its wide lifting range of 135 to 430 mm.

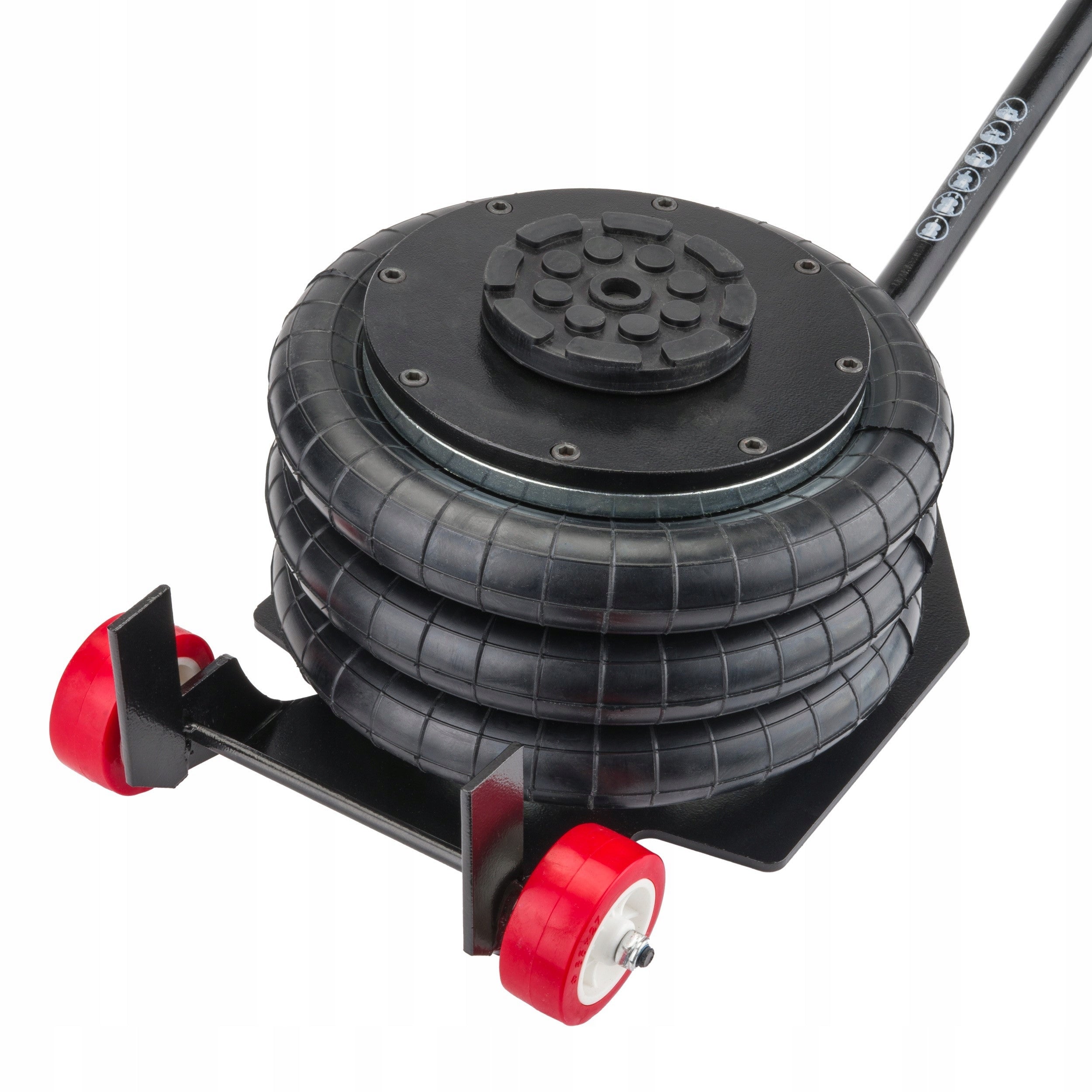

► The minimum height of 135 mm makes it easy to place the lift under the vehicle.

► The maximum height of up to 430 mm provides a large lifting range, useful when replacing wheels and performing other service work.

Many standard pneumatic lifts with a lifting capacity of 3.5 t offer a maximum height of approximately 400 mm. MAPOWER MPBJ01 reaches up to 430 mm – an additional 30 mm of operating range.

A larger lifting range means greater possibilities of using the lift during everyday work.

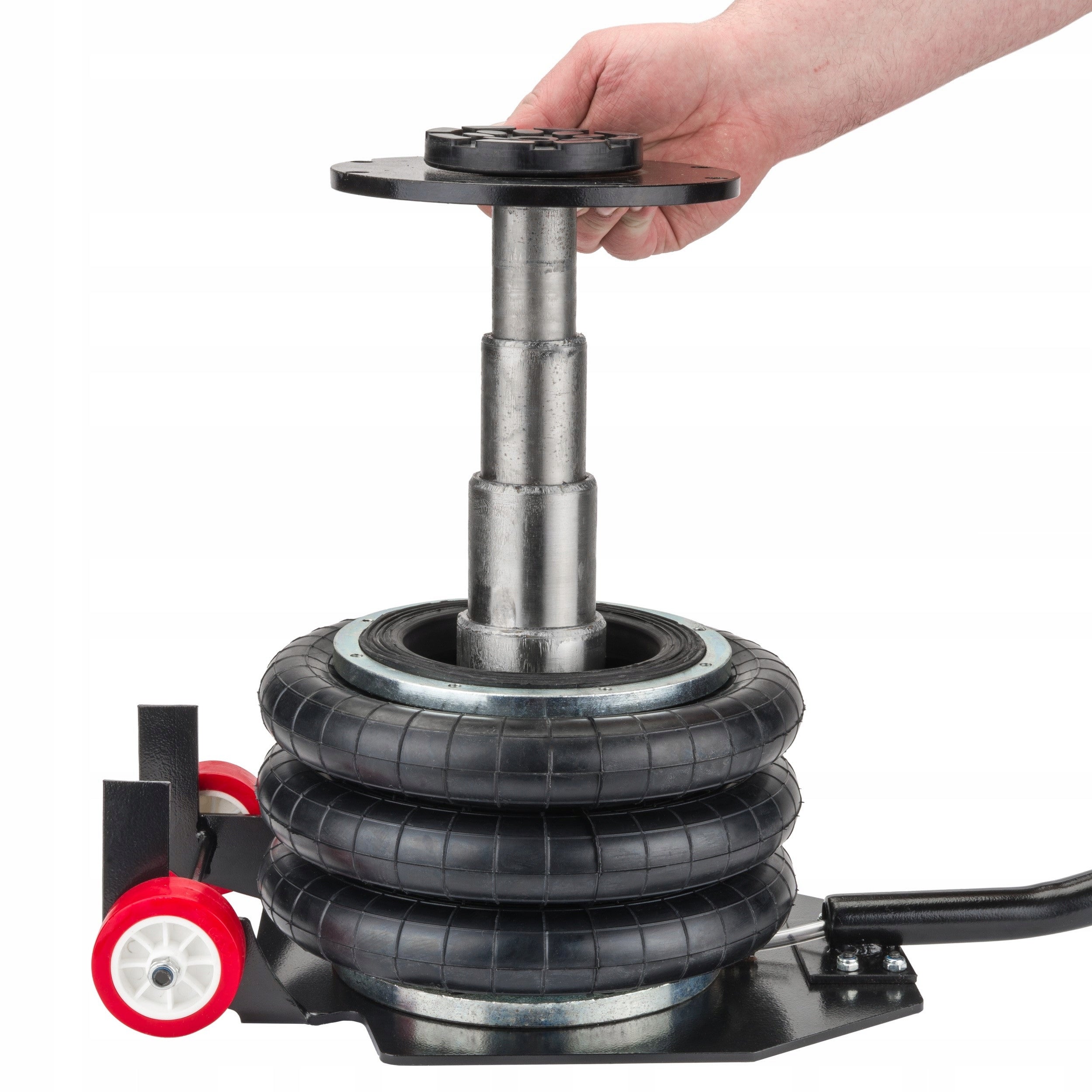

✅ 5-section telescope – stable handling during lifting

Inside the pillow, a centering telescopic insert consisting of up to 5 sections was used.

The diameters of each section are:

95 / 83 / 73 / 63 / 53 mm

► The cartridge is responsible for centering and guiding the structure when expanding the cushion.

► Multi-section construction allows for a wide range of work while maintaining a minimum height of 135 mm.

► Telescope supports stable handling of the structure during the operation of the lift.

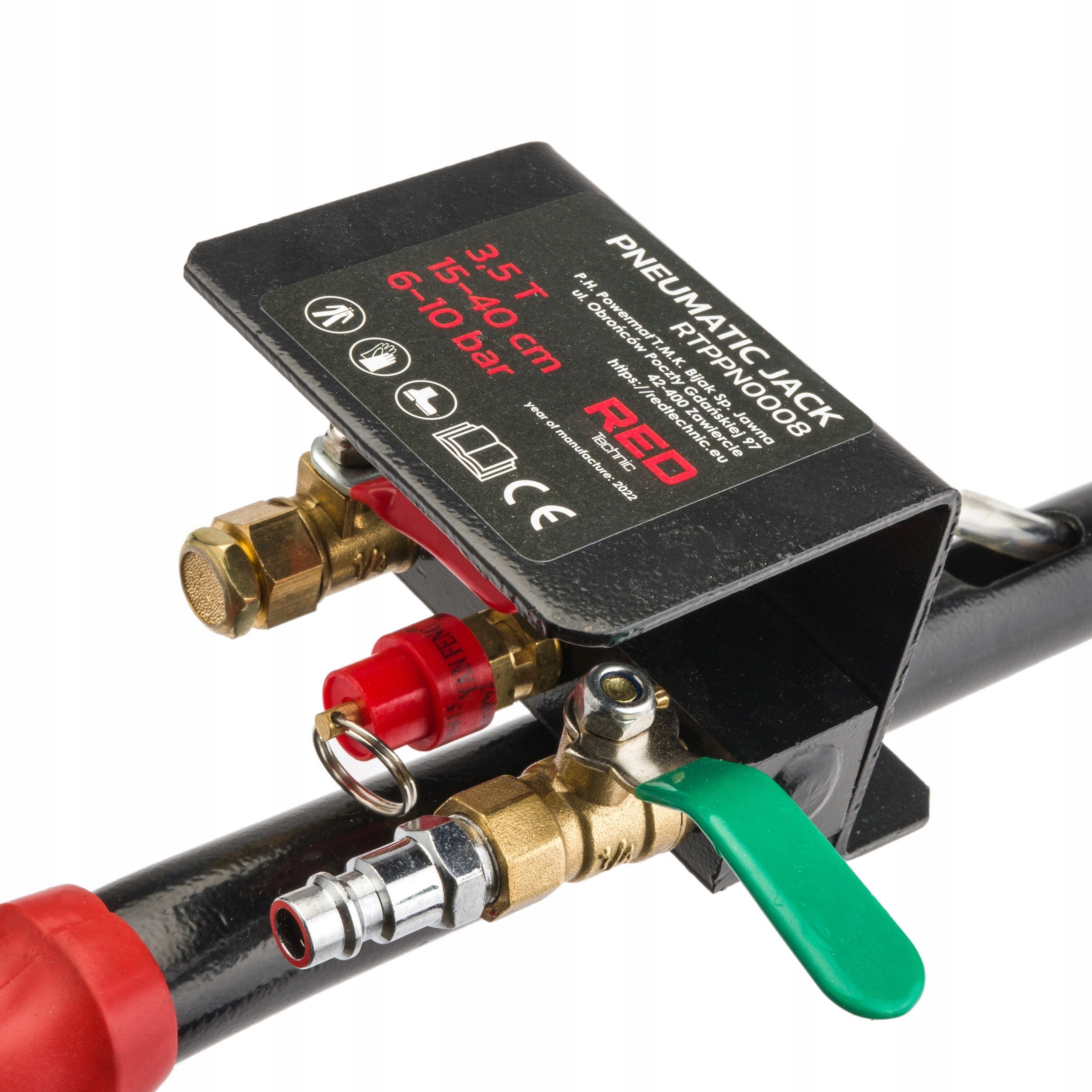

✅ 3 valves and copper safety valve – full control of the lift operation

MAPOWER MPBJ01 has 3 valves, which are responsible for controlling the flow of compressed air and protecting the pneumatic system:

► inlet valve – provides compressed air and is responsible for lifting,

► exhaust valve – allows controlled release of air and lowering,

► copper safety valve – protects the system against excessive pressure increase.

The MPBJ01 model uses a higher class safety valve made of copper, which provides high corrosion resistance, durability and precise operation of the element.

The safety valve is an important protection for the airbag – helps prevent excessive pressure increase that could lead to overloading or damage to the cushion and other components of the system.

This solution allows convenient control of lifting and lowering the vehicle, and at the same time increases safety and durability of the entire pneumatic system.

✅ High working pressure – up to 12 bar

The MAPOWER MPBJ01 lift has been adapted to work with compressed air in the range of 6 to 12 bar.

► Minimum working pressure: 6 bar

► Maximum working pressure: 12 bar

A wide range of pressure allows the use of a lift with a properly selected compressor or workshop pneumatic installation.

✅ 1/4" air connection – popular pneumatic standard

MAPOWER MPBJ01 is equipped with a 1/4" air connection, commonly used in workshop pneumatics.

Thanks to this, the lift can be easily adapted to a properly prepared pneumatic system or compressor.

Standard 1/4" connection increases the versatility of the device and facilitates its use.

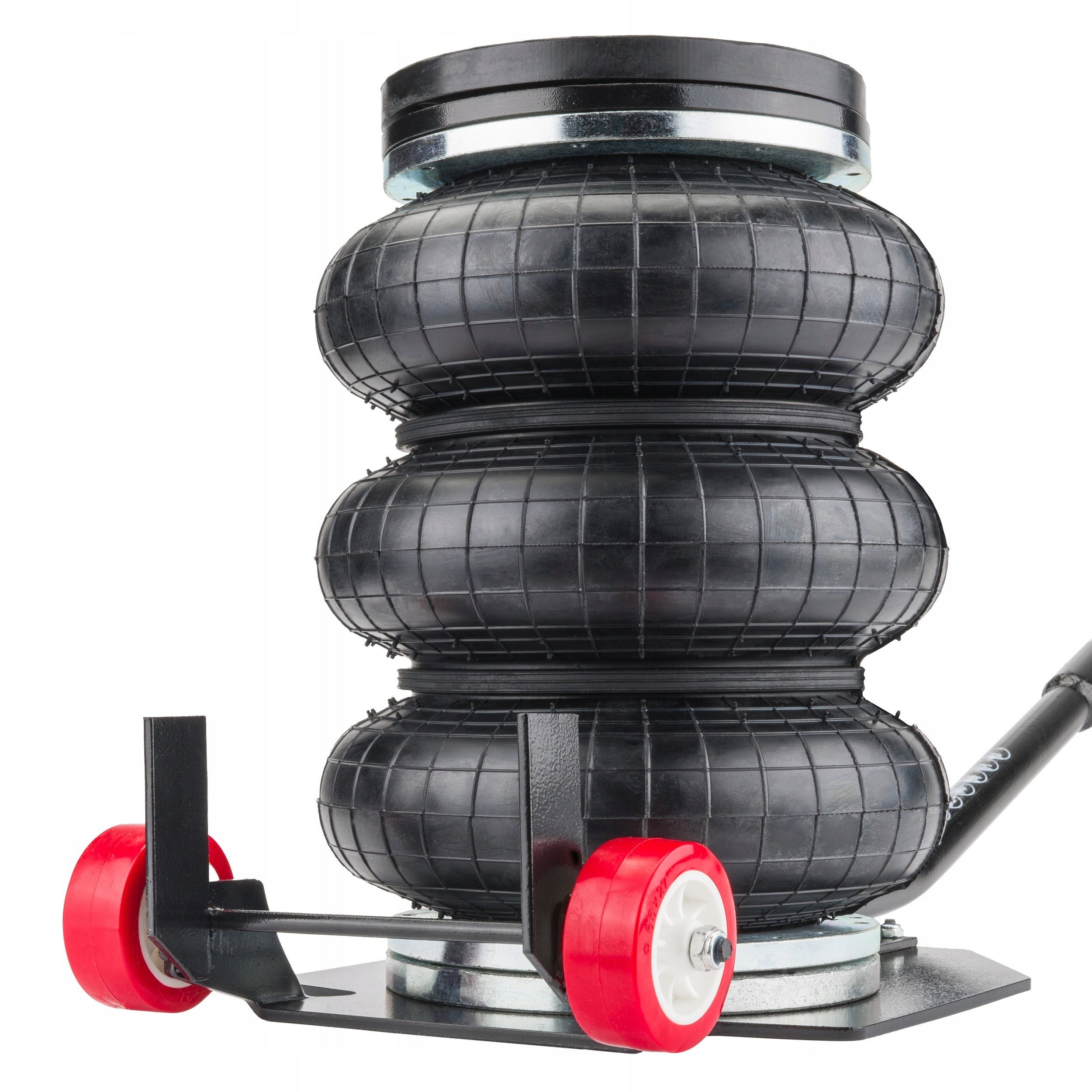

✅ Large airbag Ø265 mm

The heart of the lift is a pneumatic cushion with a diameter of 265 mm, which increases its height after supplying compressed air.

The cushion works with the 5-section telescopic insert, creating a mechanism responsible for lifting the vehicle.

You do not have to repeatedly pump the lever as in the case of a traditional lift – after connecting the appropriate compressed air source, the pneumatic system performs the work.

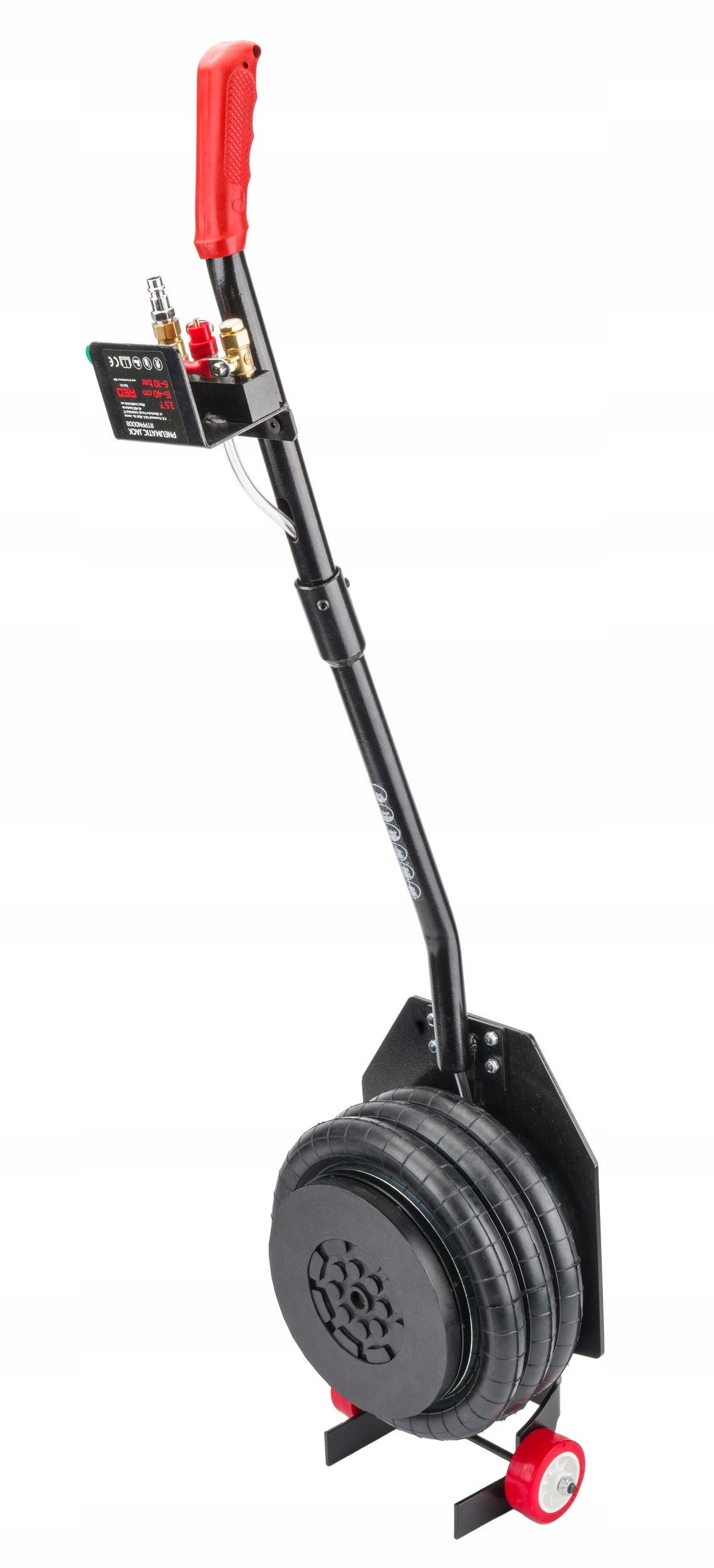

✅ Mobile design – convenient maneuverability and easy transport

The MAPOWER MPBJ01 lift is equipped with a handle from 74 cm long and transport wheels Ø60 mm, which make it easy to slide the device under the car, its positioning and movement around the workstation.

► The 74 cm long handle allows you to conveniently maneuver the lift and position it at the right vehicle support point.

► Wheels Ø60 mm make it easy to move the device around the workshop and slide it under the chassis.

► Weight 16.2 kg in combination with the handle and wheels makes the lift convenient to transport between stations and store after completion of work.

✅ Set includes:

• Pneumatic lifter MAPOWER MPBJ01
• Handle with valves
• Rubber protective cap
• Instructions for using in Polish
• Original manufacturer's packaging

❓ FAQ – Frequently Asked Questions

Does the MAPOWER MPBJ01 lift have a lifting capacity of 3.5 t?

Yes. The maximum lifting capacity of MAPOWER MPBJ01 is 3500 kg, or 3.5 tons. Do not exceed the maximum load of the device.

What is the minimum and maximum lifting height?

The lift operates in the range of from 135 to 430 mm. Before buying, it is worth checking the ground clearance of the car in the place where the lift will be inserted under the vehicle.

What compressor do I need for a pneumatic lift?

The most important thing is to ensure appropriate working pressure – for MAPOWER MPBJ01 it is 6 – 12 bar. The compressor tank capacity itself is not the only parameter determining the possibility of cooperation with the lift; the compressor performance parameters are also important. In the case of similar lifts, manufacturers also indicate primarily the required working pressure.

How does a snowman pneumatic lift work?

The compressed air supplied to the device fills the pneumatic cushion, causing it to expand and lift the vehicle. The release of air through the exhaust valve causes the lift to leave.

Does MAPOWER MPBJ01 have a safety valve?

Yes. In addition to the inlet and outlet valve, the device has a safety valve, which provides additional protection for the pneumatic system.

What connection does the lift have?

MAPOWER MPBJ01 has an air connection 1/4".

Is the lift suitable for low-hanging cars?

The minimum height of the device is 135 mm. Measure the ground clearance of a particular car and check that the lift can be positioned correctly under the designated support point.

Will the pneumatic lift work when replacing wheels?

Yes. Snowman pneumatic lifts are commonly used when operating wheels and tires, which is why they are popular equipment for car workshops and vulcanization services.

Can you get under a car lifted only on a lift?

No. The lifter is used to lift and lower the vehicle, not as the only protection of the car when working under it. After lifting the vehicle, appropriate workshop supports should be used in accordance with safety rules. Such a recommendation is also included in the materials for other pneumatic jacks of this type.

What substrate should I use the lift on?

The lift should be used on hard, stable and even ground. Before starting lifting, you should also make sure that the device is at the correct vehicle support point.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	16.2 kg
Parametry	Brand	MAPOWER
Parametry	Manufacturer code	MPBJ01r2
Parametry	EAN (GTIN)	5906815322595
Parametry	Lifting capacity	3500 kg
Parametry	Minimum lifting height	135 mm
Parametry	Maximum lifting height	430 mm
