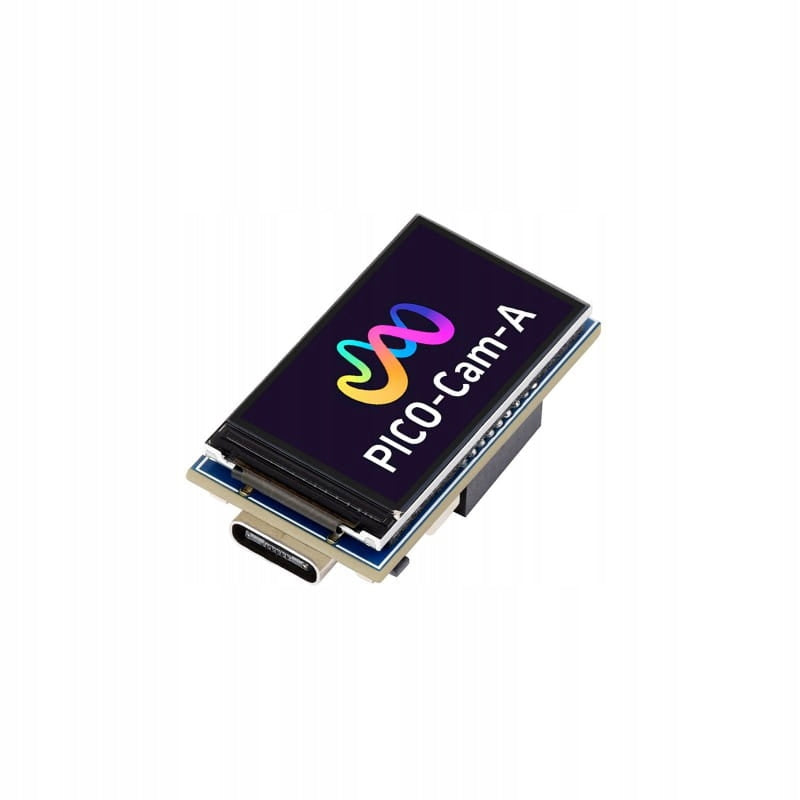

Plėtros plokštė PICO-CAM-A RP2040 su Corex M0, kamera ir 1.14" LCD

Trumpai apie prekę

Prekė: Plėtros plokštė PICO-CAM-A RP2040 su Corex M0, kamera ir 1.14" LCD. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: PICO-Cam-A Waveshare 26379

PICO-CAM-A RP2040 development board with Corex M0+ processor built-in camera and LCD display 1.14" 240x135

⭐The PICO-CAM-A development board represents a new generation of development boards, integrating the advanced microcontroller RP2040 from Raspberry Pi, equipped with the processing power necessary to process and analyze images in real time. This device is designed for a wide range of applications, from simple hobby projects to advanced embedded systems. The central point of the board is the HM01B0 camera, which enables the capture of grayscale images , ideal for applications where motion detection, pattern recognition or computer vision tasks are crucial. Additionally, the 1.14-inch IPS LCD display with a resolution of 240×135 pixels provides a clear and colorful image, allowing users to instantly verify captured images and interact with the device.

⭐PICO-CAM-A also offers versatile connectivity with connector USB-C and support for USB 1.1 as a device and host, allowing for easy communication with computers and other devices. High performance, flexibility and ease of use make this board an excellent choice for professionals and electronics enthusiasts.

- Inner mesh panties

• ✅Microcontroller: RP2040, designed by Raspberry Pi, UK.
• ✅Processor: Dual-core Arm Cortex M0+ 133MHz.
• ✅RAM: 264KB.
• ✅Flash memory: 16MB.
• ✅Connection: USB-C.
• ✅Camera: HM01B0, grayscale.

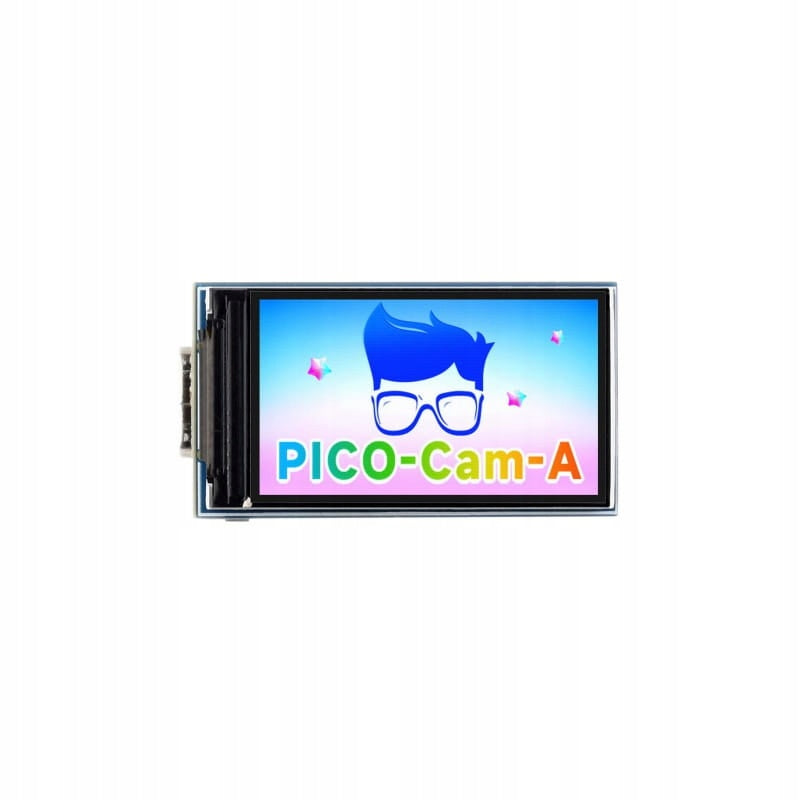

• ✅Display: IPS LCD, 1.14 inch, 240×135, 65K colors.
• ✅USB: Version 1.1, device and host support.
• ✅Energy-saving modes: Sleeping and Dormancy.
• ✅Programming: Drag and drop via USB.
• ✅GPIO: 13 multifunction pins.
• ✅Time and temperature: Clock, timer, temperature sensor.
• ✅PIO: 8 programmable I/O status machines to support custom peripherals.
• ✅Supported programming languages: C/C++.
• ✅Additional resources: Rich SDK, development resources and tutorials.

Product Properties:

• ✅Real-time image capture and analysis.
• ✅ Pattern recognition and motion detection with a grayscale camera.
• ✅Display data and images on a high-quality IPS screen.
• ✅Development of IoT applications using advanced USB communication functions.
• ✅Create custom interfaces and peripherals with programmable I/O status machines and versatile GPIO pins.

⭐ Built-in camera

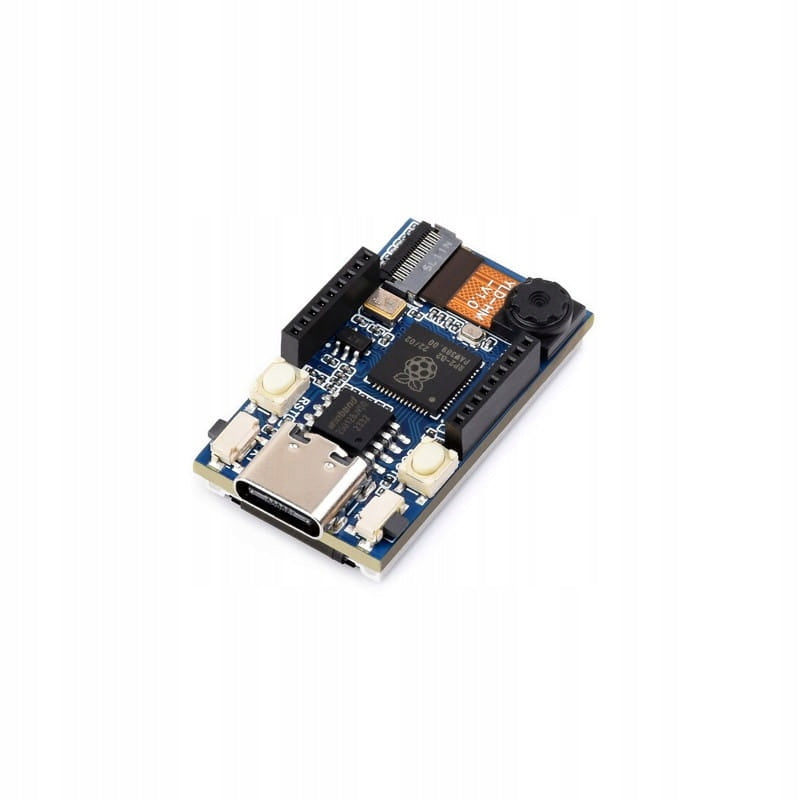

⭐Construction of the module:

1. USB Type-C connector
2. User button
3. BOOT button
4. Reset button
5. GPIO Pins
6. RP2040
7. Grayscale camera HM01B0
8. W25Q128
9. 1,14 inch LCD Display

▶ Set includes:

1. Development Board PICO-CAM-A RP2040 x1
