Plėtimo plokštė Raspberry su 4G SIM7600G-H moduliu

Trumpai apie prekę

Prekė: Plėtimo plokštė Raspberry su 4G SIM7600G-H moduliu. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: 17372

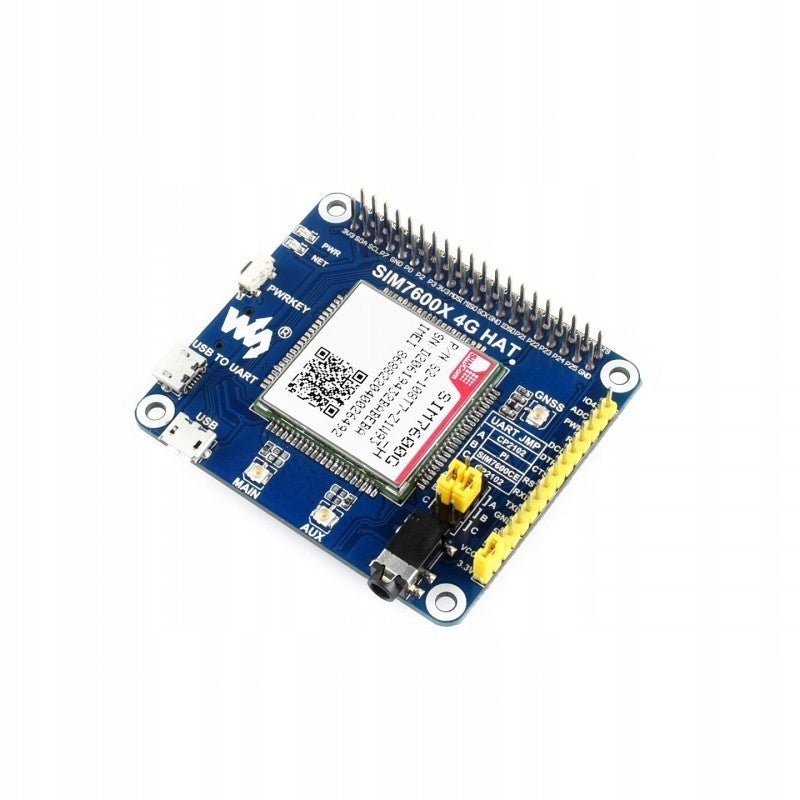

HAT overlay with 4G SIM7600G-H module for Raspberry Pi

Description

Communication module 4G/3G/2G and positioning GNSS . It supports LTE CAT4 standard and allows downloading data at speeds up to 150 Mb/s. The module allows you to make phone calls, support SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP. It has support for positioning GPS base stations, BeiDou, Glonass, LBS.

The module can be connected, e.g. to Raspberry Pi to provide features such as high-speed 4G connection, wireless communication, making phone calls, sending SMS or global positioning.

Properties

• Standard Raspberry Pi 40-pin connector, supports Raspberry Pi, Jetson Nano, STM32, Arduino series boards
• Supports phone calls, phone calls, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, LBS base station positioning
• Built-in USB interface for testing AT commands, obtaining GPS positioning data
• Built-in USB to UART CP2102 converter
• SIM card slot, supports 1,8V/3V SIM card
• microSD card slot
• Built-in audio jack and audio decoder
• Indicator LEDs
• Built-in voltage translator (operating voltage can be configured with jumper at 3,3V or 5V)
• Baudrate: 300 bps to 4 Mbps (default: 115200 bps)
• Automatic transmission rate: 9600 bps to 115200 bps
• Control by AT commands (3GPP TS 27.007, 27.005 and V.25TER command set)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

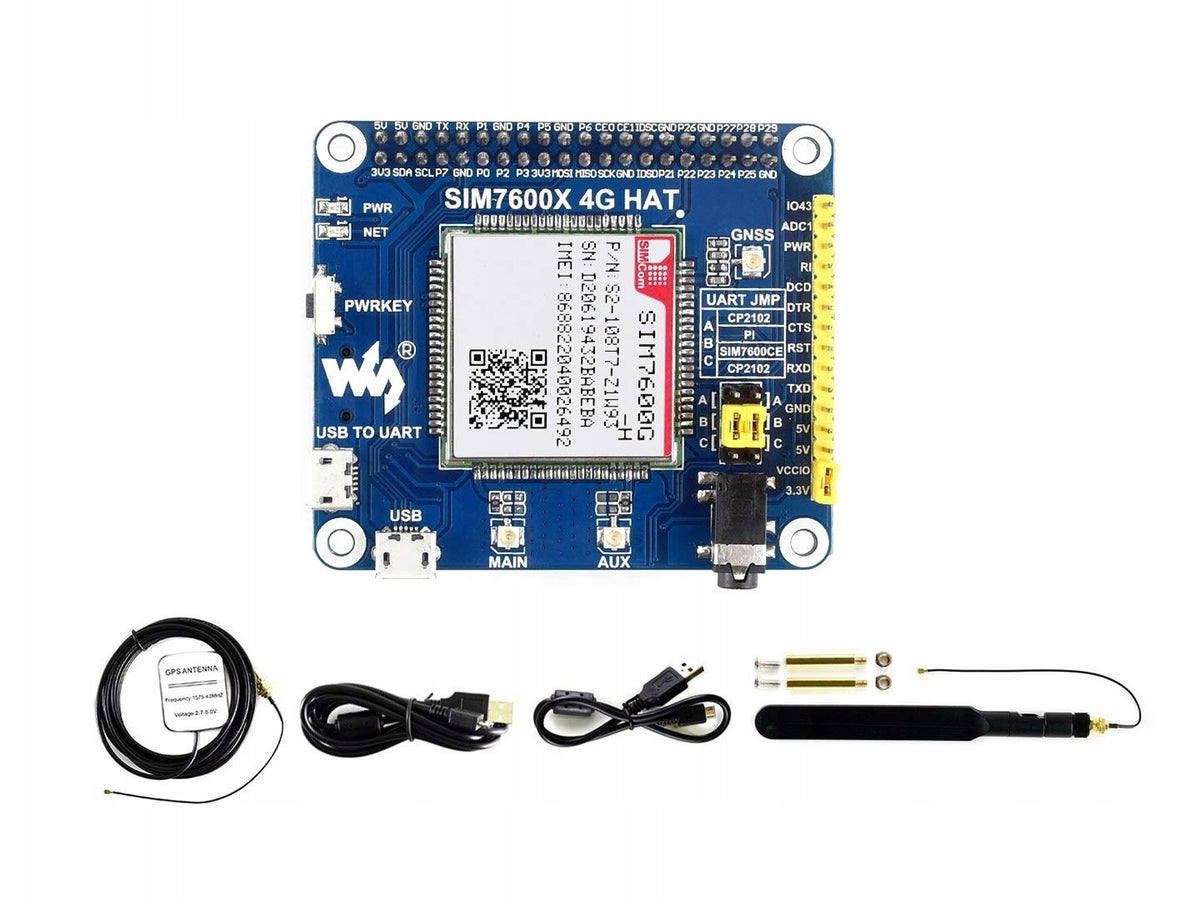

Comes with

• SIM7600G-H 4G HAT
• LTE antenna
• External GPS Antenna (B)
• 2 x USB Type-A to microB cable (35 cm and 120 cm)
• Set of screws (2 pcs. )

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	17372
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5906623424344
Parametry	Batteries included	no
